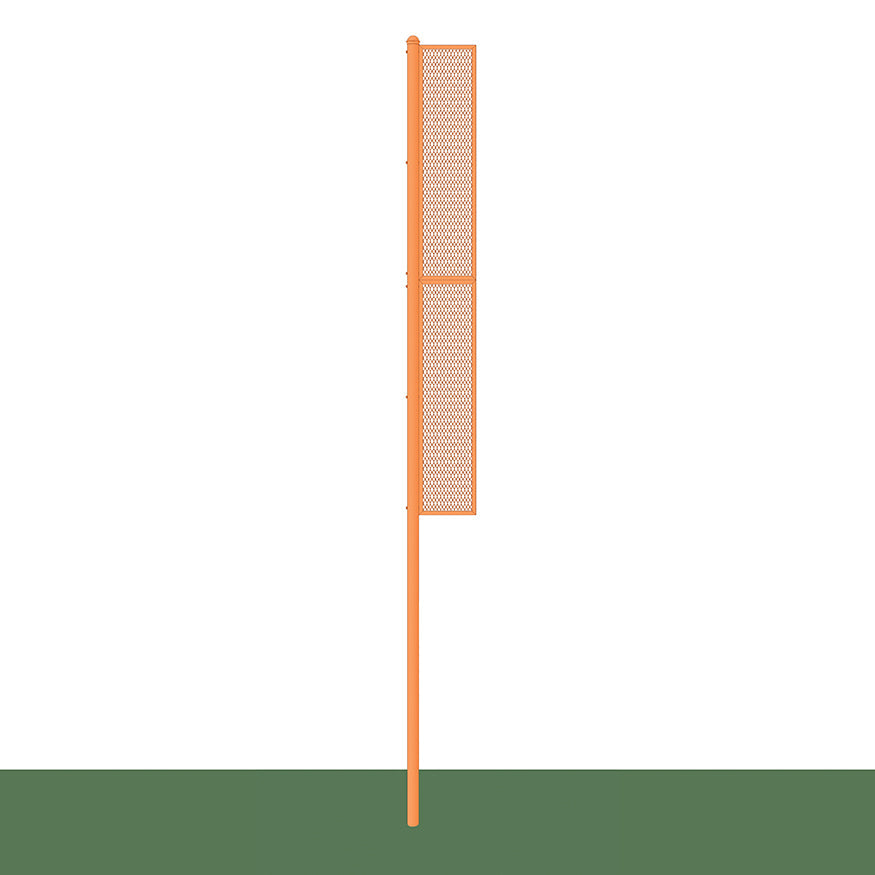

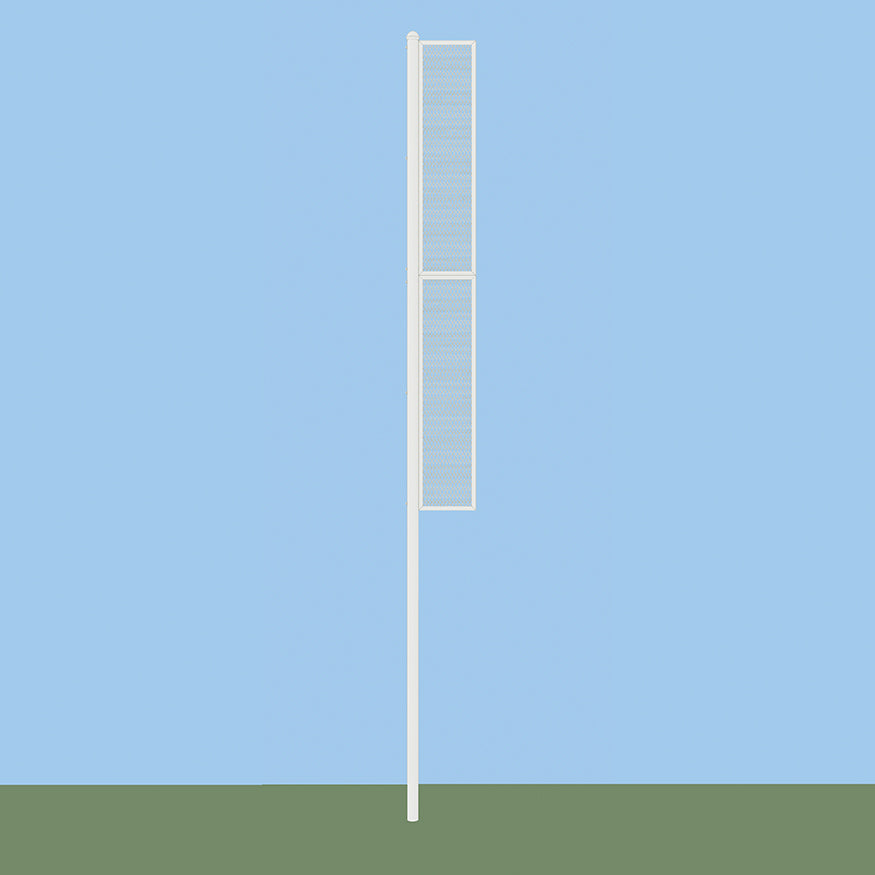

Jaypro Foul Poles - 20 ft. - Softball (Collegiate) (Semi-Permanent) Jaypro

Jaypro Foul Poles - 20 ft. - Softball (Collegiate) (Semi-Permanent)

See more by Jaypro

$3,038.00 - $3,038.00

$3,038.00

$3,038.00 - $3,038.00

$3,038.00

In stock

SKU: SBCFP-200-WT

Quantity

Product Overview

In short

This 20 ft. Collegiate Softball Foul Pole features a heavy-duty 3-1/2" O.D. steel main post and a 12' high x 18" wide all steel expanded metal wing panel. It boasts a tough powder-coated finish with a galvanized undercoat and is designed for permanent installation, with the main post buried 45" below ground.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

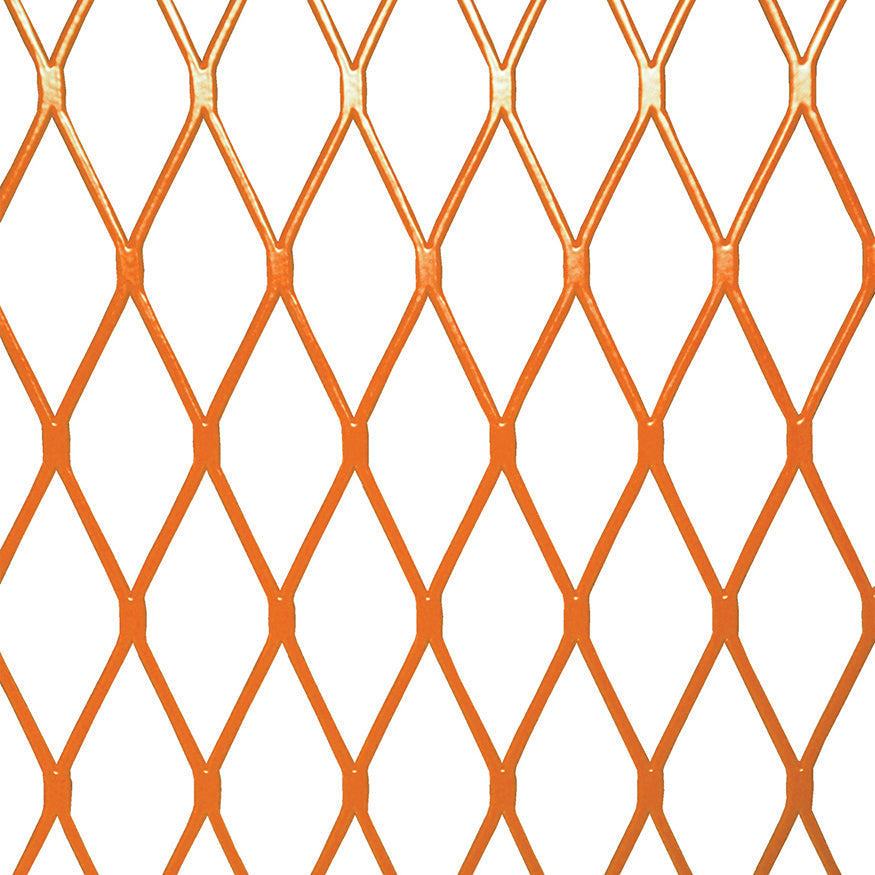

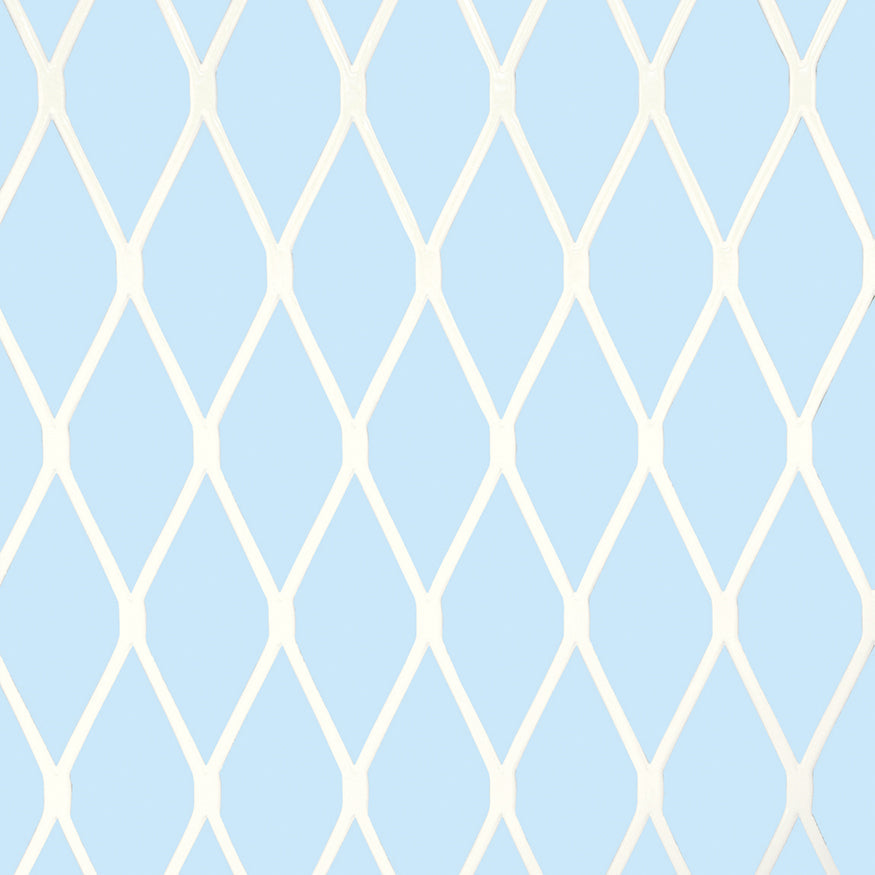

The Jaypro SBCFP-200 is a 20 ft. Collegiate Softball Foul Pole constructed with a heavy-duty 3-1/2" O.D. steel main post and a 12' high x 18" wide wing panel made from all steel expanded metal. This foul pole features one-piece construction.

Designed for permanent installation, the main post is intended to be buried 45" below ground level. It features a tough powder-coated color finish with a galvanized undercoat, available in White (SBCFP-200-WT) and Orange (SBCFP-200-OR).

Installation instructions specify placing concrete 2" below ground level, with crush stone or block extending 6" below the concrete. The manufacturer recommends reinforcing the footing with 6 pieces of 46" rebar. The foul pole panel is designed to align with the outfield fence, with the outside of the foul pole flush with the outside of the foul line.

Specifications

Specification	Value
Model Code	SBCFP-200
Pole Height	20'-0'
Main Post Material & Diameter	Heavy Duty 3-1/2" Steel O.D.
Wing Panel Material	All Steel Expanded Metal
Wing Panel Dimensions	12' High x 18" Wide
Construction	One Piece Construction
Installation Type	Permanently Installed
Finish	Tough Powder Coated Color Finish with Galvanized Under Coat
Available Powder Coated Colors	White, Orange
Model Code (White)	SBCFP-200-WT
Model Code (Orange)	SBCFP-200-OR
Main Post Burial Depth	45"
Concrete Level	2" Below Ground Level
Crush Stone / Block Depth	6"
Footing Reinforcement Recommendation	6 pieces of 46" rebar
Origin	Made in USA
Ship Weight	317 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

12 ft. Surface Mount	12 ft. In-Ground	15 ft.	20 ft. THIS	30 ft.
Overall Height 12 ft.	Overall Height 12 ft.	Overall Height 15 ft.	Overall Height 20 ft.	Overall Height 30 ft.
Main Post 3-1/2 in. O.D. heavy-duty steel tube	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 4.00 in. 8 ga. top / 4.50 in. 7 ga. Flo-Coat steel
Construction One piece	Construction One piece	Construction One piece	Construction One piece	Construction Top and bottom post sections
Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 12 ft. H	Wing Panel Size 18 in. W x 18 ft. H
Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal
Installation Type Surface mount w/ adjustable leveling plate	Installation Type Permanent or semi-permanent in-ground	Installation Type Permanent or semi-permanent in-ground	Installation Type Permanent in-ground, 45 in. post burial	Installation Type Permanent, anti-rotational hardware
Ground Sleeve —	Ground Sleeve Optional FPS-12	Ground Sleeve Optional FPS-12	Ground Sleeve —	Ground Sleeve —
Recommended Footing Concrete footing over crushed stone or block	Recommended Footing 36-42 in. deep x 24 in. wide; 6 pcs 34 in. rebar	Recommended Footing Concrete over crushed stone per spec drawing	Recommended Footing 6 in. crushed stone; 6 pcs 46 in. rebar	Recommended Footing 6 pcs 46 in. rebar
Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange
Origin —	Origin Made in USA	Origin —	Origin Made in USA	Origin Made in USA
Ship Weight	Ship Weight 192 lbs	Ship Weight	Ship Weight 317 lbs	Ship Weight 724 lbs
Best for Fields needing a 12 ft. foul pole bolted to an existing concrete pad.	Best for Youth and recreational softball fields wanting an in-ground 12 ft. pole.	Best for High school programs wanting added height with optional sleeve removal.	Best for Competitive collegiate fields needing a tall 12 ft. sighting panel.	Best for Championship-level venues requiring maximum height and visibility.
$3,016.00	$2,086.00	$2,390.00	$3,038.00	$5,388.00
Check ›	Check ›	Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is the overall height of the foul pole?

The foul pole is 20'-0" high.

What material is used for the main post and wing panel?

The main post is heavy-duty 3-1/2" O.D. steel, and the wing panel is all steel expanded metal.

What are the available color options and their model codes?

The foul pole is available in White (SBCFP-200-WT) and Orange (SBCFP-200-OR), featuring a tough powder-coated finish with a galvanized undercoat.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
