Product Overview

In short

The Douglas Hitting Station System is a stand-alone 10 ft. high pole-and-netting frame designed to be placed alongside a batting tunnel, available in a 55' (2-pole) or 70'/75' (3-pole) configuration. It uses 4 in. square steel poles, a 1/4 in. galvanized steel cable, and loose-hung 3.5 mm knotless polypropylene netting with a 325 lb. break strength to absorb ball impact.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

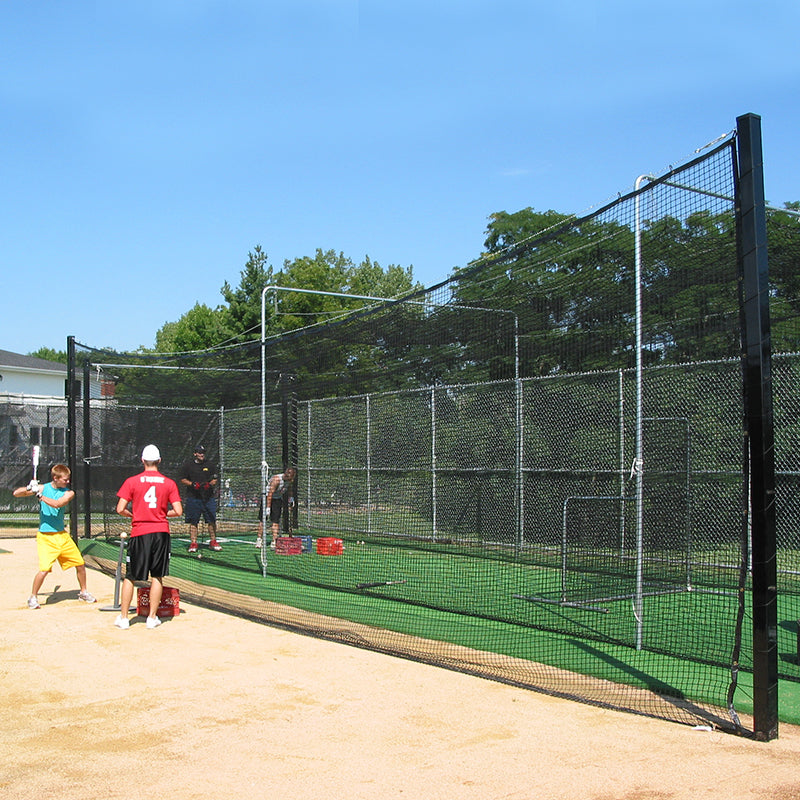

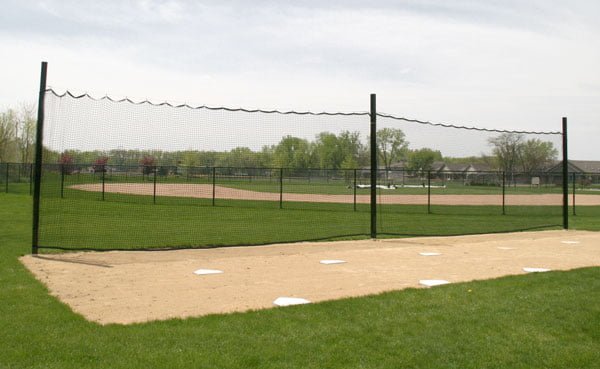

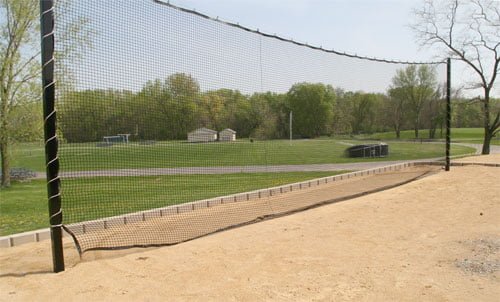

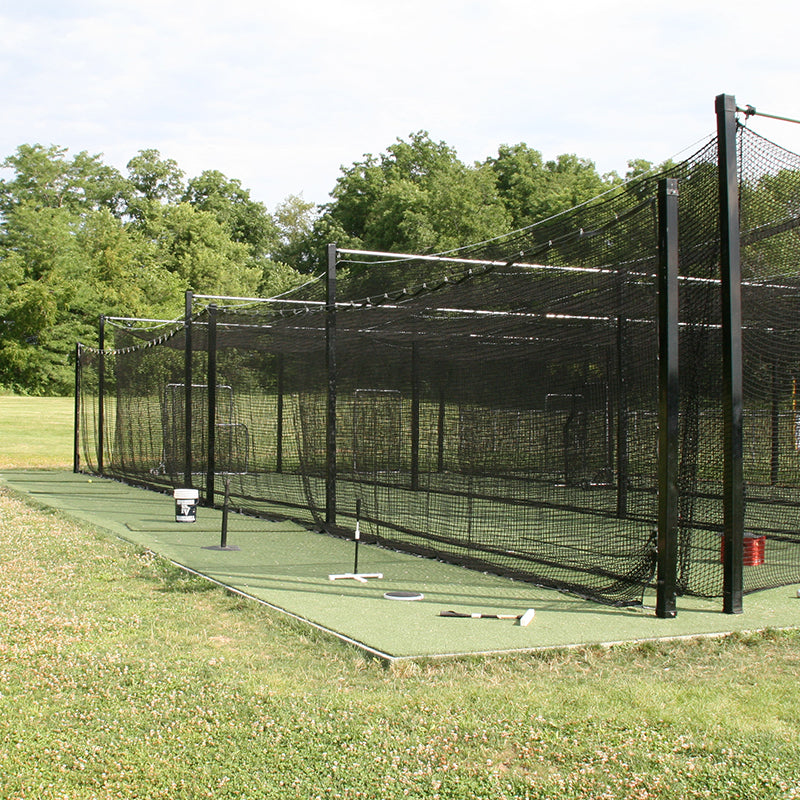

The Douglas Baseball/Softball Hitting Station System is a stand-alone 10 ft. high frame intended for use alongside an existing batting tunnel, giving players additional hitting stations before or after their turn in the cage. Impact netting hangs loose between the poles to absorb ball impact and prevent rebound.

The frame is built from 4 in. square heavy-duty steel poles with a black powder coat finish for weather resistance. The 13 ft. poles are installed into 3 ft. deep ground sleeves, and netting is suspended between poles using a 1/4 in. galvanized steel cable.

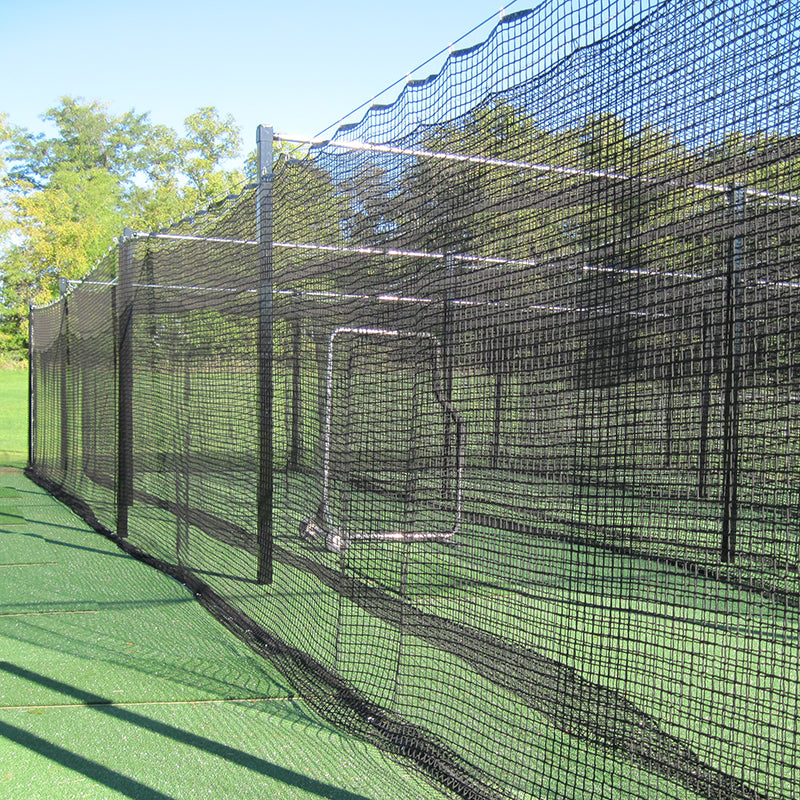

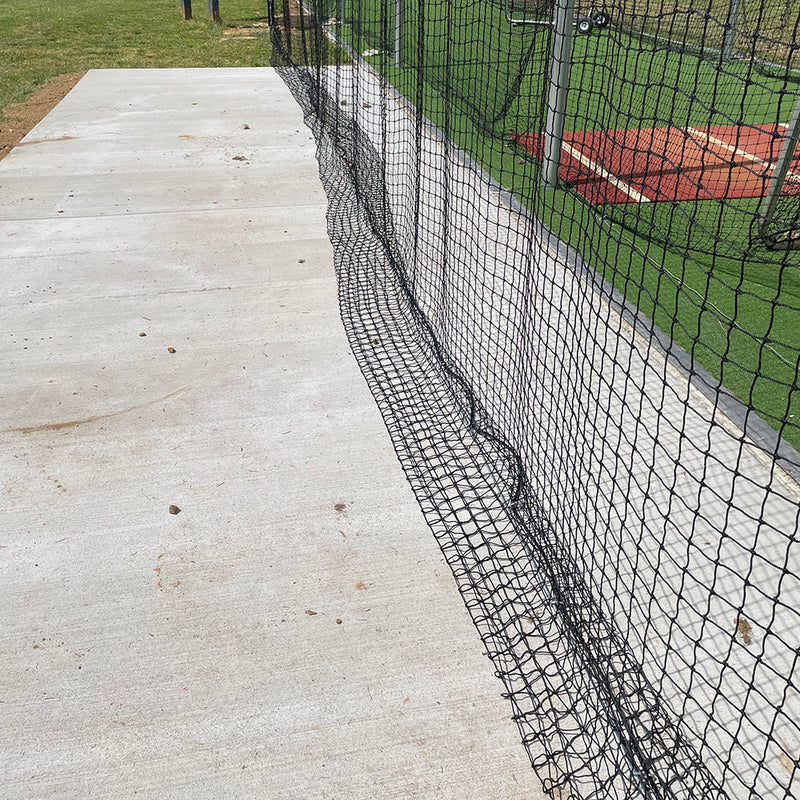

The high-impact netting is fabricated from black 3.5 mm knotless polypropylene (Pylon) with a 1-3/4 in. square mesh and a reinforced rope border, extruded to resist UV rays, mold and mildew, with a 325 lb. break strength. Customers can choose a 55' system with 2 poles or a 70'/75' system with 3 poles; the complete system ships with all hardware needed for installation, including cable, turnbuckles, c-snaps, collars and ground sleeves.

Specifications

Specification	Value
Available options	55' system (2 poles), 70'/75' system (3 poles)
Post	4 in. square heavy-duty steel poles, black powder coat finish
Post Length	13 ft., installed into 3 ft. deep ground sleeves
Height	10 ft. high hitting station
Cable	1/4 in. galvanized steel cable
Netting Material	Black 3.5 mm knotless polypropylene (Pylon)
Mesh Size	1-3/4 in. square mesh
Border	Reinforced rope border
Break Strength	325 lb.
Included Hardware	Cable, turnbuckles, c-snaps, collars and ground sleeves
Category	Batting Cages/Tunnels

Compare Douglas models

6x4 Varsity	7x7 Varsity	10x10 Varsity	Impact Nets	Hitting Station THIS
Product Type Portable framed protective screen	Product Type Portable framed protective screen	Product Type Portable framed protective screen	Product Type Replacement impact net (no frame)	Product Type In-ground hitting station system
Size 6 ft. H x 4 ft. W	Size 7 ft. H x 7 ft. W	Size 10 ft. H x 10 ft. W	Size 12 ft. x 12 ft. or 12 ft. x 14 ft.	Size 10 ft. H; 55 ft. (2 poles) or 70/75 ft. (3 poles)
Frame / Post Material 1.5 in. powder coated steel	Frame / Post Material 1.5 in. powder coated steel	Frame / Post Material 1.5 in. powder coated steel	Frame / Post Material —	Frame / Post Material 4 in. square steel posts, black powder coat
Assembly / Installation Bolt together; fits pickup bed without disassembly	Assembly / Installation Bolt together	Assembly / Installation Bolt together	Assembly / Installation Hangs with C-snaps or spring links	Assembly / Installation 13 ft. posts set in 3 ft. deep ground sleeves
Netting UV treated #60 knotted netting	Netting #60 knotted net, UV weather treated	Netting UV treated #60 knotted net	Netting Black HTPP knotless, 3.5 mm twine, UV resistant	Netting Black 3.5 mm knotless polypropylene (Pylon)
Mesh Size —	Mesh Size —	Mesh Size —	Mesh Size 1-3/4 in. square mesh	Mesh Size 1-3/4 in. square mesh
Break Strength —	Break Strength —	Break Strength —	Break Strength 325 lb.	Break Strength 325 lb.
Net Attachment —	Net Attachment Slips over frame, pillow-case style	Net Attachment Slips over frame, pillow-case style	Net Attachment C-snaps or spring links	Net Attachment 1/4 in. galvanized cable with c-snaps and collars
Reinforcement / Border Added gusset on each leg	Reinforcement / Border Gusset welded onto each leg	Reinforcement / Border Welded gusset on each leg	Reinforcement / Border Rope border	Reinforcement / Border Reinforced rope border
Hardware & Accessories Optional wheel kit	Hardware & Accessories Optional wheel kit	Hardware & Accessories Optional wheel kit	Hardware & Accessories —	Hardware & Accessories Cable, turnbuckles, c-snaps, collars, ground sleeves
Ship Weight	Ship Weight	Ship Weight	Ship Weight 7 lbs	Ship Weight
Best for Coaches who need a compact screen that travels in a pickup bed.	Best for Teams wanting an all-purpose pitcher and fielder protection screen.	Best for Programs needing maximum portable coverage for bullpens and drills.	Best for Facilities replacing worn impact netting in existing cages or stations.	Best for Schools and clubs building permanent multi-station hitting areas.
$258.70	$297.70	$466.70	$99.00	$3,999.00
Check ›	Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What sizes are available for the Hitting Station System?

It is available as a 55' system with 2 poles or a 70'/75' system with 3 poles.

What is included in the complete system?

The system includes all hardware needed for installation: cable, turnbuckles, c-snaps, collars and ground sleeves.

What material is the netting made from and how strong is it?

The netting is black 3.5 mm knotless polypropylene (Pylon) with a 1-3/4 in. square mesh and a reinforced rope border, boasting a 325 lb. break strength to absorb heavy ball impact.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
