Douglas® Classic Baseball & Softball Batting Tunnel Frames Douglas

Douglas® Classic Baseball & Softball Batting Tunnel Frames

See more by Douglas

$6,499.00 - $6,499.00

$6,499.00

$6,499.00 - $6,499.00

$6,499.00

In stock

SKU: 66216

Product Overview

In short

The Douglas Classic Batting Tunnel Frame is a heavy-duty steel frame system built from 14 ft, 4-inch square poles with a black powder coat finish, designed for custom batting tunnel installations up to 75 ft long and 14 ft wide. It uses a 1/4 in. galvanized aircraft cable system with 6,100 lb. break strength and comes in single, double, or triple shared-pole configurations; nets are sold separately.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

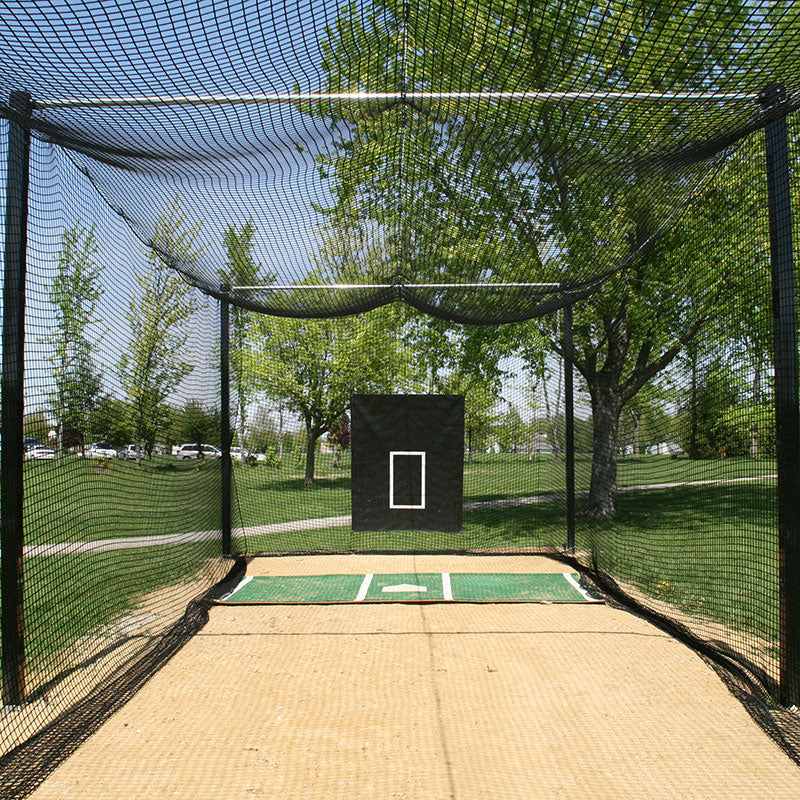

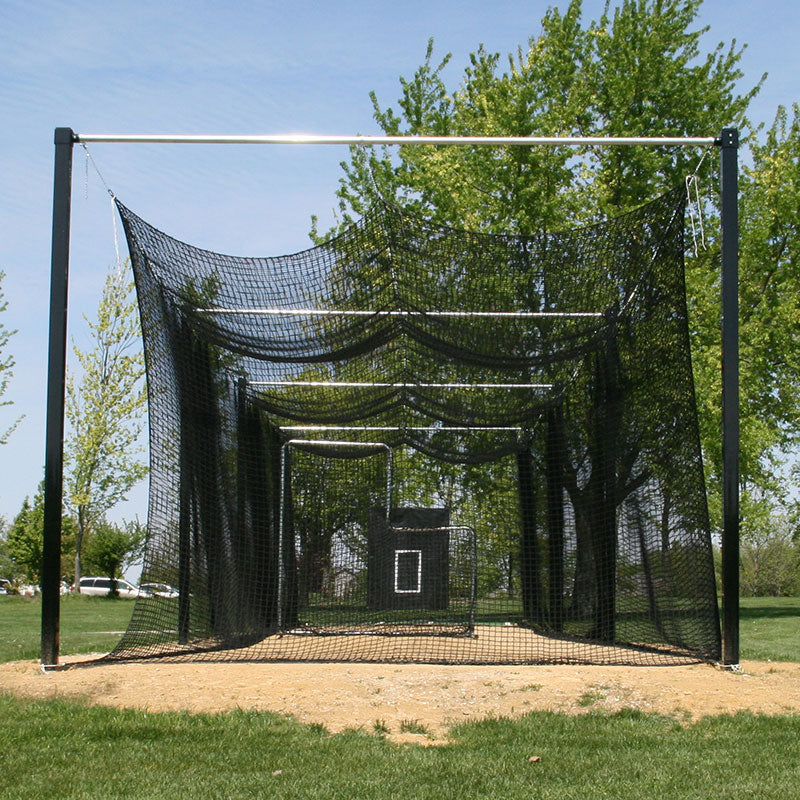

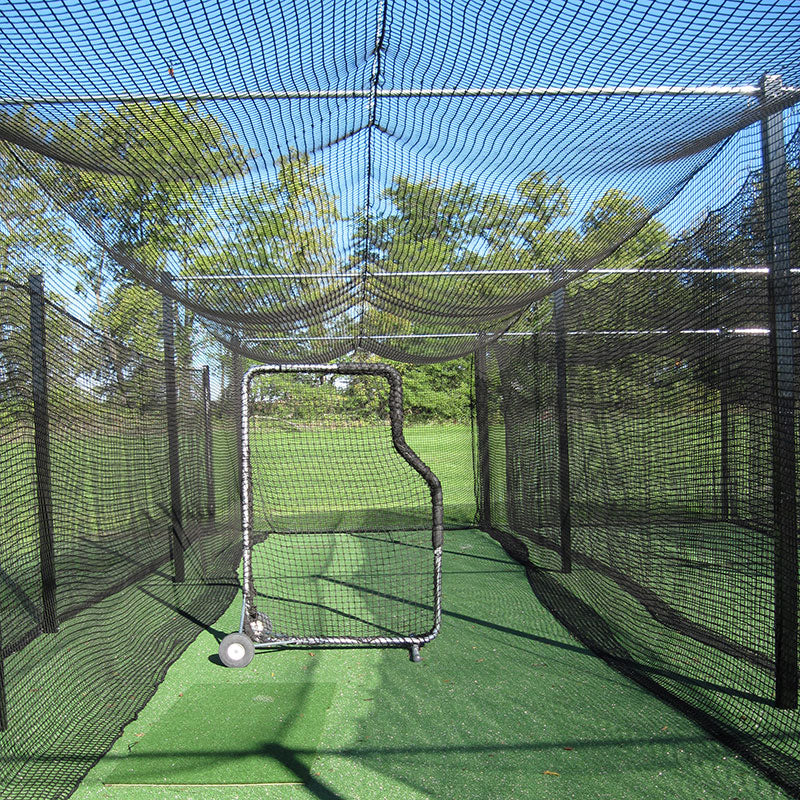

The Douglas Classic Baseball & Softball Batting Tunnel Frame is a proven design manufactured for over 30 years, built from six 14 ft, 4-inch square heavy-duty steel poles finished in black baked-on powder coat for weather resistance. The frame width is reinforced with 2-3/8 in. OD, 7-gauge galvanized steel crossbars that use Allied's zinc Flo-coat galvanization process for added protection.

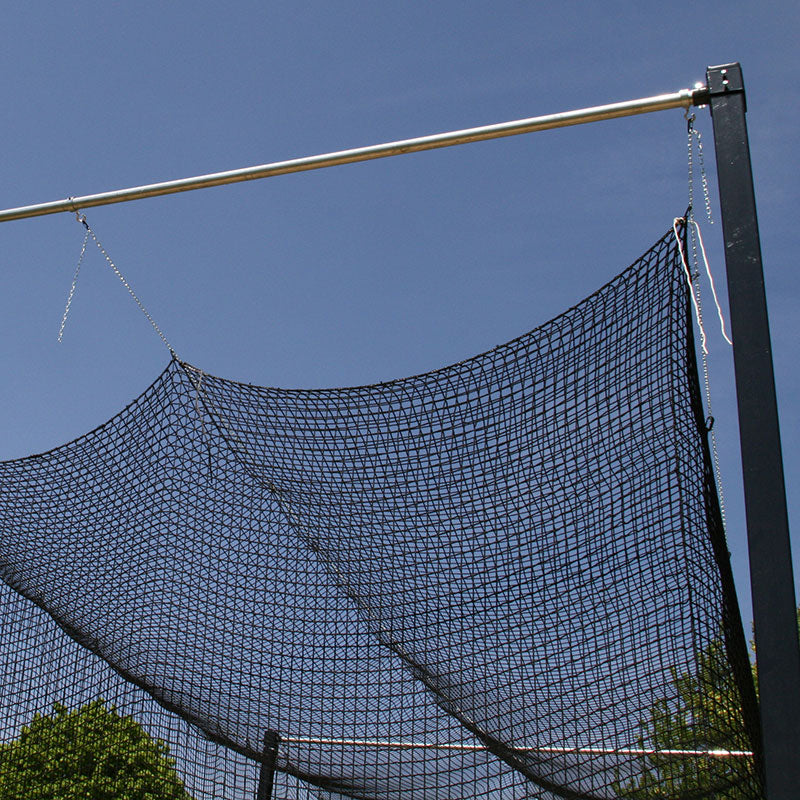

Poles are set in 4 in. square, 24 in. aluminum ground sleeves, allowing for a maximum installed net height of 12 ft, with pole length adjustable to fit custom net widths and standard tunnel lengths of 55, 70, or 75 feet and widths of 12 or 14 feet. The support system uses 1/4 in. galvanized aircraft cable with a 6,100 lb. break strength running the length of the tunnel, along with quick links, turnbuckles, cable clamps, and carabiner clips for net attachment.

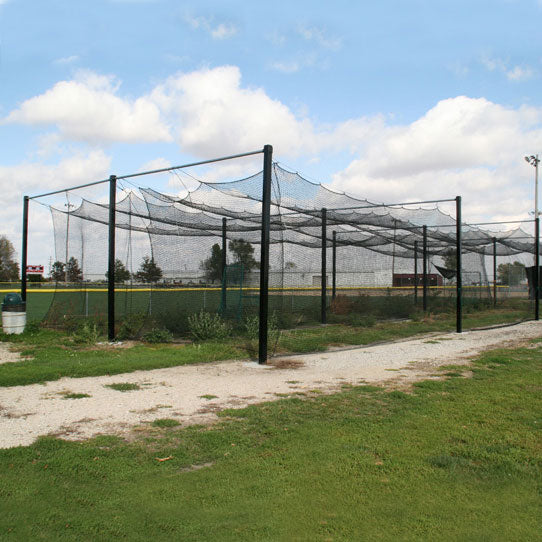

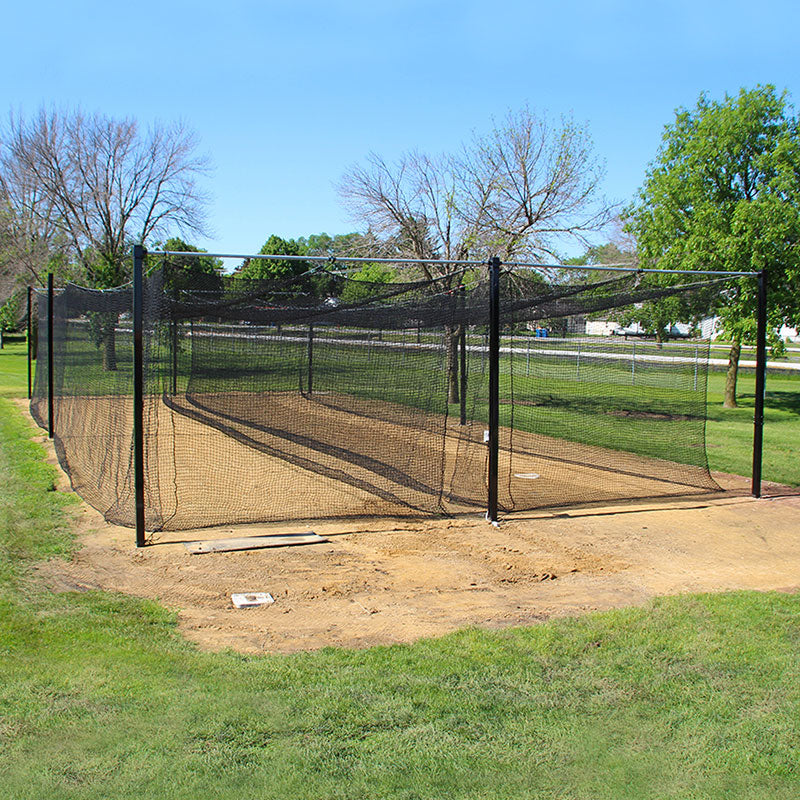

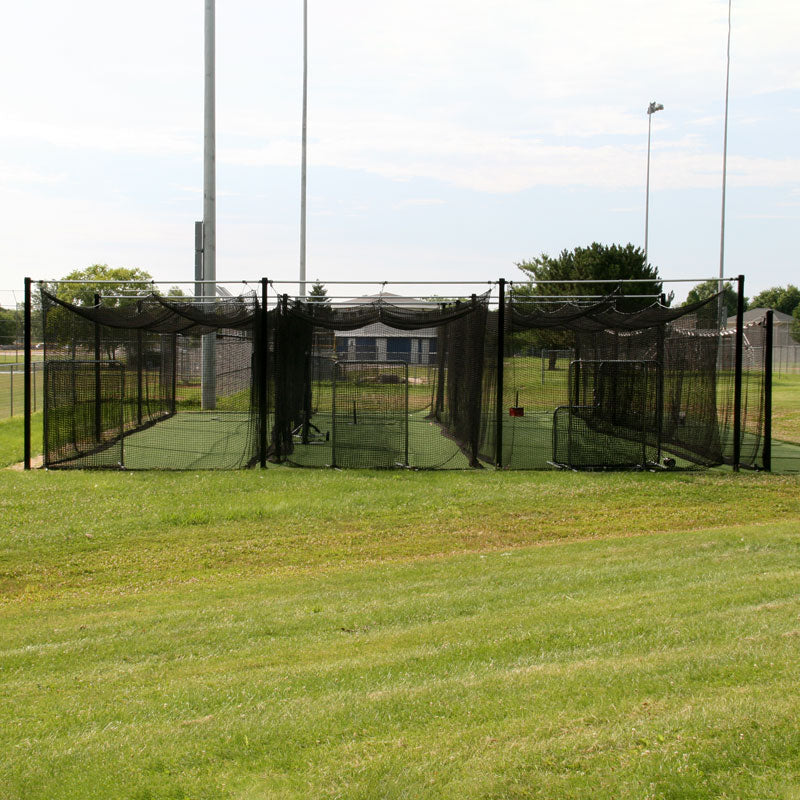

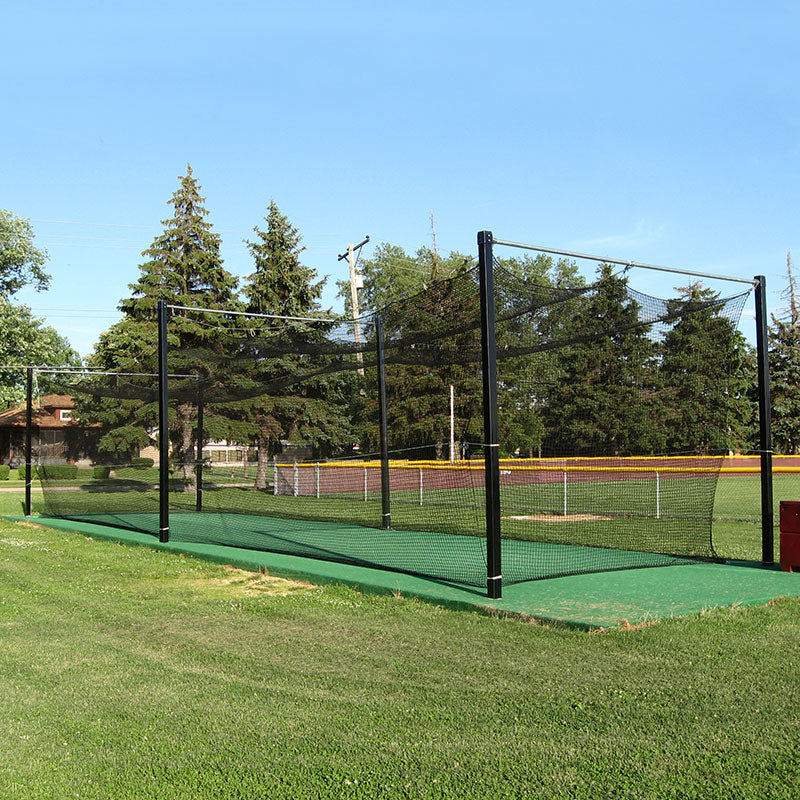

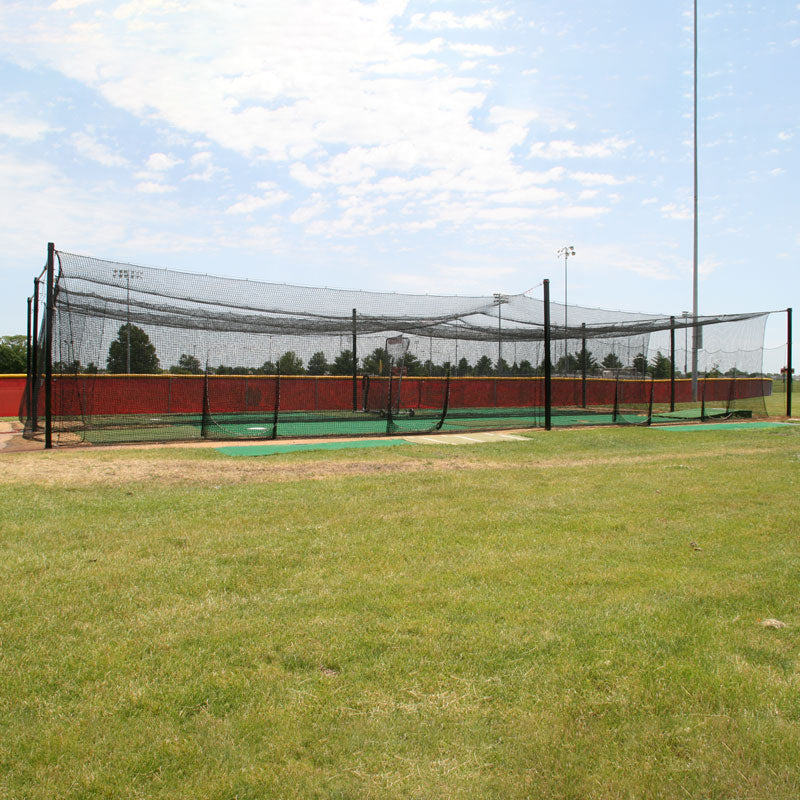

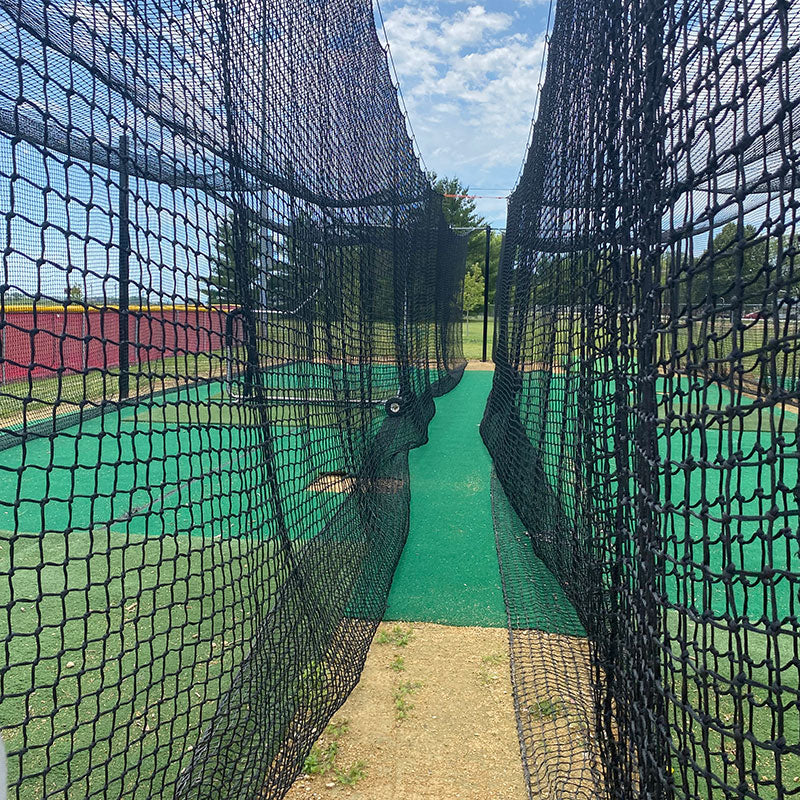

Available in single, double, or triple frame configurations, the double and triple systems share center poles to eliminate the need for extra poles and footings. Batting tunnel nets are sold separately and should be chosen based on tunnel size. The frame is backed by a 5-year limited warranty with proper installation and intended use.

Specifications

Specification	Value
Post	14 ft, 4 in. square heavy-duty steel poles
Finish	Black powder coat finish
Crossbar	2-3/8 in. OD 7-gauge galvanized steel, Allied zinc Flo-coat galvanized
Standard Lengths	55 ft, 70 ft, 75 ft (adjustable)
Standard Widths	12 ft or 14 ft (adjustable)
Max Net Height	12 ft
Cable System	1/4 in. galvanized aircraft cable
Break Strength	6,100 lb.
Ground Sleeves	4 in. square, 24 in. aluminum ground sleeves
Hardware Included	Quick links, turnbuckles, cable clamps, carabiner clips
Available Options	Single, Double, or Triple Batting Tunnel Frames
Weight	602.000 lbs
Warranty	5-year limited warranty
SKU	66216
Category	Batting Cages/Tunnels

Compare Douglas models

Classic THIS	MAX
Post / Upright 4 in. square heavy-duty steel, 14 ft.	Post / Upright 8-5/8 in. OD round steel, 16 ft.
Wall Thickness —	Wall Thickness .322 in.
Post Length & Mounting 14 ft. posts set in ground sleeves	Post Length & Mounting 16 ft. posts, 4 ft. direct bury
Ground Sleeves 4 in. square, 24 in. aluminum sleeves	Ground Sleeves —
Crossbar 2-3/8 in. OD 7-ga. galvanized steel	Crossbar —
Max Net Height 12 ft.	Max Net Height 11 ft. 6 in. installed
Tension Cable 1/4 in. galvanized aircraft cable, 6,100 lb.	Tension Cable 1/4 in. galvanized aircraft cable, 6,100 lb.
Layout & Sizes Single, double or triple; 55/70/75 ft. x 12 or 14 ft.	Layout & Sizes Shared-pole multi-cage design, corner poles only
Hardware Included Quick links, turnbuckles, clamps, carabiners	Hardware Included Steel quick links, turnbuckles, clamps, carabiners
Warranty 5-year limited	Warranty 7-year limited
Ship Weight 602 lbs	Ship Weight 602 lbs
Best for Schools and clubs wanting adjustable single, double or triple tunnels with sleeve-set posts.	Best for Academies and complexes building heavy-duty shared-pole multi-cage batting facilities.
$6,499.00	$6,999.00
Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

5-year limited warranty

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Does the batting tunnel frame include a net?

No, batting tunnel nets are sold separately and should be chosen to match the frame's length and width.

What sizes does the frame come in?

Standard lengths are 55, 70, and 75 feet with widths of 12 or 14 feet, and the poles can be adjusted to fit custom net widths.

What is the difference between single, double, and triple frame options?

Double and triple configurations use a shared-pole multiple cage design, eliminating the need for extra poles and ground footings compared to separate single frames.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
