Douglas® Indoor Batting Tunnel Ceiling Suspension Kit Douglas

Douglas® Indoor Batting Tunnel Ceiling Suspension Kit

See more by Douglas

$999.00 - $999.00

$999.00

$999.00 - $999.00

$999.00

In stock

SKU: 66219

Product Overview

In short

The Douglas Indoor Batting Tunnel Ceiling Suspension Kit is a hardware set for hanging a batting tunnel net from a high ceiling using horizontal support cables and vertical drop cables. It includes cable spools, clamps, turnbuckles, eyebolts, C-snaps, and pulleys, weighing 74 lbs total. Batting tunnel nets are sold separately.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

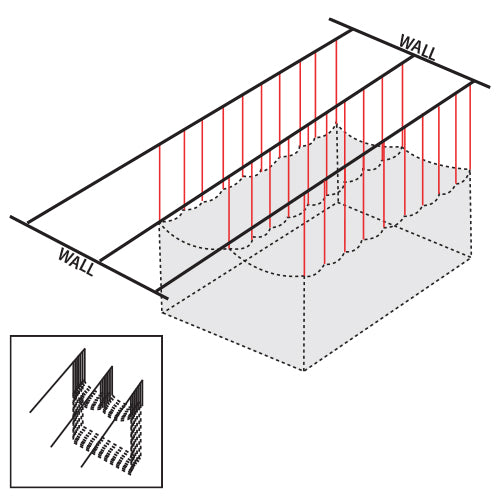

The Douglas Indoor Batting Tunnel Ceiling Suspension Kit is designed for gymnasiums or other multi-use training facilities with high ceilings, providing a way to suspend a batting tunnel net at a customized height. Horizontal support cables run across the side walls, while vertical drop cables extend down to attach to the net, allowing installation to be tailored to the specific dimensions of the facility.

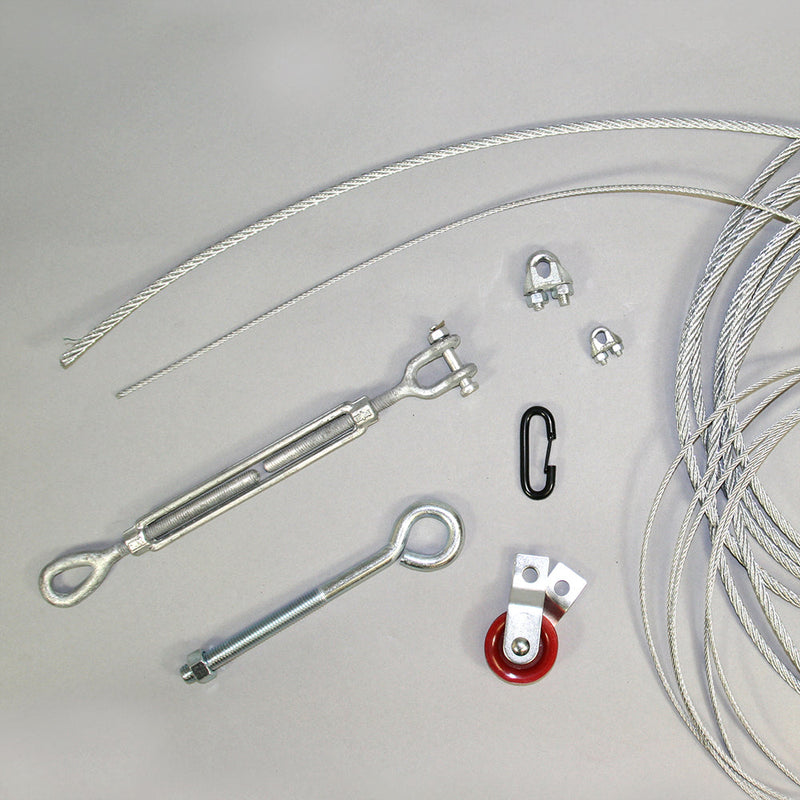

The complete kit includes all hardware necessary for setup: one 500 ft. spool of 1/4 in. cable, two 1,000 ft. spools of 1/8 in. cable, 60 1/8 in. wire cable clamps, 12 1/4 in. wire cable clamps, 6 turnbuckles, 6 eyebolts, 70 steel C-snaps, and 30 split bracket pulleys. When not in use, the net can be slid to one end of the facility for storage, keeping the space clear for other activities.

This kit weighs 74 lbs and does not include the batting tunnel net itself, which is sold separately. Installation instructions, cut sheets, and CAD drawings are available as support documents for planning and setup.

Specifications

Specification	Value
SKU	66219
Category	Batting Cages/Tunnels
Weight	74.000 lbs
Horizontal Cable	1 spool, 500 ft. 1/4 in. Cable
Vertical/Drop Cable	2 spools, 1,000 ft. 1/8 in. Cable
1/8 in. Wire Cable Clamps	60
1/4 in. Wire Cable Clamps	12
Turnbuckles	6
Eyebolts	6
Steel C-Snaps	70
Split Bracket Pulleys	30
Installation	Horizontal support cables hung across side walls; vertical drop cables attach to batting tunnel net

Compare Douglas models

Tensioning	Cable Hardware	Ceiling Suspension THIS
Kit Type Tensioning kit	Kit Type Accessory cable hardware kit	Kit Type Ceiling suspension kit
Installation Wall-to-wall, wall eyebolt install locations	Installation Wall-to-wall, cable pulley and eyebolt install	Installation Horizontal cables across side walls, vertical drops
Horizontal / Main Cable 6 cables, 15 ft. long	Horizontal / Main Cable 1 spool, 500 ft. of 1/4 in. cable	Horizontal / Main Cable 1 spool, 500 ft. of 1/4 in. cable
Vertical Drop Cable —	Vertical Drop Cable —	Vertical Drop Cable 2 spools, 1,000 ft. of 1/8 in. cable
Cable Clamps —	Cable Clamps 12 x 1/4 in. wire cable clamps	Cable Clamps 12 x 1/4 in. plus 60 x 1/8 in. wire clamps
Pulleys 3 cam lock pulley systems	Pulleys 70 split bracket pulleys	Pulleys 30 split bracket pulleys
Steel C-Snaps —	Steel C-Snaps 70	Steel C-Snaps 70
Turnbuckles —	Turnbuckles 6	Turnbuckles 6
Eyebolts 6	Eyebolts 6	Eyebolts 6
Hoist Rope & Clips 3 x 50 ft. 3/8 in. braided rope, 12 clips, 3 swivels	Hoist Rope & Clips —	Hoist Rope & Clips —
Ship Weight 30 lbs	Ship Weight 44 lbs	Ship Weight 74 lbs
Best for Programs wanting rope-and-pulley tensioning to raise, lower and tighten an existing tunnel net.	Best for Facilities running a wall-to-wall tunnel that needs a full cable, pulley and snap hardware package.	Best for High-ceiling gyms and field houses suspending a tunnel net on horizontal cables with vertical drops.
$1,999.00	$699.00	$999.00
Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Does this kit include the batting tunnel net?

No, batting tunnel nets are sold separately; this kit only includes the ceiling suspension hardware.

What cable sizes are included in the kit?

The kit includes one 500 ft. spool of 1/4 in. cable for horizontal support and two 1,000 ft. spools of 1/8 in. cable for vertical drop lines.

How is the batting tunnel net stored when not in use?

The net can be easily slid to one end of the facility and out of the way when not in use.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
