Douglas Indoor or Outdoor Pickleball Court Divider System Douglas

Douglas Indoor or Outdoor Pickleball Court Divider System

See more by Douglas

$1,899.00 - $1,899.00

$1,899.00

$1,899.00 - $1,899.00

$1,899.00

In stock

SKU: 63998

Product Overview

In short

This is a permanent, in-ground pickleball court divider system built with 2-7/8 in. OD 8-gauge steel poles and a choice of VCP MAX windscreen mesh or #420 knotless pylon netting panels. It's custom-fabricated to facility dimensions, recommended up to 40 ft. per panel, and suited for both indoor and outdoor installations.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

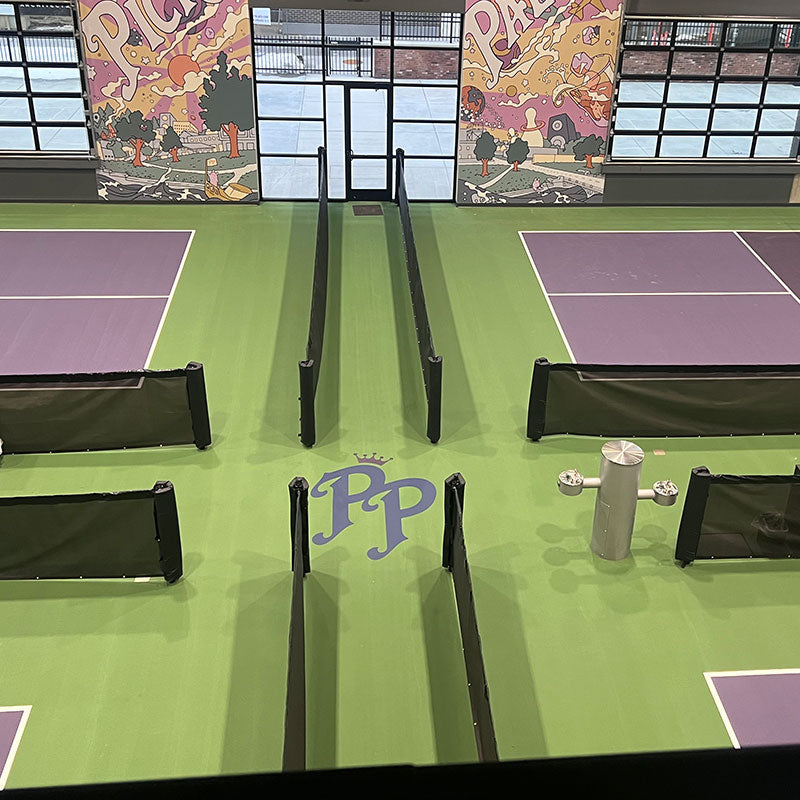

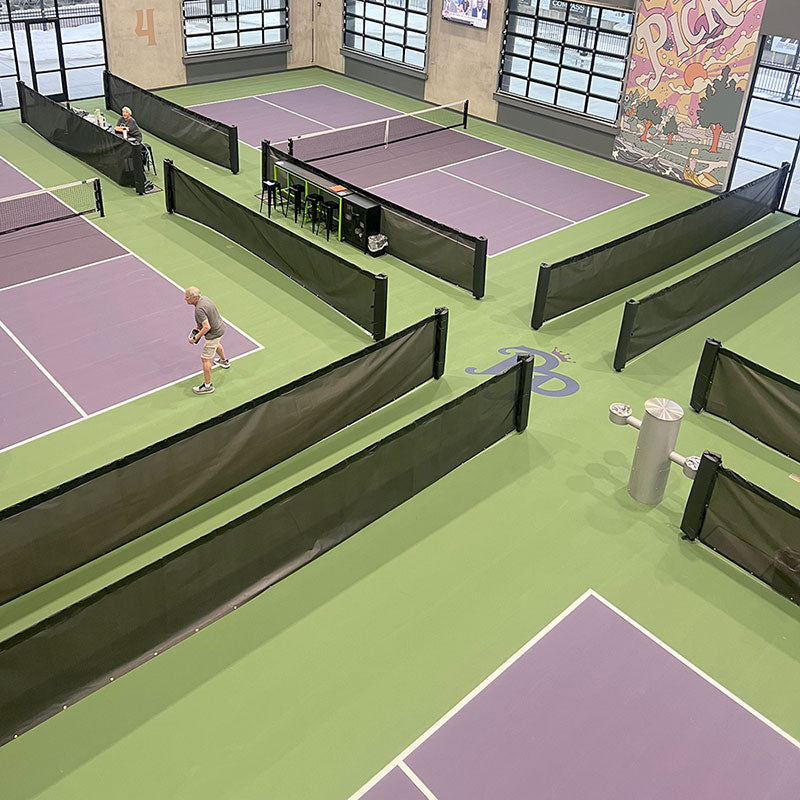

The Douglas Indoor or Outdoor Pickleball Court Divider System is a permanent, custom-tailored solution ideal for new construction or facilities where ground excavation is possible. Each system uses 2-7/8 in. OD, 8-gauge steel in-ground support poles measuring 66 in. in length to achieve a 4-foot above-ground height, finished with a black baked-on powder coat for rust resistance and durability. Poles can be ordered up to 4 ft. 6 in. above ground, and 24 in. aluminum ground sleeves are recommended for installation.

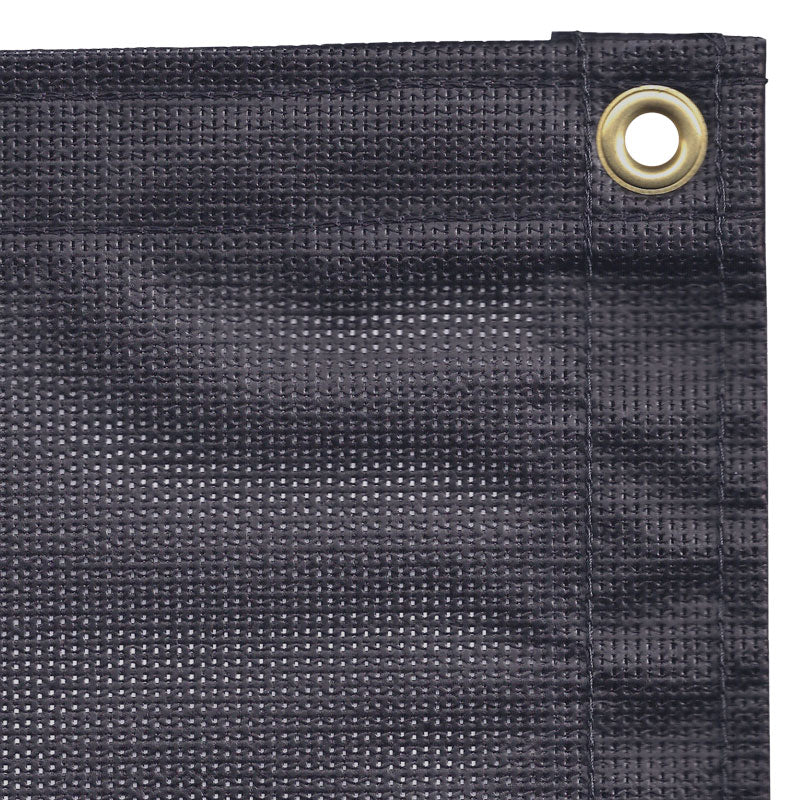

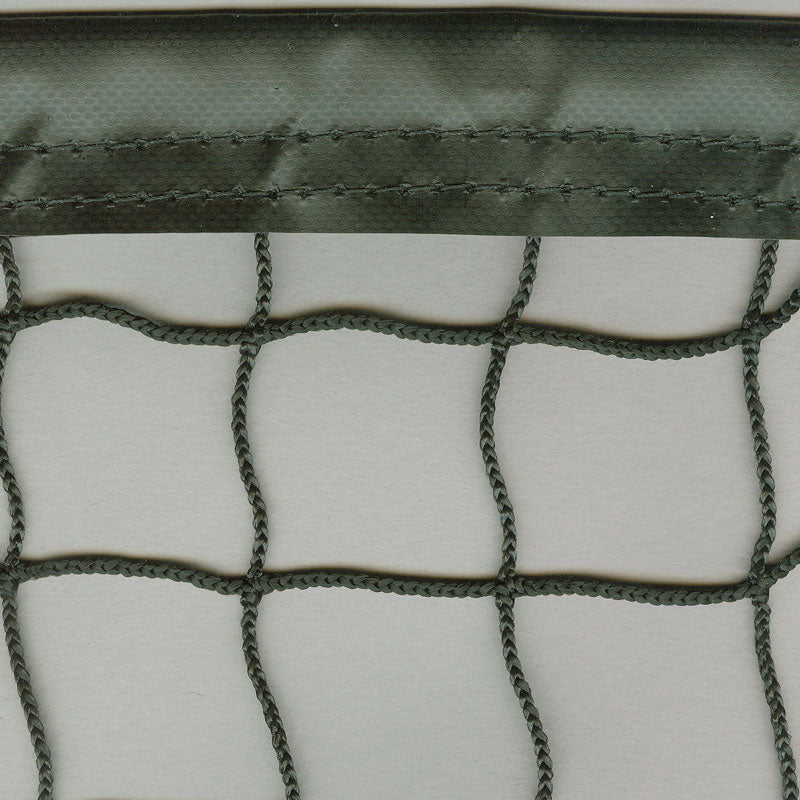

Divider panels are available in either VCP MAX windscreen mesh, offering an 85% windbreak and a 4-year limited warranty in black, dark green, or open tournament blue, or #420 knotless polypropylene pylon netting with a 1-1/2 in. square mesh, 125 lb. break strength, and the same 4-year limited warranty. Both panel types feature a sewn top headband pocket that conceals tension hardware along with reinforced 1-1/2 in. solid vinyl tape borders and evenly spaced #2 brass grommets for clean, easy installation.

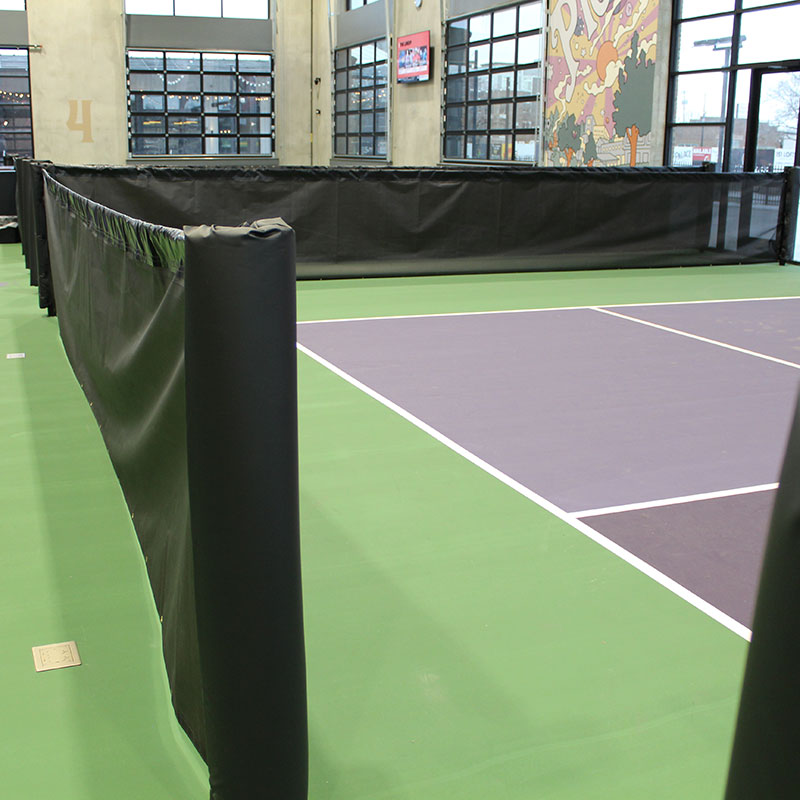

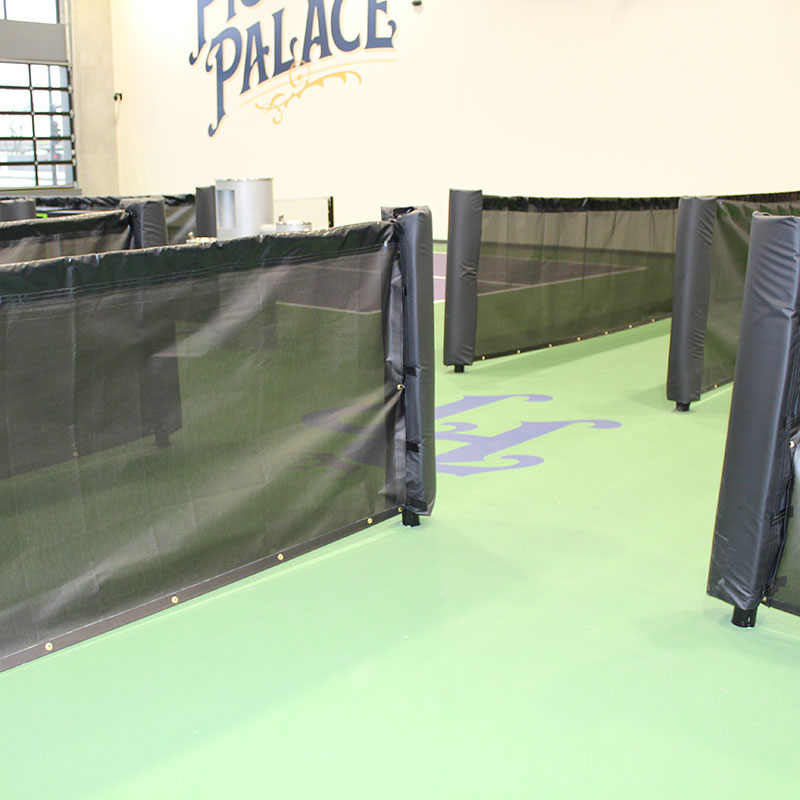

The tension cable system is built entirely from galvanized steel, including 1/4 in. cable, cable clamps, turnbuckles, and attachment hardware for maximum strength and longevity. Maximum recommended panel length is 40 feet for optimal stability, though custom extended lengths are available upon request. Optional wraparound pole padding, 4 ft. high and 17 in. wide, is available for added player safety.

Specifications

Specification	Value
Post	2-7/8 in. OD, 8-gauge steel, 66 in. length for 4 ft. above ground height (up to 4 ft. 6 in. available)
Finish	Black baked-on powder coated finish
Ground Sleeve	24 in. aluminum ground sleeves recommended
Cable/Hardware	Galvanized steel cable and hardware; 1/4 in. cable, cable clamps, turnbuckles, attachment components
Panel Options	VCP MAX windscreen mesh or #420 knotless pylon netting
Mesh Size (Pylon)	1-1/2 in. square mesh
Break Strength (Pylon)	125 lb.
Windbreak (VCP MAX)	85% windbreak
Border	1-1/2 in. solid vinyl double-sewn tape border with #2 brass grommets; top headband pocket conceals tension hardware
Color	Black, dark green, or open tournament blue (VCP MAX); black standard, white available (pylon)
Max Panel Length	40 ft. recommended (custom extended lengths available)
Optional Accessory	Wraparound pole padding, 4 ft. high x 17 in. wide
Warranty	4-year limited warranty (VCP MAX mesh and #420 pylon netting)
SKU	63998
Category	Court Accessories, Indoor Pickleball Facility

Compare Douglas models

PN-30 Net	SW-36 Deluxe	Premier Square SM	Portable Set	PickleNet Deluxe	PPS-22SQ
Product Type Replacement pickleball net	Product Type In-ground net posts, per pair	Product Type Surface-mount net posts, per pair	Product Type Portable net set	Product Type Portable net set	Product Type Premier portable net system
Size / Dimensions 21'9" L x 31 in. H	Size / Dimensions 54 in. overall; 36 in. above court	Size / Dimensions 36 in. post height	Size / Dimensions 36 in. high x 22 ft. long	Size / Dimensions 22 ft. x 34 in.	Size / Dimensions 36 in. at posts x 22 ft.; 34 in. center
Frame / Post Material —	Frame / Post Material 2-7/8 in. OD 8-gauge steel	Frame / Post Material 3 in. sq. heavy-duty 11-gauge steel	Frame / Post Material Hollow powder-coated steel tubing	Frame / Post Material Aluminum center poles, steel end bases	Frame / Post Material 3 in. sq. 11-gauge steel post & base frame
Mounting / Installation 1/2 in. fiberglass side dowels, lacing cord	Mounting / Installation 24 in. PVC or aluminum sleeves, sold separately	Mounting / Installation Surface mount, welded 7 x 7 in. base plate	Mounting / Installation Freestanding with center stabilizer	Mounting / Installation Freestanding; self-aligning oval tubing	Mounting / Installation Freestanding; flat legs extend 12 in. each side
Net / Panel Material 3.0 mm braided polyethylene, 1-3/4 in. mesh	Net / Panel Material —	Net / Panel Material —	Net / Panel Material Black mesh with white vinyl bindings	Net / Panel Material Net with elastic bottom band	Net / Panel Material PN-30 net with Velcro center strap
Tension System 5/32 in. vinyl-coated cable, 2300 lb. break	Tension System External aluminum reel, removable handle	Tension System Internal 30:1 self-locking gear, chrome handle	Tension System "Easy buckle" net tension system	Tension System Edge adjustment straps, elastic bottom band	Tension System Internal 30:1 self-locking gear
Finish / Color White 2-ply vinyl headband, black tape	Finish / Color Flo-coat galvanized + powder coat; black/green	Finish / Color Black baked-on polyester powder coat	Finish / Color Bright green powder coat	Finish / Color Textured powder-coated steel bases	Finish / Color Black baked-on polyester powder coat
Portability —	Portability Lifts out of ground sleeves	Portability Permanently mounted	Portability Nylon carry case with ball/racket pockets	Portability 4 in. locking wheels; 420D nylon carry bag	Portability Transporter wheels, lift-assist handles
Compliance —	Compliance Meets official USAPA tournament regulations	Compliance Meets official USAPA tournament regulations	Compliance —	Compliance —	Compliance —
Warranty 4-year limited	Warranty 5-year limited	Warranty —	Warranty —	Warranty —	Warranty 5-year
Ship Weight 14 lbs	Ship Weight	Ship Weight	Ship Weight 34 lbs	Ship Weight 42 lbs	Ship Weight 215 lbs
Best for Courts replacing a net on existing permanent pickleball posts.	Best for Outdoor courts needing galvanized posts with external reel.	Best for Dedicated courts needing bolt-down posts with internal gear.	Best for Budget-minded groups wanting a complete grab-and-go net set.	Best for Clubs wanting a durable wheeled portable net with carry bag.	Best for Tournaments needing a heavy-duty portable system with net included.
$169.00	$579.00	$699.00	$179.00	$479.00	$2,599.00
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

4-year limited warranty (VCP MAX windscreen mesh and #420 knotless pylon netting)

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What's the difference between VCP MAX windscreen and #420 pylon netting for court dividers?

VCP MAX windscreen offers 85% windbreak and is best for indoor use where wind isn't a factor, while #420 knotless pylon netting has a 1-1/2 in. mesh with 125 lb. break strength that allows wind flow through, making it recommended for outdoor applications.

How is the pickleball court divider system installed?

The system uses in-ground steel support poles (2-7/8 in. OD, 66 in. length) set into recommended 24 in. aluminum ground sleeves, with a galvanized steel cable and hardware system including turnbuckles and clamps to tension the panels.

What is the maximum length for a single divider panel?

The maximum recommended panel length is 40 feet for optimal stability, though custom extended lengths are available upon request since each divider is custom-tailored to the facility's exact dimensions.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
