Douglas Surface Mount Pickleball Court Divider System Douglas

Douglas Surface Mount Pickleball Court Divider System

See more by Douglas

$2,599.00 - $2,599.00

$2,599.00

$2,599.00 - $2,599.00

$2,599.00

In stock

SKU: 63998S

Product Overview

In short

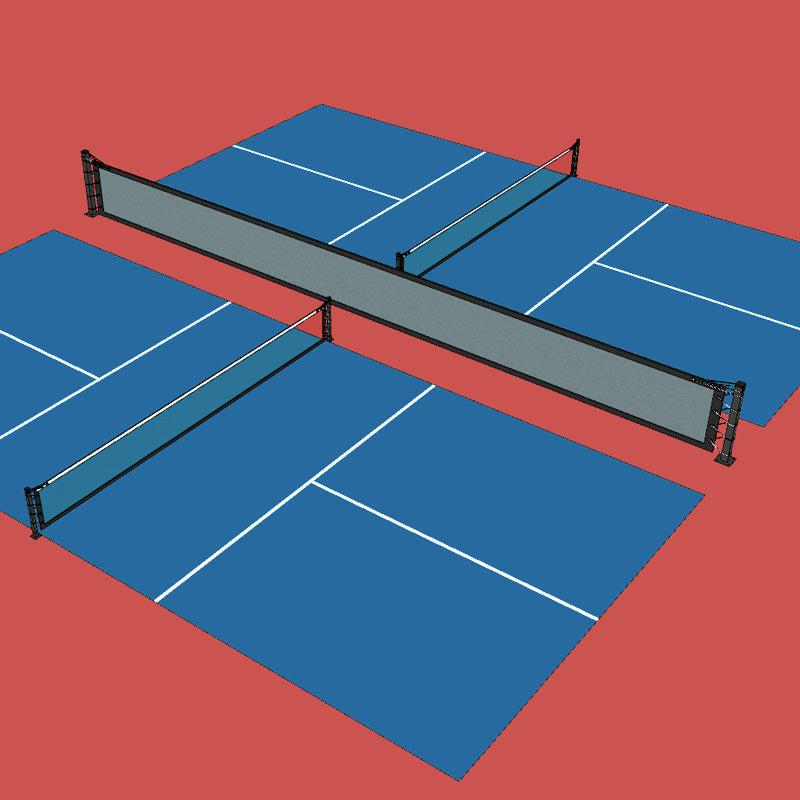

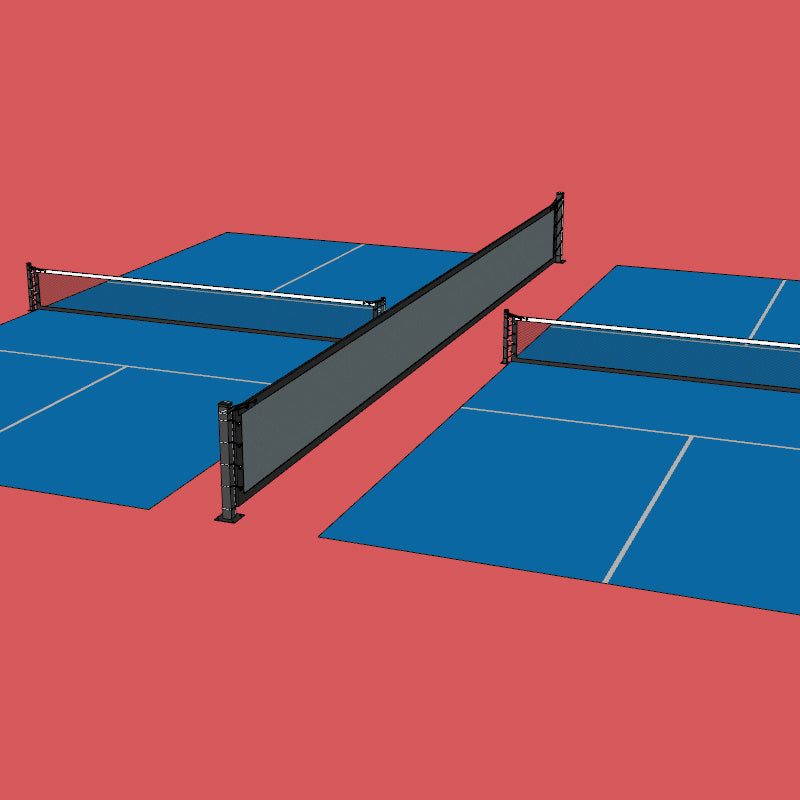

This is a semi-permanent, surface-mounted pickleball court divider system that bolts directly to existing concrete via a welded baseplate, using 4'3" 11-gauge steel poles and a tensioned cable system. Divider panels are custom fabricated from either VCP MAX windscreen mesh or #420 knotless pylon netting, both finished with reinforced vinyl borders and brass grommets. Recommended for panel lengths up to 40 feet, with custom sizing available per court.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

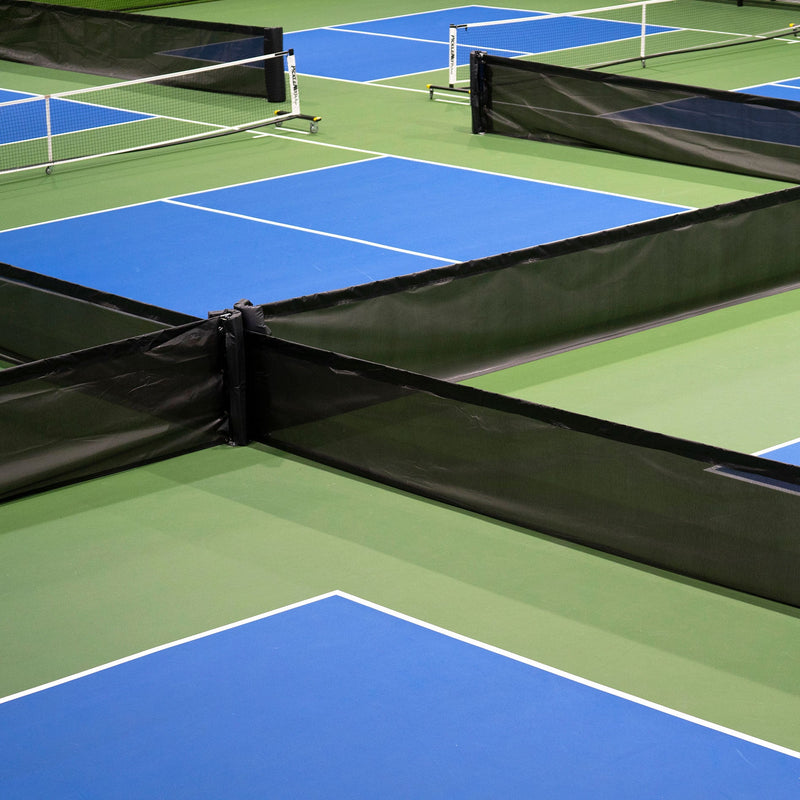

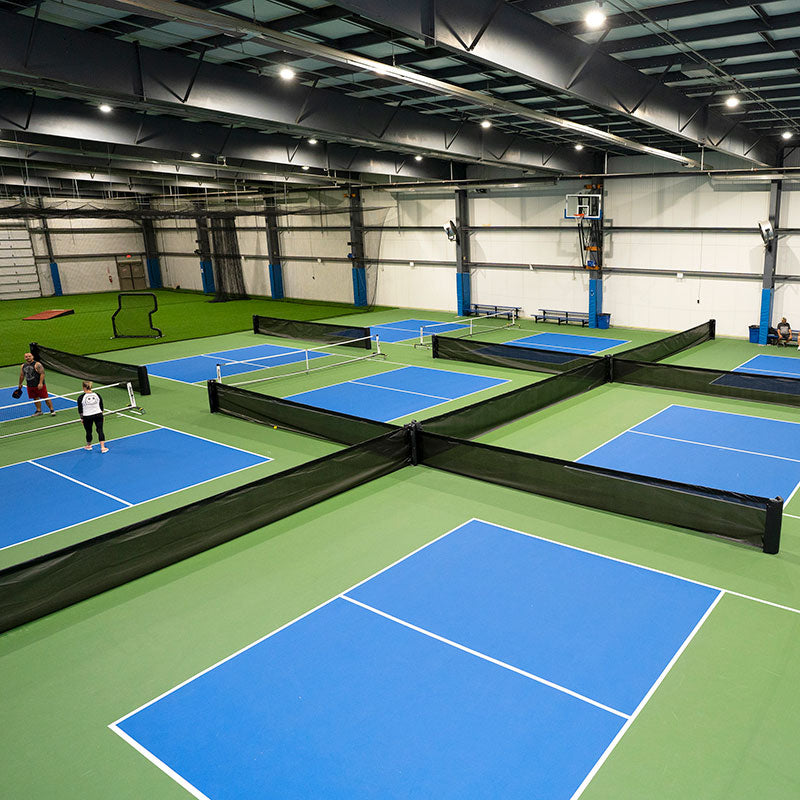

The Douglas Surface Mount Pickleball Court Divider System is designed for facilities with existing concrete surfaces, eliminating the need for excavation by bolting directly to the ground via a welded 7 in. x 7 in. baseplate with support gussets. The 3 in. SQ, 11-gauge steel poles stand 4'3" tall and are finished with a black baked-on polyester powder coat for rust resistance and durability. All tension cable hardware, including 1/4 in. cable, clamps, and turnbuckles, is galvanized steel for strength and longevity.

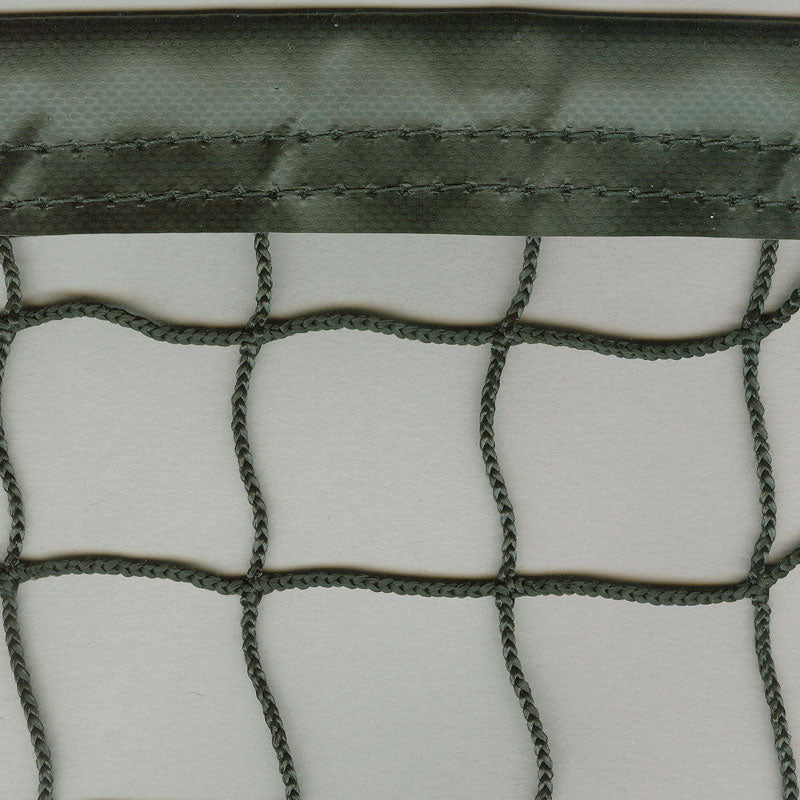

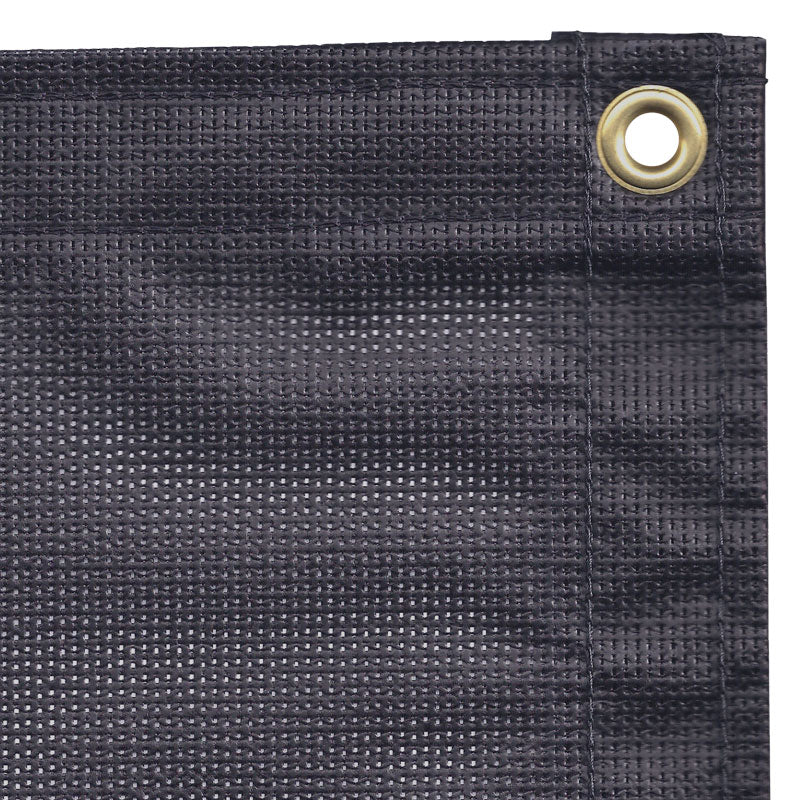

Each divider panel is custom fabricated to the exact court specifications, with a choice of two materials: VCP MAX windscreen mesh, which offers an 85% windbreak and is available in black, dark green, or open tournament blue with the option for custom digital printing; or #420 knotless polypropylene pylon netting, a lightweight 1-1/2 in. square mesh with a 125 lb break strength that allows greater wind flow and is recommended for outdoor use. Both panel types feature a sewn top headband pocket that conceals tension hardware, along with reinforced 1-1/2 in. solid vinyl tape borders and evenly spaced #2 brass grommets for installation.

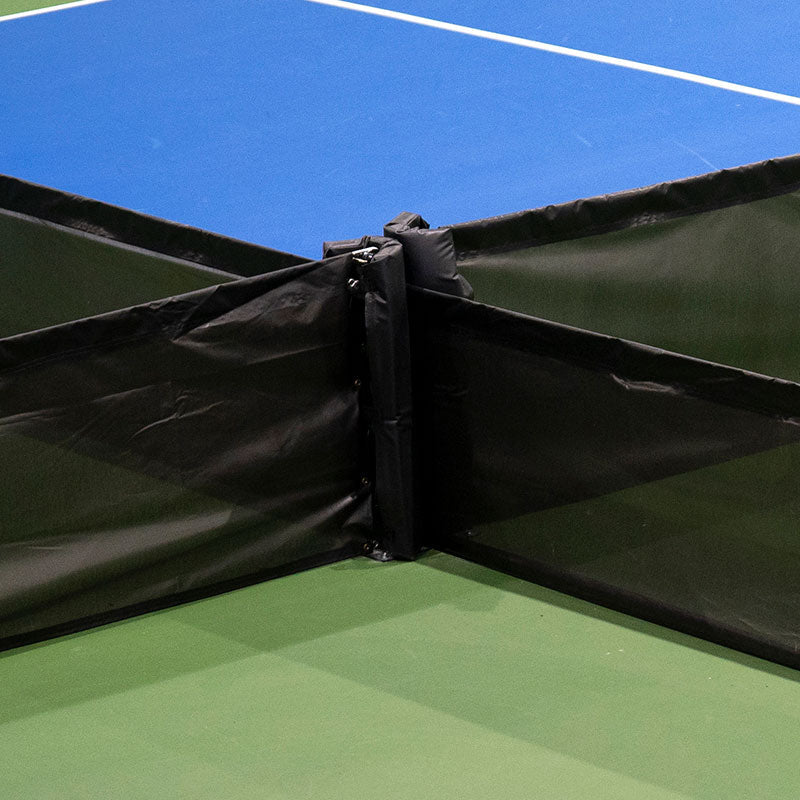

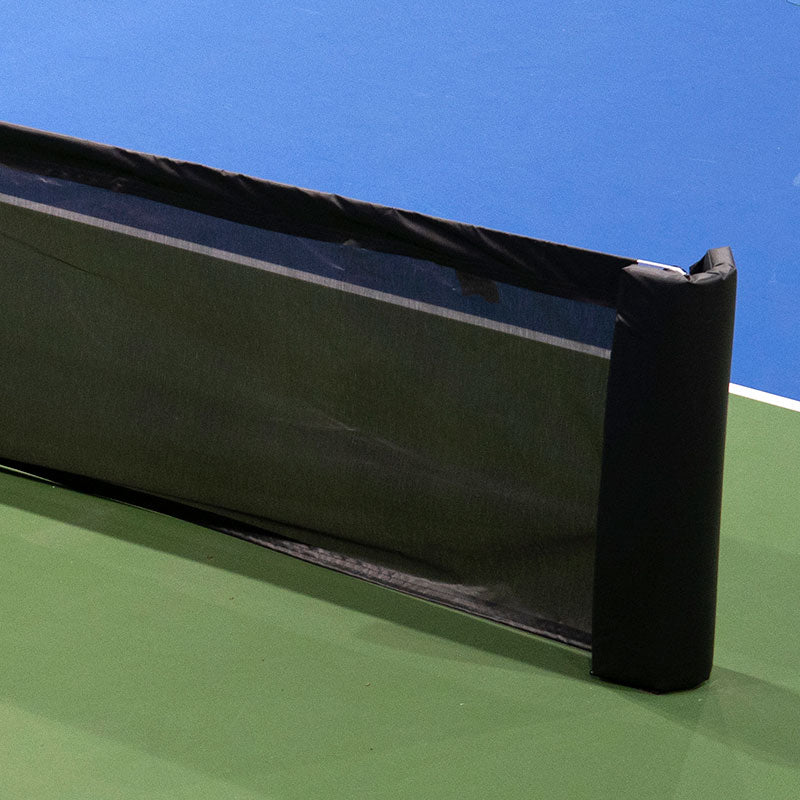

Optional wraparound pole padding is available for player safety, standing 4 ft high and 17 in. wide to fully wrap the poles. While the system is recommended for panel widths up to 40 feet, custom extended lengths can be accommodated. Both VCP MAX mesh and #420 pylon netting carry a 4-year limited warranty.

Specifications

Specification	Value
SKU	63998S
Category	Court Accessories, Indoor Pickleball Facility
Post	3 in. SQ, 11-gauge steel, 4 ft 3 in. (51 in.) height
Baseplate	Welded 7 in. x 7 in. baseplate with support gussets
Finish	Black baked-on polyester powder coat
Cable Hardware	Galvanized steel 1/4 in. cable, cable clamps, turnbuckles
Panel Material Options	VCP MAX windscreen mesh or #420 knotless pylon netting
Mesh Size (Pylon)	1-1/2 in. square mesh
Break Strength (Pylon)	125 lb
Windbreak (VCP MAX)	85%
Border	1-1/2 in. solid vinyl tape border, double sewn, with #2 brass grommets
Color	Black, dark green, or open tournament blue (mesh); black standard, white available (pylon)
Max Panel Length	40 ft (recommended); custom extended lengths available
Optional Padding	Wraparound pole pad, 4 ft high x 17 in. wide

Compare Douglas models

PN-30 Net	SW-36 Deluxe	Premier Square SM	Portable Set	PickleNet Deluxe	PPS-22SQ
Product Type Replacement pickleball net	Product Type In-ground net posts, per pair	Product Type Surface-mount net posts, per pair	Product Type Portable net set	Product Type Portable net set	Product Type Premier portable net system
Size / Dimensions 21'9" L x 31 in. H	Size / Dimensions 54 in. overall; 36 in. above court	Size / Dimensions 36 in. post height	Size / Dimensions 36 in. high x 22 ft. long	Size / Dimensions 22 ft. x 34 in.	Size / Dimensions 36 in. at posts x 22 ft.; 34 in. center
Frame / Post Material —	Frame / Post Material 2-7/8 in. OD 8-gauge steel	Frame / Post Material 3 in. sq. heavy-duty 11-gauge steel	Frame / Post Material Hollow powder-coated steel tubing	Frame / Post Material Aluminum center poles, steel end bases	Frame / Post Material 3 in. sq. 11-gauge steel post & base frame
Mounting / Installation 1/2 in. fiberglass side dowels, lacing cord	Mounting / Installation 24 in. PVC or aluminum sleeves, sold separately	Mounting / Installation Surface mount, welded 7 x 7 in. base plate	Mounting / Installation Freestanding with center stabilizer	Mounting / Installation Freestanding; self-aligning oval tubing	Mounting / Installation Freestanding; flat legs extend 12 in. each side
Net / Panel Material 3.0 mm braided polyethylene, 1-3/4 in. mesh	Net / Panel Material —	Net / Panel Material —	Net / Panel Material Black mesh with white vinyl bindings	Net / Panel Material Net with elastic bottom band	Net / Panel Material PN-30 net with Velcro center strap
Tension System 5/32 in. vinyl-coated cable, 2300 lb. break	Tension System External aluminum reel, removable handle	Tension System Internal 30:1 self-locking gear, chrome handle	Tension System "Easy buckle" net tension system	Tension System Edge adjustment straps, elastic bottom band	Tension System Internal 30:1 self-locking gear
Finish / Color White 2-ply vinyl headband, black tape	Finish / Color Flo-coat galvanized + powder coat; black/green	Finish / Color Black baked-on polyester powder coat	Finish / Color Bright green powder coat	Finish / Color Textured powder-coated steel bases	Finish / Color Black baked-on polyester powder coat
Portability —	Portability Lifts out of ground sleeves	Portability Permanently mounted	Portability Nylon carry case with ball/racket pockets	Portability 4 in. locking wheels; 420D nylon carry bag	Portability Transporter wheels, lift-assist handles
Compliance —	Compliance Meets official USAPA tournament regulations	Compliance Meets official USAPA tournament regulations	Compliance —	Compliance —	Compliance —
Warranty 4-year limited	Warranty 5-year limited	Warranty —	Warranty —	Warranty —	Warranty 5-year
Ship Weight 14 lbs	Ship Weight	Ship Weight	Ship Weight 34 lbs	Ship Weight 42 lbs	Ship Weight 215 lbs
Best for Courts replacing a net on existing permanent pickleball posts.	Best for Outdoor courts needing galvanized posts with external reel.	Best for Dedicated courts needing bolt-down posts with internal gear.	Best for Budget-minded groups wanting a complete grab-and-go net set.	Best for Clubs wanting a durable wheeled portable net with carry bag.	Best for Tournaments needing a heavy-duty portable system with net included.
$169.00	$579.00	$699.00	$179.00	$479.00	$2,599.00
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

4-Year Limited Warranty (VCP MAX mesh and #420 pylon netting)

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is the difference between the VCP MAX mesh and pylon netting panel options?

VCP MAX windscreen mesh offers 85% windbreak and is best for indoor use where wind stress isn't a factor, while #420 knotless pylon netting has a 1-1/2 in. square mesh with 125 lb break strength that allows wind flow through, making it better suited for outdoor applications.

How is this divider system installed?

The system uses a welded baseplate that bolts directly to existing concrete surfaces, providing a semi-permanent installation without the need for excavation.

What is the maximum recommended length for a divider panel?

The maximum recommended panel length is 40 feet, though custom extended lengths are available since each divider is custom-fabricated to the court's exact specifications.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
