Jaypro Batting Tunnel Frame - Mega Outdoor - (70 ft.) - Single

Jaypro Batting Tunnel Frame - Mega Outdoor - (70 ft.) - Single

See more by Jaypro

$11,324.00 - $11,324.00

$11,324.00

$11,324.00 - $11,324.00

$11,324.00

In stock

SKU: MPCTF-70S

Product Overview

In short

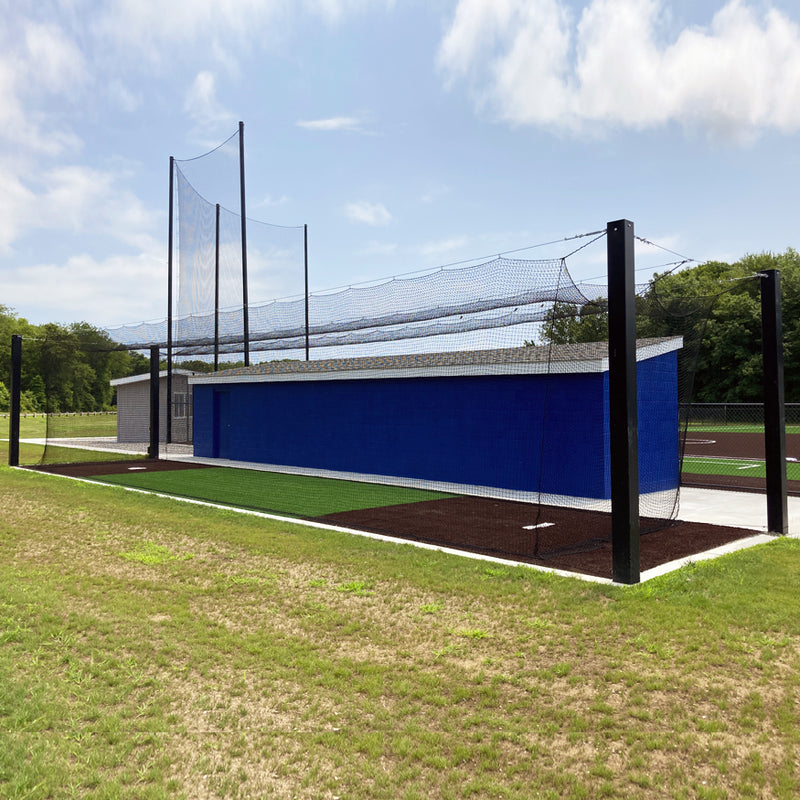

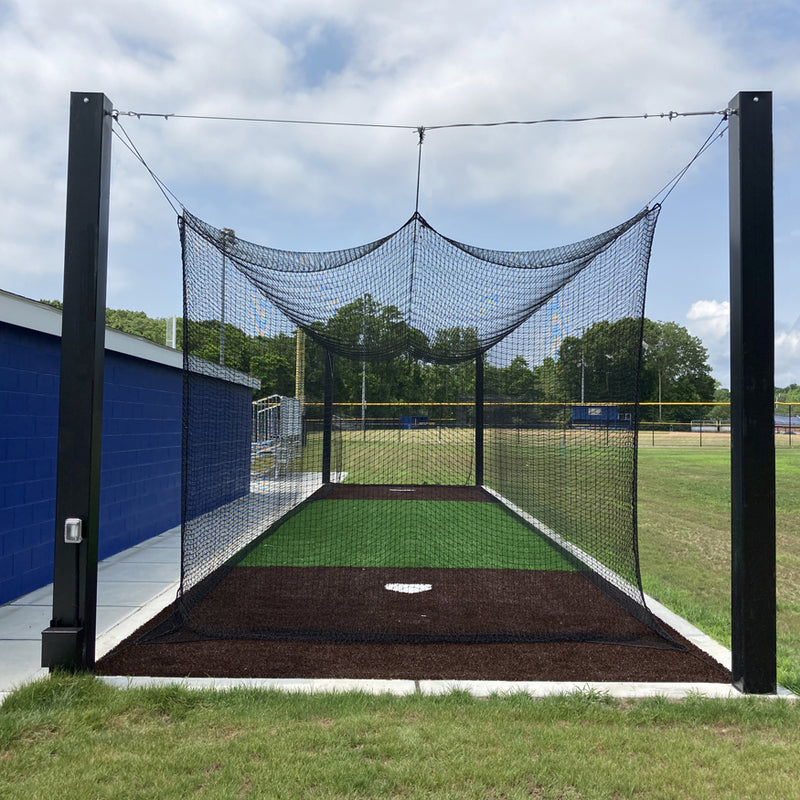

The Jaypro MPCTF-70S is a 70 ft. single outdoor batting tunnel built on four heavy wall 8" x 8" square steel posts with a 3/16" wall, finished in powder coat black over zinc primer. The net hangs from a tensioned 1/4" galvanized aircraft cable on snap hooks and measures 14' W x 70' L x 12' H in #36 black knotted nylon with 1-3/4" square mesh. It is intended as a permanent, in-ground outdoor cage for schools, clubs and training facilities.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The Mega post and cable design keeps structure out of the hitting area, so there is less for the ball to ricochet off. Four heavy wall 8" x 8" square steel poles with a 3/16" wall carry the cage, and every surface is powder coated black over a zinc primer for outdoor service.

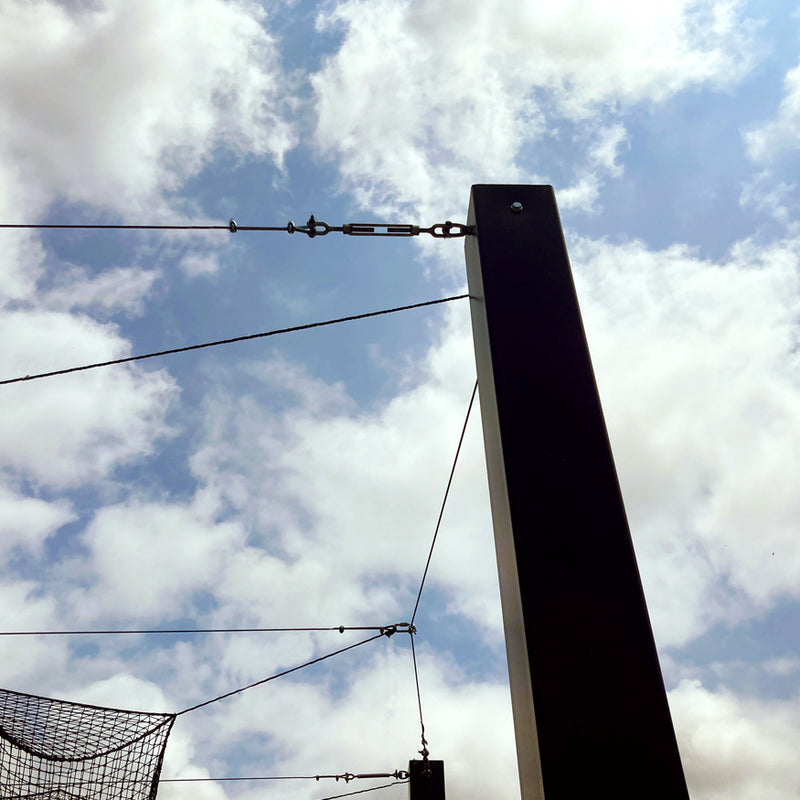

The net is suspended from a tensioned 1/4" galvanized aircraft cable with thimble and clamps, tightened with a 1/2" galvanized turnbuckle. Snap hooks let the net come on and off quickly, and the whole net can be slid to one end of the run for storage during the off-season.

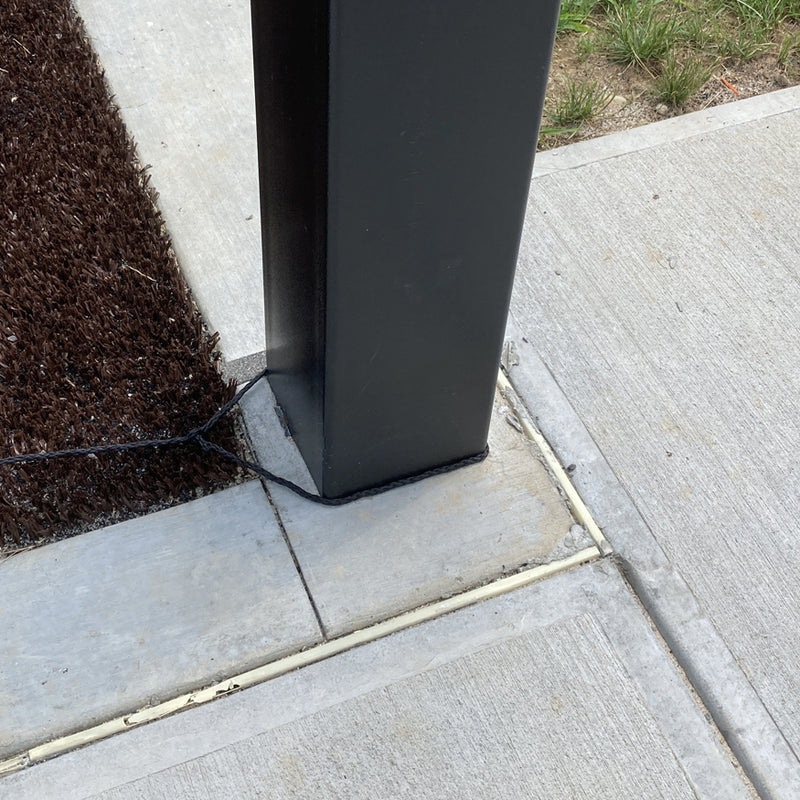

The supplied net is #36 black knotted nylon in 1-3/4" square mesh, sized 14' wide x 70' long x 12' high, giving a full-length tunnel for live batting practice. Posts are set in footings; Jaypro suggests a 6" concrete, block or crushed stone base, but local building codes should be checked before starting and followed where their requirements are greater.

Specifications

Specification	Value
Model	MPCTF-70S Mega Post & Cable Outdoor Batting Tunnel, 70 ft. long cage
Posts	4 heavy wall 8" x 8" square steel poles with 3/16" wall
Finish	Powder coat black over zinc primer
Suspension Cable	1/4" galvanized aircraft cable with thimble and clamps
Cable Tensioning	1/2" galvanized turnbuckle
Net	#36 black knotted nylon, 1-3/4" square mesh
Net Size	14' W x 70' L x 12' H
Net Attachment	Snap hooks for easy on / off; net can be slid to one end for storage
Post Spacing	70'-0" between end posts
Cage Height	12'-0" clear height at the posts
Design	Clean design with less structure for the ball to ricochet off
Footing	Suggested 6" concrete, block or crushed stone base; verify local building codes
Ship Weight	1525 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

Ground Sleeve	55 ft Single	55 ft Add-On	70 ft Single THIS	70 ft Add-On
Configuration Ground sleeve accessory, sold individually	Configuration Single tunnel, post and cable	Configuration Center add-on kit; converts single to tandem	Configuration Single tunnel, post and cable	Configuration Center add-on kit; converts single to tandem
Tunnel Length (Overall) —	Tunnel Length (Overall) 55'-0" cage; 60'-0" overall post spacing	Tunnel Length (Overall) 55'-0" (60'-0" overall)	Tunnel Length (Overall) 70'-0" cage; 70'-0" between end posts	Tunnel Length (Overall) 70'-0" (75'-0" overall)
Cage Width x Height —	Cage Width x Height 14'-0" W x 12'-0" H	Cage Width x Height 14'-0" W x 12'-0" H	Cage Width x Height 14'-0" W x 12'-0" clear height	Cage Width x Height 14'-0" W (net height not listed)
Posts Accepts 8" x 8" square post	Posts (4) 8" x 8" square steel, 3/16" heavy wall	Posts (6) 8" x 8" square steel, 3/16" heavy wall	Posts (4) 8" x 8" square steel, 3/16" heavy wall	Posts (6) 8" x 8" square steel, 3/16" heavy wall
Finish / Material 11 ga. (0.1196") steel with bottom base plate	Finish / Material Powder coat black over zinc primer	Finish / Material Powder coat black over zinc primer	Finish / Material Powder coat black over zinc primer	Finish / Material Powder coat black over zinc primer
Suspension Cable & Tensioning —	Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle	Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle	Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle	Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle
Net —	Net #36 black knotted nylon, 1-3/4" mesh, 14' x 55' x 12'	Net Included: #36 knotted nylon, 1-3/4" mesh, 14' x 55' x 12'	Net #36 black knotted nylon, 1-3/4" mesh, 14' x 70' x 12'	Net Included: #36 knotted nylon, 1-3/4" mesh, 14' wide
Net Attachment —	Net Attachment Snap hooks; net slides to one end for storage	Net Attachment Snap hooks; net slides to one end for storage	Net Attachment Snap hooks; net slides to one end for storage	Net Attachment Snap hooks; net slides to one end for storage
Footing / Foundation Concrete, pad or crushed stone; (8) 5/8" x 48" rebar	Footing / Foundation 6" concrete, block or crushed stone (verify codes)	Footing / Foundation Suggested footing; verify local building codes	Footing / Foundation 6" concrete, block or crushed stone (verify codes)	Footing / Foundation Suggested footing; verify local building codes
Shipping / Origin Made in Waterford, CT USA	Shipping / Origin Freight truck (LTL)	Shipping / Origin Freight truck (LTL)	Shipping / Origin Freight truck (LTL)	Shipping / Origin Freight truck (LTL)
Ship Weight 69 lbs	Ship Weight 1428 lbs	Ship Weight 764 lbs	Ship Weight 1525 lbs	Ship Weight 832 lbs
Best for Facilities wanting removable 8 in. posts set in permanent footings.	Best for Programs adding one permanent outdoor 55 ft. hitting tunnel.	Best for Teams expanding an existing 55 ft. tunnel into a tandem cage.	Best for Schools needing a full-length 70 ft. outdoor batting tunnel.	Best for Complexes doubling a 70 ft. tunnel for side-by-side hitting.
$474.00	$10,684.00	$7,121.00	$11,324.00	$7,859.00
Check ›	Check ›	Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What size net comes with the MPCTF-70S?

The net is #36 black knotted nylon with 1-3/4" square mesh, measuring 14' wide x 70' long x 12' high.

How is the net supported and removed?

The net attaches with snap hooks to a tensioned 1/4" galvanized aircraft cable with thimble and clamps and a 1/2" galvanized turnbuckle. It can be slid to one end of the cable run for easy storage.

What footing is required for the posts?

A suggested footing is 6" of concrete, block or crushed stone. Building codes vary, so check local codes before starting the footing and follow them where their requirements are greater than those shown on the drawing.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
