Jaypro Batting Tunnel Frame - Professional Outdoor (70 ft.) - Multiple Tunnel Adaptor

Jaypro Batting Tunnel Frame - Professional Outdoor (70 ft.) - Multiple Tunnel Adaptor

See more by Jaypro

$4,299.00 - $4,299.00

$4,299.00

$4,299.00 - $4,299.00

$4,299.00

In stock

SKU: PROTF-70A

Product Overview

In short

The Jaypro PROTF-70A is a professional outdoor batting tunnel frame for a seventy-foot cage, built from curved aluminum poles that hold the structure away from the net to reduce ricochets. It is a permanent installation with ground sleeves included, individual hoist lines for raising and removing the net, and this version carries the multiple tunnel adaptor. It is recommended for collegiate and high school programs.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

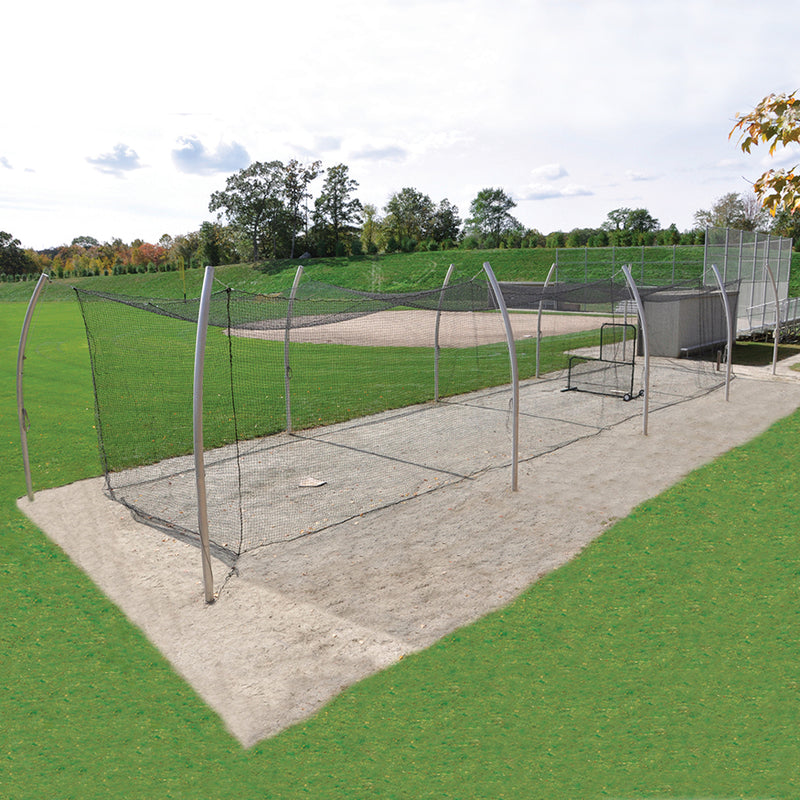

The Professional Outdoor Batting Tunnel Frame uses curved aluminum tubing that offsets the supports away from the hitting area, so there is less structure for a batted ball to ricochet off. Individual hoist lines run over a cleat at each pole, which makes installing the net at the start of the season and taking it down at the end a straightforward job for a small crew.

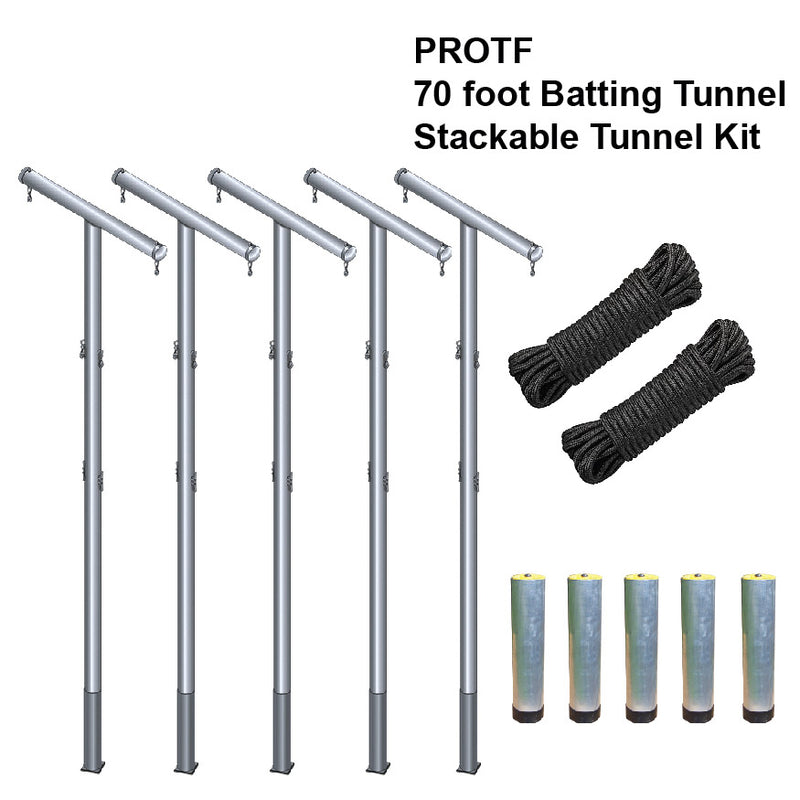

The frame is designed for permanent installation and ships with ground sleeves. It accommodates both twelve and fourteen foot wide tunnel nets, and extra net length at the bottom keeps balls from rolling out under the cage. Tunnel nets are sold separately. This PROTF-70A configuration is the multiple tunnel adaptor version, for programs building stackable tunnel runs rather than a single stand-alone cage.

Specifications

Specification	Value
Model	PROTF-70A - Professional Outdoor Batting Tunnel Frame, 70 ft.
Frame	4" OD curved aluminum poles
Offset	Curved supports provide 2 feet of offset away from the net
Net Length	70'-0" long net
Frame Height	12'-3"
Ground Embedment	2'-0" imbed into ground
Ground Sleeves	Included
Hoisting Rope	5/16" polyester double braided black hoisting rope
Cleat	6" cleat for hoisting rope storage / anchor
Net Compatibility	Accommodates both 12' and 14' wide tunnel nets
Net Overhang	12" of excess net at bottom to prevent balls from rolling under
Recommended Net	BBCP-7014 (sold separately)
Suggested Footing	Concrete footing, 24" diameter x 30" deep over concrete, block or crushed stone
Installation	Permanent installation

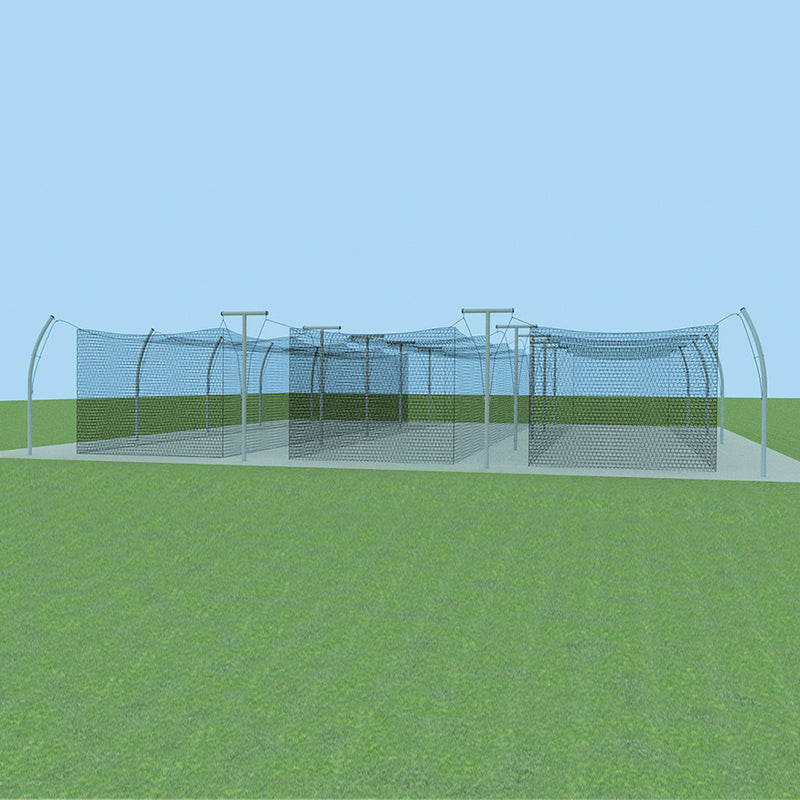

Tunnel Configuration	Available as single or stackable tunnel kits
Recommended For	Collegiate and high school programs

Compare Jaypro models

55 ft. Single	55 ft. Multi	70 ft. Single	70 ft. Multi THIS
Configuration Single tunnel	Configuration Single or stackable multi-tunnel kits	Configuration Single tunnel	Configuration Single or stackable multi-tunnel kits
Net Length 55 ft.	Net Length 55 ft.	Net Length 70 ft.	Net Length 70 ft.
Poles 4 in. O.D. aluminum, curved, 2 ft. offset	Poles 4 in. O.D. aluminum, curved, 2 ft. offset	Poles 4 in. O.D. aluminum, curved, 2 ft. offset	Poles 4 in. O.D. aluminum, curved, 2 ft. offset
Overall Frame Height 12 ft. 3 in.	Overall Frame Height 12 ft. 3 in.	Overall Frame Height 12 ft. 3 in.	Overall Frame Height 12 ft. 3 in.
Net Size Accommodated 12 ft. or 14 ft. wide; 11 ft. net height	Net Size Accommodated 12 ft. or 14 ft. wide; 11 ft. net height	Net Size Accommodated 12 ft. or 14 ft. wide nets	Net Size Accommodated 12 ft. or 14 ft. wide nets
Hoist System Individual hoist lines; 5/16 in. rope, 6 in. cleat	Hoist System 5/16 in. double-braided rope; 6 in. cleat	Hoist System Individual hoist lines; 5/16 in. rope, 6 in. cleat	Hoist System 5/16 in. double-braided rope; 6 in. cleat
Anchoring Ground sleeves included; 2 ft. embed	Anchoring Ground sleeves included; 2 ft. embed	Anchoring Ground sleeves included; 2 ft. embed	Anchoring Ground sleeves included; 2 ft. embed
Footing / Installation —	Footing / Installation Permanent; 24 in. dia. x 30 in. deep concrete footing	Footing / Installation Permanent; concrete footing with ground sleeves	Footing / Installation Permanent; 24 in. dia. x 30 in. deep concrete footing
Net Overhang 12 in. excess net at bottom	Net Overhang 12 in. excess net stops balls rolling under	Net Overhang 12 in. excess net stops balls rolling under	Net Overhang 12 in. excess net stops balls rolling under
Recommended Net (sold separately) —	Recommended Net (sold separately) BBCP-5514	Recommended Net (sold separately) —	Recommended Net (sold separately) BBCP-7014
Ship Weight 275 lbs	Ship Weight	Ship Weight 342 lbs	Ship Weight
Best for Programs adding one permanent 55 ft. outdoor batting tunnel.	Best for Facilities expanding 55 ft. tunnels into side-by-side banks.	Best for Teams needing a full-length 70 ft. permanent hitting tunnel.	Best for Collegiate and high school complexes running multiple 70 ft. tunnels.
$6,551.00 $6,209.00	$3,607.00	$7,807.00	$4,299.00
Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Is the net included with the PROTF-70A frame?

No. The tunnel net is sold separately. Jaypro recommends the BBCP-7014 net for the 70 ft. frame, and the structure accommodates both 12' and 14' wide tunnel nets.

How is this batting tunnel frame installed?

It is a permanent installation. Ground sleeves are included and the poles embed 2'-0" into the ground; the suggested footing is 24" diameter and 30" deep over concrete, block or crushed stone. Check local building codes before starting, as they may require more.

How is the net raised and lowered?

Each pole has an individual hoist line of 5/16" polyester double braided rope with a 6" cleat for anchoring and storing the rope, so the net can be raised for play and removed for the off-season.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
