Product Overview

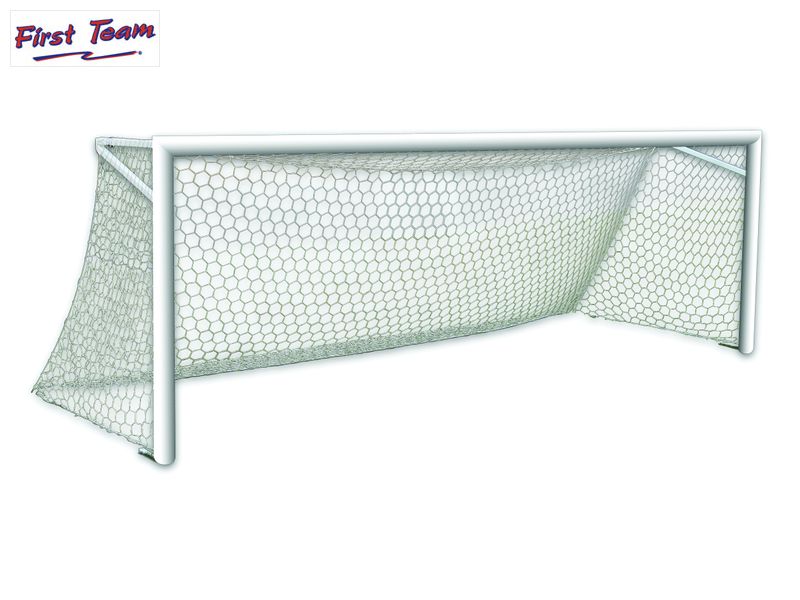

The World Class 40 Element-PB soccer goal is constructed with a 4ā round extruded 6063-T6 aluminum face, ensuring a minimum wall thickness of .080ā. It is designed to offer an official 12' wide x 6 1/2ā high opening, with an alternative assembly option for a 12ā 2ā wide opening to accommodate safety padding on vertical posts. The goal features a 4ā top depth extending to a 6 1/2ā bottom depth.
For enhanced stability, the upper and rear backstays, along with a stabilizer tube, are made from 1 3/4ā diameter x 13 ga. minimum zinc flow coated steel. The 4ā round goal face is completed with a white polyester powder coated finish. Transport is facilitated by standard 10ā diameter x 2ā wide transport wheels that attach to the front of each side, capable of folding for play or being removed if desired.
Standard features included with the system are a net, folding transport wheels, auger type rear safety hold downs, net attachment clips, and rear stabilizer bars. This goal meets all NCAA, NF, and FIFA rules, complies with ASTM F2025, and is backed by a Lifetime Limited Warranty. The system has an approximate weight of 310#/pair.
Specifications
| Specification | Value |
|---|---|
| Goal Face Material & Dimensions | 4ā round extruded 6063-T6 aluminum, .080ā minimum wall thickness |
| Goal Finish | White polyester powder coated |
| Goal Opening Dimensions | Official 12' wide x 6 1/2ā high; 12ā 2ā wide for padded posts |
| Backstays & Stability | 1 3/4ā diameter x 13 ga. zinc flow coated steel upper/rear backstays and stabilizer tube |
| Goal Depth | 4ā top depth x 6 1/2ā bottom depth |
| Hardware | No protruding hardware |
| Net | Included, attaches with specially designed clips to pre-drilled rear face |
| Mobility | 10ā diameter x 2ā wide transport wheels, foldable, removable |
| Safety Features | Auger type rear safety hold downs |
| System Weight | approximately 310#/pair |
| Certifications | NCAA, NF, FIFA rules, ASTM F2025 |
| Warranty | Lifetime Limited Warranty |
| Origin | Made in USA |
Compare OmniChamp models
|
Element Portable |
Element Semi-Perm |
Element Permanent |
Jr. Club Portable |
Sr. Club Portable |
Elite 24' Portable |
|---|---|---|---|---|---|
Official goal opening 12' W x 6 1/2' H | Official goal opening 12' W x 6 1/2' H | Official goal opening 12' W x 6 1/2' H | Official goal opening 18 1/2' W x 6 1/2' H | Official goal opening 21' W x 7' H | Official goal opening 24' W x 8' H |
Padded-post opening width 12' 2" wide (compensates for padding) | Padded-post opening width 12' 2" wide (padded post option) | Padded-post opening width 12' 2" wide (padded) | Padded-post opening width 18' 8" wide (for safety padding) | Padded-post opening width 21' 2" wide (with safety padding) | Padded-post opening width 24' 2" wide (compensates for padding) |
Goal face frame 4" round 6063-T6 aluminum, .080" min wall, white | Goal face frame 4" round 6063-T6 aluminum, .080" min wall, white | Goal face frame ā | Goal face frame 4" round 6063-T6 aluminum, .080" min wall, white | Goal face frame 4" round 6063-T6 aluminum, .080" min wall, white | Goal face frame 4" round 6063-T6 aluminum, .080" min wall, white |
Backstays Upper & rear 1 3/4" x 13 ga. zinc coated steel | Backstays Upper & rear 1 3/4" x 13 ga. zinc coated steel | Backstays 1 3/4" dia. x 13 ga. zinc flow coated steel tube | Backstays 1 3/4" dia. x 13 ga. zinc flow coated steel tube | Backstays 1 3/4" dia. x 13 ga. zinc flow coated steel tube | Backstays 1 3/4" dia. x 13 ga. zinc flow coated steel tube |
Goal depth (top x bottom) 4' top x 6 1/2' bottom | Goal depth (top x bottom) 4' top x 6 1/2' bottom | Goal depth (top x bottom) 4' top x 6 1/2' bottom | Goal depth (top x bottom) 4' top x 6 1/2' bottom | Goal depth (top x bottom) 4' top x 7' bottom | Goal depth (top x bottom) 4' top x 10' bottom |
Stabilizer tube 1 3/4" dia. 13 ga. zinc flow coated steel | Stabilizer tube 1 3/4" dia. steel, connects to rear backstays | Stabilizer tube 1 3/4" dia. steel, connects to rear backstays | Stabilizer tube 1 3/4" dia. 13 ga. zinc flow coated steel | Stabilizer tube 1 3/4" dia. 13 ga. zinc flow coated steel | Stabilizer tube 1 3/4" dia. 13 ga. zinc flow coated steel |
Transport wheels 10" x 2" front wheels, fold without tools, removable | Transport wheels 10" x 2" wheels, fold during play, removable | Transport wheels 10" x 2" front wheels, fold without tools, removable | Transport wheels 10" x 2" wheels, tool-free folding, removable | Transport wheels 10" x 2" wheels, foldable, removable | Transport wheels 10" x 2" wheels, fold without tools, removable |
Net attachment & hardware Pre-drilled rear face with clips; no protruding hardware | Net attachment & hardware Pre-drilled rear face with clips; no protruding hardware | Net attachment & hardware Pre-drilled rear face with clips; no protruding hardware | Net attachment & hardware Pre-drilled rear face with clips; no protruding hardware | Net attachment & hardware Pre-drilled rear face with clips; no protruding hardware | Net attachment & hardware Pre-drilled rear face with clips; non-protruding hardware |
Included with goal Net, folding wheels, auger hold-downs, clips, stabilizer bars | Included with goal Net, folding wheels, auger hold-downs, clips, stabilizer bars | Included with goal Net, folding wheels, auger hold-downs, clips, stabilizer bars | Included with goal Net, clips; auger rear safety hold downs | Included with goal Net, folding wheels, auger hold-downs, clips, stabilizer bars | Included with goal Net, folding wheels, auger hold-downs, clips, stabilizer bars |
Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA | Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA | Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA | Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA | Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA | Certifications, warranty & origin NCAA/NF/FIFA, ASTM F2025; Lifetime Limited; Made in USA |
Ship Weight 310 lbs/pair | Ship Weight 310 lbs/pair | Ship Weight 310 lbs/pair | Ship Weight 450 lbs/pair | Ship Weight 490 lbs/pair | Ship Weight 500 lbs/pair |
Best for Youth clubs needing a light 12' portable goal that moves between fields. | Best for Small-sided fields wanting a 12' goal anchored for a season. | Best for Dedicated youth fields where a 12' goal stays in place year-round. | Best for Junior programs needing an 18 1/2' portable goal for U10-U12 play. | Best for Travel clubs needing a 21' portable goal for older youth matches. | Best for High schools and colleges needing a full-size 24' x 8' portable goal. |
| $5,938.00 | $7,115.00 | $5,338.00 | $6,573.00 | $6,810.00 | $7,274.00 |
| Check › | Check › | Check › | Check › | Check › | Check › |
Shipping & Returns
We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.
60-DAY NO-HASSLE REFUNDS AND RETURNS
If thereās an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com
More information on shipping and returns can be found here.
Warranty
Lifetime Limited Warranty
Every First Team product is backed by First Team's warranty program. This model carries the warranty noted above. Here is what First Team's warranty tiers cover:
- Limited Warranty - covers damage during normal, intended use. Excludes vandalism and deliberate damage. Normal wear from weathering or UV exposure is not covered; all painted items carry a 1-year limited warranty on coating.
- Superior Warranty - additionally covers any damage or failure caused by basketball activity or contact with the unit, including deliberate hanging on the rim. Vandalism excluded.
- Unconditional Warranty - the broadest tier: covers any damage or failure that occurs for any reason.
- Manufacturer's Defect - all products are warranted against manufacturer's defects at delivery.
Warranties apply to the original purchaser only and are non-transferable; coverage ends on resale or transfer. Residential-only products are not covered for non-residential use.
