Gared High School 4-1/2″ O.D. White Football Goalpost, Surface Mount

See more by Gared

$7,849.49 - $7,849.49

$7,849.49

$7,849.49 - $7,849.49

$7,849.49

In stock

SKU: FGP401PW

Product Overview

In short

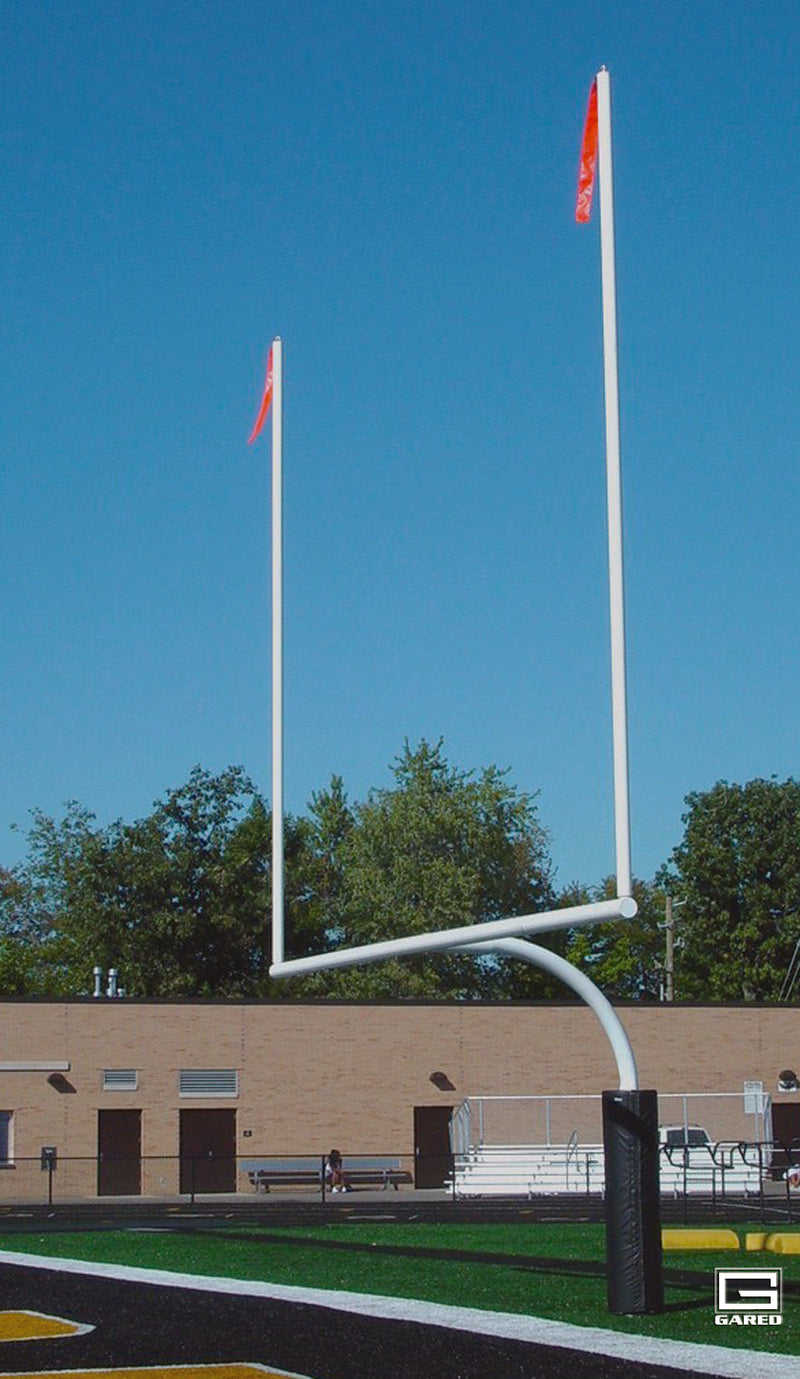

The Gared FGP401PW is a pair of white high school football goalposts on a 4-1/2" O.D. gooseneck post with permanent adjustable plate (surface) mounting. Aluminum uprights stand 20'-0" above the crossbar at regulation 23'-4" high school spacing, with a 5'-0" offset behind the end line, and wind flags plus 3/4-10 J-bolts and rebar are included. This model is not compatible with ground sleeves.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

Score the championship field goal with the FGP401PW white football goalpost with surface mount installation. The 4-1/2" O.D. gooseneck post supports the crossbar and 20' tall high school regulation uprights on 23'-4" spacing, and the 5' offset keeps the base back from the end line so multiple sports can share the field.

The gooseneck post and crossbar are powder coated over galvanized steel and the uprights are heavy wall aluminum tubing, all finished in white. The crossbar retains level by set screws and a locking bolt. Instead of embedding the post, this plate mount version bolts down through the lower post plate with four 3/4" diameter threaded anchors; the 3/4-10 threaded J-bolts and rebar are included and must be cast square with the field end line.

Upright mounting anchors are installed in a concrete footing approximately 36" in diameter and 56" deep; concrete and gravel drainage are not included. This model is not compatible with ground sleeves - the FGP401SW permanent/sleeve version covers that installation. Optional GSPPAD4 protective post pads fit posts up to 6" O.D. and are 6' high; padding is not included with the unit.

Specifications

Specification	Value
Model	FGP401PW - white, surface (plate) mount
Design	Gooseneck, meets NFSHSA specs
Post	4-1/2" (114 mm) O.D. powder coated over galvanized steel
Crossbar	4-1/2" (114 mm) O.D. powder coated over galvanized steel
Uprights	2-3/8" O.D. aluminum tubing, 20'-0" (6.10 m) above crossbar
Upright Spacing	23'-4" (7.11 m) - high school
Overall Height	30'
Crossbar Height	10'-0" (3.05 m)
Offset	5'-0" (1.53 m) behind the end line
Color	White powder coat on gooseneck, crossbar and uprights
Wind Flags	Included
Mounting	Permanent adjustable plate mount - four 3/4" diameter threaded anchors through the lower post plate
Anchors Supplied	3/4-10 threaded J-bolts and rebar included
Concrete Footing	Approximately 36" diameter x 56" deep, concrete not included
Ground Sleeves	Not compatible with ground sleeves
Sold As	Model consists of 2 goal posts
Optional Equipment	GSPPAD4 protective post pad (padding not included)
Finish	Powdercoat
Country of Origin	US
Shipping Weight	954 lbs / 432.73 kg
Shipping Dimensions (HxWxL)	59" x 5" x 48"

Compare Gared models

Pad 4.5 in.	Pad 6 in.	HS 4.5 Sleeve White	HS 4.5 Surface White THIS	HS 5.5 Sleeve White	College Surface White
Type Protective goalpost post pad (each)	Type Protective goalpost post pad (each)	Type Gooseneck goalposts, permanent/sleeve, pair	Type Gooseneck goalposts, surface mount, pair	Type Gooseneck goalposts, permanent/sleeve, pair	Type Gooseneck goalposts, surface mount, pair
Standards Met —	Standards Met —	Standards Met Meets NFSHSA (NFHS) specs	Standards Met Meets NFSHSA (NFHS) specs	Standards Met Meets NFSHSA (NFHS) specs	Standards Met Meets all NCAA specs
Post Diameter Fits posts up to 4-1/2" O.D.	Post Diameter Fits posts up to 6" O.D.	Post Diameter 4-1/2" (114 mm) O.D. powdercoated galv. steel	Post Diameter 4-1/2" (114 mm) O.D. powdercoated galv. steel	Post Diameter 5-9/16" (141 mm) O.D. powdercoated galv. steel	Post Diameter 5-9/16" O.D. powdercoated galvanized steel
Tubing / Construction 4" high-density urethane foam, 18 oz vinyl cover	Tubing / Construction 4" high-density urethane foam, 18 oz vinyl cover	Tubing / Construction 4-1/2" steel crossbar; 2-3/8" aluminum uprights	Tubing / Construction 4-1/2" steel crossbar; 2-3/8" aluminum uprights	Tubing / Construction 4-1/2" steel crossbar; 2-3/8" aluminum uprights	Tubing / Construction 4-1/2" steel crossbar; 2-3/8" aluminum uprights
Height & Upright Spacing 6' pad height	Height & Upright Spacing 6' pad height	Height & Upright Spacing 30' high; 23'-4" spacing; 10' crossbar height	Height & Upright Spacing 30' high; 23'-4" spacing; 10' crossbar height	Height & Upright Spacing 30' high; 23'-4" spacing; 10' crossbar height	Height & Upright Spacing 30' high; 18'-6" between uprights (college)
Offset Behind End Line —	Offset Behind End Line —	Offset Behind End Line 5'-0" (1.52 m)	Offset Behind End Line 5'-0" (1.53 m)	Offset Behind End Line 6'-0" (1.83 m)	Offset Behind End Line 6' (72" post offset)
Mounting Wraps main post at body-contact zone	Mounting Wraps main post at body-contact zone	Mounting Permanent concrete; optional FGP400GS ground sleeves	Mounting Plate mount, four 3/4" anchors; J-bolts & rebar incl.	Mounting Permanent concrete; optional FGP600GS ground sleeves	Mounting Adjustable plate mount, four 3/4" threaded anchors
Concrete Footing —	Concrete Footing —	Concrete Footing Approx. 36" dia. x 48" deep; 42" post embedment	Concrete Footing Approx. 36" dia. x 56" deep; concrete not included	Concrete Footing Approx. 36" dia. x 48" deep; 38" post embedment	Concrete Footing Approx. 36" dia. x 55" deep; concrete not included
Color / Finish 14 standard vinyl colors; custom colors/graphics	Color / Finish 14 standard vinyl colors; custom colors/graphics	Color / Finish White powdercoat; wind flags included	Color / Finish White powdercoat; wind flags included	Color / Finish White powdercoat; wind flags included	Color / Finish White powdercoat; wind flags included
Country of Origin US	Country of Origin US	Country of Origin US	Country of Origin US	Country of Origin US	Country of Origin US
Ship Weight 25 lbs	Ship Weight 25 lbs	Ship Weight 914 lbs	Ship Weight 954 lbs	Ship Weight 1122 lbs	Ship Weight 1062 lbs
Best for Fields adding player protection to 4-1/2" O.D. goalposts.	Best for Fields padding heavy gooseneck posts up to 6" O.D.	Best for High schools wanting economical white posts with sleeve option.	Best for High schools bolting white posts to prepared concrete footings.	Best for High schools needing heavy-duty white posts with 6' offset.	Best for Colleges plate-mounting NCAA-spec white goalposts on footings.
$807.00 $769.70	$1,166.10 $1,111.79	$6,797.82	$7,849.49	$11,911.04	$11,199.84
Check ›	Check ›	Check ›	Viewing	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

5-Year Limited Warranty against defects in material or factory workmanship

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

How does the surface mount version anchor to the field?

The post mounts with four 3/4" diameter threaded anchors through the lower post plate. The 3/4-10 threaded J-bolts and rebar are included and are cast into a concrete foundation that must be square with the field end line.

Can the FGP401PW be used with ground sleeves?

No. This plate mount model is not compatible with ground sleeves. For sleeve or permanent embedded installation, the FGP401SW permanent/sleeve mount version is the correct model.

What footing size does it require?

Upright mounting anchors are installed in a concrete footing approximately 36" in diameter and 56" deep. Concrete and gravel for the installation are not included.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
