Product Overview

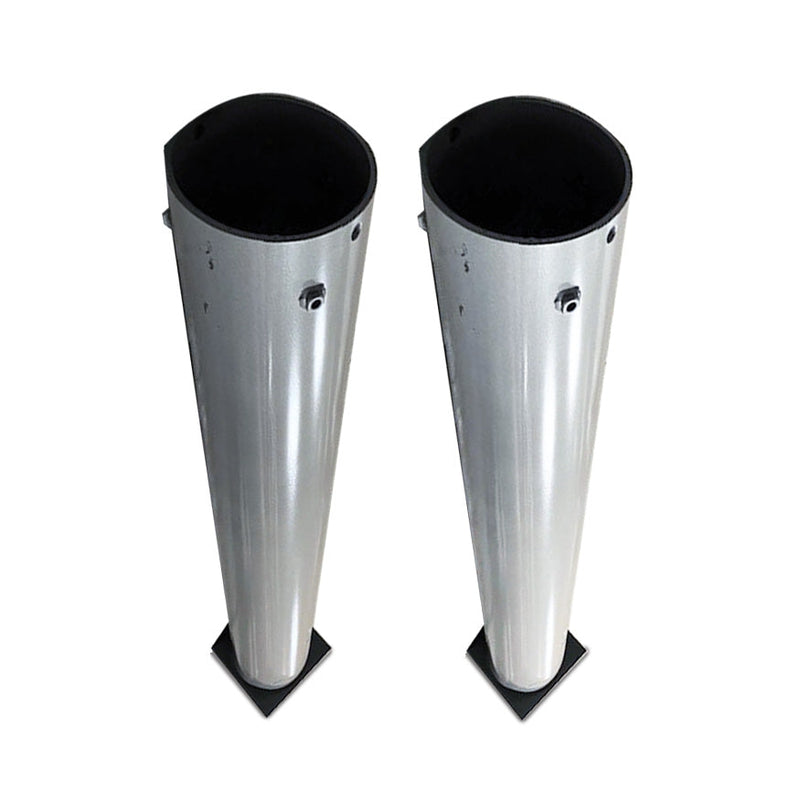

The Jaypro FBSLV5 Ground Sleeve sets a 4-1/2 in. football goal post gooseneck for semi-permanent installation, so the post can be removed for other field uses.
The sleeve is 5 in. Sch 40 steel pipe (5-9/16 in. O.D. x .258 in. wall), 62-1/4 in. long, finished with zinc rich primer and gloss black. It includes flange nuts with threaded rod, a jacking screw and hex bolts with jam nuts to plumb the gooseneck.
Specifications
| Specification | Value |
|---|---|
| Model | FBSLV5 |
| Type | Standard Ground Sleeve for 4-1/2 in. Football Goal Post Gooseneck |
| Sleeve | 5 in. Sch 40 steel pipe (5-9/16 in. O.D. x .258 in. wall) |
| Length | 62-1/4 in. |
| Finish | Zinc rich primer with gloss black finish |
| Hardware | 1/2-13 flange nuts with threaded rod through gooseneck; jacking screw; 1/2-13 x 2 in. hex bolts with jam nut (3 places) |
| Footing | Set in concrete; 1/2 in. - 3/4 in. rebar, 6 pieces recommended (not included) |
| Ship Weight | 114 lbs |
| Ships Via | Freight truck (LTL) |
Compare Jaypro models
|
4 in. Aluminum |
4-1/2 in. Steel THIS |
5-9/16 in. Steel |
6-5/8 in. MAX-1 |
|---|---|---|---|
Model FBSLV4 | Model FBSLV5 | Model FBSLV6 | Model FBSLV8 |
Fits Pole Size 4 in. football/rugby goal post | Fits Pole Size 4-1/2 in. football goal post gooseneck | Fits Pole Size 5-9/16 in. football gooseneck | Fits Pole Size 6-5/8 in. MAX-1 football gooseneck |
Sleeve Construction 4.070 in. I.D. x .125 in. wall 6063-T6 aluminum tube | Sleeve Construction 5 in. Sch 40 steel (5-9/16 in. O.D. x .258 in. wall) | Sleeve Construction 6 in. Sch 40 steel pipe | Sleeve Construction 8 in. Sch 40 steel pipe |
Sleeve Length 54-1/8 in. | Sleeve Length 62-1/4 in. | Sleeve Length 46 in. | Sleeve Length 60 in. |
Finish — | Finish Zinc rich primer with gloss black finish | Finish Galvanized or zinc prime | Finish Powder coated gray |
Installation Type Semi-permanent ground sleeve | Installation Type Standard ground sleeve | Installation Type Standard ground sleeves | Installation Type Standard MAX-1 ground sleeves |
Included Hardware — | Included Hardware 1/2-13 flange nuts, threaded rod, jacking screw, 3 hex bolts | Included Hardware Hardware to plumb gooseneck and prevent rotation | Included Hardware Hardware to plumb gooseneck and prevent rotation |
Footing Requirements 4000 psi concrete; 3/4 in. rebar, 6 places by installer | Footing Requirements Set in concrete; 6 pcs 1/2-3/4 in. rebar (not included) | Footing Requirements — | Footing Requirements — |
Compatible Goal Posts — | Compatible Goal Posts — | Compatible Goal Posts FBGP-720 (6 ft. offset) | Compatible Goal Posts FBGP-800US (8 ft.) or FBGP-500US (6 ft.) extension |
Quantity / Options Optional mechanical plug cap EP0008 sold separately | Quantity / Options — | Quantity / Options Sold in pairs | Quantity / Options Sold in pairs |
Ship Weight | Ship Weight 114 lbs | Ship Weight 144 lbs | Ship Weight 288 lbs |
Best for Programs installing 4 in. aluminum football or rugby goal posts that may be removed seasonally. | Best for Schools anchoring 4-1/2 in. gooseneck football goal posts with full plumb-and-lock hardware. | Best for Fields running 5-9/16 in. FBGP-720 goosenecks that need a matched pair of steel sleeves. | Best for Stadiums installing heavy-duty 6-5/8 in. MAX-1 goal posts requiring the deepest steel sleeves. |
| $452.00 | $961.00 | $1,504.00 | $1,698.00 |
| Check › | Viewing | Check › | Check › |
