Jaypro Batting Tunnel Frame - Single (55 ft.) - Surface Mounted (Outdoor)

See more by Jaypro

$4,528.00 - $4,528.00

$4,528.00

$4,528.00 - $4,528.00

$4,528.00

In stock

SKU: BBTFSM-55

Product Overview

In short

The Jaypro BBTFSM-55 is a 55 ft. single outdoor batting tunnel frame that bolts to an existing slab or hard surface instead of being set in ground sleeves. Uprights of 2" OD galvanized steel tube land on surface mount plates fastened with 1/2" anchors (supplied by others), and four adjustable brace pipes keep the frame from bending under net tension. It accepts 12 ft. or 14 ft. wide tunnel nets, so it suits schools, clubs and facilities that already have a concrete pad.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The BBTFSM-55 is the surface mounted version of Jaypro's outdoor batting tunnel frame. Rather than imbedding posts in the ground, each upright terminates in a surface mount base plate that is fastened down with 1/2" anchors provided by the installer, which makes it the practical choice where a slab or existing hard surface is already in place.

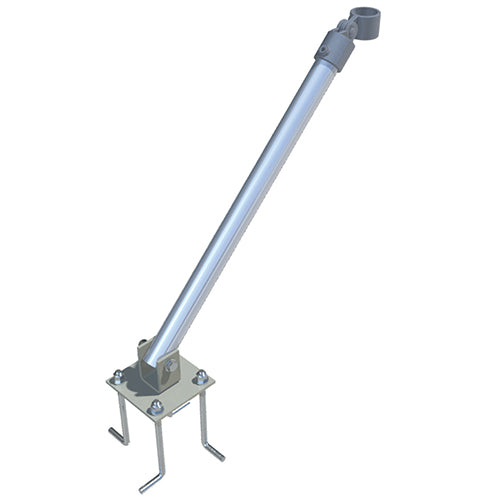

Construction is 2" OD galvanized steel tube for outdoor durability, with the net carried on three rows of 3/16" galvanized aircraft cable. The cable is adjustable with a turnbuckle so the net can be tensioned properly and re-tightened later. Four adjustable brace pipes are part of the design to stop the frame bending in under the extreme tension of the nets, and an optional brace kit (BBTF-BRKIT) is available separately.

The frame carries a 55 ft. long net with an overall frame length of 59 ft. and uprights spaced 19'-8" apart. It accommodates both 12 ft. and 14 ft. wide nets and leaves 12" of excess net at the bottom so balls cannot roll out under the tunnel.

Specifications

Specification	Value
Model	BBTFSM-55
Type	Outdoor batting tunnel frame with surface mounts (single)
Frame	2" OD galvanized steel tube
Net Suspension	3 rows of 3/16" galvanized aircraft cable
Mounting	Surface mount base plates; 1/2" anchors by others
Bracing	Four adjustable brace pipes to prevent the frame from bending under net tension
Clamps	Angled pipe clamps
Optional Brace	BBTF-BRKIT (sold separately)
Net Length	55'-0" long net
Overall Frame Length	59'-0"
Bay Spacing	19'-8" between uprights (three bays)
Net Width Accommodated	12'-0" or 14'-0" wide nets
Net Height	11'-0" net (11'-8" frame height)
Net Tensioning	Net adjustable with turnbuckle
Bottom Net Overlap	12" of excess net on bottom to prevent balls from rolling under
Installation Note	Suggested anchoring/footing detail only - check local building codes before starting
Ship Weight	250 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

SM 55 ft THIS	SM 70 ft	Semi-Perm 55 ft	Semi-Perm 70 ft
Model BBTFSM-55	Model BBTFSM-70	Model BBTF-55	Model BBTF-70
Net Length 55'-0" net	Net Length 70'-0" net	Net Length 55'-0" net	Net Length 70'-0" net
Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights	Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights
Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube
Mounting Surface mount base plates; 1/2" anchors by others	Mounting Surface mount; 1/2" anchors by others	Mounting Semi-permanent; ground sleeves included	Mounting Semi-permanent; ground sleeves set in concrete
Ground Embedment / Footing —	Ground Embedment / Footing —	Ground Embedment / Footing 2'-0" imbed; Ø18" x 30" deep footing suggested	Ground Embedment / Footing 2'-0" imbed; concrete over crushed stone
Bracing Four adjustable brace pipes; angled pipe clamps	Bracing Four adjustable brace pipes (brace kit included)	Bracing —	Bracing —
Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable
Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included	Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included
Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom
Ship Weight 250 lbs	Ship Weight 250 lbs	Ship Weight 342 lbs	Ship Weight 418 lbs
Best for Programs adding a 55 ft. tunnel on an existing concrete pad without digging footings.	Best for Facilities wanting a full-length 70 ft. tunnel anchored to an existing slab.	Best for Schools and parks installing a compact in-ground 55 ft. batting tunnel.	Best for High school and college fields needing a permanent full-length 70 ft. tunnel.
$4,528.00	$5,640.00	$3,888.00	$4,868.00
Viewing	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

How is the BBTFSM-55 anchored?

It uses surface mount base plates fastened with 1/2" anchors, which are supplied by others. This differs from the semi-permanent version, which is imbedded in ground sleeves and concrete.

What net sizes fit this frame?

The BBTFSM-55 is built for a 55'-0" long net and accommodates either a 12'-0" or 14'-0" wide net. Net height is 11'-0" with 12" of excess net left at the bottom.

Does it come with bracing?

Yes - the design includes four adjustable brace pipes to prevent the frame from bending in under extreme net tension. An additional optional brace kit, BBTF-BRKIT, is sold separately.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.

Product Documents
