Jaypro Batting Tunnel Frame - Single (55 ft.) - Semi-Permanent (Outdoor)

See more by Jaypro

$3,888.00 - $3,888.00

$3,888.00

$3,888.00 - $3,888.00

$3,888.00

In stock

SKU: BBTF-55

No sales tax

Premium Insured

Flat-rate freight

Price Match Guarantee

Liftgate delivery available

What is liftgate?

Standard (curbside) freight delivery: the driver brings the pallet to your address but does not unload it, so you need a loading dock, a forklift or enough people to unload it.

Liftgate delivery: the truck's hydraulic liftgate lowers the pallet to the ground, the right choice for a home, school, park or any address without a dock. To add it, choose the shipping method "Premium Insured Freight + Liftgate (+$209)" at checkout. It is $209 per order and covers all freight items in the order. It does not include inside delivery or assembly. Shipping policy

Product Overview

In short

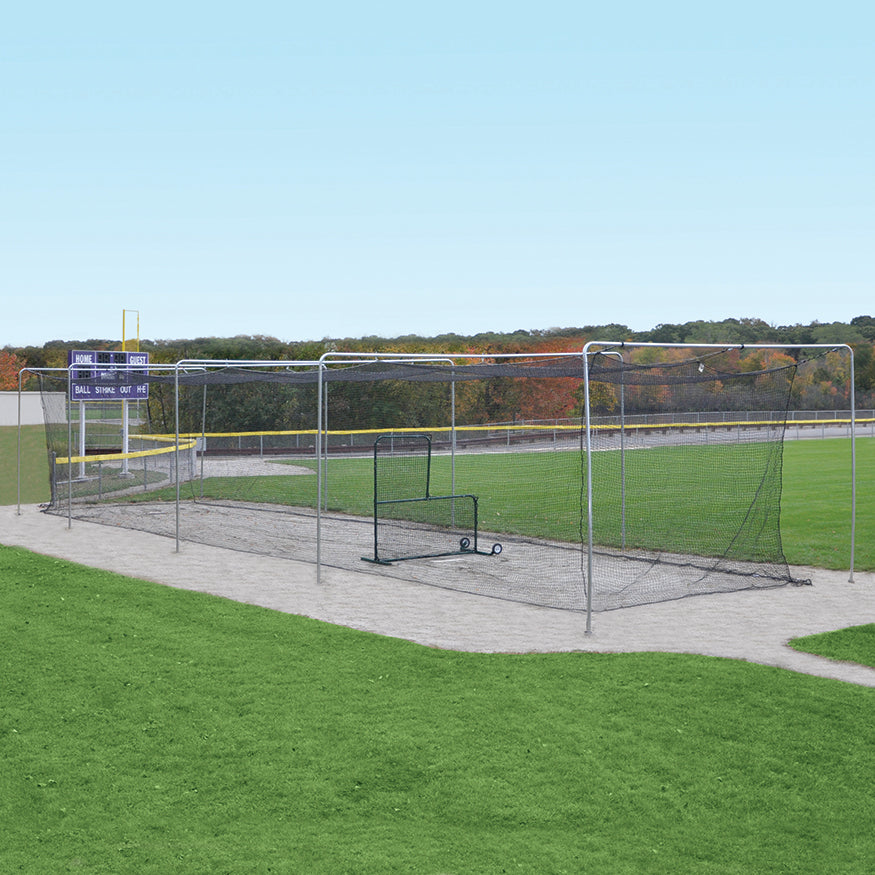

The Jaypro BBTF-55 is a semi-permanent outdoor batting tunnel frame for a single 55 ft. batting cage net. It is built from galvanized steel tube and sets into included ground sleeves that are anchored in concrete footings, so the frame stays in place for the season while the net can be removed. It accepts either 12 ft. or 14 ft. wide tunnel nets, making it a fit for schools, clubs and training facilities that want a permanent-feel outdoor hitting station.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The BBTF-55 semi-permanent outdoor batting tunnel frame is constructed of 2" OD galvanized steel tube for corrosion resistance in year-round outdoor use. The net hangs on three rows of 3/16" galvanized aircraft cable, and the cable run is tensioned with a turnbuckle so the net can be pulled tight and re-adjusted over time.

Ground sleeves are included with the frame. The uprights are imbedded in the ground and set in concrete footings, giving a rigid structure without the frame being permanently welded in place - the posts can be pulled from the sleeves when the tunnel is taken down. Jaypro shows a suggested footing detail on the spec drawing, but local building codes take precedence and should be checked before any concrete is poured.

The frame is sized for a 55 ft. long net with an overall frame length of 59 ft. and uprights spaced 19'-8" apart. It accommodates both 12 ft. and 14 ft. wide nets, and the design allows 12" of excess net at the bottom so balls cannot roll out under the tunnel.

Specifications

Specification	Value
Model	BBTF-55
Type	Semi-permanent outdoor batting tunnel frame (single)
Frame	2" OD galvanized steel tube
Net Suspension	3 rows of 3/16" galvanized aircraft cable
Net Length	55'-0" long net
Overall Frame Length	59'-0"
Bay Spacing	19'-8" between uprights (three bays)
Net Width Accommodated	12'-0" or 14'-0" wide nets
Net Height	11'-0" net (11'-8" frame height)
Ground Embedment	2'-0" imbed in ground
Ground Sleeves	Included
Net Tensioning	Net adjustable with turnbuckle
Bottom Net Overlap	12" of excess net on bottom to prevent balls from rolling under
Suggested Footing	Ø18" diameter, 30" deep (24" concrete over crushed stone)
Installation Note	Suggested footing only - check local building codes before starting the footing
Ship Weight	342 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

SM 55 ft	SM 70 ft	Semi-Perm 55 ft THIS	Semi-Perm 70 ft
Model BBTFSM-55	Model BBTFSM-70	Model BBTF-55	Model BBTF-70
Net Length 55'-0" net	Net Length 70'-0" net	Net Length 55'-0" net	Net Length 70'-0" net
Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights	Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights
Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube
Mounting Surface mount base plates; 1/2" anchors by others	Mounting Surface mount; 1/2" anchors by others	Mounting Semi-permanent; ground sleeves included	Mounting Semi-permanent; ground sleeves set in concrete
Ground Embedment / Footing —	Ground Embedment / Footing —	Ground Embedment / Footing 2'-0" imbed; Ø18" x 30" deep footing suggested	Ground Embedment / Footing 2'-0" imbed; concrete over crushed stone
Bracing Four adjustable brace pipes; angled pipe clamps	Bracing Four adjustable brace pipes (brace kit included)	Bracing —	Bracing —
Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable
Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included	Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included
Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom
Ship Weight 250 lbs	Ship Weight 250 lbs	Ship Weight 342 lbs	Ship Weight 418 lbs
Best for Programs adding a 55 ft. tunnel on an existing concrete pad without digging footings.	Best for Facilities wanting a full-length 70 ft. tunnel anchored to an existing slab.	Best for Schools and parks installing a compact in-ground 55 ft. batting tunnel.	Best for High school and college fields needing a permanent full-length 70 ft. tunnel.
$4,528.00	$5,640.00	$3,888.00	$4,868.00
Check ›	Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What net size does the BBTF-55 frame take?

The frame is designed for a 55'-0" long net and accommodates either a 12'-0" or a 14'-0" wide tunnel net. Net height at the frame is 11'-0", with 12" of excess net left at the bottom so balls do not roll under the tunnel.

Are ground sleeves included, and is concrete required?

Ground sleeves are included with the BBTF-55. The sleeves are set into concrete footings with the posts imbedded 2'-0" in the ground. Jaypro's drawing shows a suggested Ø18" x 30" deep footing over crushed stone, but local building codes must be checked first and followed if they are more demanding.

What is the frame made of?

The frame is constructed of 2" OD galvanized steel tube, and the net hangs on three rows of 3/16" galvanized aircraft cable adjustable with a turnbuckle - an economical and durable combination for outdoor installations.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
