Jaypro Batting Tunnel Frame - Single (70 ft.) - Surface Mounted (Outdoor)

See more by Jaypro

$5,640.00 - $5,640.00

$5,640.00

$5,640.00 - $5,640.00

$5,640.00

In stock

SKU: BBTFSM-70

Product Overview

In short

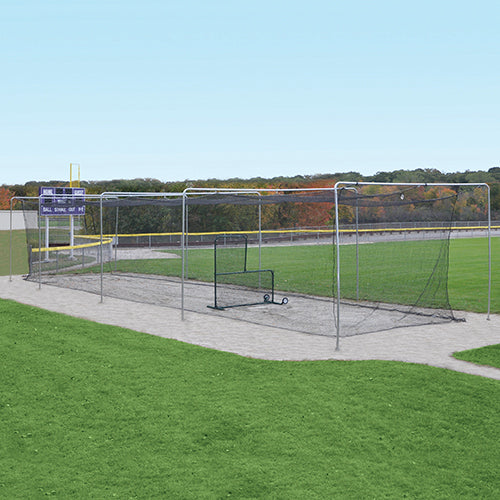

The Jaypro BBTFSM-70 is a surface-mounted outdoor batting tunnel frame for a 70'-0" long net, built from 2" O.D. galvanized steel tube with an overall frame length of 74'-0". The net hangs on three rows of 3/16" galvanized aircraft cable and is tensioned with turnbuckles, and the frame accepts either 12' or 14' wide nets. It is intended for schools, clubs and training facilities that need a permanent outdoor cage anchored to an existing slab.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The BBTFSM-70 is the surface-mounted version of Jaypro's outdoor batting tunnel frame, supplied with a brace kit. The structure is built from 2" O.D. galvanized steel tube and spans 74'-0" overall on 18'-6" bay spacing to carry a 70'-0" long net.

The net hangs from three rows of 3/16" galvanized aircraft cable and is adjustable with turnbuckles, so it can be pulled taut as the netting relaxes over a season. Sleeves are included and the frame accommodates both 12' and 14' wide nets, with 12" of excess net at the bottom to keep balls from rolling under the cage.

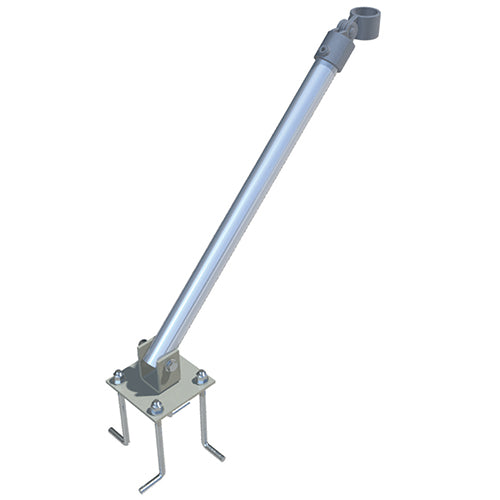

Four adjustable brace pipes keep the frame from bending inward under the extreme tension of the nets, and an additional brace (BBTF-BRKIT) is available separately. The frame is fastened down with 1/2" surface-mount anchors supplied by the installer; the footing detail shown by the factory is a suggestion only, so local building codes should be checked before construction.

Specifications

Specification	Value
Model	BBTFSM-70
Type	Outdoor batting tunnel frame with brace kit, surface mounted
Net Length	70'-0"
Overall Frame Length	74'-0"
Bay Spacing	18'-6" between uprights
Frame Material	2" O.D. galvanized steel tube
Net Suspension	3 rows of 3/16" galvanized aircraft cable
Net Tensioning	Adjustable with turnbuckle
Net Widths Accommodated	12'-0" or 14'-0" wide nets (sleeves included)
Net Height	11'-0"
Excess Net at Bottom	12" to prevent balls from rolling under
Bracing	Four adjustable brace pipes
Mounting	Surface mount with 1/2" anchors by others
Optional Brace	BBTF-BRKIT, sold separately
Ship Weight	250 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

SM 55 ft	SM 70 ft THIS	Semi-Perm 55 ft	Semi-Perm 70 ft
Model BBTFSM-55	Model BBTFSM-70	Model BBTF-55	Model BBTF-70
Net Length 55'-0" net	Net Length 70'-0" net	Net Length 55'-0" net	Net Length 70'-0" net
Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights	Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights
Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube
Mounting Surface mount base plates; 1/2" anchors by others	Mounting Surface mount; 1/2" anchors by others	Mounting Semi-permanent; ground sleeves included	Mounting Semi-permanent; ground sleeves set in concrete
Ground Embedment / Footing —	Ground Embedment / Footing —	Ground Embedment / Footing 2'-0" imbed; Ø18" x 30" deep footing suggested	Ground Embedment / Footing 2'-0" imbed; concrete over crushed stone
Bracing Four adjustable brace pipes; angled pipe clamps	Bracing Four adjustable brace pipes (brace kit included)	Bracing —	Bracing —
Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable
Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included	Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included
Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom
Ship Weight 250 lbs	Ship Weight 250 lbs	Ship Weight 342 lbs	Ship Weight 418 lbs
Best for Programs adding a 55 ft. tunnel on an existing concrete pad without digging footings.	Best for Facilities wanting a full-length 70 ft. tunnel anchored to an existing slab.	Best for Schools and parks installing a compact in-ground 55 ft. batting tunnel.	Best for High school and college fields needing a permanent full-length 70 ft. tunnel.
$4,528.00	$5,640.00	$3,888.00	$4,868.00
Check ›	Viewing	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What net size does the BBTFSM-70 frame take?

It is built for a 70'-0" long net and accommodates either 12' or 14' wide netting. Sleeves are included with the frame.

How is this frame anchored?

It is surface mounted using 1/2" anchors, which are supplied by the installer. A separate semi-permanent version with ground sleeves is also offered.

How is the net kept tight?

The net hangs on three rows of 3/16" galvanized aircraft cable that are adjustable with turnbuckles, and four adjustable brace pipes prevent the frame from bending under net tension.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
