Jaypro Foul Poles - 40 ft. - Softball (Professional) (Surface Mount)

Jaypro Foul Poles - 40 ft. - Softball (Professional) (Surface Mount)

See more by Jaypro

$21,012.00 - $21,012.00

$21,012.00

$21,012.00 - $21,012.00

$21,012.00

In stock

SKU: SBFP-40SM

Product Overview

In short

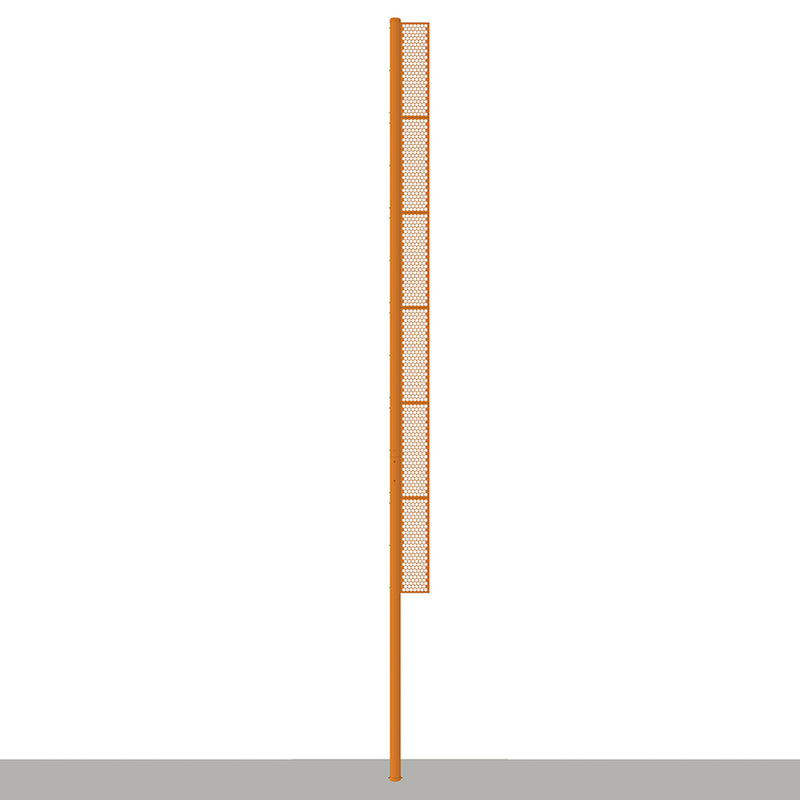

The Jaypro SBFP-40SM is a professional grade 40 ft. softball foul pole that bolts to a concrete pier using an adjustable leveling plate instead of being buried in the footing. The two piece heavy schedule steel pole carries a perforated steel wing panel and is engineered for high wind exposure. It is intended for collegiate and professional softball facilities.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

Surface mounting is the practical choice when the concrete pier is poured ahead of the pole delivery or when a pole may need to be replaced without breaking out concrete. The adjustable leveling plate lets the crew plumb the pole after the anchor bolts are set, correcting for a pier that is slightly out of level.

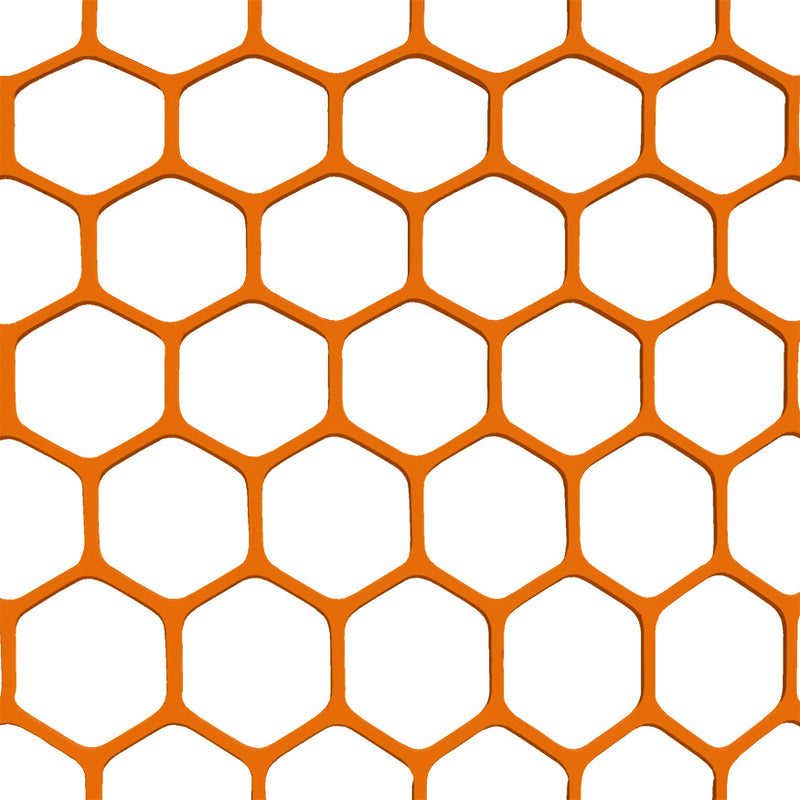

The main pole ships in two pieces of heavy schedule steel pipe and is joined during erection. The wing panel is perforated steel, giving a clear visual reference on fair and foul calls while letting wind pass through rather than acting as a solid sail.

A zinc rich primer under a tough powder coated topcoat protects the steel in wet and coastal conditions. Yellow is standard, with white and orange available for programs that follow different field conventions. Footing dimensions shown are suggestions for average soil conditions with a rebar basket supplied by others, so consult local building codes before pouring.

Specifications

Specification	Value
Model	SBFP-40SM
Sport	Softball (Professional)
Overall Height	40'-0"
Mounting	Surface mount with adjustable leveling plate
Main Pole	2 piece 6 5/8" O.D. SCH 40 steel pipe
Wing Panel	Heavy duty 18" x 60" x 2" x 11 GA. steel perforated metal panel
Finish	Tough powder coated yellow finish over zinc rich primer
Color Options	White (SBFP-40SM-WT), Orange (SBFP-40SM-OR)
Wind Rating	Designed to withstand up to 130 MPH wind
Typical Footing	54" diameter x 72" deep concrete (based on 90 MPH wind)
Rebar Basket	By others
Sold As	Each

Compare Jaypro models

20 ft. Surface	20 ft. Sleeve	30 ft. White	30 ft. Sleeve	40 ft. Surface THIS	40 ft. Sleeve
Overall Height 20 ft. nominal; 20'-2" structure, 19'-10" above field	Overall Height 20 ft.	Overall Height 29'-10"	Overall Height 30 ft. nominal; 29'-10" above field level	Overall Height 40'-0"	Overall Height 40'-0"
Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe
Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. perforated steel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel
Panel Position —	Panel Position —	Panel Position —	Panel Position 20'-0" visible panel, bottom at 9'-10"	Panel Position —	Panel Position —
Mounting / Installation Surface mount, adjustable leveling plate; wall-top OK	Mounting / Installation Semi-permanent ground sleeve or wall-top install	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Surface mount with adjustable leveling plate	Mounting / Installation Permanent and semi-permanent
Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-20	Ground Sleeve / Hardware Ground sleeve FPS-30P plus anti-rotation hardware	Ground Sleeve / Hardware Ground sleeve FPS-30P (semi-permanent)	Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-40 with anti-rotation hardware
Wind Rating Up to 120 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 130 MPH	Wind Rating Up to 130 MPH
Typical Footing —	Typical Footing —	Typical Footing Shown footing based on 100 MPH wind; concrete/rebar by others	Typical Footing Permanent 72" deep; semi-permanent 48" deep	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)
Finish Powder coated yellow over zinc undercoating	Finish Powder coated yellow over zinc undercoating	Finish Powder coated white over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer
Color Options Yellow standard; white or orange optional	Color Options Yellow (standard), white, orange	Color Options White or orange	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional
Ship Weight	Ship Weight 602 lbs	Ship Weight 800 lbs	Ship Weight 800 lbs	Ship Weight	Ship Weight
Best for Programs bolting a 20 ft. pole to an existing slab or outfield wall top.	Best for Fields needing a removable 20 ft. foul pole set in a ground sleeve.	Best for Facilities matching a white 30 ft. pole to light-colored outfield walls.	Best for Competition fields wanting a taller 30 ft. yellow pole with sleeve option.	Best for Stadiums surface-mounting a 40 ft. pole on a poured concrete footing.	Best for Elite venues wanting a 40 ft. pole removable via FPS-40 ground sleeve.
$7,270.00	$5,774.00	$12,607.00	$11,340.00	$21,012.00	$17,270.00
Check ›	Check ›	Check ›	Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

How does a surface mount foul pole attach to the field?

It bolts down to a concrete footing through an adjustable leveling plate, which allows the pole to be plumbed after the anchors are set, instead of being embedded directly in the concrete.

What wind load is the pole designed for?

The foul pole is designed to withstand up to 130 MPH wind. The typical footing shown on the drawing is based on 90 MPH wind.

What colors are available?

The standard finish is powder coated yellow over zinc rich primer. White (SBFP-40SM-WT) and orange (SBFP-40SM-OR) powder coated versions are also offered.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
