Jaypro Foul Poles - 30 ft. - Softball (Professional) (Surface Mount) Jaypro

Jaypro Foul Poles - 30 ft. - Softball (Professional) (Surface Mount)

See more by Jaypro

$12,607.00 - $12,607.00

$12,607.00

$12,607.00 - $12,607.00

$12,607.00

In stock

SKU: SBFP-30-WT

Quantity

Product Overview

In short

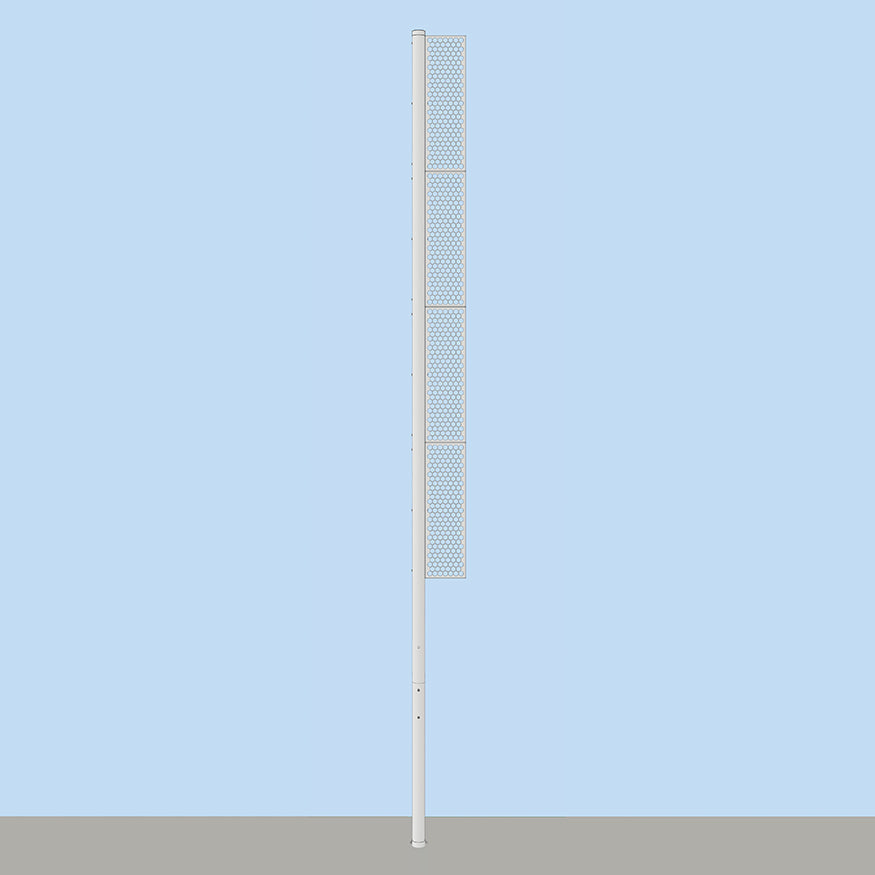

The Jaypro SBFP-30-WT is a 30 ft. softball foul pole built on a 2-piece 5" SCH40 steel pipe with a heavy duty 18" x 60" x 2", 11 ga. perforated steel panel. It carries a powder coated white finish over zinc rich primer and is engineered to withstand winds up to 150 MPH. It suits softball fields that need a permanent or semi-permanent foul pole sized for regulation play.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

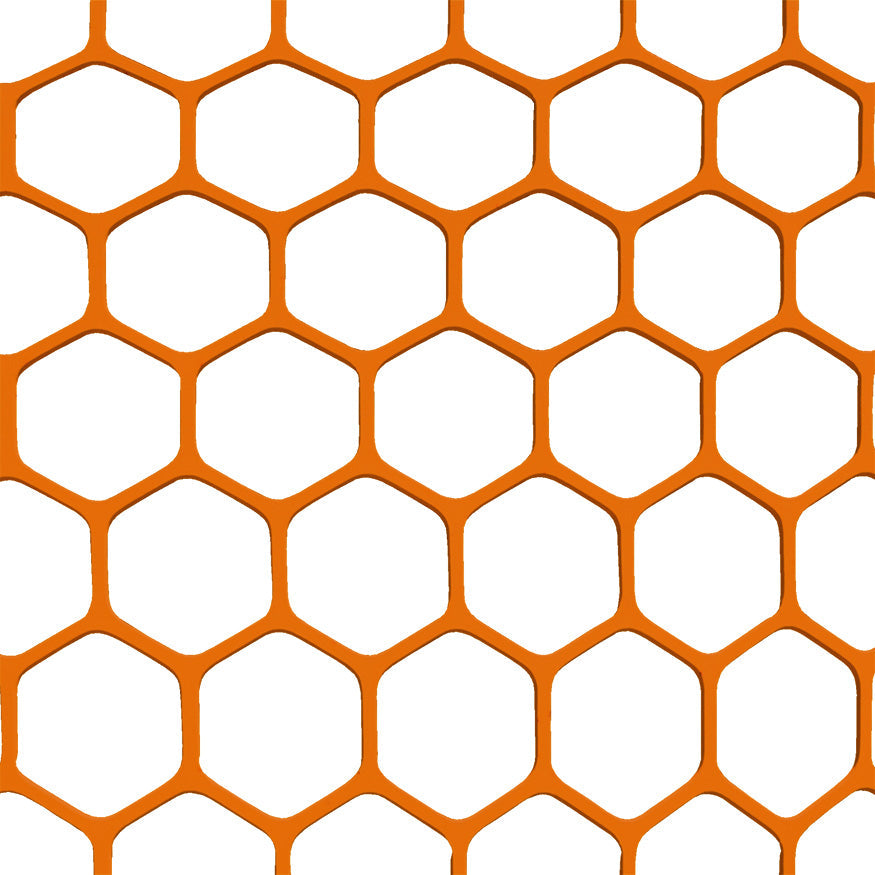

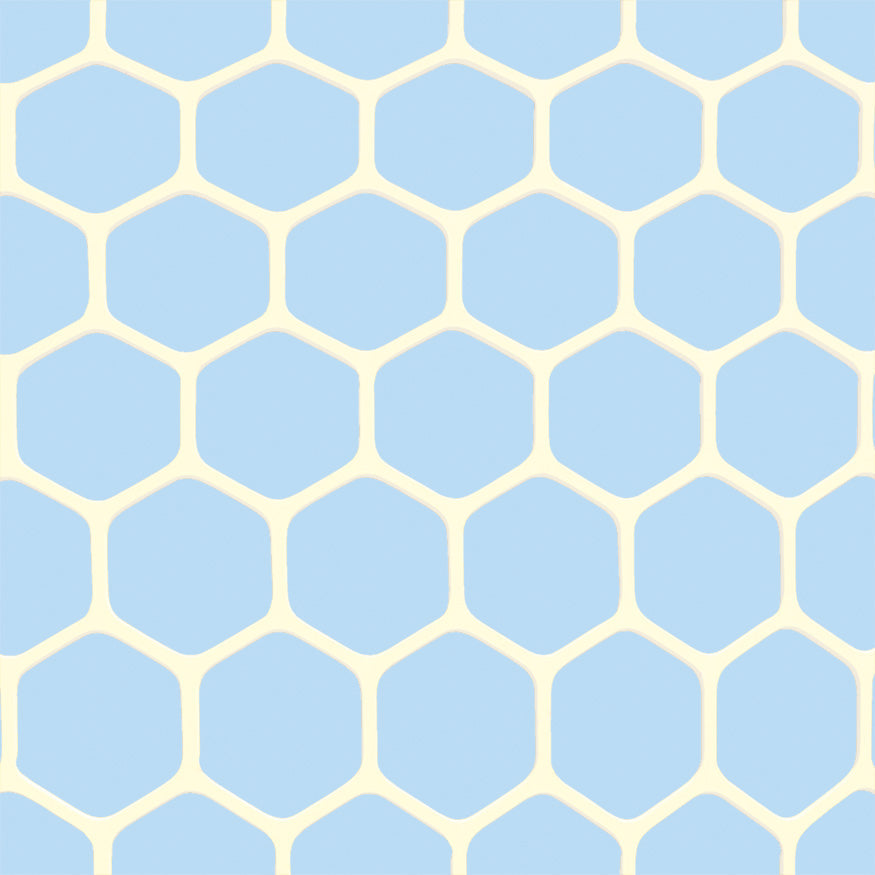

The SBFP-30 softball foul pole gives groundskeepers a full-height, clearly visible fair/foul reference at the outfield line. The main pole is a two-piece 5" SCH40 steel pipe with a 5 9/16" outside diameter, and the perforated metal panel measures 18" x 60" x 2" in 11 gauge steel so it stays rigid while letting wind pass through.

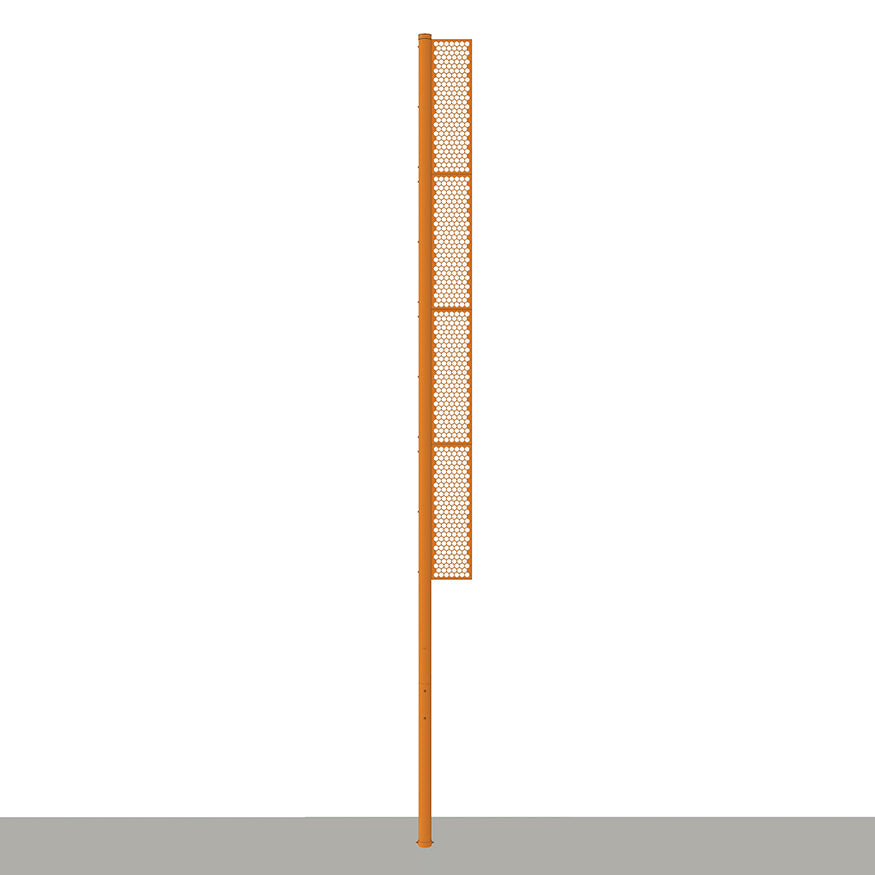

Corrosion protection comes from a tough powder coated finish applied over a zinc rich primer; the pole is offered in white (SBFP-30-WT) and orange (SBFP-30-OR). The structure is designed to withstand winds up to 150 MPH, while the footing detail shown on the factory drawing is based on 100 MPH wind loading.

The pole can be set permanently in concrete or installed semi-permanently with the FPS-30P ground sleeve, which allows removal in the off-season. Anti-rotation hardware keeps the panel aligned with the foul line. Concrete and the rebar basket are supplied by the installer, and local building codes should always be checked before pouring the footing.

Specifications

Specification	Value
Model	SBFP-30-WT
Type	30 ft. softball foul pole
Overall Height	29'-10"
Main Pole	2-piece 5" SCH40, 5 9/16" O.D. steel pipe
Panel	Heavy duty 18" x 60" x 2", 11 ga. perforated steel
Finish	Powder coated white over zinc rich primer
Color Options	White (SBFP-30-WT) or orange (SBFP-30-OR)
Wind Rating	Designed to withstand up to 150 MPH wind
Footing Basis	Typical footing shown based on 100 MPH wind
Installation	Permanent or semi-permanent
Ground Sleeve	FPS-30P (semi-permanent installation)
Hardware	Anti-rotation hardware
Footing Materials	Concrete and rebar basket by others
Ship Weight	800 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

20 ft. Surface	20 ft. Sleeve	30 ft. White THIS	30 ft. Sleeve	40 ft. Surface	40 ft. Sleeve
Overall Height 20 ft. nominal; 20'-2" structure, 19'-10" above field	Overall Height 20 ft.	Overall Height 29'-10"	Overall Height 30 ft. nominal; 29'-10" above field level	Overall Height 40'-0"	Overall Height 40'-0"
Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe
Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. perforated steel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel
Panel Position —	Panel Position —	Panel Position —	Panel Position 20'-0" visible panel, bottom at 9'-10"	Panel Position —	Panel Position —
Mounting / Installation Surface mount, adjustable leveling plate; wall-top OK	Mounting / Installation Semi-permanent ground sleeve or wall-top install	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Surface mount with adjustable leveling plate	Mounting / Installation Permanent and semi-permanent
Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-20	Ground Sleeve / Hardware Ground sleeve FPS-30P plus anti-rotation hardware	Ground Sleeve / Hardware Ground sleeve FPS-30P (semi-permanent)	Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-40 with anti-rotation hardware
Wind Rating Up to 120 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 130 MPH	Wind Rating Up to 130 MPH
Typical Footing —	Typical Footing —	Typical Footing Shown footing based on 100 MPH wind; concrete/rebar by others	Typical Footing Permanent 72" deep; semi-permanent 48" deep	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)
Finish Powder coated yellow over zinc undercoating	Finish Powder coated yellow over zinc undercoating	Finish Powder coated white over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer
Color Options Yellow standard; white or orange optional	Color Options Yellow (standard), white, orange	Color Options White or orange	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional
Ship Weight	Ship Weight 602 lbs	Ship Weight 800 lbs	Ship Weight 800 lbs	Ship Weight	Ship Weight
Best for Programs bolting a 20 ft. pole to an existing slab or outfield wall top.	Best for Fields needing a removable 20 ft. foul pole set in a ground sleeve.	Best for Facilities matching a white 30 ft. pole to light-colored outfield walls.	Best for Competition fields wanting a taller 30 ft. yellow pole with sleeve option.	Best for Stadiums surface-mounting a 40 ft. pole on a poured concrete footing.	Best for Elite venues wanting a 40 ft. pole removable via FPS-40 ground sleeve.
$7,270.00	$5,774.00	$12,607.00	$11,340.00	$21,012.00	$17,270.00
Check ›	Check ›	Viewing	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Can this foul pole be removed in the off-season?

Yes. In addition to a permanent concrete footing, the pole can be installed semi-permanently using the FPS-30P ground sleeve so it can be taken out when the field is not in use.

How much wind can the foul pole take?

The foul pole is designed to withstand up to 150 MPH wind. The suggested footing detail on the factory drawing is based on 100 MPH wind, and local building codes should be verified before installation.

What colors are available?

The SBFP-30 is offered powder coated white (SBFP-30-WT) or orange (SBFP-30-OR), both applied over a zinc rich primer.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
