Jaypro SBFP-40 - Foul Poles - 40 ft. - Softball (Professional) (Semi-Permanent)

Jaypro SBFP-40 - Foul Poles - 40 ft. - Softball (Professional) (Semi-Permanent)

See more by Jaypro

$17,270.00 - $17,270.00

$17,270.00

$17,270.00 - $17,270.00

$17,270.00

In stock

SKU: SBFP-40

Product Overview

In short

The Jaypro SBFP-40 is a professional 40 ft. softball foul pole built from two piece heavy schedule steel pipe with a perforated steel wing panel and a yellow powder coat over zinc rich primer. It can be set permanently in concrete or dropped into a ground sleeve with anti-rotation hardware for semi-permanent installation. This is the pole height used at championship level softball complexes.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The main pole ships in two sections of heavy schedule steel pipe so it can be transported and handled on site, then joined during erection. Its perforated steel wing panel gives umpires and spectators a clear visual reference on fair and foul calls while letting wind pass through instead of loading the pole like a solid sail.

Corrosion protection is applied in two stages, a zinc rich primer followed by a tough powder coated topcoat. Yellow is standard; white and orange are available for facilities that follow a different field color convention.

Semi-permanent installation uses a ground sleeve with anti-rotation hardware so the pole can be lifted out for fence work, field renovation or off-season storage while keeping the panel correctly oriented to the foul line. Permanent installation sets the pole directly in the concrete footing. Footing dimensions on the drawing are suggestions for average soil conditions with rebar by others, so confirm against local building codes.

Specifications

Specification	Value
Model	SBFP-40
Sport	Softball (Professional)
Overall Height	40'-0"
Main Pole	2 piece 6 5/8" O.D. SCH 40 steel pipe

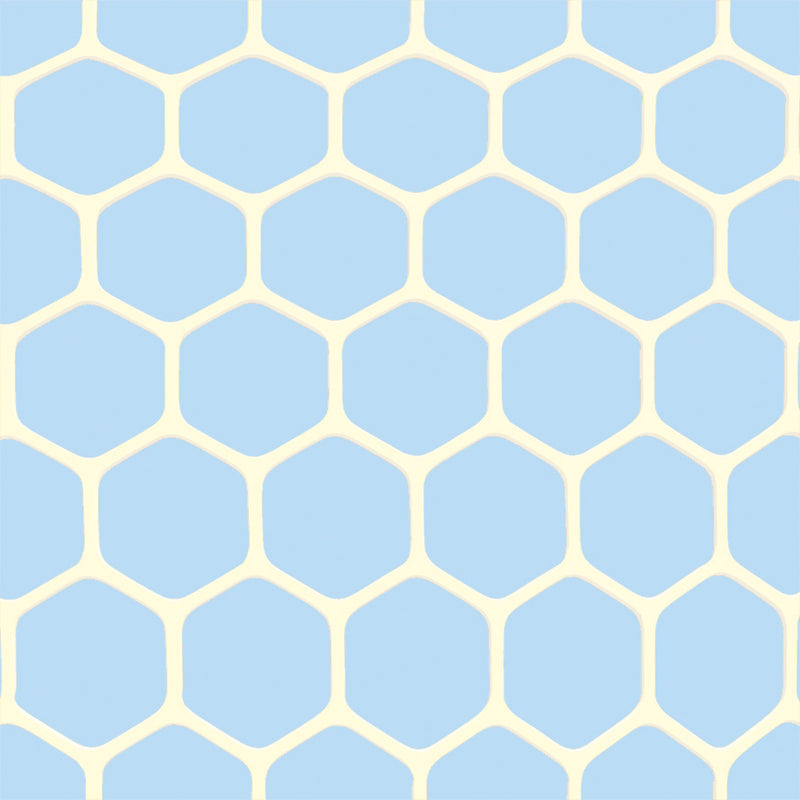

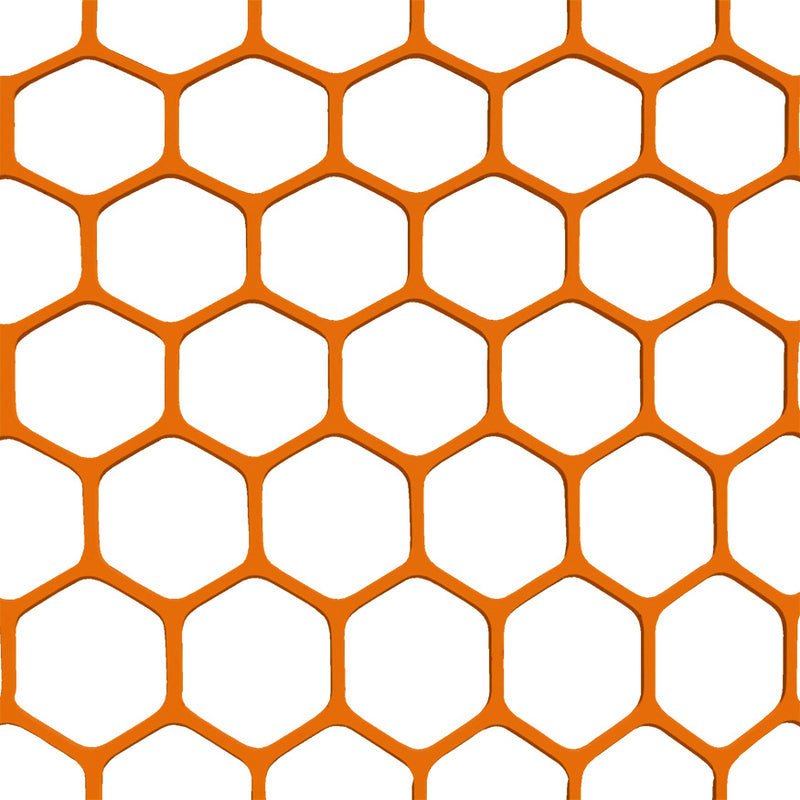

Wing Panel	Heavy duty 18" x 60" x 2" x 11 GA. steel perforated metal panel
Finish	Tough powder coated yellow finish over zinc rich primer

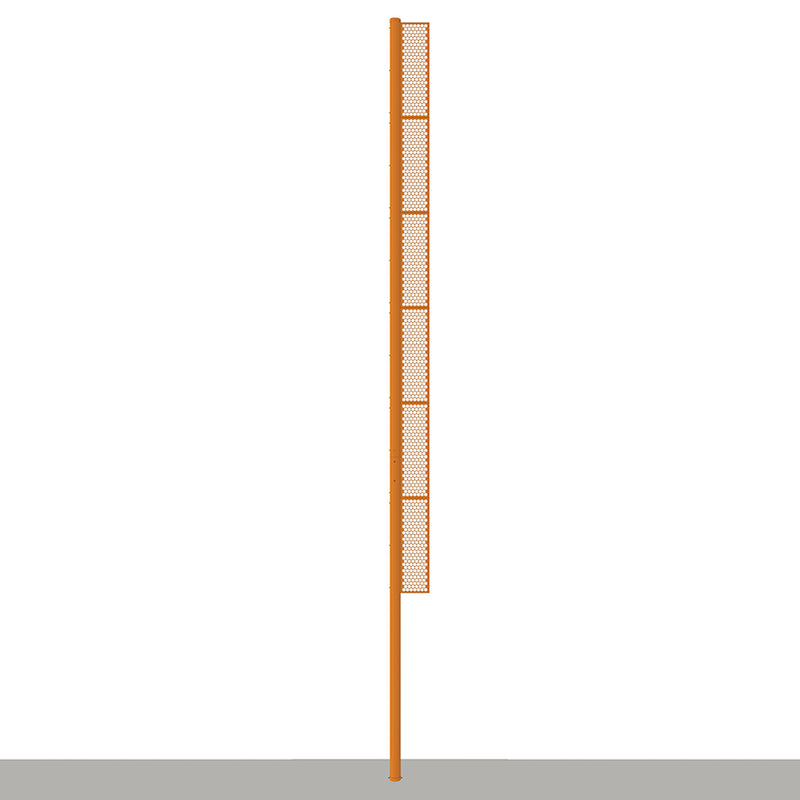

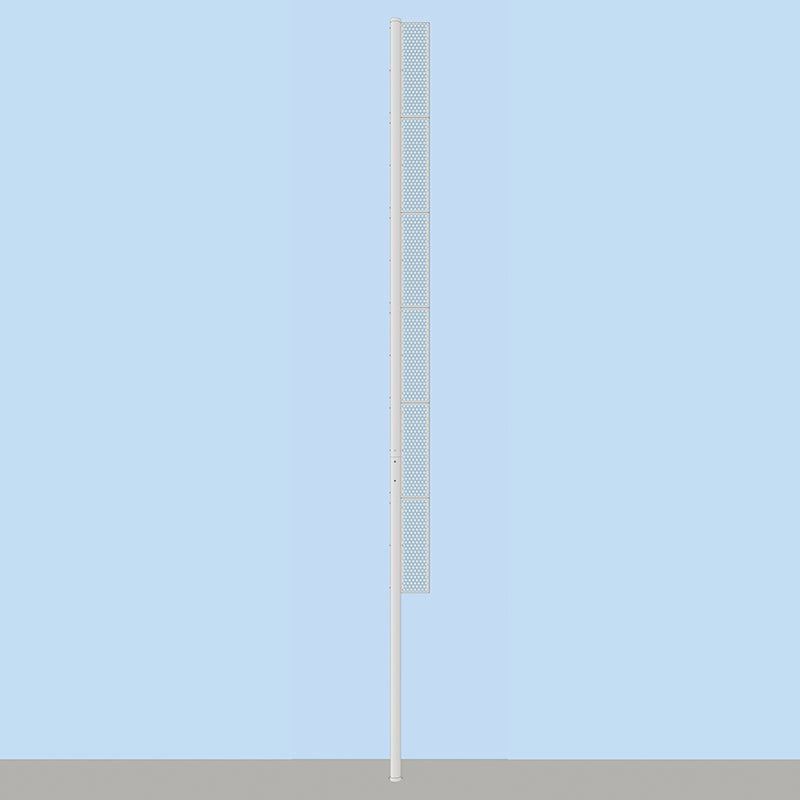

Color Options	White (SBFP-40-WT), Orange (SBFP-40-OR)
Installation	Permanent and semi-permanent
Ground Sleeve	Semi-permanent ground sleeve, P/N FPS-40
Anti-Rotation	Anti-rotation hardware on semi-permanent installation
Wind Rating	Designed to withstand up to 130 MPH wind
Typical Footing	54" diameter x 72" deep concrete (based on 90 MPH wind)
Rebar	By others
Sold As	Each

Compare Jaypro models

20 ft. Surface	20 ft. Sleeve	30 ft. White	30 ft. Sleeve	40 ft. Surface	40 ft. Sleeve THIS
Overall Height 20 ft. nominal; 20'-2" structure, 19'-10" above field	Overall Height 20 ft.	Overall Height 29'-10"	Overall Height 30 ft. nominal; 29'-10" above field level	Overall Height 40'-0"	Overall Height 40'-0"
Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole One-piece welded 3-1/2" O.D. SCH 40 steel	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 5" SCH 40, 5-9/16" O.D. steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe	Main Pole 2-piece 6-5/8" O.D. SCH 40 steel pipe
Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. steel sheet metal	Wing Panel 18" x 60" x 2", 11 ga. perforated steel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel	Wing Panel 18" x 60" x 2", 11 ga. perforated steel panel
Panel Position —	Panel Position —	Panel Position —	Panel Position 20'-0" visible panel, bottom at 9'-10"	Panel Position —	Panel Position —
Mounting / Installation Surface mount, adjustable leveling plate; wall-top OK	Mounting / Installation Semi-permanent ground sleeve or wall-top install	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Permanent or semi-permanent	Mounting / Installation Surface mount with adjustable leveling plate	Mounting / Installation Permanent and semi-permanent
Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-20	Ground Sleeve / Hardware Ground sleeve FPS-30P plus anti-rotation hardware	Ground Sleeve / Hardware Ground sleeve FPS-30P (semi-permanent)	Ground Sleeve / Hardware —	Ground Sleeve / Hardware Ground sleeve FPS-40 with anti-rotation hardware
Wind Rating Up to 120 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 130 MPH	Wind Rating Up to 130 MPH
Typical Footing —	Typical Footing —	Typical Footing Shown footing based on 100 MPH wind; concrete/rebar by others	Typical Footing Permanent 72" deep; semi-permanent 48" deep	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)	Typical Footing 54" dia. x 72" deep concrete (90 MPH basis)
Finish Powder coated yellow over zinc undercoating	Finish Powder coated yellow over zinc undercoating	Finish Powder coated white over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer	Finish Powder coated yellow over zinc rich primer
Color Options Yellow standard; white or orange optional	Color Options Yellow (standard), white, orange	Color Options White or orange	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional	Color Options Yellow standard; white or orange optional
Ship Weight	Ship Weight 602 lbs	Ship Weight 800 lbs	Ship Weight 800 lbs	Ship Weight	Ship Weight
Best for Programs bolting a 20 ft. pole to an existing slab or outfield wall top.	Best for Fields needing a removable 20 ft. foul pole set in a ground sleeve.	Best for Facilities matching a white 30 ft. pole to light-colored outfield walls.	Best for Competition fields wanting a taller 30 ft. yellow pole with sleeve option.	Best for Stadiums surface-mounting a 40 ft. pole on a poured concrete footing.	Best for Elite venues wanting a 40 ft. pole removable via FPS-40 ground sleeve.
$7,270.00	$5,774.00	$12,607.00	$11,340.00	$21,012.00	$17,270.00
Check ›	Check ›	Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is the difference between the semi-permanent and permanent installation?

Semi-permanent uses ground sleeve P/N FPS-40 with anti-rotation hardware so the pole can be removed; permanent sets the pole directly into the concrete footing.

What wind speed is the pole engineered for?

The foul pole is designed to withstand up to 130 MPH wind, while the typical footing shown on the drawing is based on 90 MPH wind.

What size footing does the drawing show?

A concrete footing approximately 54" across and 72" deep with rebar by others. These are suggested dimensions for average soil conditions, so consult local building codes.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
