Product Overview

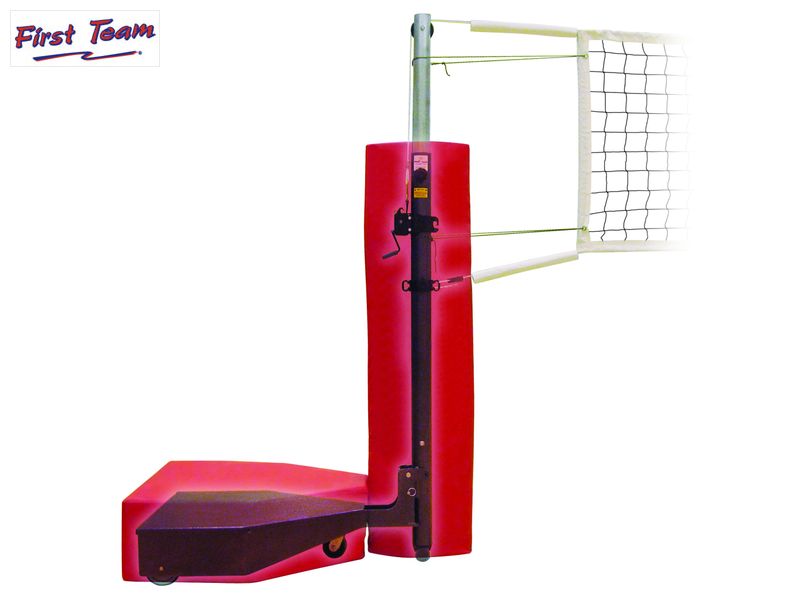

The First Team Horizon Complete is a portable volleyball system engineered for elite competition play, suitable for all competition floor types including maple, molded tile, and synthetic, without requiring additional ballast, floor hold downs, or any wall/ceiling attachments. Its structural design ensures the base allows for suspension of at least 250# in the net's center without base movement. Main structural steel components are a minimum 2”x4” tubing with 1/8” wall thickness and ½” steel plate construction, all finished with a grey hammertone polyester powder coating.
The system features a low-profile base, with no part exceeding 13” above the playing surface, which houses a fully enclosed ballast compartment properly loaded with 700# steel ballast at the factory. For mobility, the unit rolls on four 8” diameter x 1 ½” wide non-marking wheels and one 4” x 2” non-marking swivel wheel in transport position. When rolled into playing position, the front of the system lowers to the floor on one 8” diameter non-marking anti-skid footpad, activated when the post is raised. Net height is infinitely variable from a minimum of 78” to 98”, adjusted with a single, spring assisted, threaded knob per post, with Men’s, Women’s, and Junior’s height settings clearly identified.
The net is one meter high, constructed of black polypropylene 3.5mm knotless woven webbing, featuring a Kevlar top rope and polypropylene bottom rope, with top, bottom, and sides finished with white tarpaulin fabric. Net tensioning is managed by a 26:1 ratio worm gear winch for the top rope and ratcheting style tensioners for the bottom rope and side tape dowels. Player safety is ensured with no less than ½” thick foam padding with a white vinyl cover for net ropes, and the base and uprights are padded to a minimum of 72” with 2” and 1 ½” thick high density foam covered with vinyl in a choice of 16 colors. The complete system, which includes official boundary antennas, weighs 2500 lbs. and meets or exceeds all NCAA, USVBA, NFHS, and FIVB requirements for competition.
Specifications
| Specification | Value |
|---|---|
| Product Type | Competition Portable Volleyball System |
| Intended Use | Elite competition level play on all floor systems (maple, molded tile, synthetic) without additional ballast or external attachments |
| Net Suspension Capacity | At least 250# in net center without base movement |
| Structural Components | Main: 2”x4” tubing with 1/8” wall thickness, ½” steel plate construction |
| Base Ballast | Fully enclosed compartment, 700# steel ballast (factory loaded) |
| Base Profile | Low-profile, no part exceeding 13” above playing surface |
| Setup | Capable of setup by one person |
| Finish | Grey hammertone polyester powder coated on all components |
| Mobility (Transport) | (4) 8” diameter x 1 ½” wide non-marking wheels, (1) 4” x 2” non-marking swivel wheel |
| Mobility (Playing Position) | (1) 8” diameter non-marking anti-skid footpad (front, activated when post raised) |
| Vertical Pole (Design) | Telescoping integral post, no portion protrudes above net |
| Vertical Pole (Outer) | 3 ½” steel tube, minimum .22” wall thickness |
| Vertical Pole (Inner) | 6061-T6 aluminum tubing, 3” OD, .21” wall thickness |
| Net Height Adjustment | Infinitely variable 78” to 98” (single, spring assisted, threaded knob), Men’s, Women’s, Junior’s settings identified |
| Net | One meter high, black polypropylene 3.5mm knotless woven webbing, Kevlar top rope, polypropylene bottom rope |
| Net Finishing | White tarpaulin fabric with double stitched hemmed edges (top, bottom, sides) |
| Net Top Tensioner | 26:1 ratio worm gear winch, winds 2” wide nylon webbing strap, non-removable folding handle |
| Net Bottom Tensioner | Ratcheting style tensioner |
| Net Side Tape Tensioners | Internal dowels with no less than two ratchet type tensioners per side |
| Net Top Rope Pulley | 4” diameter steel pulley |
| Player Safety Padding (Net Ropes) | No less than ½” thick foam padding with white vinyl cover (between standards and net edge) |
| Player Safety Padding (Base/Upright) | Minimum 72” high, 2” and 1 ½” thick high density foam, vinyl cover (choice of 16 colors) |
| Base Customization | Up to 10 letters per side may be printed on base (no additional charge) |
| Included Accessories | Official boundary antennas |
| System Weight (per end) | Approximately 1250# |
| System Weight (total) | 2500 lbs. |
| Base Dimensions (Padded) | Approximately 40” wide (back), tapers to 4” wide (front); Approximately 48” long |
| Stored Dimensions | Approximately 40” wide x 78” long x 18” high |
| Certifications | Meets or exceeds all NCAA, USVBA, NFHS, and FIVB requirements for competition |
| Warranty | Upright standards and base units: Superior Lifetime Warranty; All other components: 2-Year Limited Warranty |
Compare OmniChamp models
|
Horizon THIS |
Horizon ST |
|---|---|
Included Accessories Official boundary antennas | Included Accessories Boundary antennas + STURDISTAND-MD judges stand w/ pad |
Judges Stand — | Judges Stand 2" square aluminum, folds flat, 3" wheels, approx. 60 lbs |
Frame & Ballast 2"x4" tube (1/8" wall), 1/2" plate, 700# steel ballast | Frame & Ballast 2"x4" tube (1/8" wall), 1/2" plate, 700# steel ballast |
Base Profile Low-profile 13" max; 48" long, 40" tapering to 4" wide | Base Profile Low-profile 13" max; 48" long, 40" tapering to 4" wide |
Uprights Telescoping 3 1/2" steel outer, 3" OD 6061-T6 aluminum inner | Uprights Telescoping 3 1/2" steel outer, 3" OD 6061-T6 aluminum inner |
Net Height Range Infinitely variable 78"-98", spring assisted knob | Net Height Range Infinitely variable 78"-98", spring assisted knob |
Net & Tensioning 1m knotless 3.5mm net, Kevlar top rope, 26:1 worm gear winch | Net & Tensioning 1m knotless 3.5mm net, Kevlar top rope, 26:1 worm gear winch |
Safety Padding 72" high 2" & 1 1/2" foam, vinyl in 16 colors; 1/2" rope pads | Safety Padding 72" high 2" & 1 1/2" foam, vinyl in 16 colors; 1/2" rope pads |
Certifications NCAA, USVBA, NFHS, FIVB competition compliant | Certifications NCAA, USVBA, NFHS, FIVB competition compliant |
Warranty Lifetime on standards/bases, 2-year on other components | Warranty Lifetime standards/bases & stand, 2-year other components |
Ship Weight 2500 lbs. | Ship Weight 2500 lbs. |
Best for Programs needing an elite FIVB-level portable system with no floor attachments. | Best for Programs wanting the same elite system bundled with a referee stand. |
| $10,832.00 | $12,669.00 |
| Viewing | Check › |
