Fixed Height Institutional Hoops

How to Choose a Fixed Height Institutional Hoop

Start with who will use the court and how hard they'll play. A fixed height institutional hoop has no crank or spring lift, so there are fewer moving parts to break or tamper with. That matters on unsupervised courts. These four questions will narrow your shortlist:

• Rim type. Fixed double rims, like the Gared 8550 Endurance, are made for rough public courts. Breakaway and flex rims give under a dunk or a hanging player, which takes stress off the backboard and the system.
• Offset. The offset is the distance from the pole to the backboard face, and it keeps players clear of the post. Options here run from a 24" extension on the First Team Sport models to 72" on the Tyrant line and the Gared arms with a 6' safe play area.
• Single or dual. Dual systems such as the Gared Endurance Dual and the First Team Legend Supreme Dual put two goals on one post.
• Height flexibility. Most units are set at a 10 ft. rim height. Some Jaypro systems can be reset after court resurfacing. Several First Team Legend Jr. models bolt the arm at any rim height from 6' to 10' for younger players.

Planning a court for younger kids? Our guide on how to measure basketball hoop height by age helps you settle the height before you pour concrete.

Backboard Materials Compared

• Steel: the most vandal-resistant choice for open-access sites. Examples include the Douglas F4 445 STEEL with a 12-gauge steel shell and Gared's marked steel boards.
• Perforated steel: offered on several Jaypro Titan systems. The open pattern suits windy sites.
• Acrylic: a clear look at a lower weight than glass. Many First Team goals use 1/2" thick acrylic in an anodized aluminum frame.
• Polycarbonate: Douglas MAX Clear View boards come in 1/2 in. thick polycarbonate, a clear board that takes impacts well.
• Tempered glass: the truest rebound and a competition look. You'll find it on Ironclad Highlight Hoops, the First Team Legend Arena BP, Gared Endurance Glass and Jaypro Titan glass models.

Sizes, Offsets and Poles at a Glance

Most backboards in this range fall between 36 in. x 54 in. and 42 in. x 72 in. A heavier pole and a longer offset pay off on busy courts. Here's how some of the systems compare:

Installation and Mounting

Institutional systems mount in one of three ways:

• Direct bury: the pole is set in a concrete footing. First Team Tyrant and RuffNeck poles call for a 48" ground bury, and Douglas F4 and F5 systems are set in a 4 ft. deep concrete footing.
• Baseplate and anchor bolts: First Team Legend models use a 3/8" thick baseplate on a 5-bolt anchor system, and Ironclad uses bolt-down installation. A bolted pole can come off without breaking out the footing.
• L-anchor bolts: Jaypro Titan units mount on L-anchor bolts in a 48 in. concrete footing.

Before you dig, have utilities marked and follow the footing specs for your exact model. On Gared systems, concrete is supplied by others, so budget for it. For more pole-mounted options, browse in-ground basketball hoops. Equipping a gym? Compare wall mount and ceiling systems and read our school gym basketball hoop guide.

Care and Maintenance

Each season, check and tighten all hardware, inspect welds and braces, and touch up any chips in the powder coat before rust can start. Look over rim springs and nets, and replace worn padding. Clean acrylic and polycarbonate with mild soap and a soft cloth, never abrasives. Padding varies by model. Ironclad Highlight Hoops include backboard and post padding, Douglas F5 MAX systems add 2 in. thick vinyl pole padding, and Jaypro offers post padding as an option on Titan units.

Brands We Carry

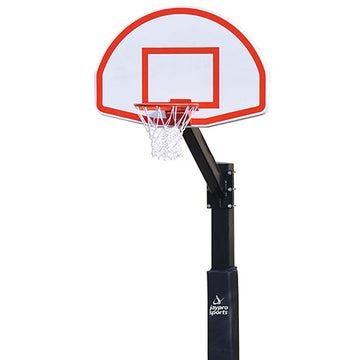

• Jaypro: Titan surface-mount systems with a 6 ft. offset, plus The Church Yard for smaller courts.
• First Team: the Legend, Tyrant, RuffNeck and Sport lines, many in team colors such as Royal, Navy Blue, Maroon and Kelly Green. See the full First Team range.

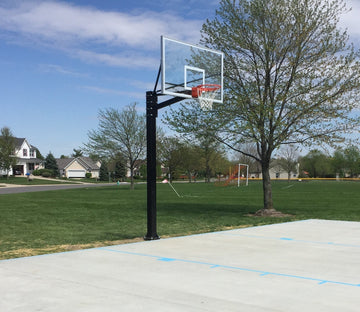

• Gared: Endurance playground systems, hot dip galvanized then powder coated black.
• Douglas: the F4 and F5 series with stainless steel fastening hardware.
• Ironclad: Highlight Hoops with tempered glass and a Weather Shield zinc undercoat.

Need a goal that changes height day to day? Shop our adjustable basketball hoops.

Shipping and Returns

We ship to schools, parks and churches across the US, including Texas sites in Austin, Houston and San Antonio. Most orders need 1–2 business days for processing, and standard transit typically takes 1–5 business days after dispatch. Oversized equipment can take significantly longer, and all dates are estimates. For heavy items, we may send you a separate shipping quote.

Freight orders are tailgate deliveries unless we confirm otherwise in writing, so you unload the truck yourself. Jaypro Titan systems ship at up to 570 lbs, so arrange a forklift or a crew in advance. Your site must be reachable by a 53’ freight trailer. Inspect everything while the driver is there, and write "DAMAGED" on the Bill of Lading if you see damage. Report concealed damage within 24 hours. You can return unused items in their original packaging within 60 days of delivery. You'll need an RA number from info@joysportstore.com. You pay shipping both ways, the original shipping cost is deducted from your refund, and a restocking fee applies.
