Product Overview

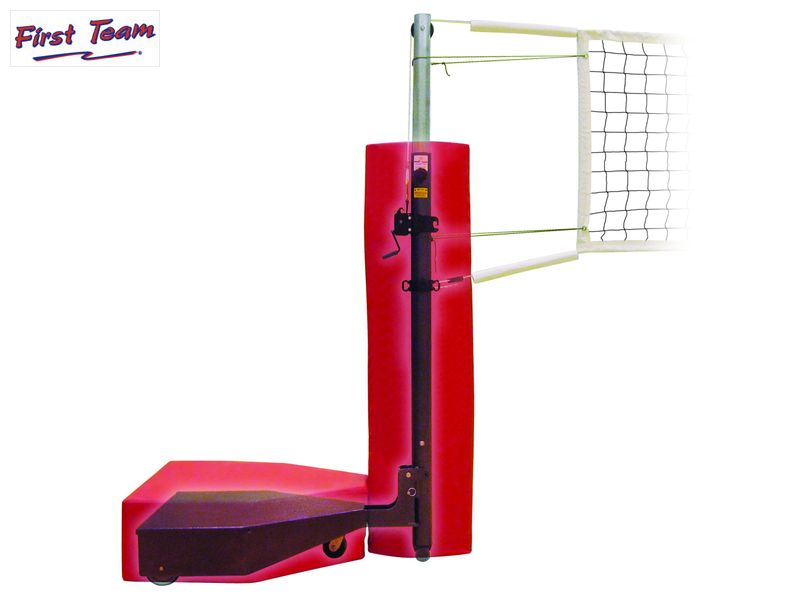

The First Team Horizon Complete - ST is a portable volleyball system engineered for elite competition play, suitable for all competition floor types including maple, molded tile, and synthetic. Designed for single-person setup, it features a self-contained base unit with 700# of factory-loaded steel ballast, providing stability for at least 250# of net tension without movement. The low-profile base does not exceed 13" above the playing surface, and the entire system is finished with a grey hammertone polyester powder coat.
The system utilizes a telescoping integral post design, ensuring no pole portion protrudes above the net. It includes a 3 1/2" steel outer tube and a 3" OD 6061-T6 aluminum inner pole. Net height is infinitely variable from 78" to 98" with spring-assisted knobs, and key Men's, Women's, and Junior's settings are marked. The 1-meter high net is made of 3.5mm knotless woven polypropylene with a Kevlar top rope and comprehensive tensioning mechanisms. Player safety is prioritized with foam padding on ropes and extensive padding (minimum 72" high) on the base and uprights, available in 16 colors.
This -ST version specifically includes a STURDISTAND-MD judges stand, constructed from 2" square aluminum tube with an anti-slip tread plate platform, which folds flat and rolls on 3" non-marking wheels. The main Horizon Complete system weighs 2500 lbs, with the judges stand adding approximately 60 lbs. It rolls on multiple non-marking wheels for transport and features an anti-skid footpad for playing position. The system and judges stand are backed by Lifetime Warranties on key components, with all other parts covered by a 2-Year Limited Warranty, and the entire system meets or exceeds NCAA, USVBA, NFHS, and FIVB competition requirements.
Specifications
| Specification | Value |
|---|---|
| System Type | Elite competition portable volleyball system, self-contained, suitable for maple, molded tile, synthetic floors, setup by one person |
| Certifications | Meets/exceeds NCAA, USVBA, NFHS, FIVB competition requirements |
| Structural Components | Main steel: 2"x4" tubing (1/8" wall), 1/2" steel plate. Welded base: fully enclosed 700# steel ballast compartment (factory loaded). |
| Base Design & Stability | Low-profile (no part exceeding 13" above playing surface), supports at least 250# net tension without movement. Approx. 48" long, 40" wide (back) tapering to 4" wide (front). Up to 10 letters printable per side (no charge). |
| System Mobility | Transport: (4) 8" diameter x 1 1/2" wide non-marking wheels & (1) 4" x 2" non-marking swivel wheel. Playing: (1) 8" diameter non-marking anti-skid footpad (activates when post raised). |
| Vertical Poles | Telescoping integral design, no portion protrudes above net. Outer: 3 1/2" steel tube (.22" min wall). Inner: 3" OD 6061-T6 aluminum tubing (.21" wall). |
| Net Height Adjustment | Infinitely variable 78" to 98" via single spring assisted threaded knob; Men's, Women's, Junior's heights identified on inner tube. |
| Net Details | 1 meter high, black polypropylene 3.5mm knotless woven webbing. Kevlar top rope, polypropylene bottom rope. White tarpaulin fabric finish with double stitched hemmed edges. |
| Net Tensioning System | Top: 26:1 worm gear winch (winds 2" wide nylon webbing strap) with 4" diameter steel pulley, non-removable folding handle. Bottom: Ratcheting style tensioner. Sides: No less than two ratchet type tensioners per side (internal dowels). |
| Safety Padding | Ropes: No less than 1/2" thick foam with white vinyl cover. Base/Upright: Min 72" coverage (front/sides of base, front of upright), 2" & 1 1/2" thick high density foam, vinyl cover (16 color choices). |
| Finish | Grey hammertone polyester powder coated (all Horizon components). |
| System Weight | Horizon Complete: 2500 lbs total (approx. 1250# per end). Judges Stand: approx. 60 lbs. |
| System Stored Dimensions | Approximately 40" wide x 78" long x 18" high. |
| Included Accessories | Official boundary antennas, (1) STURDISTAND-MD volleyball judges stand with pad. |
| Judges Stand (STURDISTAND-MD) | 2" square aluminum tube construction, anti-slip aluminum tread plate platform. Folds flat by removing two 1/2" cotterless pins. Rolls on 3" non-marking wheels for transport. Grey hammertone powder coat paint. Vinyl covered 2" thick foam pad (16 color choices). |
| Warranty | Upright standards & base units: Superior Lifetime Warranty. All other components: 2-Year Limited Warranty. STURDISTAND-MD judges stand: Lifetime Limited Warranty. |
Compare OmniChamp models
|
Horizon |
Horizon ST THIS |
|---|---|
Included Accessories Official boundary antennas | Included Accessories Boundary antennas + STURDISTAND-MD judges stand w/ pad |
Judges Stand — | Judges Stand 2" square aluminum, folds flat, 3" wheels, approx. 60 lbs |
Frame & Ballast 2"x4" tube (1/8" wall), 1/2" plate, 700# steel ballast | Frame & Ballast 2"x4" tube (1/8" wall), 1/2" plate, 700# steel ballast |
Base Profile Low-profile 13" max; 48" long, 40" tapering to 4" wide | Base Profile Low-profile 13" max; 48" long, 40" tapering to 4" wide |
Uprights Telescoping 3 1/2" steel outer, 3" OD 6061-T6 aluminum inner | Uprights Telescoping 3 1/2" steel outer, 3" OD 6061-T6 aluminum inner |
Net Height Range Infinitely variable 78"-98", spring assisted knob | Net Height Range Infinitely variable 78"-98", spring assisted knob |
Net & Tensioning 1m knotless 3.5mm net, Kevlar top rope, 26:1 worm gear winch | Net & Tensioning 1m knotless 3.5mm net, Kevlar top rope, 26:1 worm gear winch |
Safety Padding 72" high 2" & 1 1/2" foam, vinyl in 16 colors; 1/2" rope pads | Safety Padding 72" high 2" & 1 1/2" foam, vinyl in 16 colors; 1/2" rope pads |
Certifications NCAA, USVBA, NFHS, FIVB competition compliant | Certifications NCAA, USVBA, NFHS, FIVB competition compliant |
Warranty Lifetime on standards/bases, 2-year on other components | Warranty Lifetime standards/bases & stand, 2-year other components |
Ship Weight 2500 lbs. | Ship Weight 2500 lbs. |
Best for Programs needing an elite FIVB-level portable system with no floor attachments. | Best for Programs wanting the same elite system bundled with a referee stand. |
| $10,832.00 | $12,669.00 |
| Check › | Viewing |
