Douglas Premium Custom-Made Douglas VCP Max Windscreens Douglas

Douglas Premium Custom-Made Douglas VCP Max Windscreens

See more by Douglas

Sold out

$0.83 - $0.91

$0.91

$0.83 - $0.91

$0.91

In stock

SKU: 21644

Quantity

Product Overview

In short

Douglas VCP Max Windscreen is a 50% vinyl/50% polyester fabric with an 85% windbreak rating, offering a strong balance between airflow and visual blockage. It features Douglas's reinforced 3-ply hems with brass grommets, custom lengths up to 60 ft per panel, and comes in Black, Dark Green, or Open Tournament Blue. It carries a 4-Year limited warranty.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

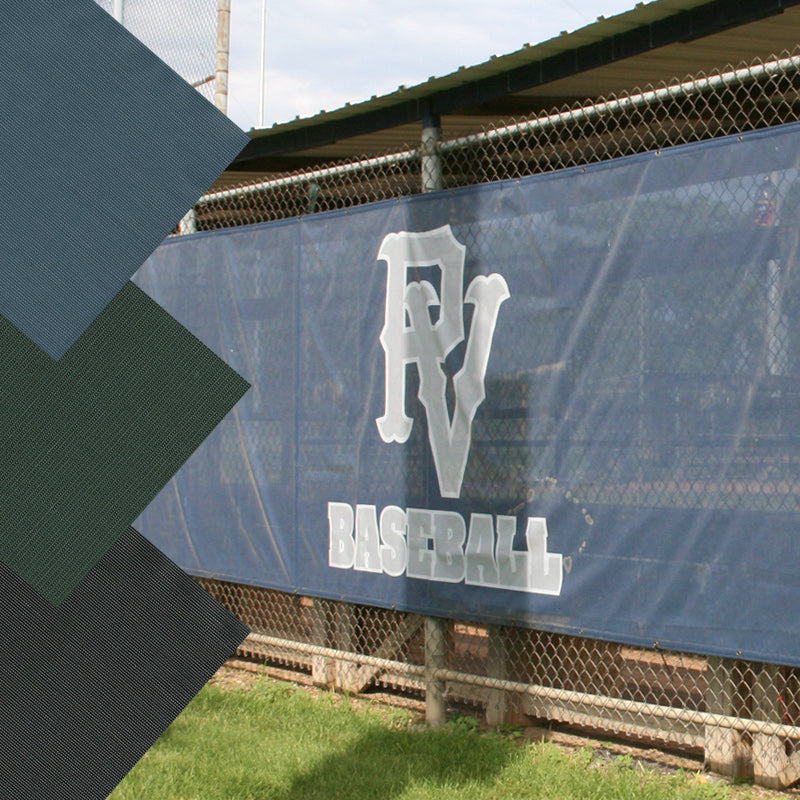

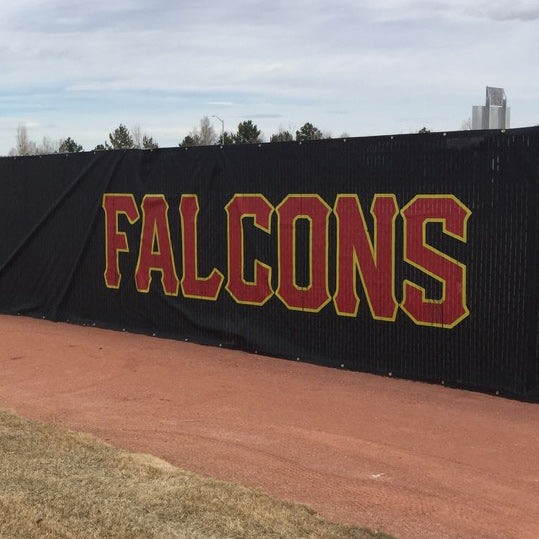

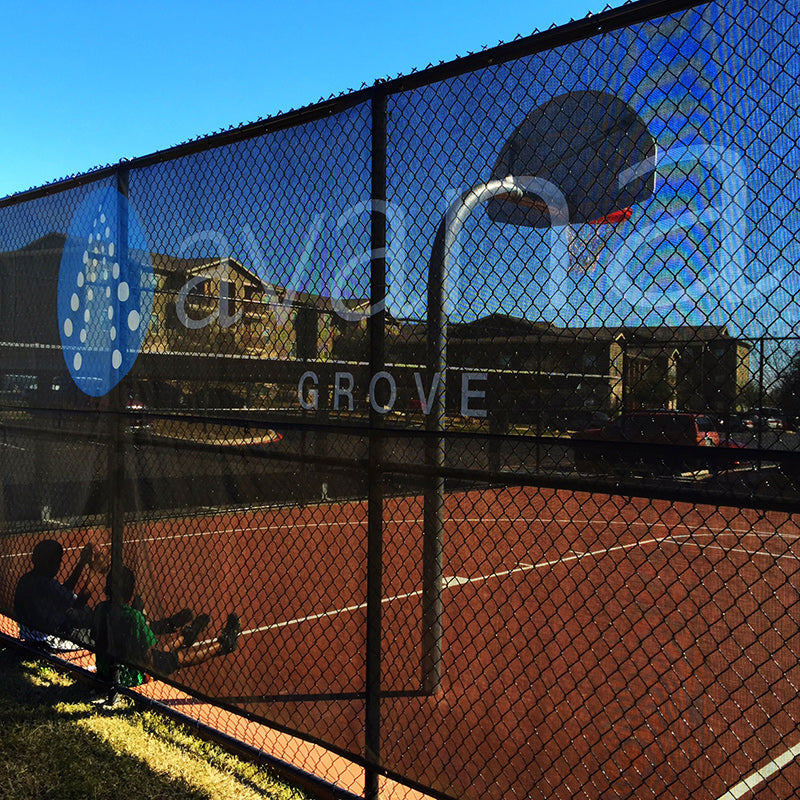

The Douglas VCP Max Windscreen is a custom-made vinyl coated polyester fabric designed for fences, bleachers, and privacy enclosures at sports facilities. With an 85% windbreak rating, it allows more airflow than closed mesh screens while still providing better visual blockage than open mesh options, making it a versatile choice for fields and courts exposed to wind.

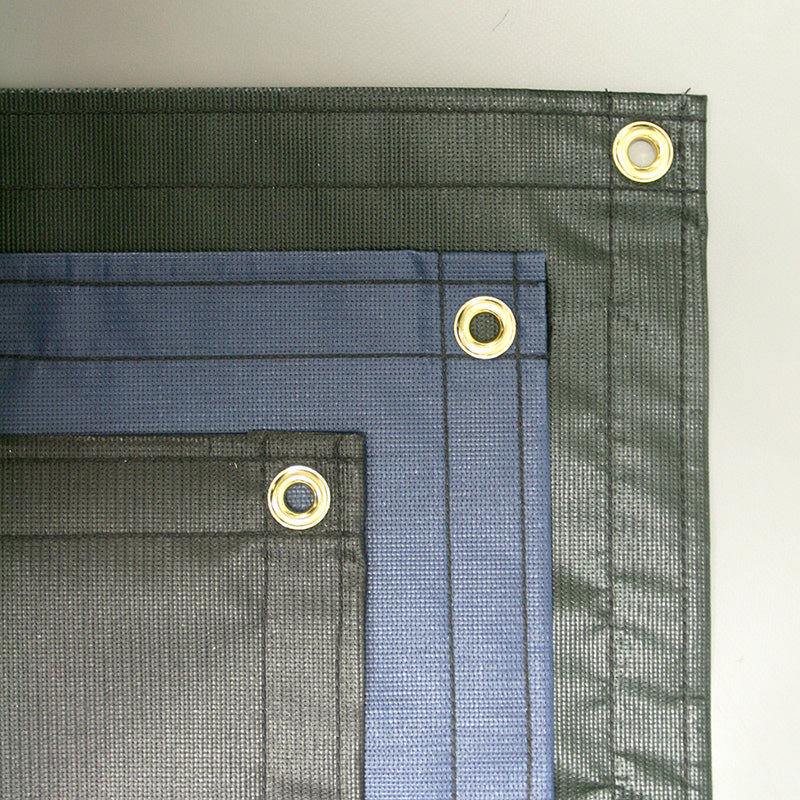

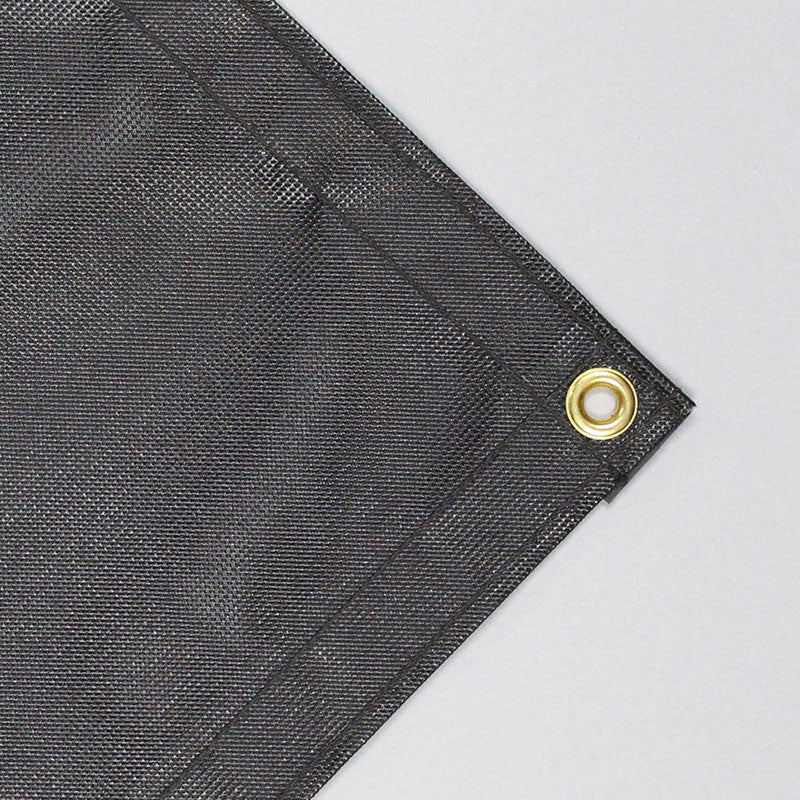

Construction includes Douglas's signature 3-ply extra-strong hems with solid vinyl inserts, double sewn to 1-1/2 inches wide, and #2 brass grommets spaced every 12 inches on the sides and every 18 inches along the top and bottom. Panels taller than 6 ft include a center reinforcement tab sewn with 18 oz. black vinyl for anti-billowing support, and optional air vents (AVR or AV style) are recommended for taller screens or high-wind installations.

Screens are available in standard 6 ft and 9 ft heights, with custom heights and lengths made to order up to a recommended 60 ft maximum per panel. The material supports vibrant full color digital printing directly onto the fabric using UV inks, allowing for custom branding and graphics. Standard colors include Black, Dark Green, and Open Tournament Blue, and the product is backed by a 4-Year limited warranty.

Specifications

Specification	Value
Fabric	50% vinyl, 50% polyester – 16 x 17 weave
Windbreak	85%
Weight per sq yard	10 oz
Tensile Strength	395 x 401
Standard Colors	Dark Green, Black or Open Tournament Blue
Hem	3-ply extra-strong hem with solid vinyl inserts, double sewn to 1-1/2 in. wide
Grommets	#2 brass grommets, spaced every 12 in. on panel sides and every 18 in. along top and bottom
Standard Heights	6 ft and 9 ft (custom heights by request)
Max Panel Length	60 ft recommended maximum per panel (custom lengths made to nearest inch)
Center Reinforcement	Sewn with 18 oz. black vinyl tab, grommets every 18 in., recommended for panels over 6 ft
Air Vents (Optional)	AVR: 8 in. wide x 10 in. high, polyester webbing hemmed, 10 ft intervals; AV: 8 in. wide x 5 in. high die-cut, 10 ft intervals
Available options	Black, Dark Green, Open Tournament Blue
Printing	Vibrant full color digital printing directly on material with UV inks
SKU	21640Z

Compare Douglas models

PolyPro Plus	Batter's Eye	VCP Max THIS	Custom Printing
Material 100% polypropylene, 28 x 14 heat-set leno weave	Material Vinyl coated polyester, open mesh	Material 50% vinyl / 50% polyester, 16 x 17 weave	Material Vinyl coated polyester (VCP) windscreen fabric
Windbreak 85%	Windbreak 80%	Windbreak 85%	Windbreak —
Weight per sq. yard 7 oz.	Weight per sq. yard —	Weight per sq. yard 10 oz.	Weight per sq. yard —
Tensile strength 380 x 185	Tensile strength —	Tensile strength 395 x 401	Tensile strength —
Hem construction 4-ply hems, vinyl inserts, 18 oz. vinyl overlay	Hem construction —	Hem construction 3-ply hem, solid vinyl inserts, double sewn 1-1/2 in.	Hem construction 3-ply hems
Grommets & venting #2 brass every 12 in. sides; optional 8 x 10 in. AVR vents	Grommets & venting —	Grommets & venting #2 brass every 12 in. sides; optional AVR or AV vents	Grommets & venting —
Sizes & heights 6 ft and 9 ft high; panels to 60 ft, custom heights	Sizes & heights 20 ft high x 40 ft long; custom sizes available	Sizes & heights 6 ft and 9 ft high; panels to 60 ft, custom to the inch	Sizes & heights —
Colors Dark Green or Black	Colors —	Colors Dark Green, Black or Open Tournament Blue	Colors Standard or custom colors; backside matches front
Custom digital printing —	Custom digital printing Available for team/organization branding	Custom digital printing Full color printing on material with UV inks	Custom digital printing Full color digital printing with UV resistant inks
Warranty 4-year limited	Warranty —	Warranty —	Warranty Pro-rated 3–4 years on material and workmanship
Best for Facilities wanting a lightweight, heat-set polypropylene fence screen with a 4-year warranty.	Best for Ballparks needing a tall center-field batter's eye backdrop panel.	Best for Tennis courts and sport fields needing the heaviest, highest-tensile custom windscreen.	Best for Teams and sponsors adding full color logos and graphics to VCP windscreens.
$1.01	$14.00	$0.91	$99.00
Check ›	Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

4-Year limited

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What sizes are available for the VCP Max Windscreen?

It is available in standard 6 ft and 9 ft heights, with custom heights by request, and custom lengths made to the nearest inch up to a recommended maximum of 60 ft per panel.

What makes the VCP Max material durable?

It uses a 50% vinyl, 50% polyester 16 x 17 weave fabric with reinforced 3-ply hems, solid vinyl inserts double sewn to 1-1/2 inches, and brass grommets, giving it strong tensile strength (395 x 401) and weather resistance.

Can the windscreen be custom printed?

Yes, Douglas offers vibrant full color digital printing directly on the material using long-lasting UV inks, allowing custom logos and graphics without a white backside.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
