Product Overview

In short

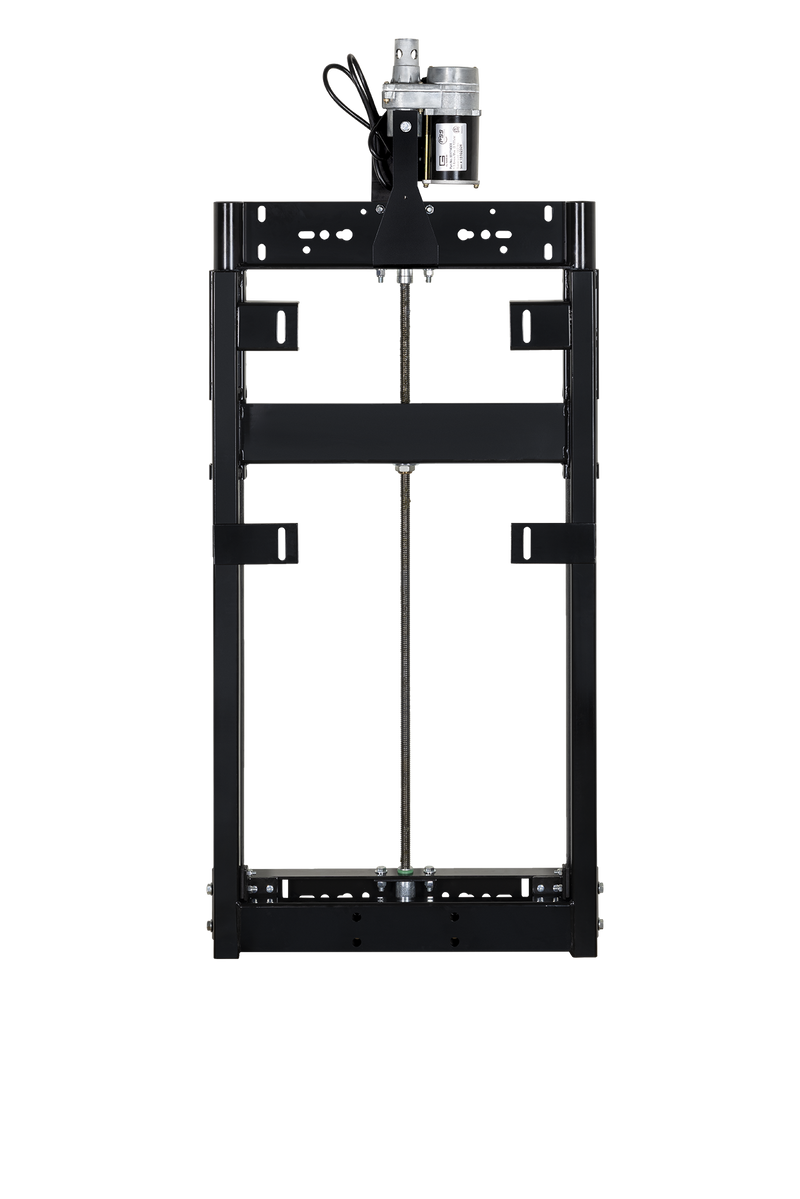

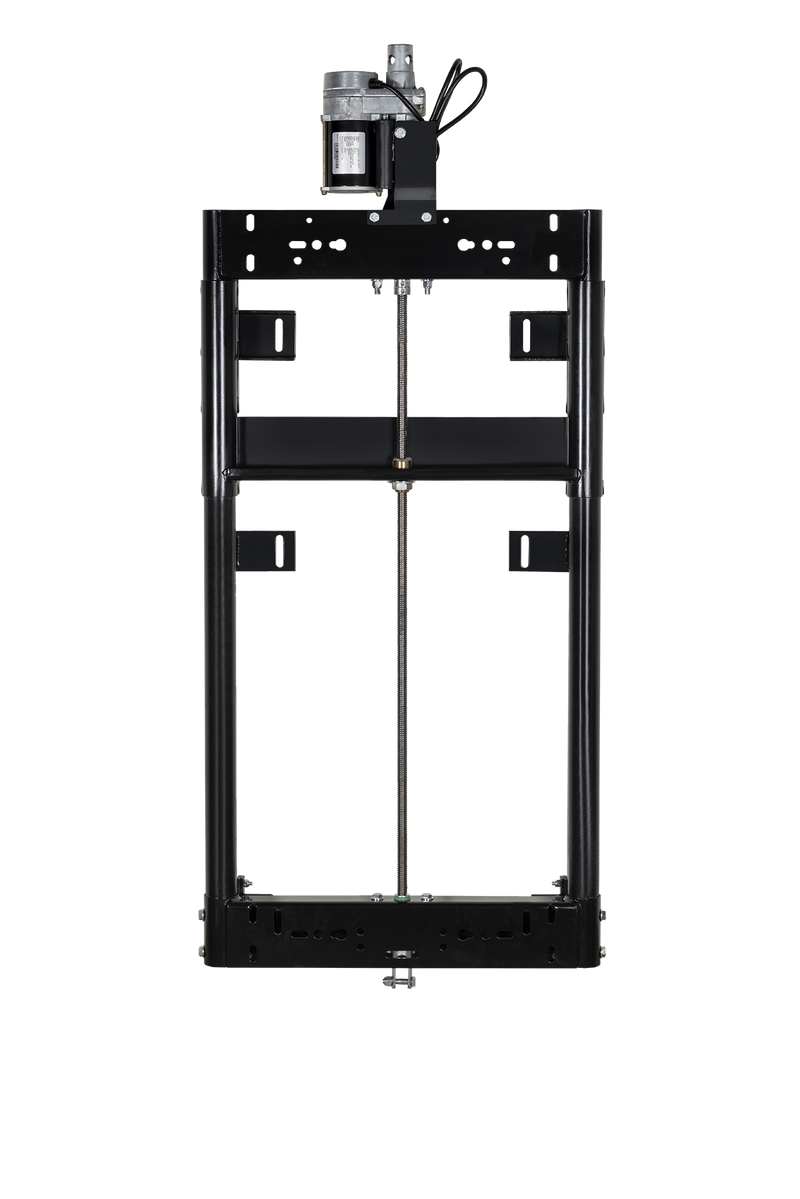

The Gared 1171 is an electric Adjust-A-Goal height adjuster for single post basketball backstops that sets the backboard anywhere between 8' and 10' at the push of a button. It uses a 1/8 HP, 115 VAC single phase ETL listed gearmotor actuator rated for loads up to 600 lbs with 24" of travel and a 25% duty cycle. Attachment kits and the control kit (hard wire kit or power wand kit) are sold separately.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The 1171 lets a gym serve athletes of all ages from one hoop by electrically adjusting goal height from 8' to 10'. It can be installed on PSS and Gared basketball units as well as many other manufacturers' units, and a height indicator label on the side of the unit shows the setting in 3" increments so the current height is readable from a distance.

Structurally, the vertical tubing lets the slide tubing move without binding, the horizontal structure uses two 2" x 4" x 3/16" thick steel L braces (one at each end), and a 1 1/2" x 3" x 3/16" thick steel tube serves as the direct goal attachment that transfers loads from the backboard to the surrounding framework. All components are welded for stability during normal play, and a spring-activated manual locking mechanism locks the rod in place to eliminate drifting from the set height.

Electrically, the 1.3 amp 115 VAC single phase gear-motor actuator provides smooth reversible linear motion for loads up to 600 lbs with 24" of travel, a 25% duty cycle and factory set cam style limit switches. The installation needs a dedicated 115 VAC, 1 PH, 60 Hz, 15 amp circuit. The unit is furnished in standard flat black finish, should not be painted after shipment, and must be lubricated periodically. Control accessories include the 1158 key switch hardwire kit, 1157 hardwire kit for power wand, 1159 power wand, and 1156 remote control kit.

Specifications

Specification	Value
Model	1171 Electric Height Adjuster, Adjust-A-Goal Series (single post)
Adjustment Range	8' to 10' goal height
Height Indicator	Side-mounted label showing settings from 8' to 10' in 3" increments
Gearmotor	1/8 HP, 115 VAC, 1 PH, 60 Hz, 1.3 FLA, instant reversing, auto reset thermal overload
Actuator Capacity	Smooth reversible linear motion for loads up to 600 lbs
Actuator Travel	24"
Duty Cycle	25% with factory set cam style limit switches
Listing	Gear-motor is ETL listed
Minimum Circuit	Dedicated 115 VAC, 1 PH, 60 Hz, 15 amp service
Minimum Wire Size	14 ga. for 0-430 ft, 12 ga. for 430-690 ft (copper, 3% max voltage drop)
Horizontal Structure	Two 2" x 4" x 3/16" thick steel L braces, one at each end
Goal Attachment	1 1/2" x 3" x 3/16" thick steel tube
Locking	Spring-activated manual locking mechanism holds the rod and prevents drift from the set height
Finish	Standard flat black powdercoat
Ship Weight	147 lbs / 66.68 kg
Shipping	Truck, shipping class 70; Country of Origin China

Compare Gared models

Steel 42x60	Polycarbonate 42x72	Oversized RG Glass	Aluminum Glass LED	LXP Glass LED	Buzzer Beater Package
Board Size 42 in. x 60 in. rectangular	Board Size 42 in. x 72 in. rectangular	Board Size 48 in. x 72 in. oversized	Board Size 42 in. x 72 in. regulation	Board Size 42 in. x 72 in. rectangular	Board Size 42 in. x 72 in. regulation
Playing Surface 12 ga. one-piece stamped steel shell	Playing Surface 1/2 in. clear polycarbonate, UV/abrasion treated	Playing Surface 1/2 in. tempered glass (.485-.515 in.)	Playing Surface Competition tempered glass	Playing Surface 1/2 in. fully tempered glass	Playing Surface Regulation glass (AFRG42)
Frame Construction 12 ga. channels, 10 ga. vertical channel, all welded	Frame Construction Welded 3/4 x 1.5 in. heavy-wall steel tube frame	Frame Construction Formed steel angles, heavy gauge corner brackets	Frame Construction Aluminum frame, rust-free	Frame Construction Formed steel angles, heavy gauge corner plates	Frame Construction Aluminum-framed glass backboard
Goal Mounting 5 in. horizontal x 5 in. vertical centers	Goal Mounting 5 in. horizontal x 4 or 5 in. vertical; direct-mount holes	Goal Mounting 5 in. horizontal x 5 in. vertical centers	Goal Mounting Fits 4000+, 3500I, 2500I, 1000, 5500 goals	Goal Mounting 5 in. x 4 in. centers with 3/8-16 x 3/4 in. studs	Goal Mounting Multi-directional 4000 rim included
Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —
Perimeter LED Lighting —	Perimeter LED Lighting —	Perimeter LED Lighting —	Perimeter LED Lighting Buzzer Beater 2137 perimeter LED light kit	Perimeter LED Lighting Perimeter LED light system included	Perimeter LED Lighting Buzzer Beater 2135 LED kit with 30 ft power cord
Markings Unmarked, white finish	Markings White border and target	Markings Target/border 5 ft 3 in. x 3 ft 6 in.	Markings —	Markings White target lines fused onto the glass	Markings —
Finish Phosphate pre-treat with white powder coat	Finish Flat black powder coat frame, aluminum trim	Finish Gray powder coat brackets and plates	Finish —	Finish Neutral gray powder coat frame	Finish Includes PMCE backboard padding
Compliance & Strength Welded vibration-free one-piece unit	Compliance & Strength —	Compliance & Strength Meets NCAA and high school requirements	Compliance & Strength Exceeds 650 lb aluminum-frame pressure breaking point	Compliance & Strength Meets NCAA/high school; 1100+ lb direct force	Compliance & Strength Glass covered only with Gared Direct Goal Attachment
Country of Origin United States	Country of Origin China	Country of Origin United States	Country of Origin United States	Country of Origin United States	Country of Origin United States / China
Ship Weight 165 lbs	Ship Weight 169 lbs	Ship Weight 261 lbs	Ship Weight 228 lbs	Ship Weight	Ship Weight 294 lbs
Best for Outdoor courts and playgrounds needing a wind-resistant, vandal-tough steel board.	Best for Driveway, gooseneck and straight-arm systems needing a shatter-resistant regulation board.	Best for Arenas and field houses wanting an oversized 48 x 72 in. tempered glass competition board.	Best for High school and college gyms wanting rust-free aluminum framing plus buzzer lights.	Best for Competition gyms needing NCAA-legal glass with scoreboard-linked perimeter LEDs.	Best for Schools wanting a complete glass board, rim, padding and LED light package in one order.
$1,035.95	$2,330.00 $2,218.74	$1,638.00	$1,999.00	$2,300.00 $1,613.63	$5,238.00 $4,711.80
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

1-Year Limited Warranty (1170/1180 Series Electric Adjust-A-Goals)

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What height range does the 1171 adjust between?

It electrically adjusts goal height from 8' to 10', and the height indicator label on the side of the unit shows the settings in 3" increments.

What electrical service does the 1171 require?

A dedicated 115 VAC, single phase, 60 Hz, 15 amp circuit. The motor is 1/8 HP, 115 VAC, 1 PH, 60 Hz, 1.3 FLA with instant reversing and auto reset thermal overload. Minimum copper wire size is 14 ga. up to 430 ft and 12 ga. from 430 to 690 ft.

How is the unit operated?

It is operated with your choice of a hard wire kit or a power wand kit and power wand; one power wand can operate several electric Adjust-A-Goals. Accessories include 1158 (key switch hardwire kit), 1157 (hardwire kit for power wand), 1159 (power wand) and 1156 (remote control kit).

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
