Product Overview

In short

The Gared 1131 is a manual Adjust-A-Goal height adjuster for single post basketball backstops that sets the backboard between 8' and 10' by turning a removable hand crank from floor level. A spring-activated manual locking mechanism holds the hardened 5/8" stub acme screw rod in place so the board does not drift from the set height. The crank and the board attachment kits are purchased separately.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The 1131 adds height adjustment to an existing hoop so one goal can serve athletes of all ages. It adjusts goal height from 8' to 10' and is operated from floor level with a removable hand crank. The unit may be installed on any PSS and/or Gared Performance Sports Systems basketball unit as well as many units by other manufacturers.

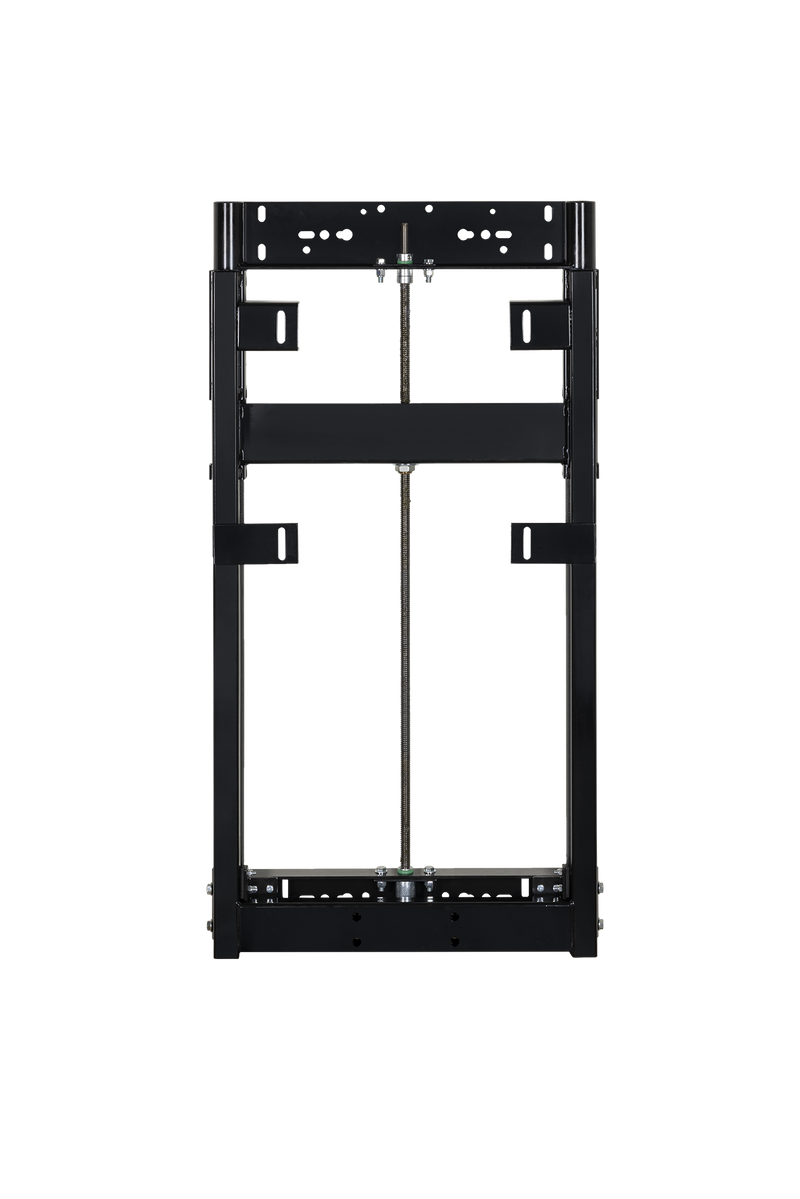

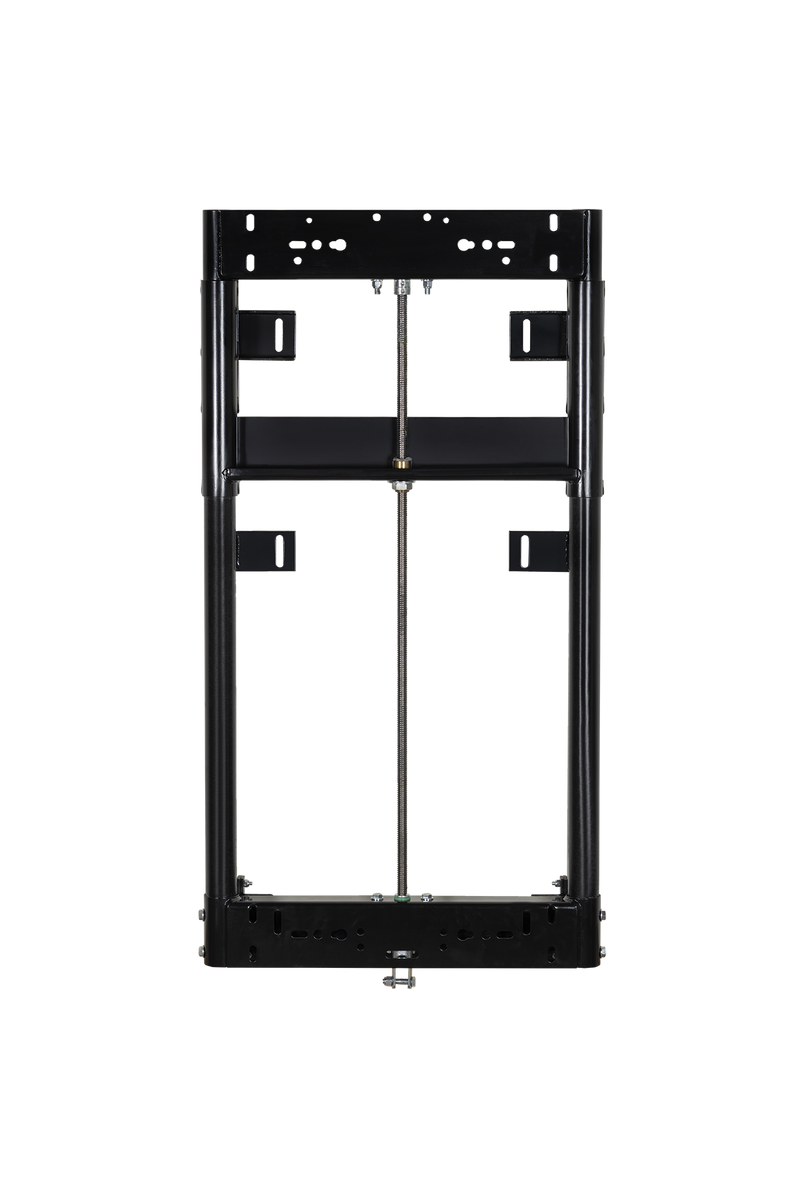

Vertical tubing lets the slide tubing move freely without binding. The horizontal structure consists of two 2" x 4" x 3/16" thick steel L braces, one at each end, and a 1 1/2" x 3" x 3/16" thick steel tube acts as the direct goal attachment, transferring loads from the backboard into the surrounding framework. All components are welded to ensure stability during normal play, and the screw rod is a hardened 5/8" diameter stub acme thread design.

A spring loaded lock on the rod at the lower brace locks the rod in place whenever the unit is not being controlled by the crank handle, which eliminates drift from the set height. A height adjustment label outside the slide channel shows settings from 8' to 10' in 3" increments. The unit is furnished with a standard flat black finish, should not be painted after shipment, and must be lubricated periodically. Accessories include the 9120-11-08 crank and extension rod, the 1125 portable cordless electric crank, and electric conversion kits 155351211 (115V 1PH 60Hz) and 155351440 (220V 1PH 50/60Hz).

Specifications

Specification	Value
Model	1131 Manual Height Adjuster, Adjust-A-Goal Series (single post)
UPC	00842299101118
Adjustment Range	8' to 10' goal height, operated from floor level
Operation	Hand held removable crank (crank purchased separately)
Adjustment Travel	2'-0" (610 mm)
Height Indicator	Label outside the slide channel, viewable from the side, 8' to 10' in 3" increments
Screw Rod	Hardened 5/8" diameter stub acme thread design
Locking	Spring loaded lock on the rod at the lower brace, locks the rod when not controlled by the crank
Horizontal Structure	Two 2" x 4" x 3/16" thick steel L braces, one at each end
Goal Attachment	1 1/2" x 3" x 3/16" thick steel tube
Material	Steel, all components welded
Finish	Standard flat black powdercoat
Board Mount Kits	4404 kit for 63" x 36" rectangular board, 4405 kit for 35" x 20" fan board
Ship Weight	108 lbs / 48.99 kg
Shipping	Truck, shipping class 70; Country of Origin China

Compare Gared models

Steel 42x60	Polycarbonate 42x72	Oversized RG Glass	Aluminum Glass LED	LXP Glass LED	Buzzer Beater Package
Board Size 42 in. x 60 in. rectangular	Board Size 42 in. x 72 in. rectangular	Board Size 48 in. x 72 in. oversized	Board Size 42 in. x 72 in. regulation	Board Size 42 in. x 72 in. rectangular	Board Size 42 in. x 72 in. regulation
Playing Surface 12 ga. one-piece stamped steel shell	Playing Surface 1/2 in. clear polycarbonate, UV/abrasion treated	Playing Surface 1/2 in. tempered glass (.485-.515 in.)	Playing Surface Competition tempered glass	Playing Surface 1/2 in. fully tempered glass	Playing Surface Regulation glass (AFRG42)
Frame Construction 12 ga. channels, 10 ga. vertical channel, all welded	Frame Construction Welded 3/4 x 1.5 in. heavy-wall steel tube frame	Frame Construction Formed steel angles, heavy gauge corner brackets	Frame Construction Aluminum frame, rust-free	Frame Construction Formed steel angles, heavy gauge corner plates	Frame Construction Aluminum-framed glass backboard
Goal Mounting 5 in. horizontal x 5 in. vertical centers	Goal Mounting 5 in. horizontal x 4 or 5 in. vertical; direct-mount holes	Goal Mounting 5 in. horizontal x 5 in. vertical centers	Goal Mounting Fits 4000+, 3500I, 2500I, 1000, 5500 goals	Goal Mounting 5 in. x 4 in. centers with 3/8-16 x 3/4 in. studs	Goal Mounting Multi-directional 4000 rim included
Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —	Height Adjustment —
Perimeter LED Lighting —	Perimeter LED Lighting —	Perimeter LED Lighting —	Perimeter LED Lighting Buzzer Beater 2137 perimeter LED light kit	Perimeter LED Lighting Perimeter LED light system included	Perimeter LED Lighting Buzzer Beater 2135 LED kit with 30 ft power cord
Markings Unmarked, white finish	Markings White border and target	Markings Target/border 5 ft 3 in. x 3 ft 6 in.	Markings —	Markings White target lines fused onto the glass	Markings —
Finish Phosphate pre-treat with white powder coat	Finish Flat black powder coat frame, aluminum trim	Finish Gray powder coat brackets and plates	Finish —	Finish Neutral gray powder coat frame	Finish Includes PMCE backboard padding
Compliance & Strength Welded vibration-free one-piece unit	Compliance & Strength —	Compliance & Strength Meets NCAA and high school requirements	Compliance & Strength Exceeds 650 lb aluminum-frame pressure breaking point	Compliance & Strength Meets NCAA/high school; 1100+ lb direct force	Compliance & Strength Glass covered only with Gared Direct Goal Attachment
Country of Origin United States	Country of Origin China	Country of Origin United States	Country of Origin United States	Country of Origin United States	Country of Origin United States / China
Ship Weight 165 lbs	Ship Weight 169 lbs	Ship Weight 261 lbs	Ship Weight 228 lbs	Ship Weight	Ship Weight 294 lbs
Best for Outdoor courts and playgrounds needing a wind-resistant, vandal-tough steel board.	Best for Driveway, gooseneck and straight-arm systems needing a shatter-resistant regulation board.	Best for Arenas and field houses wanting an oversized 48 x 72 in. tempered glass competition board.	Best for High school and college gyms wanting rust-free aluminum framing plus buzzer lights.	Best for Competition gyms needing NCAA-legal glass with scoreboard-linked perimeter LEDs.	Best for Schools wanting a complete glass board, rim, padding and LED light package in one order.
$1,035.95	$2,330.00 $2,218.74	$1,638.00	$1,999.00	$2,300.00 $1,613.63	$5,238.00 $4,711.80
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

1-Year Limited Warranty (1130/1140 Series Manual Adjust-A-Goals)

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Is the crank handle included with the 1131?

No. Height is adjusted with a hand held removable crank that is purchased separately; the 9120-11-08 Adjust-A-Goal crank and extension rod is the listed accessory. Attachment kits are also sold separately.

What height settings does the 1131 provide?

It adjusts goal height from 8' to 10', with a height adjustment label outside the slide channel showing the settings in 3" increments.

Can the manual 1131 be motorized later?

Gared lists electric Adjust-A-Goal kits as accessories: 155351211 (115V 1PH 60Hz) and 155351440 (220V 1PH 50/60Hz), plus the 1125 portable cordless electric crank, 1158 key switch hardwire kit, 1157 hardwire kit for power wand and 1159 power wand.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
