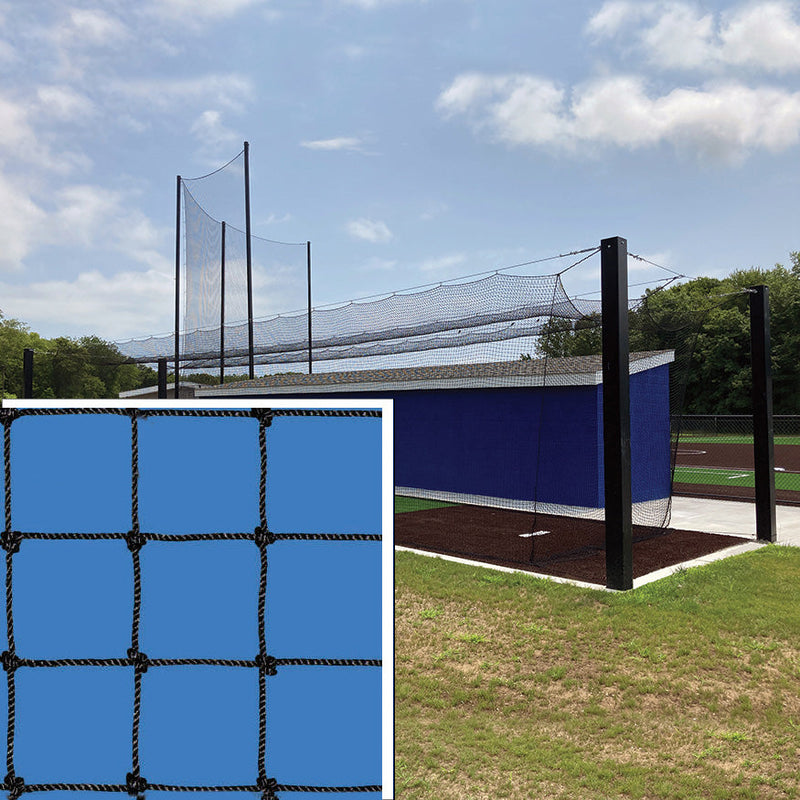

Type Wall mounting kit for gymnasium installs | Type Cable supported tunnel kit, net separate | Type Cable suspended tunnel kit, net separate | Type Indoor batting tunnel net only | Type Quick set-up indoor batting tunnel, complete | Type Ceiling-suspended retractable cage, motorized |
Cage / Net Size — | Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H) | Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H) | Cage / Net Size 70 ft. L x 14 ft. W x 12 ft. H | Cage / Net Size 14 ft. H x 14 ft. W x 70 ft. L | Cage / Net Size 70 ft. L x 12 ft. W x 12 ft. H |
Netting Material — | Netting Material Not included; BBC-370 or BBC-700N sold separately | Netting Material Not included; BBC-370 or BBC-700N sold separately | Netting Material #36 knotted nylon, latex bonded, UV stabilized | Netting Material Black knotless HTPP, 2.5 mm twine | Netting Material Black square baseball netting, included |
Mesh Size — | Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option | Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option | Mesh Size 1-3/4 in. (45 mm) square, 260 lbf break | Mesh Size 1-3/4 in. | Mesh Size 1-3/4 in. square (baseball) |
Support Structure Predrilled wood planks with brackets | Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable | Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable | Support Structure — | Support Structure Wall-to-wall rigging, spans walls up to 120 ft. apart | Support Structure 2-3/8 in. O.D. drive pipe, 1/8 in. aircraft cable |
Operation / Motor — | Operation / Motor Manual; net slides on wall-to-wall cables | Operation / Motor Manual; net slides on cables | Operation / Motor — | Operation / Motor Manual hoist cords, 3 rigging blocks w/ locking cams | Operation / Motor 1 HP hi-torque motor, 115V single phase, single 'V' pull |
Attachment Hardware 1/2 in. min. anchors, 4 per point (anchors not supplied) | Attachment Hardware Net and cable attachment every 12 in. | Attachment Hardware Upper/lower net hardware, 36 in. typical spacing | Attachment Hardware Perimeters sewn and bound to 3/8 in. poly rope | Attachment Hardware Snap hooks plus six wall cleats for cord storage | Attachment Hardware Beam clamp with double Unistrut to building structure |
Height / Clearance Requirements Wall must carry full cage load plus cable tension | Height / Clearance Requirements — | Height / Clearance Requirements Support cables up to 30 ft. in the ceiling | Height / Clearance Requirements Sized so ~1 ft. of net lays on floor in use | Height / Clearance Requirements Opposing walls up to 120 ft. apart | Height / Clearance Requirements Beam height up to 40 ft. |
Setup & Storage Instructions with anchor appendix; annual retightening | Setup & Storage Net slides easily against the wall for storage | Setup & Storage Optional swivel pulleys ease sliding; snap clips available | Setup & Storage Drop-in replacement for existing tunnel frames | Setup & Storage Up or down in minutes, no ladder required | Setup & Storage Powered retraction to ceiling; custom lengths available |
Options & Accessories Wall anchors available from Jaypro by wall type | Options & Accessories Wall kit BBC-WLKT, tie-back straps, swivel pulleys | Options & Accessories Spreader kit, wall kit, tie-backs, pulleys, snap clips | Options & Accessories — | Options & Accessories Wall mounting kit BBC-WLKT; net storage cart TE-2 | Options & Accessories Cage length customizable to any size |
Ship Weight 40 lbs | Ship Weight 48 lbs | Ship Weight | Ship Weight 134 lbs | Ship Weight 130 lbs | Ship Weight 675 lbs |
Best for Installers anchoring cable-supported cages to gymnasium walls. | Best for Gyms wanting a wall-to-wall cable tunnel that slides aside for storage. | Best for High-ceiling gyms hanging a tunnel net from overhead cables. | Best for Facilities replacing the largest 70 ft. x 14 ft. tunnel net. | Best for Programs wanting a longer 70 ft. tunnel that stores away between practices. | Best for Field houses wanting push-button motorized cage deployment overhead. |
| $1,038.00 | $1,018.00 | $1,357.00 | $1,838.00 | $4,900.00 $4,634.00 | $13,448.00 |
