Douglas Movable, Pickleball Court Divider Systems Douglas

Douglas Movable, Pickleball Court Divider Systems

See more by Douglas

$1,899.00 - $2,699.00

$2,299.00

$1,899.00 - $2,699.00

$2,299.00

In stock

SKU: 63232

Quantity

Product Overview

In short

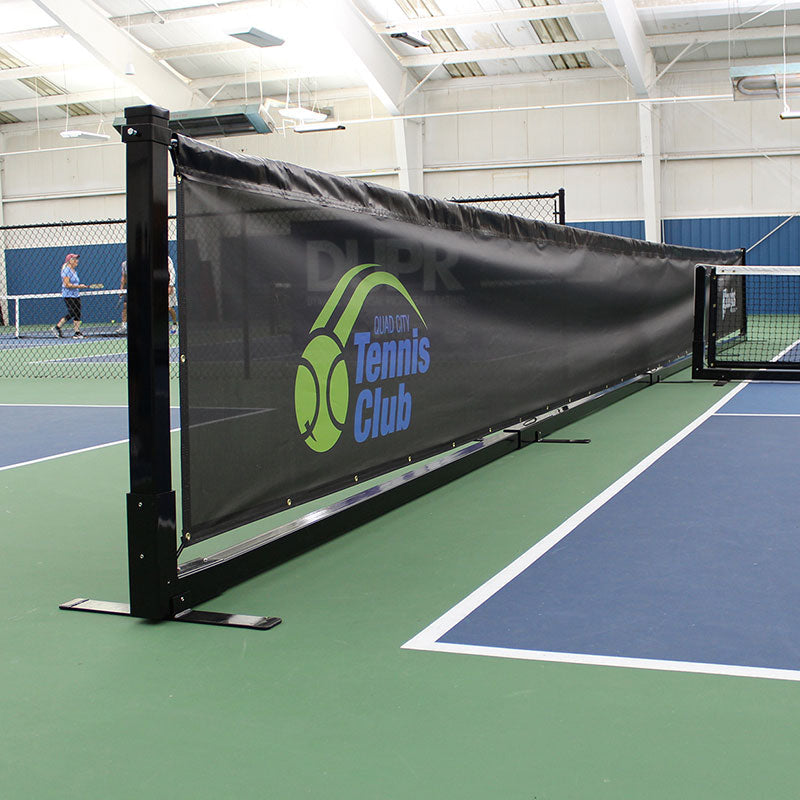

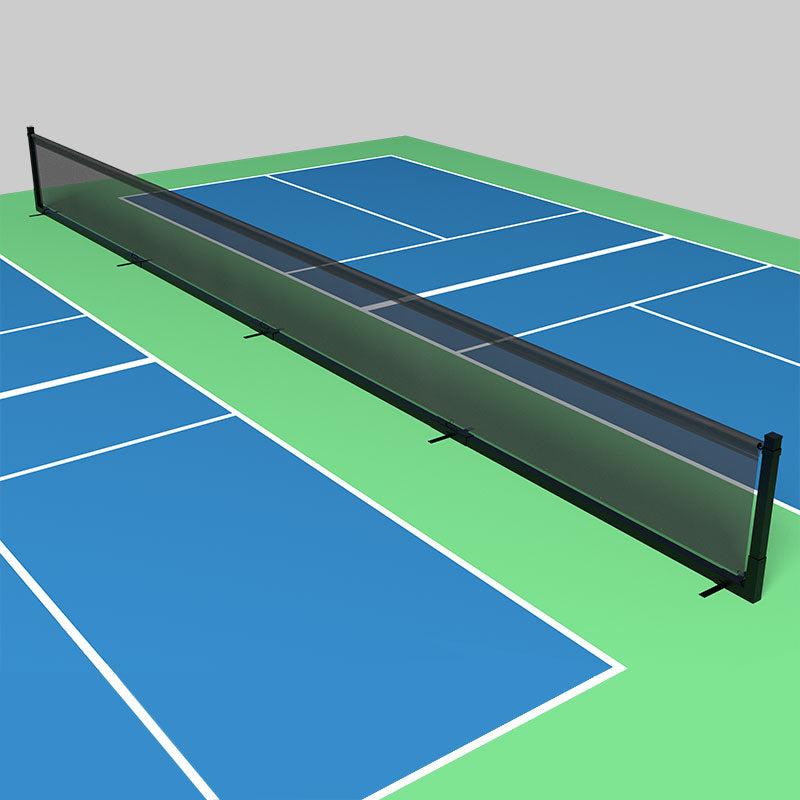

The Douglas Movable Pickleball Court Divider System is a freestanding 4' high steel frame divider with a mesh windscreen panel, available in 21', 31'6", or 42' lengths, designed for indoor courts without drilling or ground sleeves. It features 3 in. square 11-gauge steel construction, a black powder-coated finish, and a tensioned-cable mounted divider panel with reinforced vinyl borders and brass grommets.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

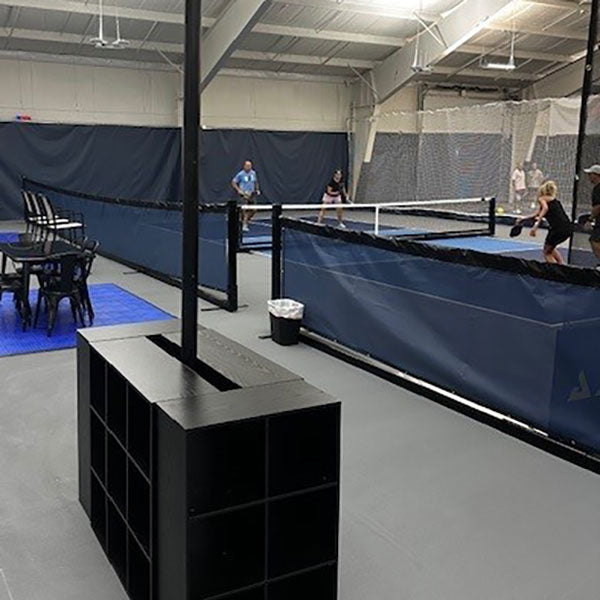

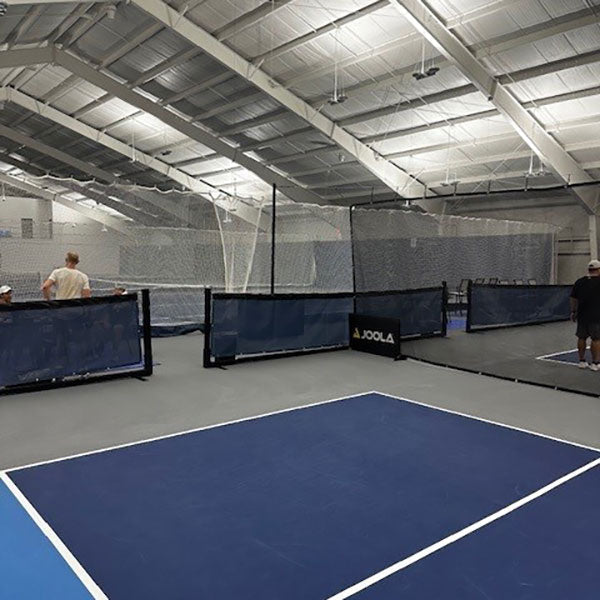

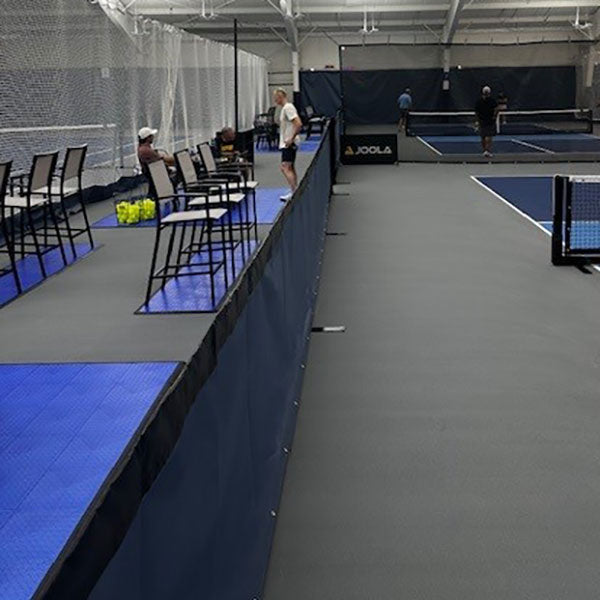

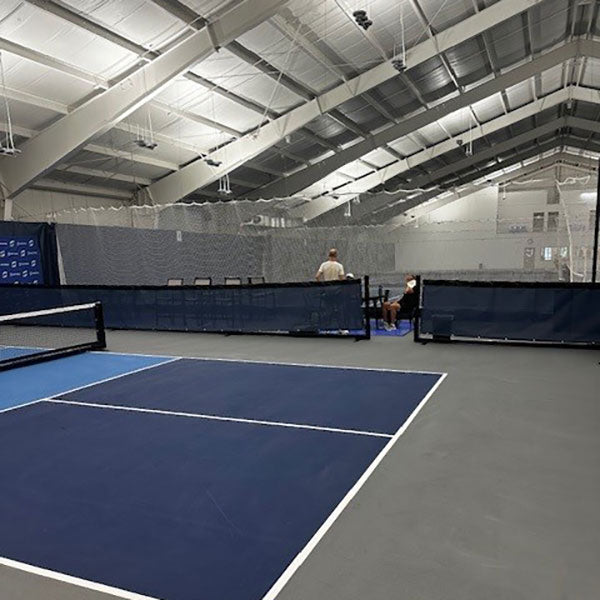

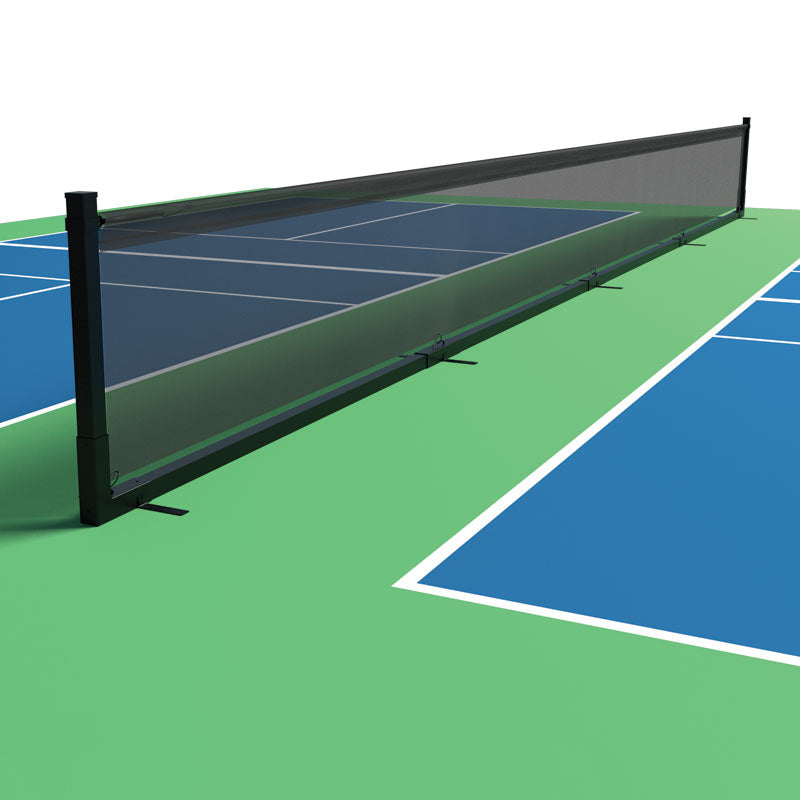

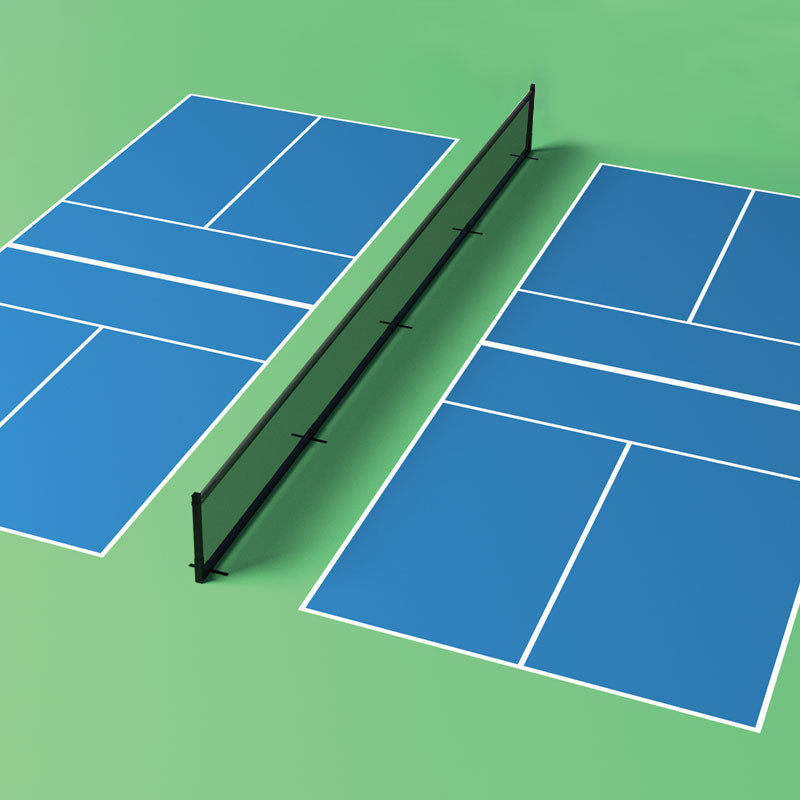

The Douglas Movable Pickleball Court Divider System eliminates the need to drill into indoor court surfaces or install ground sleeves, providing pickleball court separation to prevent errant balls and interruptions from adjacent courts. The mesh divider panel is supported by a movable 4' high steel base frame available in 21', 31'6", or 42' lengths, with the panel hung on a tensioned cable between upright posts and secured along the bottom at each frame connection.

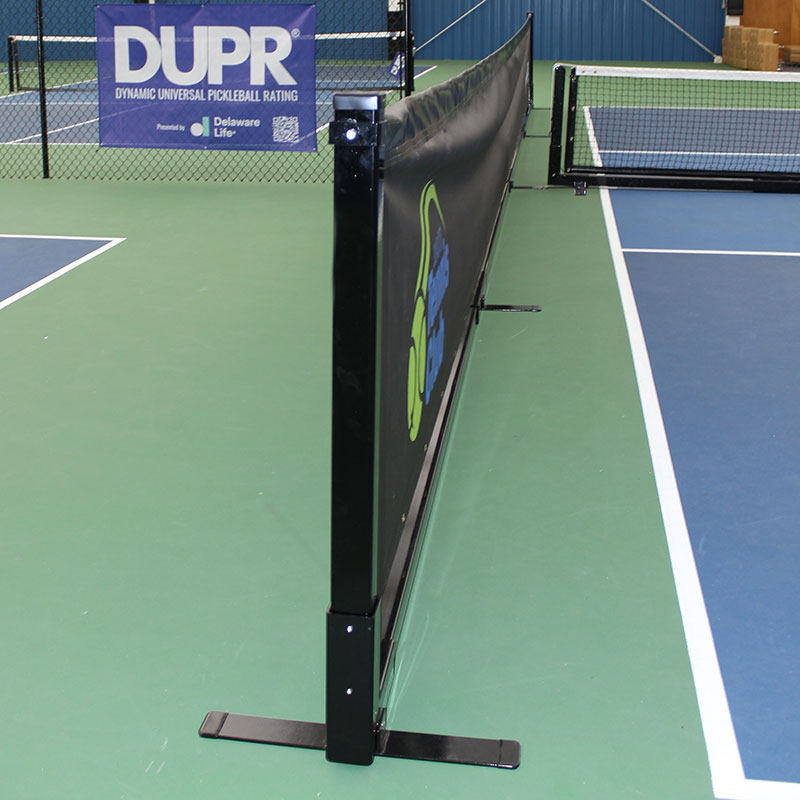

Constructed from heavy-duty 3 in. square, 11-gauge steel with a 3/16 in. wall, the frame is finished with a black baked-on polyester powder coat for rust resistance and durability. The tension cable system uses galvanized steel hardware, including 1/4 in. cable, cable clamps, turnbuckles, and attachment components for maximum strength and longevity. Flat stabilizer legs extending only 12 in. on each side of the court support the system while allowing a greater range of play and increased player safety.

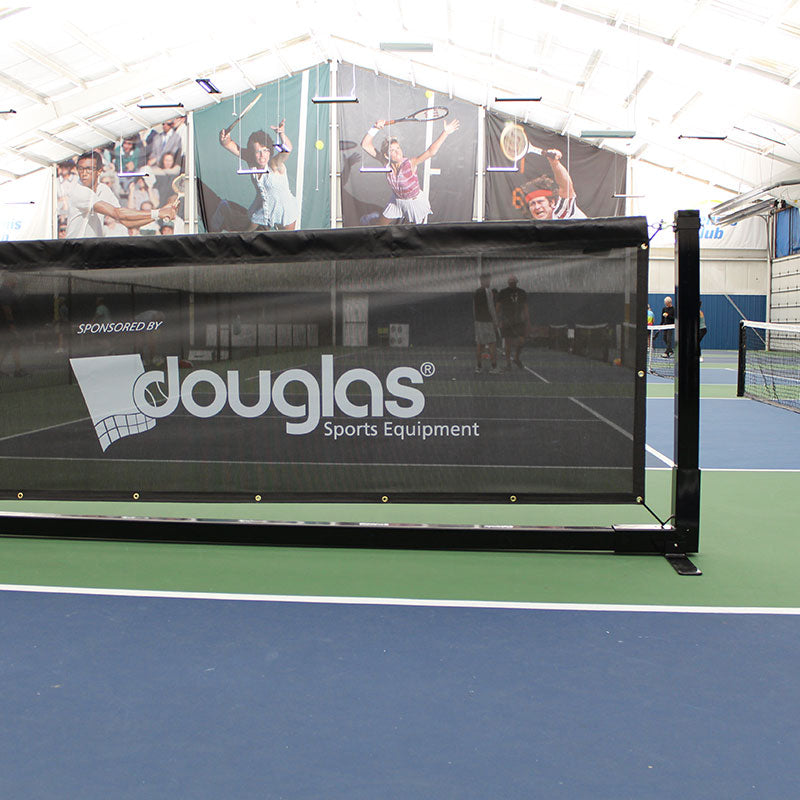

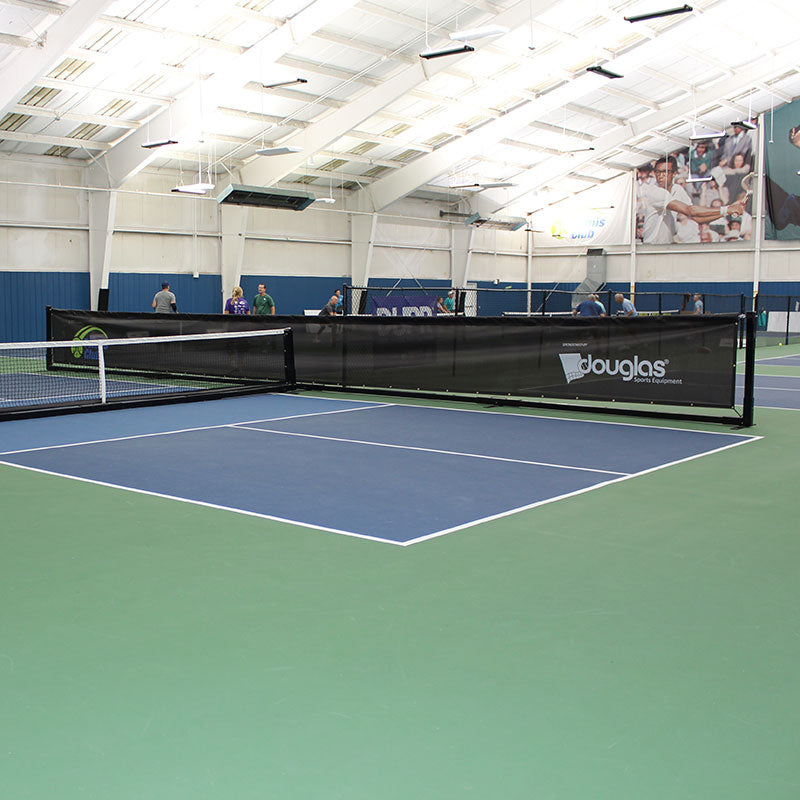

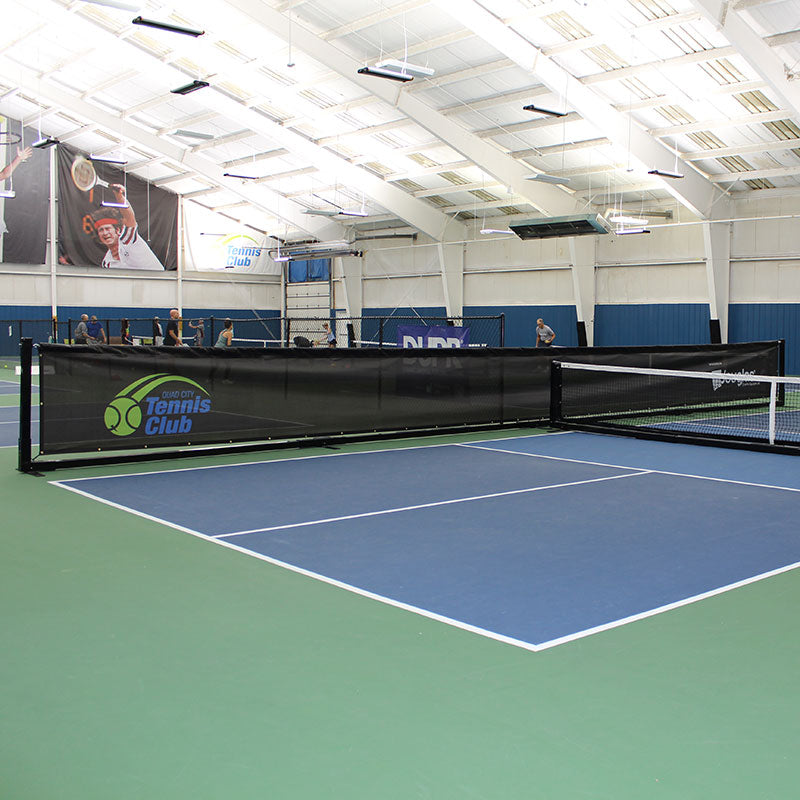

The divider panels are fabricated from VCP or VCP MAX windscreen mesh at 3'6" H to fit inside the framework, with a sewn top headband pocket that conceals tension hardware for a clean finish. Sides and bottoms feature double-sewn 1-1/2 in. solid vinyl reinforced tape borders with evenly spaced #2 brass grommets. The complete system includes upright poles, base frame, divider panel, and tension hardware, and custom digital printing can be applied for facility branding or sponsorship logos.

Specifications

Specification	Value
Frame Height	4' high support frame and divider panel
Available Lengths	21', 31'6" or 42'
Available options	4' x 21', 4' x 31'6", 4' x 42'
Post/Frame Material	3 in. square, 11-gauge steel frame, 3/16 in. wall
Finish	Black baked-on polyester powder-coated finish
Cable Hardware	1/4 in. galvanized steel cable, cable clamps, turnbuckles, and attachment components
Stabilizer Legs	Flat stabilizer legs extending 12 in. on each side of court, secured at each end and frame connection
Panel Material	VCP or VCP MAX windscreen mesh
Panel Height	3'6" H to fit inside framework
Panel Length	4 in. less than frame size
Border	Double-sewn 1-1/2 in. solid vinyl reinforced tape borders with #2 brass grommets spaced evenly
Installation	Movable base frame system; no drilling or ground sleeves required
Category	Court Accessories, Indoor Pickleball Facility
SKU	632221Z

Compare Douglas models

PN-30 Net	SW-36 Deluxe	Premier Square SM	Portable Set	PickleNet Deluxe	PPS-22SQ
Product Type Replacement pickleball net	Product Type In-ground net posts, per pair	Product Type Surface-mount net posts, per pair	Product Type Portable net set	Product Type Portable net set	Product Type Premier portable net system
Size / Dimensions 21'9" L x 31 in. H	Size / Dimensions 54 in. overall; 36 in. above court	Size / Dimensions 36 in. post height	Size / Dimensions 36 in. high x 22 ft. long	Size / Dimensions 22 ft. x 34 in.	Size / Dimensions 36 in. at posts x 22 ft.; 34 in. center
Frame / Post Material —	Frame / Post Material 2-7/8 in. OD 8-gauge steel	Frame / Post Material 3 in. sq. heavy-duty 11-gauge steel	Frame / Post Material Hollow powder-coated steel tubing	Frame / Post Material Aluminum center poles, steel end bases	Frame / Post Material 3 in. sq. 11-gauge steel post & base frame
Mounting / Installation 1/2 in. fiberglass side dowels, lacing cord	Mounting / Installation 24 in. PVC or aluminum sleeves, sold separately	Mounting / Installation Surface mount, welded 7 x 7 in. base plate	Mounting / Installation Freestanding with center stabilizer	Mounting / Installation Freestanding; self-aligning oval tubing	Mounting / Installation Freestanding; flat legs extend 12 in. each side
Net / Panel Material 3.0 mm braided polyethylene, 1-3/4 in. mesh	Net / Panel Material —	Net / Panel Material —	Net / Panel Material Black mesh with white vinyl bindings	Net / Panel Material Net with elastic bottom band	Net / Panel Material PN-30 net with Velcro center strap
Tension System 5/32 in. vinyl-coated cable, 2300 lb. break	Tension System External aluminum reel, removable handle	Tension System Internal 30:1 self-locking gear, chrome handle	Tension System "Easy buckle" net tension system	Tension System Edge adjustment straps, elastic bottom band	Tension System Internal 30:1 self-locking gear
Finish / Color White 2-ply vinyl headband, black tape	Finish / Color Flo-coat galvanized + powder coat; black/green	Finish / Color Black baked-on polyester powder coat	Finish / Color Bright green powder coat	Finish / Color Textured powder-coated steel bases	Finish / Color Black baked-on polyester powder coat
Portability —	Portability Lifts out of ground sleeves	Portability Permanently mounted	Portability Nylon carry case with ball/racket pockets	Portability 4 in. locking wheels; 420D nylon carry bag	Portability Transporter wheels, lift-assist handles
Compliance —	Compliance Meets official USAPA tournament regulations	Compliance Meets official USAPA tournament regulations	Compliance —	Compliance —	Compliance —
Warranty 4-year limited	Warranty 5-year limited	Warranty —	Warranty —	Warranty —	Warranty 5-year
Ship Weight 14 lbs	Ship Weight	Ship Weight	Ship Weight 34 lbs	Ship Weight 42 lbs	Ship Weight 215 lbs
Best for Courts replacing a net on existing permanent pickleball posts.	Best for Outdoor courts needing galvanized posts with external reel.	Best for Dedicated courts needing bolt-down posts with internal gear.	Best for Budget-minded groups wanting a complete grab-and-go net set.	Best for Clubs wanting a durable wheeled portable net with carry bag.	Best for Tournaments needing a heavy-duty portable system with net included.
$169.00	$579.00	$699.00	$179.00	$479.00	$2,599.00
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What lengths are available for the Movable Pickleball Court Divider System?

It is available in three lengths: 21', 31'6", or 42', with a 4' high support frame and divider panel.

Does this divider system require drilling into the court surface?

No, the movable design eliminates the need to drill into the indoor court or install ground sleeves, using a freestanding steel base frame with flat stabilizer legs instead.

What is included in the complete divider system?

The complete system includes the upright poles and base frame, the mesh divider panel, and the tension cable hardware (cable, clamps, turnbuckles, and attachment components).

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
