Product Overview

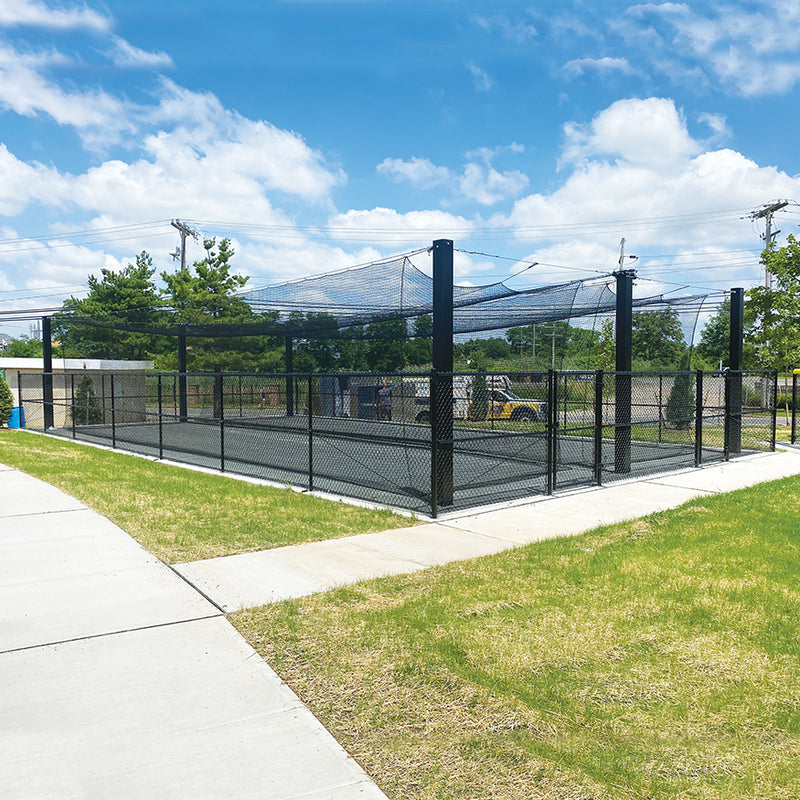

The add-on kit shares the existing tunnel's structure on one side and adds a new line of heavy wall square steel poles on the other, so a second hitting lane can be built alongside the original without duplicating the whole frame. The clean design keeps structure away from the hitting area to reduce ricochets.
The net hangs from tensioned galvanized aircraft cable using snap hooks, so it can be slid to one end for storage or unhooked entirely for the off-season. All steel is powder coated black over a zinc primer. Footing details on the drawing are suggestions; local building codes should be checked first.
Specifications
| Specification | Value |
|---|---|
| Model | MPCTF-55A |
| Type | Center kit for 55' add-on cage (converts a single tunnel system into a tandem system) |

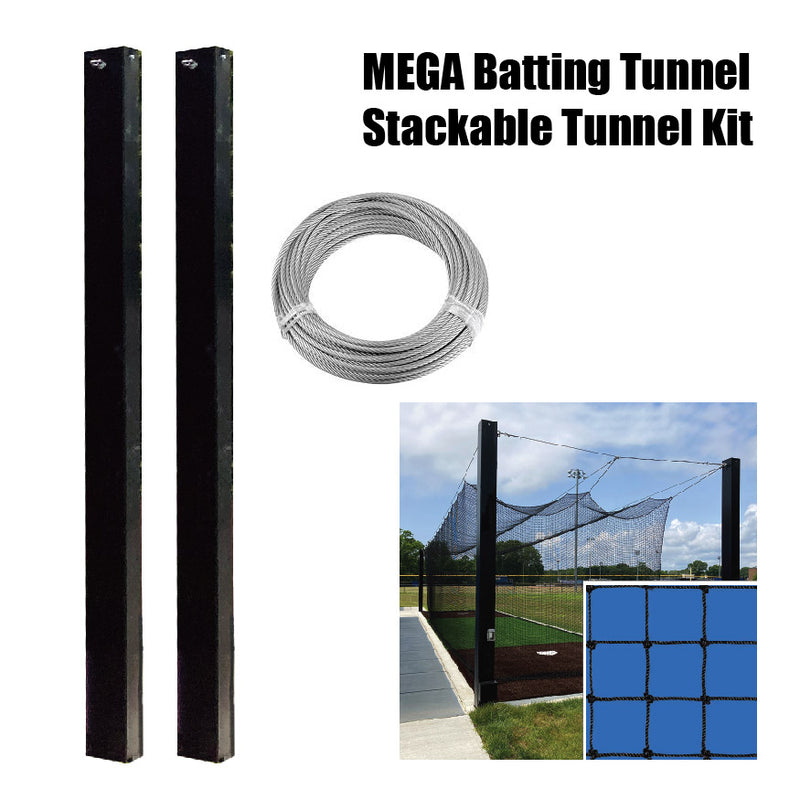

| Posts | 6 heavy wall 8" x 8" square steel poles with 3/16" wall |
| Finish | Powder coat black over zinc primer |
| Net Included | Yes |
| Net Material | #36 knotted nylon |
| Net Mesh | 1-3/4" square mesh |
| Net Size | 14' W x 55' L x 12' H |
| Suspension Cable | 1/4" galvanized aircraft cable with thimble and clamps |
| Tensioning | 1/2" galvanized turnbuckle |
| Net Attachment | Snap hooks for easy on/off; net slides to one end for storage |
| Tunnel Length | 55'-0" (60'-0" overall) |
| Footing Note | Suggested footing; check local building codes before starting the footing |
| Ship Weight | 764 lbs |
| Ships Via | Freight truck (LTL) |
Compare Jaypro models
|
Ground Sleeve |
55 ft Single |
55 ft Add-On THIS |
70 ft Single |
70 ft Add-On |
|---|---|---|---|---|
Configuration Ground sleeve accessory, sold individually | Configuration Single tunnel, post and cable | Configuration Center add-on kit; converts single to tandem | Configuration Single tunnel, post and cable | Configuration Center add-on kit; converts single to tandem |
Tunnel Length (Overall) — | Tunnel Length (Overall) 55'-0" cage; 60'-0" overall post spacing | Tunnel Length (Overall) 55'-0" (60'-0" overall) | Tunnel Length (Overall) 70'-0" cage; 70'-0" between end posts | Tunnel Length (Overall) 70'-0" (75'-0" overall) |
Cage Width x Height — | Cage Width x Height 14'-0" W x 12'-0" H | Cage Width x Height 14'-0" W x 12'-0" H | Cage Width x Height 14'-0" W x 12'-0" clear height | Cage Width x Height 14'-0" W (net height not listed) |
Posts Accepts 8" x 8" square post | Posts (4) 8" x 8" square steel, 3/16" heavy wall | Posts (6) 8" x 8" square steel, 3/16" heavy wall | Posts (4) 8" x 8" square steel, 3/16" heavy wall | Posts (6) 8" x 8" square steel, 3/16" heavy wall |
Finish / Material 11 ga. (0.1196") steel with bottom base plate | Finish / Material Powder coat black over zinc primer | Finish / Material Powder coat black over zinc primer | Finish / Material Powder coat black over zinc primer | Finish / Material Powder coat black over zinc primer |
Suspension Cable & Tensioning — | Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle | Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle | Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle | Suspension Cable & Tensioning 1/4" galvanized aircraft cable; 1/2" turnbuckle |
Net — | Net #36 black knotted nylon, 1-3/4" mesh, 14' x 55' x 12' | Net Included: #36 knotted nylon, 1-3/4" mesh, 14' x 55' x 12' | Net #36 black knotted nylon, 1-3/4" mesh, 14' x 70' x 12' | Net Included: #36 knotted nylon, 1-3/4" mesh, 14' wide |
Net Attachment — | Net Attachment Snap hooks; net slides to one end for storage | Net Attachment Snap hooks; net slides to one end for storage | Net Attachment Snap hooks; net slides to one end for storage | Net Attachment Snap hooks; net slides to one end for storage |
Footing / Foundation Concrete, pad or crushed stone; (8) 5/8" x 48" rebar | Footing / Foundation 6" concrete, block or crushed stone (verify codes) | Footing / Foundation Suggested footing; verify local building codes | Footing / Foundation 6" concrete, block or crushed stone (verify codes) | Footing / Foundation Suggested footing; verify local building codes |
Shipping / Origin Made in Waterford, CT USA | Shipping / Origin Freight truck (LTL) | Shipping / Origin Freight truck (LTL) | Shipping / Origin Freight truck (LTL) | Shipping / Origin Freight truck (LTL) |
Ship Weight 69 lbs | Ship Weight 1428 lbs | Ship Weight 764 lbs | Ship Weight 1525 lbs | Ship Weight 832 lbs |
Best for Facilities wanting removable 8 in. posts set in permanent footings. | Best for Programs adding one permanent outdoor 55 ft. hitting tunnel. | Best for Teams expanding an existing 55 ft. tunnel into a tandem cage. | Best for Schools needing a full-length 70 ft. outdoor batting tunnel. | Best for Complexes doubling a 70 ft. tunnel for side-by-side hitting. |
| $474.00 | $10,684.00 | $7,121.00 | $11,324.00 | $7,859.00 |
| Check › | Check › | Viewing | Check › | Check › |
