Jaypro Ceiling Mounting Kit - Parallel - Spanning 8 ft. On Center or Less

See more by Jaypro

$1,446.00 - $1,446.00

$1,446.00

$1,446.00 - $1,446.00

$1,446.00

In stock

SKU: BBC-PARKITA

Product Overview

In short

The Jaypro BBC-PARKITA is a ceiling cage support kit for retractable batting cages hung parallel to building beams spaced up to 8 ft. on center. It contains an attachment kit and support structure with nine 1-5/8" x 1-5/8" x 120" single strut channels and thirty-six single strut beam clamp assemblies. It is used with a ceiling suspended retractable batting cage, which is purchased separately.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

Ceiling suspended retractable batting cages have to be tied into whatever structure a gym already has overhead. The BBC-PARKITA kit is the parallel spanning version for buildings where the structural beams run parallel to the cage and sit up to 8 ft. on center.

The kit ships as a complete cage support package, combining the attachment hardware and the support structure. It includes nine SR5239-120 single strut channels measuring 1-5/8" x 1-5/8" x 120" plus thirty-six HM6157 single strut beam clamp assemblies, so the strut runs can be clamped directly to the existing beams.

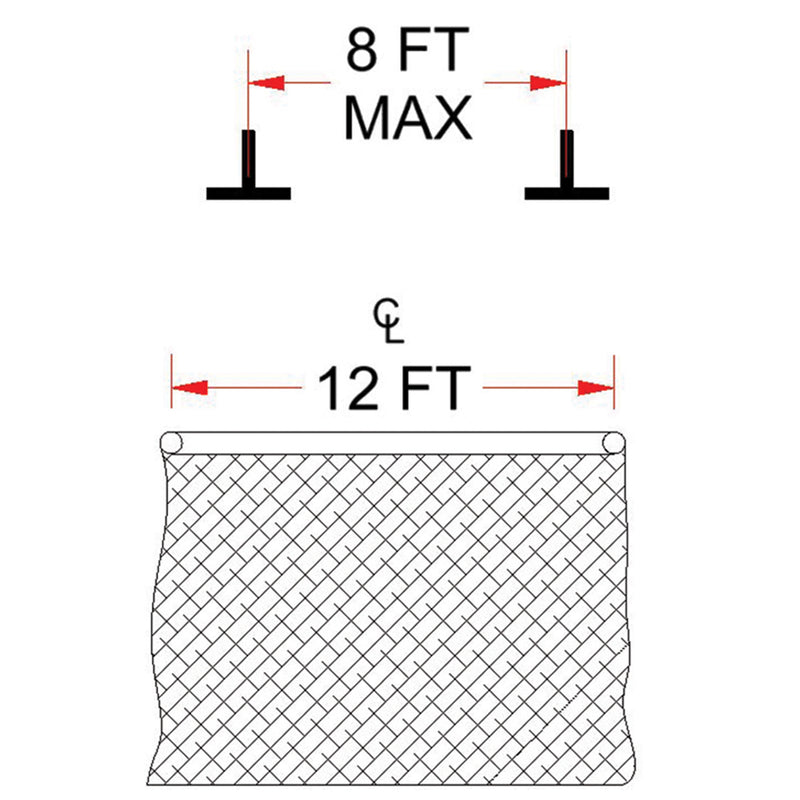

Layout follows the cage itself, which is 12 or 14 ft. wide by 70 ft. long when assembled, with a clear area around the perimeter and a 14" minimum offset noted in the installation drawings. The motor is positioned outside the frame so it can be serviced with the cage either retracted or lowered. The batting cage is purchased separately.

Specifications

Specification	Value
Model	BBC-PARKITA
Type	Cage support kit - parallel spanning
Beam Spacing	Up to 8 ft. on center (8'-0" max)
Kit Contents	Attachment kit and support structure
Strut Channel	(9) SR5239-120, 1-5/8" x 1-5/8" x 120" single strut channel
Beam Clamps	(36) HM6157 single strut beam clamp assembly
Compatible Cage	Ceiling suspended retractable batting cage (purchased separately)
Cage Size Supported	12 ft. or 14 ft. wide x 70 ft. long assembled
Clearance Required	3 ft. minimum clear area around cage perimeter
Minimum Offset	14" min offset
Typical Support Spacing	11 ft. typical
Motor Placement	Motor located outside the frame for service access in retracted or down position
Documentation	Installation manual included
Manufacturer	Jaypro Sports, LLC - Waterford, CT USA
Ship Weight	230 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

Wall Kit	Supported Kit	Suspended Kit	Net 70x14	Quick Set 70	Retractable 700B
Type Wall mounting kit for gymnasium installs	Type Cable supported tunnel kit, net separate	Type Cable suspended tunnel kit, net separate	Type Indoor batting tunnel net only	Type Quick set-up indoor batting tunnel, complete	Type Ceiling-suspended retractable cage, motorized
Cage / Net Size —	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size 70 ft. L x 14 ft. W x 12 ft. H	Cage / Net Size 14 ft. H x 14 ft. W x 70 ft. L	Cage / Net Size 70 ft. L x 12 ft. W x 12 ft. H
Netting Material —	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material #36 knotted nylon, latex bonded, UV stabilized	Netting Material Black knotless HTPP, 2.5 mm twine	Netting Material Black square baseball netting, included
Mesh Size —	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. (45 mm) square, 260 lbf break	Mesh Size 1-3/4 in.	Mesh Size 1-3/4 in. square (baseball)
Support Structure Predrilled wood planks with brackets	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure —	Support Structure Wall-to-wall rigging, spans walls up to 120 ft. apart	Support Structure 2-3/8 in. O.D. drive pipe, 1/8 in. aircraft cable
Operation / Motor —	Operation / Motor Manual; net slides on wall-to-wall cables	Operation / Motor Manual; net slides on cables	Operation / Motor —	Operation / Motor Manual hoist cords, 3 rigging blocks w/ locking cams	Operation / Motor 1 HP hi-torque motor, 115V single phase, single 'V' pull
Attachment Hardware 1/2 in. min. anchors, 4 per point (anchors not supplied)	Attachment Hardware Net and cable attachment every 12 in.	Attachment Hardware Upper/lower net hardware, 36 in. typical spacing	Attachment Hardware Perimeters sewn and bound to 3/8 in. poly rope	Attachment Hardware Snap hooks plus six wall cleats for cord storage	Attachment Hardware Beam clamp with double Unistrut to building structure
Height / Clearance Requirements Wall must carry full cage load plus cable tension	Height / Clearance Requirements —	Height / Clearance Requirements Support cables up to 30 ft. in the ceiling	Height / Clearance Requirements Sized so ~1 ft. of net lays on floor in use	Height / Clearance Requirements Opposing walls up to 120 ft. apart	Height / Clearance Requirements Beam height up to 40 ft.
Setup & Storage Instructions with anchor appendix; annual retightening	Setup & Storage Net slides easily against the wall for storage	Setup & Storage Optional swivel pulleys ease sliding; snap clips available	Setup & Storage Drop-in replacement for existing tunnel frames	Setup & Storage Up or down in minutes, no ladder required	Setup & Storage Powered retraction to ceiling; custom lengths available
Options & Accessories Wall anchors available from Jaypro by wall type	Options & Accessories Wall kit BBC-WLKT, tie-back straps, swivel pulleys	Options & Accessories Spreader kit, wall kit, tie-backs, pulleys, snap clips	Options & Accessories —	Options & Accessories Wall mounting kit BBC-WLKT; net storage cart TE-2	Options & Accessories Cage length customizable to any size
Ship Weight 40 lbs	Ship Weight 48 lbs	Ship Weight	Ship Weight 134 lbs	Ship Weight 130 lbs	Ship Weight 675 lbs
Best for Installers anchoring cable-supported cages to gymnasium walls.	Best for Gyms wanting a wall-to-wall cable tunnel that slides aside for storage.	Best for High-ceiling gyms hanging a tunnel net from overhead cables.	Best for Facilities replacing the largest 70 ft. x 14 ft. tunnel net.	Best for Programs wanting a longer 70 ft. tunnel that stores away between practices.	Best for Field houses wanting push-button motorized cage deployment overhead.
$1,038.00	$1,018.00	$1,357.00	$1,838.00	$4,900.00 $4,634.00	$13,448.00
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

When should I use BBC-PARKITA instead of another mounting kit?

Use it when the building's structural members run parallel to the batting cage and are spaced up to 8 ft. on center. Wider spacing or a different beam orientation calls for a different Jaypro kit.

What hardware is included in the kit?

The kit contains an attachment kit and support structure: nine SR5239-120 single strut channels (1-5/8" x 1-5/8" x 120") and thirty-six HM6157 single strut beam clamp assemblies.

Is the batting cage included with this kit?

No. The ceiling suspended retractable batting cage is purchased separately; this kit provides the overhead support and attachment hardware only.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.

Product Documents

BBC-PARKITA_INSTALL
