Jaypro Ceiling Mounting Kit - Parallel - Spanning 8 ft. to 12 ft. On Center

See more by Jaypro

$4,448.00 - $4,448.00

$4,448.00

$4,448.00 - $4,448.00

$4,448.00

In stock

SKU: BBC-PARKITB

Product Overview

In short

The Jaypro BBC-PARKITB is a ceiling cage support kit for retractable batting cages hung parallel to building beams spaced 8 ft. to 12 ft. on center. It contains an attachment kit and support structure with nine 1-5/8" x 3-1/4" x 168" double strut channels and thirty-six double strut beam clamp assemblies. The ceiling suspended retractable batting cage itself is purchased separately.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

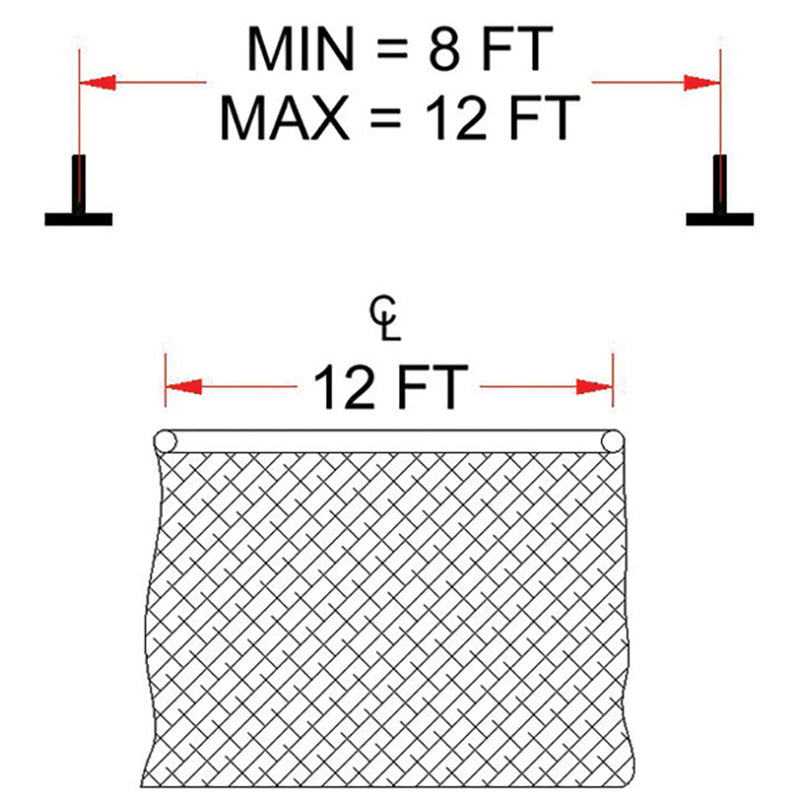

When a gym's structural beams run parallel to the batting cage but sit farther apart, the standard kit no longer spans the gap. BBC-PARKITB is the heavier parallel spanning option, rated for beam spacing from 8 ft. up to 12 ft. on center.

The extra span is handled with double strut hardware: nine SR5243-168 double strut channels measuring 1-5/8" x 3-1/4" x 168" and thirty-six HM6159 double strut beam clamp assemblies. The kit arrives as a complete cage support package containing both the attachment kit and the support structure.

Layout follows the cage, which measures 12 or 14 ft. wide by 70 ft. long once assembled, with a clear perimeter area and a 14" minimum offset called out in the drawings. The motor sits outside the frame so it stays serviceable whether the cage is retracted or lowered.

Specifications

Specification	Value
Model	BBC-PARKITB
Type	Cage support kit - parallel spanning
Beam Spacing	8 ft. to 12 ft. on center (12'-0" max)
Kit Contents	Attachment kit and support structure
Strut Channel	(9) SR5243-168, 1-5/8" x 3-1/4" x 168" double strut channel
Beam Clamps	(36) HM6159 double strut beam clamp assembly
Compatible Cage	Ceiling suspended retractable batting cage (purchased separately)
Cage Size Supported	12 ft. or 14 ft. wide x 70 ft. long assembled
Clearance Required	3 ft. minimum clear area around cage perimeter
Minimum Offset	14" min offset
Typical Support Spacing	11 ft. typical
Motor Placement	Motor located outside the frame for service access in retracted or down position
Documentation	Installation manual included
Manufacturer	Jaypro Sports, LLC - Waterford, CT USA
Ship Weight	515 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

Wall Kit	Supported Kit	Suspended Kit	Net 70x14	Quick Set 70	Retractable 700B
Type Wall mounting kit for gymnasium installs	Type Cable supported tunnel kit, net separate	Type Cable suspended tunnel kit, net separate	Type Indoor batting tunnel net only	Type Quick set-up indoor batting tunnel, complete	Type Ceiling-suspended retractable cage, motorized
Cage / Net Size —	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size 70 ft. L x 14 ft. W x 12 ft. H	Cage / Net Size 14 ft. H x 14 ft. W x 70 ft. L	Cage / Net Size 70 ft. L x 12 ft. W x 12 ft. H
Netting Material —	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material #36 knotted nylon, latex bonded, UV stabilized	Netting Material Black knotless HTPP, 2.5 mm twine	Netting Material Black square baseball netting, included
Mesh Size —	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. (45 mm) square, 260 lbf break	Mesh Size 1-3/4 in.	Mesh Size 1-3/4 in. square (baseball)
Support Structure Predrilled wood planks with brackets	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure —	Support Structure Wall-to-wall rigging, spans walls up to 120 ft. apart	Support Structure 2-3/8 in. O.D. drive pipe, 1/8 in. aircraft cable
Operation / Motor —	Operation / Motor Manual; net slides on wall-to-wall cables	Operation / Motor Manual; net slides on cables	Operation / Motor —	Operation / Motor Manual hoist cords, 3 rigging blocks w/ locking cams	Operation / Motor 1 HP hi-torque motor, 115V single phase, single 'V' pull
Attachment Hardware 1/2 in. min. anchors, 4 per point (anchors not supplied)	Attachment Hardware Net and cable attachment every 12 in.	Attachment Hardware Upper/lower net hardware, 36 in. typical spacing	Attachment Hardware Perimeters sewn and bound to 3/8 in. poly rope	Attachment Hardware Snap hooks plus six wall cleats for cord storage	Attachment Hardware Beam clamp with double Unistrut to building structure
Height / Clearance Requirements Wall must carry full cage load plus cable tension	Height / Clearance Requirements —	Height / Clearance Requirements Support cables up to 30 ft. in the ceiling	Height / Clearance Requirements Sized so ~1 ft. of net lays on floor in use	Height / Clearance Requirements Opposing walls up to 120 ft. apart	Height / Clearance Requirements Beam height up to 40 ft.
Setup & Storage Instructions with anchor appendix; annual retightening	Setup & Storage Net slides easily against the wall for storage	Setup & Storage Optional swivel pulleys ease sliding; snap clips available	Setup & Storage Drop-in replacement for existing tunnel frames	Setup & Storage Up or down in minutes, no ladder required	Setup & Storage Powered retraction to ceiling; custom lengths available
Options & Accessories Wall anchors available from Jaypro by wall type	Options & Accessories Wall kit BBC-WLKT, tie-back straps, swivel pulleys	Options & Accessories Spreader kit, wall kit, tie-backs, pulleys, snap clips	Options & Accessories —	Options & Accessories Wall mounting kit BBC-WLKT; net storage cart TE-2	Options & Accessories Cage length customizable to any size
Ship Weight 40 lbs	Ship Weight 48 lbs	Ship Weight	Ship Weight 134 lbs	Ship Weight 130 lbs	Ship Weight 675 lbs
Best for Installers anchoring cable-supported cages to gymnasium walls.	Best for Gyms wanting a wall-to-wall cable tunnel that slides aside for storage.	Best for High-ceiling gyms hanging a tunnel net from overhead cables.	Best for Facilities replacing the largest 70 ft. x 14 ft. tunnel net.	Best for Programs wanting a longer 70 ft. tunnel that stores away between practices.	Best for Field houses wanting push-button motorized cage deployment overhead.
$1,038.00	$1,018.00	$1,357.00	$1,838.00	$4,900.00 $4,634.00	$13,448.00
Check ›	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What beam spacing does BBC-PARKITB cover?

It is designed for parallel spanning installations where the building beams are 8 ft. to 12 ft. on center, up to a 12'-0" maximum span.

How does it differ from the shorter-span parallel kit?

This version uses double strut hardware: SR5243-168 double strut channels (1-5/8" x 3-1/4" x 168") and HM6159 double strut beam clamp assemblies, rather than single strut components.

What clearance does the cage installation need?

The assembled cage is 12 or 14 ft. wide by 70 ft. long and should have a clear area around its perimeter, with the motor located outside the frame so it can be serviced.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.

Product Documents

BBC-PARKITB_INSTALL
