Jaypro Wall Mounting Kit for Gymnasium Installations

See more by Jaypro

$1,038.00 - $1,038.00

$1,038.00

$1,038.00 - $1,038.00

$1,038.00

In stock

SKU: BBC-WLKT

Product Overview

In short

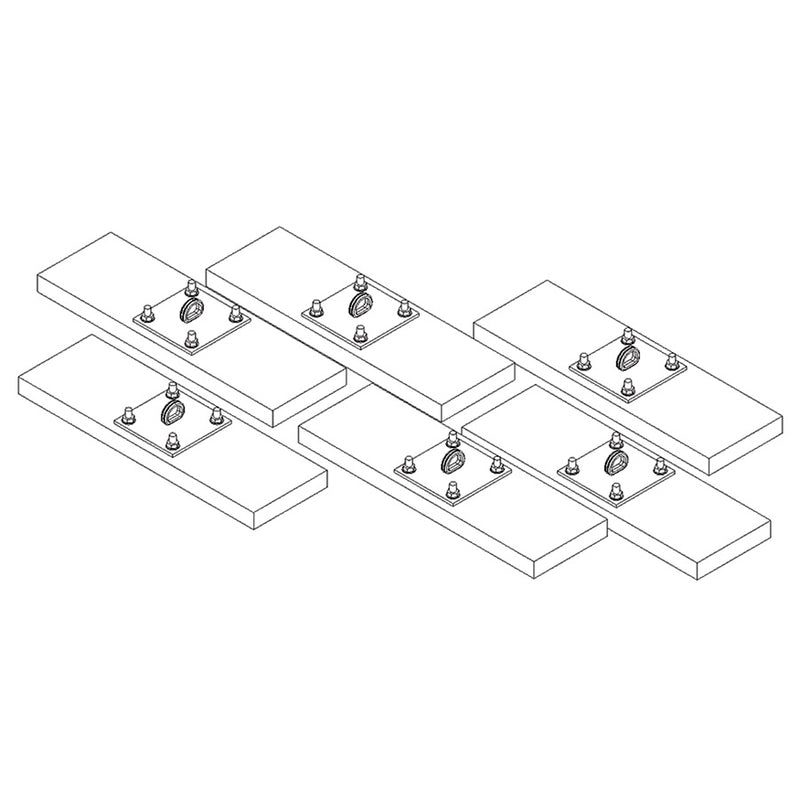

The Jaypro BBC-WLKT is the wall mounting kit used to anchor cable supported batting cage and net systems to a gymnasium wall. It supplies the predrilled wood planks and brackets that carry the cable loads, while the wall anchors themselves are selected and supplied by the installer to match the wall construction. Jaypro specifies a minimum of four anchors per attachment point, each at least 1/2" in diameter.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

Every cable supported cage ultimately hangs on its wall connection, and that connection is what the BBC-WLKT provides. The kit is built around wood planks that are predrilled for their specific brackets and then drilled on site for the anchor bolt pattern that suits the wall.

Anchor selection is left to the installer because wall construction varies so widely. Jaypro's guidance calls for hardware of at least 1/2" diameter with a minimum of four anchors at each attachment point, and 3/4" holes through the planks so they can be leveled. For pre-cast walls the recommended anchors are Rawl Powerstud or Hilti Kwik Bolt 3; hollow CMU calls for a Tumble Toggle, and filled or solid CMU for a Double Expansion Shield or Hilti Kwik Bolt 3.

Preparation matters as much as the hardware. Any sheetrock or other non-structural covering must be removed from directly behind the planks, mortar joints should be avoided, and the wall itself has to be capable of carrying the full cage load plus cable tension. Jaypro recommends annual preventive maintenance and periodic inspection to retighten hardware loosened by vibration.

Specifications

Specification	Value
Model	BBC-WLKT
Type	Wall mounting kit for gymnasium installations
Application	Wall attachment for cable supported cages
Wood Planks	Predrilled for their specific brackets; drilled on site for anchor bolt locations
Wall Anchors	Not supplied with the kit - installer/customer supplies the correct anchor for the wall type (available from Jaypro)
Minimum Anchor Size	1/2" diameter minimum for all wall anchor hardware
Anchors Per Attachment Point	Minimum of 4 anchors
Plank Hole Size	3/4" hole in the wood plank for 1/2" anchors, to allow leveling
Anchor - Pre-Cast Wall	Rawl Powerstud or Hilti Kwik Bolt 3
Anchor - CMU (Hollow)	Tumble Toggle
Anchor - CMU (Filled / Solid)	Double Expansion Shield or Hilti Kwik Bolt 3
Washer	Suitable washer at plank face; 1-1/2" outside diameter works well
Wall Preparation	Remove sheetrock or other non-structural covering directly behind the wood planks
Wall Requirement	Wall must support the entire load of the cage plus cable tension
Maintenance	Annual preventive maintenance and periodic inspection to retighten hardware
Documentation	Installation instructions with anchor management appendix
Ship Weight	40 lbs
Ships Via	Parcel (UPS/FedEx)

Compare Jaypro models

Wall Kit THIS	Supported Kit	Suspended Kit	Net 70x14	Quick Set 70	Retractable 700B
Type Wall mounting kit for gymnasium installs	Type Cable supported tunnel kit, net separate	Type Cable suspended tunnel kit, net separate	Type Indoor batting tunnel net only	Type Quick set-up indoor batting tunnel, complete	Type Ceiling-suspended retractable cage, motorized
Cage / Net Size —	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size For 12 ft. W x 70 ft. L nets (11–12 ft. H)	Cage / Net Size 70 ft. L x 14 ft. W x 12 ft. H	Cage / Net Size 14 ft. H x 14 ft. W x 70 ft. L	Cage / Net Size 70 ft. L x 12 ft. W x 12 ft. H
Netting Material —	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material Not included; BBC-370 or BBC-700N sold separately	Netting Material #36 knotted nylon, latex bonded, UV stabilized	Netting Material Black knotless HTPP, 2.5 mm twine	Netting Material Black square baseball netting, included
Mesh Size —	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. baseball or 3/4 in. multi-sport option	Mesh Size 1-3/4 in. (45 mm) square, 260 lbf break	Mesh Size 1-3/4 in.	Mesh Size 1-3/4 in. square (baseball)
Support Structure Predrilled wood planks with brackets	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure (3) 100 ft. rolls of 1/4 in. galvanized aircraft cable	Support Structure —	Support Structure Wall-to-wall rigging, spans walls up to 120 ft. apart	Support Structure 2-3/8 in. O.D. drive pipe, 1/8 in. aircraft cable
Operation / Motor —	Operation / Motor Manual; net slides on wall-to-wall cables	Operation / Motor Manual; net slides on cables	Operation / Motor —	Operation / Motor Manual hoist cords, 3 rigging blocks w/ locking cams	Operation / Motor 1 HP hi-torque motor, 115V single phase, single 'V' pull
Attachment Hardware 1/2 in. min. anchors, 4 per point (anchors not supplied)	Attachment Hardware Net and cable attachment every 12 in.	Attachment Hardware Upper/lower net hardware, 36 in. typical spacing	Attachment Hardware Perimeters sewn and bound to 3/8 in. poly rope	Attachment Hardware Snap hooks plus six wall cleats for cord storage	Attachment Hardware Beam clamp with double Unistrut to building structure
Height / Clearance Requirements Wall must carry full cage load plus cable tension	Height / Clearance Requirements —	Height / Clearance Requirements Support cables up to 30 ft. in the ceiling	Height / Clearance Requirements Sized so ~1 ft. of net lays on floor in use	Height / Clearance Requirements Opposing walls up to 120 ft. apart	Height / Clearance Requirements Beam height up to 40 ft.
Setup & Storage Instructions with anchor appendix; annual retightening	Setup & Storage Net slides easily against the wall for storage	Setup & Storage Optional swivel pulleys ease sliding; snap clips available	Setup & Storage Drop-in replacement for existing tunnel frames	Setup & Storage Up or down in minutes, no ladder required	Setup & Storage Powered retraction to ceiling; custom lengths available
Options & Accessories Wall anchors available from Jaypro by wall type	Options & Accessories Wall kit BBC-WLKT, tie-back straps, swivel pulleys	Options & Accessories Spreader kit, wall kit, tie-backs, pulleys, snap clips	Options & Accessories —	Options & Accessories Wall mounting kit BBC-WLKT; net storage cart TE-2	Options & Accessories Cage length customizable to any size
Ship Weight 40 lbs	Ship Weight 48 lbs	Ship Weight	Ship Weight 134 lbs	Ship Weight 130 lbs	Ship Weight 675 lbs
Best for Installers anchoring cable-supported cages to gymnasium walls.	Best for Gyms wanting a wall-to-wall cable tunnel that slides aside for storage.	Best for High-ceiling gyms hanging a tunnel net from overhead cables.	Best for Facilities replacing the largest 70 ft. x 14 ft. tunnel net.	Best for Programs wanting a longer 70 ft. tunnel that stores away between practices.	Best for Field houses wanting push-button motorized cage deployment overhead.
$1,038.00	$1,018.00	$1,357.00	$1,838.00	$4,900.00 $4,634.00	$13,448.00
Viewing	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Are the wall anchors included with BBC-WLKT?

No. Because wall types vary so much, Jaypro does not ship anchors with the kit; the installer or customer supplies the correct anchor, though common types can be purchased from Jaypro directly.

What anchor should I use for my wall type?

Jaypro recommends Rawl Powerstud or Hilti Kwik Bolt 3 for pre-cast walls, Tumble Toggle anchors for hollow CMU, and Double Expansion Shield or Hilti Kwik Bolt 3 for filled or solid CMU. All hardware should be at least 1/2" in diameter, with a minimum of four anchors per attachment point.

Does the wall need any preparation before installation?

Yes. Remove sheetrock or other non-structural material from directly behind the wood planks, avoid mortar joints and the top rows of block, and confirm the wall can support the full load of the cage and the cable tension.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.

Product Documents

BBC-WLKT_INSTALL
