In shortThe Gared 8340 is an indoor floor anchor kit for securing futsal and handball goals to a gym floor. It includes a clamp that grips the goal's ground bar and a heavy galvanized tension band that attaches to the backstay, plus anchor adhesive, so goals stay put on virtually any type of gym flooring. Three anchor styles cover wood-on-concrete, wood-over-subfloor and concrete or synthetic floors.
✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

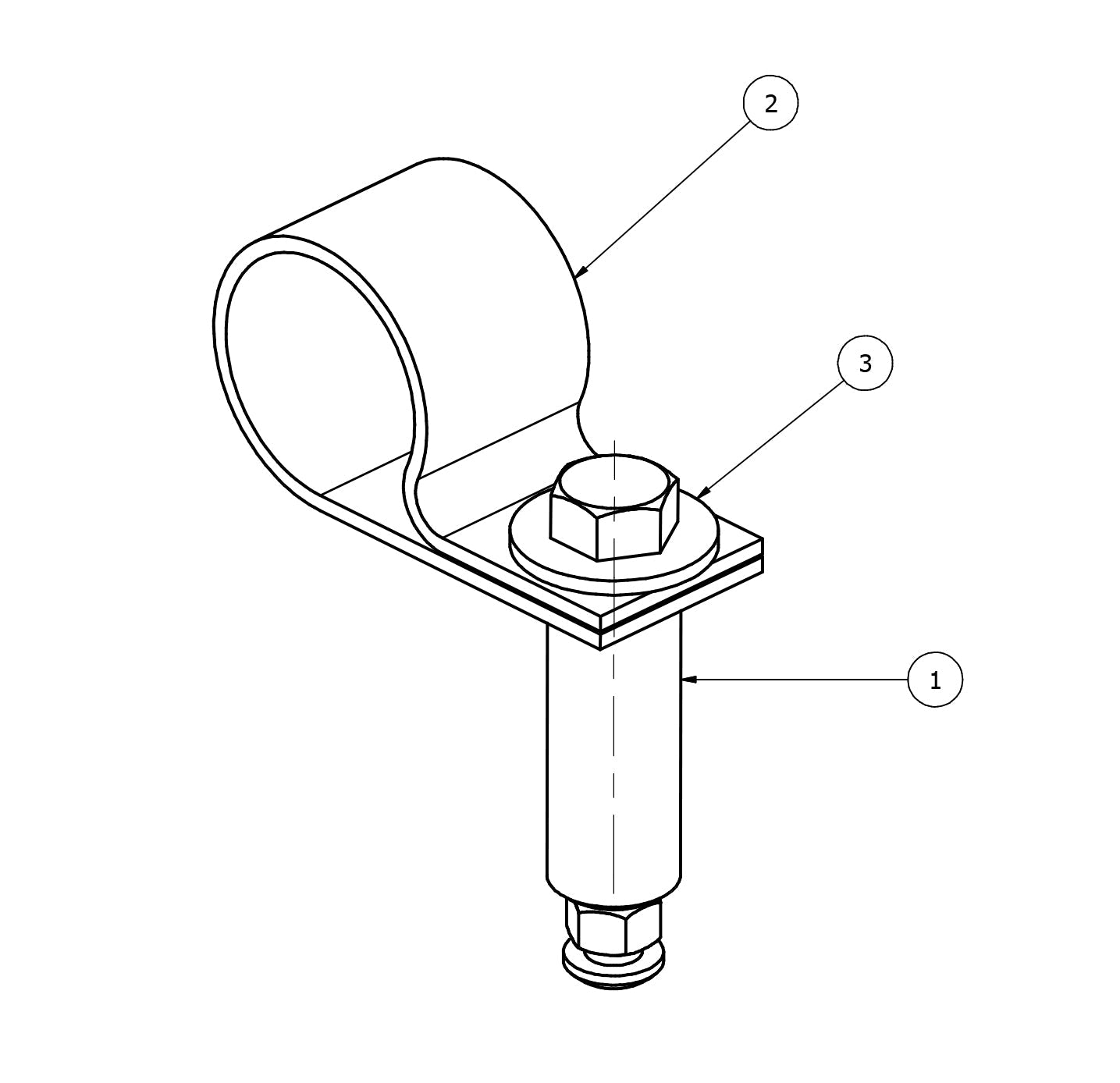

Futsal and handball goals see heavy contact, and an unanchored frame is both a play and a safety problem. The 8340 kit solves that with a floor anchor set flush with the finished floor, a clamp that attaches securely to the ground bar of the goal, and a heavy galvanized tension band that ties into the backstay. A 1/2"-13 zinc plated hex head bolt draws the assembly down tight and can be removed when the floor needs to be cleared for another sport.
Three anchor styles are offered so the kit suits the floor construction. Style B (8340B) is used on wood floors where one layer of wood sits directly on concrete, and is also used on portable wood basketball floors such as arena floors 3" or more thick for anchoring Gared portable units. Style BX (8340BX) is for wood floors laid over a subfloor that rests directly on concrete, and Style C (8340C) is for concrete or synthetic floors.
Installation is straightforward: drill the concrete with a 1-1/8" [28.5 mm] bit to a depth 3/8" [10 mm] greater than the anchor embedment, then set the anchor with the adhesive included in the kit. The anchor is steel, made in the US, and the kit ships UPS at 4 lbs.
