First Team Astro Express - SBS

See more by First Team

$6,954.00 - $6,954.00

$6,954.00

$6,954.00 - $6,954.00

$6,954.00

In stock

SKU: Astro-Express-SBS

No sales tax

FREE freight delivery

Premium Insured

Price Match Guarantee

Liftgate delivery available

What is liftgate?

Standard (curbside) freight delivery: the driver brings the pallet to your address but does not unload it, so you need a loading dock, a forklift or enough people to unload it.

Liftgate delivery: the truck's hydraulic liftgate lowers the pallet to the ground, the right choice for a home, school, park or any address without a dock. To add it, choose the shipping method "Premium Insured Freight + Liftgate (+$209)" at checkout. It is $209 per order and covers all freight items in the order. It does not include inside delivery or assembly. Shipping policy

Product Overview

In short

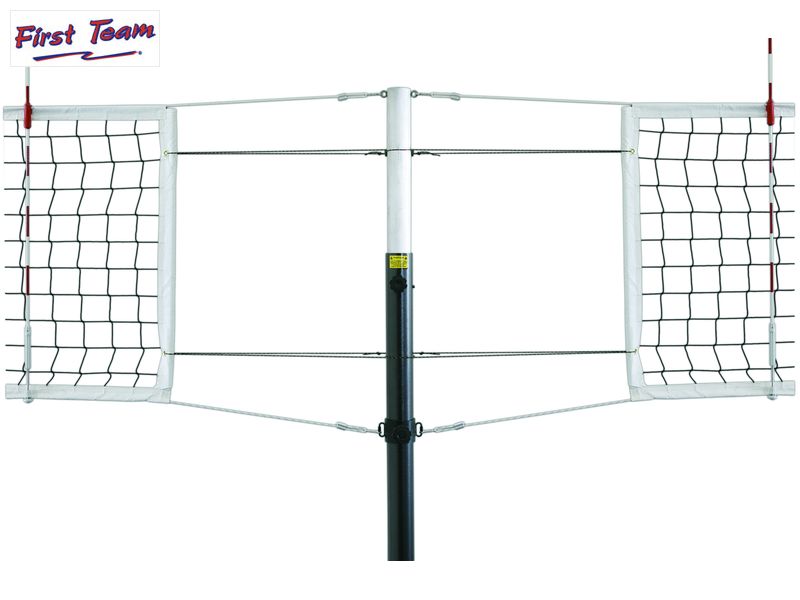

The Astro Express-SBS Competition Volleyball System is designed for side-by-side court play, weighing 190 lbs. It features external 3 ½” OD, ¼” wall 6063 T-6 aluminum and telescoping 3” OD 6061-T6 aluminum uprights with infinitely variable net height from 78” to 96”. The system includes components for a side-by-side court setup, such as multiple nets, winch standards, a center post pad, and boundary antennas, while meeting or exceeding NCAA, USVBA, NFHS, and FIVB competition requirements.

✓ Authorized First Team Dealer — ships brand-new with full manufacturer warranty & support

The First Team Astro Express-SBS is a competition volleyball system specifically configured for side-by-side court play, with an entire system weight of 190 lbs. Its uprights are constructed with an external 3 ½” outside diameter, ¼” wall 6063 T-6 aluminum tube and a 3” outside diameter 6061-T6 aluminum telescoping inner pole, featuring a non-marking footpad. Net height is infinitely variable from a minimum of 78” to 96”, adjusted with a single threaded release knob per standard and clearly identified height settings on the inner tube.

The system includes multiple one-meter high black polypropylene 3.5mm knotless woven webbing nets with Kevlar top ropes and polypropylene bottom ropes, finished with white tarpaulin fabric. Net tensioning is managed by a 26:1 ratio worm gear winch for the top rope, a ratcheting style tensioner for the bottom rope, and minimum two ratchet style rope tensioners per end for the net side tape. For player safety, top and bottom ropes are covered with at least ½” thick foam padding, and standards are padded to a minimum 72” height with 1 ½” thick high-density foam in a choice of 12 school colors.

The Astro Express-SBS system comes complete with components for its side-by-side court setup, including multiple nets, winch standards, a center post pad, boundary antennas, and side tape tensioners. It meets or exceeds all NCAA, USVBA, NFHS, and FIVB requirements for competition. Upright standards are backed by a Lifetime Limited Warranty, while all other components carry a 2-Year Limited Warranty.

Specifications

Specification	Value
Vertical Pole Material/Construction	External 3 ½” OD, ¼” wall 6063 T-6 aluminum tube; 3” OD 6061-T6 aluminum telescoping inner pole
Vertical Pole Features	Non-marking footpad at bottom; pin in outer tube rides in machined slot in inner tube to eliminate inner pole rotation and prohibit inner tube separation
Net (Type)	One meter high, black polypropylene 3.5mm knotless woven webbing
Net Ropes	Kevlar top rope, polypropylene bottom rope
Net Finish	White tarpaulin fabric with double stitched hemmed edges (top, bottom, sides)
Net Height Adjustment	Infinitely variable from 78” to 96” with single threaded release knob per standard; height setting identified on inner telescoping tube
Top Net Tensioning	26:1 ratio worm gear winch; 4” diameter steel pulley for top rope; winch winds 2” wide nylon webbing strap; non-removable folding handle
Bottom Net Tensioning	Ratcheting style tensioner
Side Net Tensioning	Internal dowels in net side tape; minimum two ratchet style rope tensioners per end
Rope Padding	Minimum ½” thick foam padding with white vinyl cover (between standards and net edge)
Standard Padding	Minimum 72” height, 1 ½” thick high-density foam with vinyl cover (customer’s choice of 12 school colors)
Included Components (Astro Express-SBS)	Components for a side-by-side court, including multiple nets, winch standards, center post pad, boundary antennas, and side tape tensioners
System Weight (Astro Express-SBS)	190 lbs.
Certifications	Meets or exceeds NCAA, USVBA, NFHS, FIVB competition requirements
Warranty (Upright Standards)	Lifetime Limited Warranty
Warranty (Other Components)	2-Year Limited Warranty

Compare First Team models

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

More information on shipping and returns can be found here.

Warranty

Lifetime Limited Warranty

Every First Team product is backed by First Team's warranty program. This model carries the warranty noted above. Here is what First Team's warranty tiers cover:

Limited Warranty - covers damage during normal, intended use. Excludes vandalism and deliberate damage. Normal wear from weathering or UV exposure is not covered; all painted items carry a 1-year limited warranty on coating.
Superior Warranty - additionally covers any damage or failure caused by basketball activity or contact with the unit, including deliberate hanging on the rim. Vandalism excluded.
Unconditional Warranty - the broadest tier: covers any damage or failure that occurs for any reason.
Manufacturer's Defect - all products are warranted against manufacturer's defects at delivery.

Warranties apply to the original purchaser only and are non-transferable; coverage ends on resale or transfer. Residential-only products are not covered for non-residential use.

Frequently asked questions

What is the weight of the entire First Team Astro Express-SBS system?

The entire Astro Express-SBS system weighs 190 lbs.

What is the net height adjustment range for the system?

Net height is infinitely variable from a minimum of 78” to 96”.

What certifications does the Astro Express-SBS system hold?

The entire system meets or exceeds all NCAA, USVBA, NFHS and FIVB requirements for competition.

Is JoySportStore an authorized First Team dealer?

Yes. JoySportStore is an authorized First Team dealer, so every unit ships brand-new with the full First Team manufacturer warranty and factory-backed support.

Product Documents

Excellent

Based on 29 reviews

Trustpilot

Prices are fair

Prices are fair. We found pitching machine for our school. Totally recommend whole process.

Jane Pellietier, Aug 15, 2025

Everything as described

Everything as described. I totally recommend.

Virginia Clay, Sep 8, 2025

We bought baseball machine and start…

We bought baseball machine and start playing. Everything good for now!

Harrison Lay, Aug 29, 2025

I got additionall padding for free for…

I got additionall padding for free for my backboard. Nice job.

Anthony Loaiza, Mar 6, 2025

Basketball hoop with small gift

Basketball hoop with small gift. Nice job team!

Donald Moore, Dec 17, 2024

Great basketball store

Great basketball store! Competetive prices and helpful staff.

Therese Butler, Dec 16, 2024

Express	Complete	Express SBS THIS	Complete SBS
Court Configuration Single competition court	Court Configuration Single court; side-by-side (SBS) version offered	Court Configuration Side-by-side (two adjacent courts)	Court Configuration Side-by-side (two adjacent courts)
Uprights 3½" OD ¼" wall 6063-T6 alum. over 3" 6061-T6 inner	Uprights 3½" OD ¼" wall 6063-T6 alum. over 3" 6061-T6 inner	Uprights 3½" OD ¼" wall 6063-T6 alum. over 3" 6061-T6 inner	Uprights 3½" OD ¼" wall 6063-T6 alum. over 3" 6061-T6 inner
Upright Features Non-marking footpad; pin/slot stops rotation & separation	Upright Features Non-marking footpad; pin prevents rotation/separation	Upright Features Non-marking footpad; pin rides in machined slot	Upright Features Non-marking footpad
Net 1 m black polypropylene 3.5mm knotless woven webbing	Net 1 m black polypropylene 3.5mm knotless woven webbing	Net 1 m black polypropylene 3.5mm knotless woven webbing	Net 1 m black polypropylene 3.5mm knotless woven webbing
Height Adjustment Infinitely variable 78"-96", single threaded release knob	Height Adjustment Infinitely variable 78"-96", single threaded release knob	Height Adjustment Infinitely variable 78"-96", single threaded release knob	Height Adjustment Infinitely variable 78"-96", single threaded release knob
Top Net Tensioning 26:1 worm gear winch, 2" strap, 4" steel pulley	Top Net Tensioning 26:1 worm gear winch, 2" strap, 4" steel pulley	Top Net Tensioning 26:1 worm gear winch, 2" strap, 4" steel pulley	Top Net Tensioning 26:1 worm gear winch with 2" nylon webbing strap
Bottom & Side Tensioning Ratcheting bottom tensioner; 2+ side rope ratchets per end	Bottom & Side Tensioning Ratcheting bottom tensioner; 2+ side rope ratchets per end	Bottom & Side Tensioning Ratcheting bottom tensioner; 2+ side rope ratchets per end	Bottom & Side Tensioning Ratcheting bottom tensioner; 2+ side rope ratchets per end
Padding 72" min. 1½" high-density post pads (12 colors); ½" rope pads	Padding 72" min. 1½" high-density post pads (12 colors); ½" rope pads	Padding 72" min. 1½" high-density post pads (12 colors); ½" rope pads	Padding 72" min. 1½" high-density post pads (12 colors); ½" rope pads
Included Accessories Official boundary antennas	Included Accessories Official boundary antennas	Included Accessories Extra nets, winch standards, center post pad, antennas, tensioners	Included Accessories Extra winch standard, net, center post pad, antennas, tensioners
Warranty Lifetime Limited on standards; 2-Year on other components	Warranty Lifetime Limited on standards; 2-Year on other components	Warranty Lifetime Limited on standards; 2-Year on other components	Warranty Lifetime Limited on standards; 2-Year on other components
Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship
Ship Weight 130 lbs.	Ship Weight 130 lbs.	Ship Weight 190 lbs.	Ship Weight 190 lbs.
Best for Schools wanting a competition-legal single-court aluminum volleyball system.	Best for Programs wanting a fully outfitted single-court package with antennas.	Best for Gyms running two side-by-side courts for practice or tournaments.	Best for Large field houses needing a complete side-by-side court setup.
$4,300.00	$4,779.00	$6,954.00	$8,048.00
Check ›	Check ›	Viewing	Check ›
