Product Overview

In short

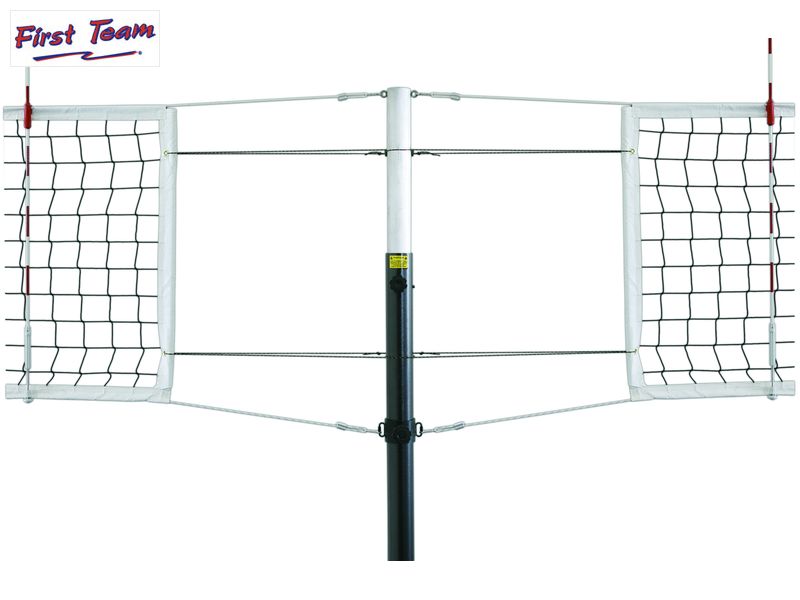

The First Team Frontier Express - SBS is a competition volleyball system featuring external 3 1/2" steel and internal 3" aluminum telescoping uprights with infinitely variable net height from 78" to 96". It includes a one-meter high polypropylene net with Kevlar top rope, a 26:1 worm gear winch, and padding for player safety. This SBS version weighs 290 lbs and is equipped for a "side-by-side" court setup.

✓ Authorized First Team Dealer — ships brand-new with full manufacturer warranty & support

The First Team Frontier Express - SBS is a competition volleyball system featuring robust uprights and a high-quality net. The uprights consist of an external 3 1/2" outside diameter, 1/4" wall DOM welded steel tube and a 3" outside diameter 6061-T6 aluminum telescoping inner pole. A pin in the outer tube rides in a machined slot in the inner tube to eliminate rotation and prohibit separation of the inner tube. The net is one meter high, constructed of black polypropylene 3.5mm knotless woven webbing, with a Kevlar top rope and polypropylene bottom rope, finished with white tarpaulin fabric with double stitched hemmed edges.

Net height is infinitely variable from 78" to 96", adjusted by a single threaded release knob per standard, with height settings clearly identified. Net tensioning is managed by a 26:1 ratio worm gear winch for the top rope, a ratcheting style tensioner for the bottom rope, and no less than two ratchet style rope tensioners per end for the side tapes. Player safety is ensured with no less than 1/2" thick foam padding covering top and bottom ropes between standards and the net edge, and each standard is padded to a minimum height of 72" with 1 1/2" thick high-density foam in a choice of 12 school colors. The entire system meets or exceeds all NCAA, USVBA, NFHS and FIVB requirements for competition.

The Frontier Express-SBS system, weighing 290 lbs, is specifically configured for a "side-by-side" court. It includes an additional winch standard, center post pad, net, antennas, and side tape tensioners beyond the standard setup. Individual non-winch standards weigh approximately 60 lbs, while winch end standards weigh approximately 65 lbs. The upright standards come with a Lifetime Limited Warranty, and all other components carry a 2-Year Limited Warranty.

Specifications

Specification	Value
Vertical Pole	External 3 1/2" outside diameter, 1/4" wall DOM welded steel tube; 3" outside diameter 6061-T6 aluminum telescoping inner pole. Pin in outer tube rides in a machined slot in inner tube to eliminate inner pole rotation and prohibit inner tube from separating.
Mobility	Non-marking roller wheel fitted to bottom of outer tube to eliminate need to lift standards for transport.
Standard Weight (approx)	Non-winch standards 60 lbs; winch end standard 65 lbs.
Net	One meter high, constructed of black polypropylene 3.5mm knotless woven webbing with Kevlar top rope and polypropylene bottom rope. Top, bottom and sides finished with white tarpaulin fabric with double stitched hemmed edges.
Top Net Tensioner	26:1 ratio worm gear winch designed to wind a 2" wide nylon webbing strap; 4" diameter steel pulley at top of the winch standard; non-removable folding handle.
Bottom Net Tensioner	Ratcheting style tensioner.
Side Net Tensioners	Each net side tape has internal dowels and is tensioned by no less than two ratchet style rope tensioners per end.
Height Adjustment	Infinitely variable from 78" to 96" with a single threaded release knob per standard. Height setting clearly identified on the inner telescoping tube.
Player Safety Padding	Top and bottom ropes covered between the standards and net edge by no less than 1/2" thick foam padding with white vinyl cover. Each standard padded to a minimum height of 72" with 1 1/2" thick high-density foam covered with vinyl in customer's choice of 12 school colors.
Included Components (SBS)	Official boundary antennas; additional winch standard, center post pad, net, antennas, and side tape tensioners to complete "side-by-side" court.
System Weight (Frontier Express-SBS)	290 lbs.
Certifications	Meets or exceeds all NCAA, USVBA, NFHS and FIVB requirements for competition.
Warranty	Upright standards carry no less than a Lifetime Limited Warranty. All other components carry a 2-Year Limited Warranty.
Origin	Made in USA

Compare OmniChamp models

Express	Complete	Express SBS THIS	Complete SBS
Court setup Single competition court	Court setup Single competition court	Court setup Side-by-side (two courts)	Court setup Side-by-side (two courts)
Standard construction 3 1/2" O.D. 1/4" wall DOM steel outer tube	Standard construction 3 1/2" O.D. 1/4" wall DOM steel outer tube	Standard construction 3 1/2" O.D. 1/4" wall DOM steel outer tube	Standard construction 3 1/2" O.D. 1/4" wall DOM steel outer tube
Inner telescoping pole 3" O.D. 6061-T6 aluminum telescoping	Inner telescoping pole 3" O.D. 6061-T6 aluminum, anti-rotation pin	Inner telescoping pole 3" O.D. 6061-T6 aluminum, pin in machined slot	Inner telescoping pole 3" O.D. 6061-T6 aluminum, pin/slot anti-rotation
Height adjustment Infinitely variable 78"-96", threaded release knob	Height adjustment Infinitely variable 78"-96", threaded release knob	Height adjustment Infinitely variable 78"-96", threaded release knob	Height adjustment Infinitely variable 78"-96", threaded release knob
Net 1 m, 3.5mm knotless polypro, Kevlar top rope	Net 1 m, 3.5mm knotless polypro, Kevlar top rope	Net 1 m, 3.5mm knotless polypro, Kevlar top rope	Net 1 m, 3.5mm knotless polypro, Kevlar top rope
Net tensioning 26:1 worm gear winch, 4" pulley; ratchet bottom/sides	Net tensioning 26:1 worm gear winch, 4" pulley; ratchet bottom/sides	Net tensioning 26:1 worm gear winch, 4" pulley; ratchet bottom/sides	Net tensioning 26:1 worm gear winch, 4" pulley; ratchet bottom/sides
Padding 72" min, 1 1/2" foam, 12 colors; 1/2" rope pads	Padding 72" min, 1 1/2" foam, 12 colors; 1/2" rope pads	Padding 72" min, 1 1/2" foam, 12 colors; 1/2" rope pads	Padding 72" min, 1 1/2" foam, 12 colors; 1/2" rope pads
Floor hardware —	Floor hardware Chrome plates w/ hinged lid, black steel sockets	Floor hardware —	Floor hardware Chrome plates w/ hinged lid, black steel sockets
Side-by-side package —	Side-by-side package —	Side-by-side package Extra winch standard, net, center pad, antennas	Side-by-side package Extra winch standard, net, pad, socket, antennas
Certifications & origin NCAA, USVBA, NFHS, FIVB; Made in USA	Certifications & origin NCAA, USVBA, NFHS, FIVB; Made in USA	Certifications & origin NCAA, USVBA, NFHS, FIVB; Made in USA	Certifications & origin NCAA, USVBA, NFHS, FIVB; Made in USA
Ship Weight 200 lbs	Ship Weight 220 lbs	Ship Weight 290 lbs	Ship Weight 310 lbs
Best for Schools wanting a competition-legal single-court system at the best value.	Best for Gyms needing a full single-court package with in-floor plates and sockets.	Best for Programs running two side-by-side practice courts on a budget.	Best for Field houses outfitting side-by-side courts with complete in-floor hardware.
$3,029.00	$3,561.00	$4,544.00	$5,461.00
Check ›	Check ›	Viewing	Check ›
