Jaypro Basketball Backstop - Wall-Mounted - Shooting Station - Stationary Glass Backboard (10 ft. - 12 ft. Wall Offset)

See more by Jaypro

$5,015.00 - $5,015.00

$5,015.00

$5,015.00 - $5,015.00

$5,015.00

In stock

SKU: N1012GB

No sales tax

Premium Insured

Flat-rate freight

Price Match Guarantee

Liftgate delivery available

What is liftgate?

Standard (curbside) freight delivery: the driver brings the pallet to your address but does not unload it, so you need a loading dock, a forklift or enough people to unload it.

Liftgate delivery: the truck's hydraulic liftgate lowers the pallet to the ground, the right choice for a home, school, park or any address without a dock. To add it, choose the shipping method "Premium Insured Freight + Liftgate (+$209)" at checkout. It is $209 per order and covers all freight items in the order. It does not include inside delivery or assembly. Shipping policy

Product Overview

In short

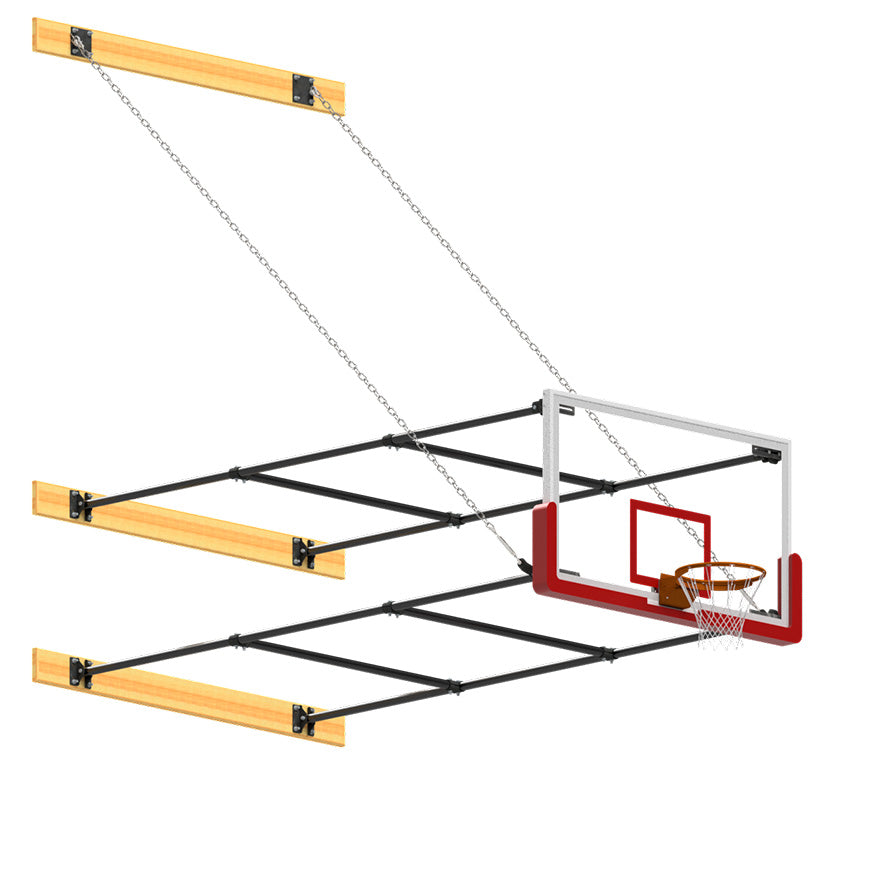

The Jaypro N1012GB is a stationary wall mounted basketball backstop built for a long 10' to 12' face of bank. The kit includes a GBRUB-42 42" x 72" glass backboard, a GBA-642 Revolution breakaway goal, the 1310-1012-FRAME frame kit with four 137" HBAR-137 pipes, cross frame bracing, 182" safety chains and a southern yellow pine wood stringer kit. It is designed for gymnasiums where the playing surface sits well away from the mounting wall.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The N1012GB covers face of bank distances from 10'-0" to 12'-0". Four HBAR-137 horizontal frame pipes are supplied 137" long and are cut and drilled in the field; the installation tables list frame pipe length and stringer locations in one-inch steps for both direct attached and height adjuster versions.

Because of the long extension, the unit includes two cross frame braces for both the top and bottom frame assembly, using XBAR internal brace pipes 63-3/8" long together with sixteen SR5297 pipe clamp tee fittings sized 1.90" to 1.90". Two 1/4" GRD 43 zinc plated chains 182" long support the frame, terminated with a 3/8 forged galvanized shackle and a 1/2-13 jaw-jaw galvanized turnbuckle.

Frame and chains attach to southern yellow pine wood stringers: WOOD-KT1 with three WH-66 stringers at 7-1/2" x 92" for horizontal mounting, or WOOD-KT2 with two WP18 and two WP36 stringers for vertical mounting. Wall anchors are supplied by others and should be a minimum of 1/2" diameter, with thru-bolting preferred, and the wall must be brick, concrete or other solid or semi-solid masonry. Only qualified, properly trained installers should attempt installation.

Specifications

Specification	Value
Model	N1012GB stationary wall mounted backstop, 10' to 12' face of bank
Backboard	GBRUB-42, 42" x 72" glass backboard

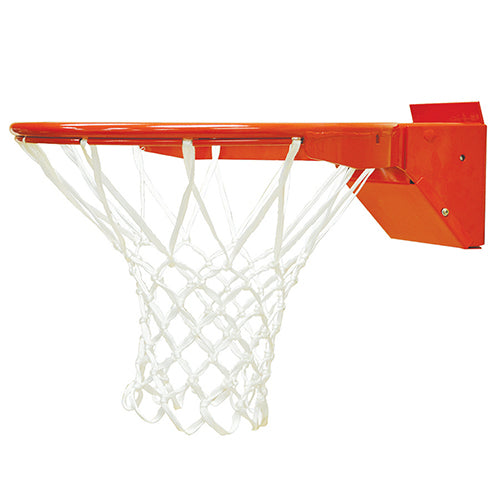

Goal	GBA-642 Revolution breakaway goal
Frame Kit	1310-1012-FRAME, frame kit for 10' to 12' FOB
Horizontal Frame Pipes	(4) HBAR-137 horizontal frame pipe, 137" long, cut and drilled in the field
Internal Bracing	(4) XBAR internal brace pipe, 63-3/8" long; two cross frame braces for both top and bottom frame assembly
Pipe Fittings	(16) SR5297 pipe clamp tee fitting, 1.90" to 1.90"
Frame Hardware	(16) HS5033 1/2-13 x 3 hex cap screw GRD 5 with (16) HN268 1/2-13 thin nylon lock nuts
Safety Chains	(2) CN0001, 1/4" GRD 43 zinc plated chain, 182" long
Chain Hardware	3/8 forged galvanized shackle (HM6252) and 1/2-13 jaw-jaw galvanized turnbuckle (HM6273)
Wood Stringer Kit (horizontal)	WOOD-KT1: (3) WH-66 southern yellow pine stringers, 7-1/2" x 92"
Wood Stringer Kit (vertical)	WOOD-KT2: (2) WP18 (7-1/2" x 24") and (2) WP36 (7-1/2" x 62-1/2") southern yellow pine
Frame Pipe Length (Dim B)	113" at 10'-0" face of bank up to 137" at 12'-0" face of bank (direct attached)
Frame Stringer Height	9'-9 1/4" above finished floor
Chain Angle	45 degrees minimum
Required Wall Height	19'-5" at 10' FOB and 21'-5" at 12' FOB with chains attached to the bottom of the frame
Wall Anchors	Supplied by others, minimum 1/2" diameter; thru-bolting preferred
Wall Construction	Brick, concrete or other solid / semi-solid masonry required
Ship Weight	485 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

Fan 9 in.–2 ft.	Fan 3.5–6 ft.	Fan 8–10 ft.	Glass 2–4 ft.	Glass 6–8 ft.	Glass 10–12 ft. THIS
Model N2FB	Model N366FB	Model N810FB	Model N24GB	Model N68GB	Model N1012GB
Wall Offset (Face of Bank) 9" to 2'-0"	Wall Offset (Face of Bank) 3'-6" to 6'-0"	Wall Offset (Face of Bank) 8'-0" to 10'-0"	Wall Offset (Face of Bank) 2'-0" to 4'-0"	Wall Offset (Face of Bank) 6 ft. to 8 ft.	Wall Offset (Face of Bank) 10'-0" to 12'-0"
Backboard 36" cast aluminum fan (ALB-24BT)	Backboard 36" cast aluminum fan (ALB-24BT)	Backboard 36" cast aluminum fan (ALB-24BT)	Backboard 42" x 72" glass (GBRUB-42)	Backboard Glass backboard	Backboard 42" x 72" glass (GBRUB-42)
Goal Collegiate "Shot" breakaway (GBA-548)	Goal Collegiate "Shot" breakaway (GBA-548)	Goal Collegiate "Shot" breakaway (GBA-548)	Goal GBA-642 Revolution breakaway	Goal —	Goal GBA-642 Revolution breakaway
Frame Structure (3) 1.90" galv. pipe frames; steel wall brackets	Frame Structure (3) 1.90" galv. pipe frames; 1.315" bracing	Frame Structure (3) 1.90" galv. pipe frames; 1.315" bracing	Frame Structure 1310-24-FRAME kit; (4) 41" HBAR pipes	Frame Structure (4) HBAR pipes, field cut/drilled to FOB	Frame Structure 1310-1012 kit; (4) 137" HBAR + (4) XBAR braces
Safety Chains — (wall-braced with steel brackets)	Safety Chains Dual 1/4" GR43 zinc; shackle + turnbuckle	Safety Chains Dual 1/4" GR43; shackle + 1/2" turnbuckle	Safety Chains (2) 1/4" GR43 zinc chains, 48" long	Safety Chains Bottom-board attachment, 45° or greater	Safety Chains (2) 1/4" GR43 zinc chains, 182" long
Wood Stringers 2 x 8 southern yellow pine, pre-drilled	Wood Stringers 2 x 8 southern yellow pine, pre-drilled	Wood Stringers 2 x 8 southern yellow pine, pre-drilled	Wood Stringers WOOD-KT1 + WOOD-KT2 yellow pine kits	Wood Stringers —	Wood Stringers WOOD-KT1 + WOOD-KT2 yellow pine kits
Mounting Height Rim 10'-0" above finished floor	Mounting Height Rim 10'-0" above finished floor	Mounting Height Rim 10'-0" above finished floor	Mounting Height Frame stringer 9'-9 1/4" AFF	Mounting Height —	Mounting Height Frame stringer 9'-9 1/4" AFF
Wall Requirement & Anchors Structural wall (CMU recommended); anchors by others	Wall Requirement & Anchors Structural wall (CMU recommended); anchors by others	Wall Requirement & Anchors Structural wall (CMU recommended); anchors by others	Wall Requirement & Anchors Masonry wall; 1/2" min. anchors, thru-bolt preferred	Wall Requirement & Anchors Masonry wall; 1/2" min. anchors, thru-bolt preferred	Wall Requirement & Anchors Masonry wall; 1/2" min. anchors, thru-bolt preferred
Warranty 25-year structure; lifetime on Jaypro backboard	Warranty —	Warranty 25-year limited on structure	Warranty —	Warranty —	Warranty —
Ship Weight 264 lbs	Ship Weight 359 lbs	Ship Weight 412 lbs	Ship Weight 350 lbs	Ship Weight 417 lbs	Ship Weight 485 lbs
Best for Gyms with tight sidewall clearance needing a compact wall-braced shooting station.	Best for Gyms clearing wall obstructions with a mid-offset chain-supported fan station.	Best for Large gyms requiring maximum-offset aluminum fan practice baskets.	Best for Schools wanting glass-board play with a short wall offset and complete frame kit.	Best for High school gyms with tall walls needing glass boards clear of wall padding.	Best for Large arenas needing the longest-offset braced glass backstop system.
$2,086.00	$2,425.00	$2,958.00	$2,911.00	$3,540.00	$5,015.00
Check ›	Check ›	Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is included in the N1012GB kit?

One GBRUB-42 42" x 72" glass backboard, one GBA-642 Revolution breakaway goal, the 1310-HDWR wall mount hardware and fitting kit, the 1310-1012-FRAME frame kit for 10' to 12' face of bank, and a horizontal or vertical wood stringer kit.

How much wall height does this backstop need?

With the chains attached to the bottom of the frame, 19'-5" of wall height is required at a 10' face of bank and 21'-5" at 12'. If the chains must attach to the top of the frame, the requirement rises to 22'-5" and 24'-5" respectively.

Why does this model have extra bracing?

At a 10' to 12' extension the N1012GB includes two cross frame braces for both the top and bottom frame assembly, built from XBAR internal brace pipes 63-3/8" long and 1.90" to 1.90" pipe clamp tee fittings, to keep the long frame rigid.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
