Jaypro Foul Poles - 12 ft. - Softball (Collegiate) (Surface Mount)

Jaypro Foul Poles - 12 ft. - Softball (Collegiate) (Surface Mount)

See more by Jaypro

$3,016.00 - $3,016.00

$3,016.00

$3,016.00 - $3,016.00

$3,016.00

In stock

SKU: SBCFP-12SM

No sales tax

FREE freight delivery to 11 states

Premium Insured

Price Match Guarantee

Liftgate delivery available

What is liftgate?

Standard (curbside) freight delivery: the driver brings the pallet to your address but does not unload it, so you need a loading dock, a forklift or enough people to unload it.

Liftgate delivery: the truck's hydraulic liftgate lowers the pallet to the ground, the right choice for a home, school, park or any address without a dock. To add it, choose the shipping method "Premium Insured Freight + Liftgate (+$209)" at checkout. It is $209 per order and covers all freight items in the order. It does not include inside delivery or assembly. Shipping policy

Product Overview

In short

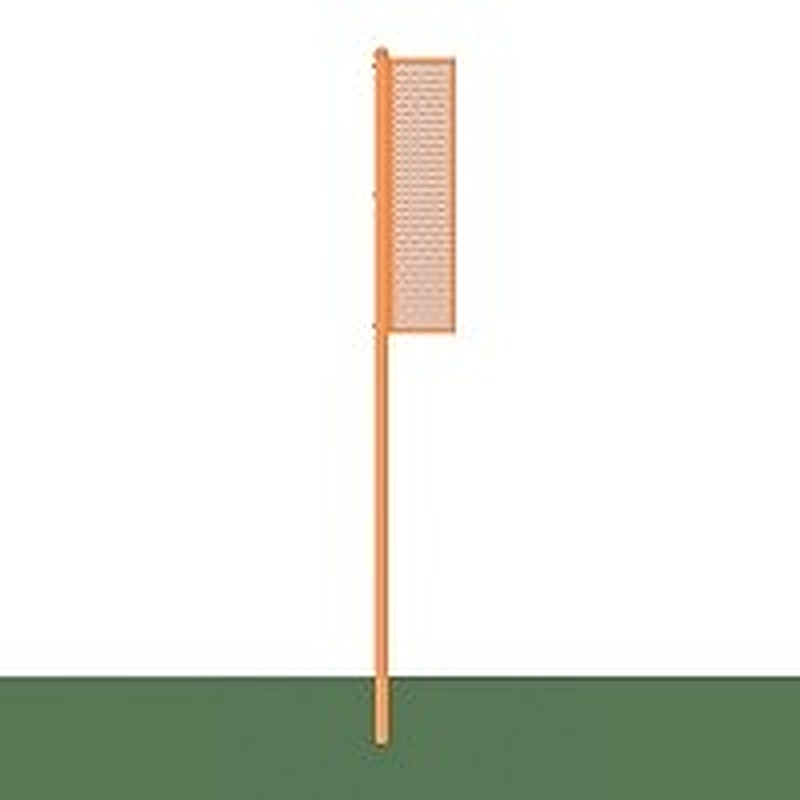

The Jaypro SBCFP-12SM is a 12 ft. collegiate softball foul pole in the surface-mount configuration. It uses a one-piece 3-1/2" O.D. heavy-duty steel post with a single 18" wide by 6 ft. high expanded metal wing panel, finished in powder coat over a galvanized under coat. The adjustable leveling plate lets it bolt to an existing concrete pad instead of being buried.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

This collegiate-grade foul pole is built around a single-piece heavy-duty steel upright, so there are no field splices to work loose over seasons of weather and ball contact. The all-steel expanded metal wing panel gives umpires and outfielders a clear vertical reference above the fence line while letting wind pass through the structure.

The surface-mount version bolts down through an adjustable leveling plate, which makes it the right choice where a concrete pad already exists or where the pole may need to be removed. Corrosion protection comes from a galvanized under coat beneath the powder coated finish. Poles are installed with the panel aligned to the outfield fence and the outside of the pole flush with the outside of the foul line.

Specifications

Specification	Value
Model	SBCFP-12SM - 12' Softball Foul Pole, Surface Mount
Overall Height	12'-0"
Main Post	3-1/2" O.D. heavy-duty steel tube
Construction	One piece construction
Wing Panel	18" wide x 6' high
Wing Panel Material	All steel expanded metal
Finish	Powder coated with galvanized under coat
Colors	White (SBCFP-12-WT), Orange (SBCFP-12-OR)
Mounting	Surface mount installation with adjustable leveling plate
Alignment	Foul pole panel aligns with the outfield fence; outside of pole flush with outside of the foul line
Foundation	Suggested concrete footing over crush stone or block for average soil conditions - consult local building codes

Compare Jaypro models

12 ft. Surface Mount THIS	12 ft. In-Ground	15 ft.	20 ft.	30 ft.
Overall Height 12 ft.	Overall Height 12 ft.	Overall Height 15 ft.	Overall Height 20 ft.	Overall Height 30 ft.
Main Post 3-1/2 in. O.D. heavy-duty steel tube	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 3-1/2 in. O.D. heavy-duty steel	Main Post 4.00 in. 8 ga. top / 4.50 in. 7 ga. Flo-Coat steel
Construction One piece	Construction One piece	Construction One piece	Construction One piece	Construction Top and bottom post sections
Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 12 ft. H	Wing Panel Size 18 in. W x 18 ft. H
Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal
Installation Type Surface mount w/ adjustable leveling plate	Installation Type Permanent or semi-permanent in-ground	Installation Type Permanent or semi-permanent in-ground	Installation Type Permanent in-ground, 45 in. post burial	Installation Type Permanent, anti-rotational hardware
Ground Sleeve —	Ground Sleeve Optional FPS-12	Ground Sleeve Optional FPS-12	Ground Sleeve —	Ground Sleeve —
Recommended Footing Concrete footing over crushed stone or block	Recommended Footing 36-42 in. deep x 24 in. wide; 6 pcs 34 in. rebar	Recommended Footing Concrete over crushed stone per spec drawing	Recommended Footing 6 in. crushed stone; 6 pcs 46 in. rebar	Recommended Footing 6 pcs 46 in. rebar
Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange	Finish & Colors Powder coat over galvanized undercoat; white or orange
Origin —	Origin Made in USA	Origin —	Origin Made in USA	Origin Made in USA
Ship Weight	Ship Weight 192 lbs	Ship Weight	Ship Weight 317 lbs	Ship Weight 724 lbs
Best for Fields needing a 12 ft. foul pole bolted to an existing concrete pad.	Best for Youth and recreational softball fields wanting an in-ground 12 ft. pole.	Best for High school programs wanting added height with optional sleeve removal.	Best for Competitive collegiate fields needing a tall 12 ft. sighting panel.	Best for Championship-level venues requiring maximum height and visibility.
$3,016.00	$2,086.00	$2,390.00	$3,038.00	$5,388.00
Viewing	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

How does the surface mount version differ from the in-ground pole?

The surface-mount pole bolts down through an adjustable leveling plate onto a prepared concrete base, while the permanent version is set into a footing. Everything above ground - the 3-1/2" O.D. one-piece post and the 18" x 6' expanded metal wing panel - is the same.

How tall is this foul pole?

The pole stands 12'-0" overall, with the 6' high wing panel in the upper section so it reads clearly above the outfield fence.

How should the pole be positioned relative to the foul line?

The wing panel is aligned with the outfield fence and the outside of the foul pole is set flush with the outside of the foul line.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
