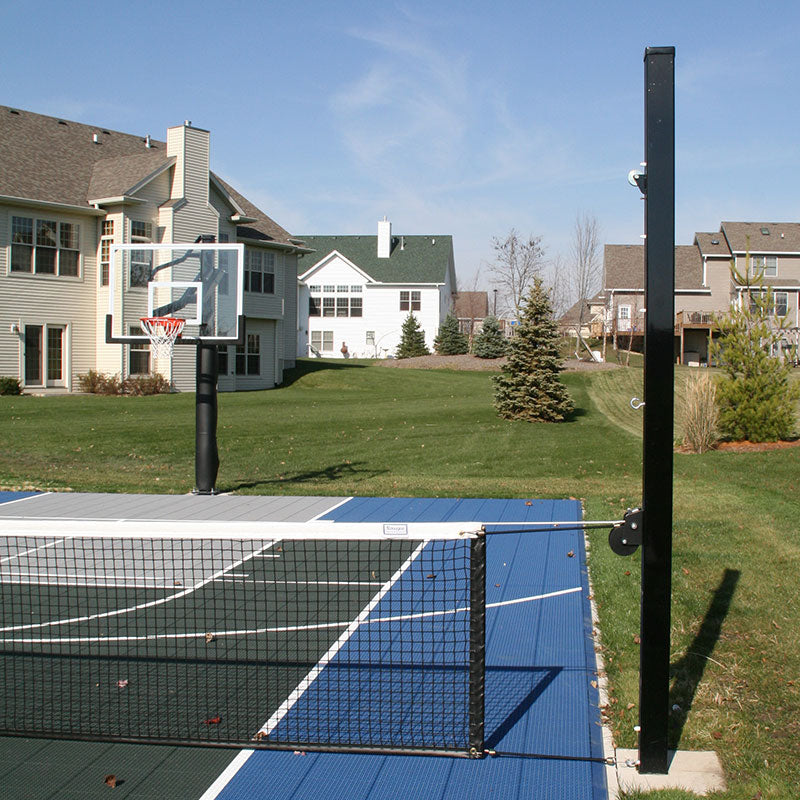

Douglas 4 in. SQ Aluminum Adjustable Net System set at pickleball height on a backyard court

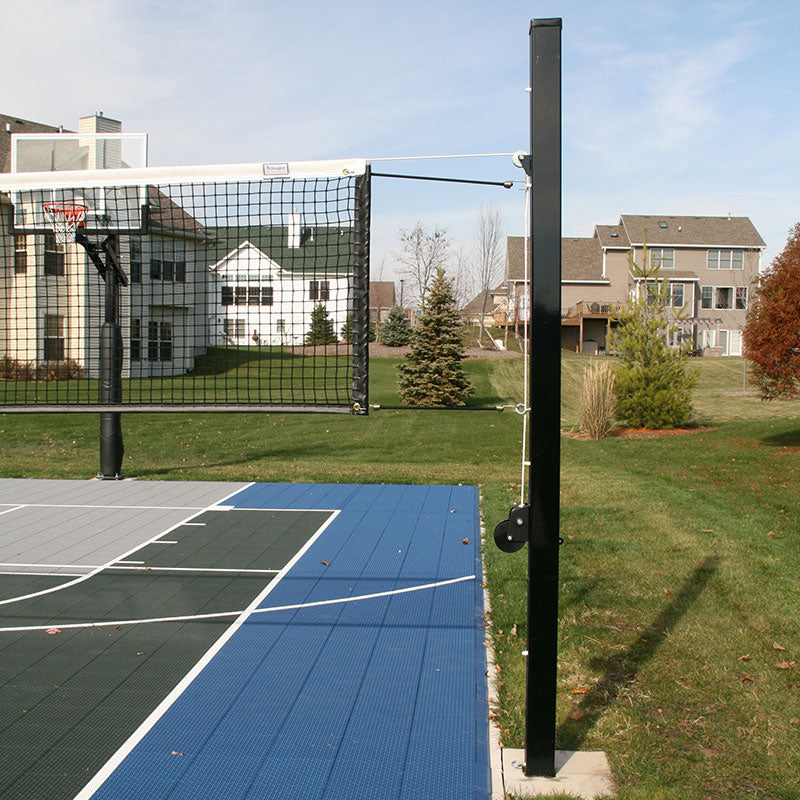

Douglas Aluminum Adjustable Net System with net raised on a multi-sport backyard court

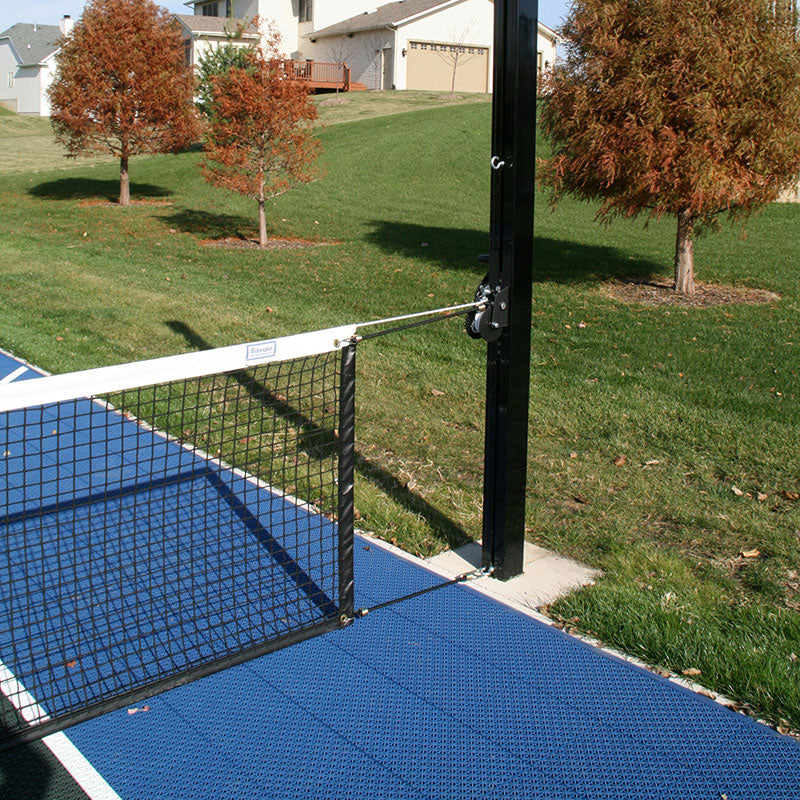

Douglas aluminum net post with Unicourt net and tensioning reel

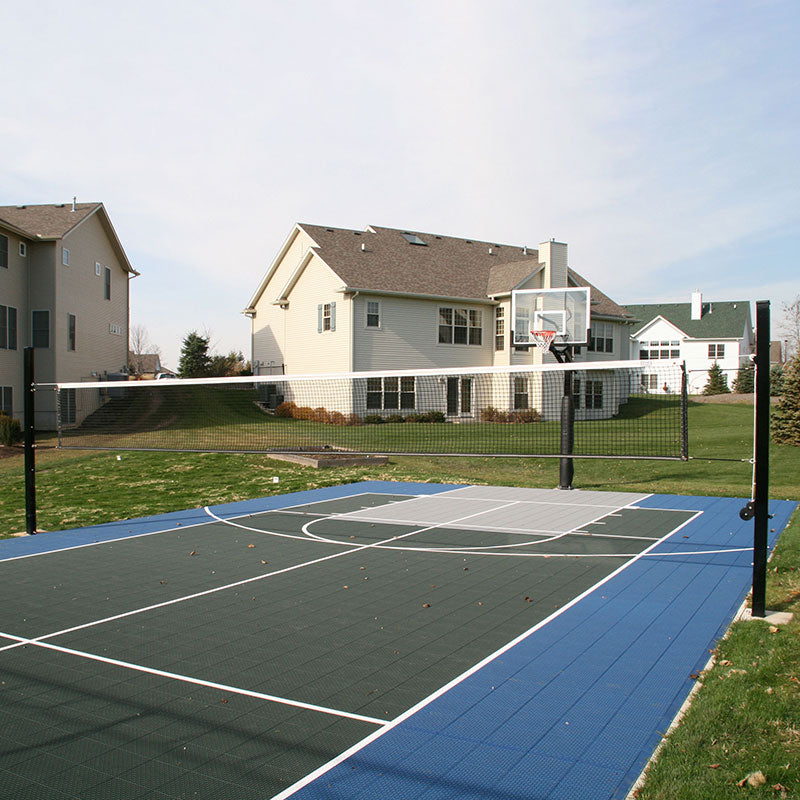

Douglas Aluminum Adjustable Net System set at volleyball height

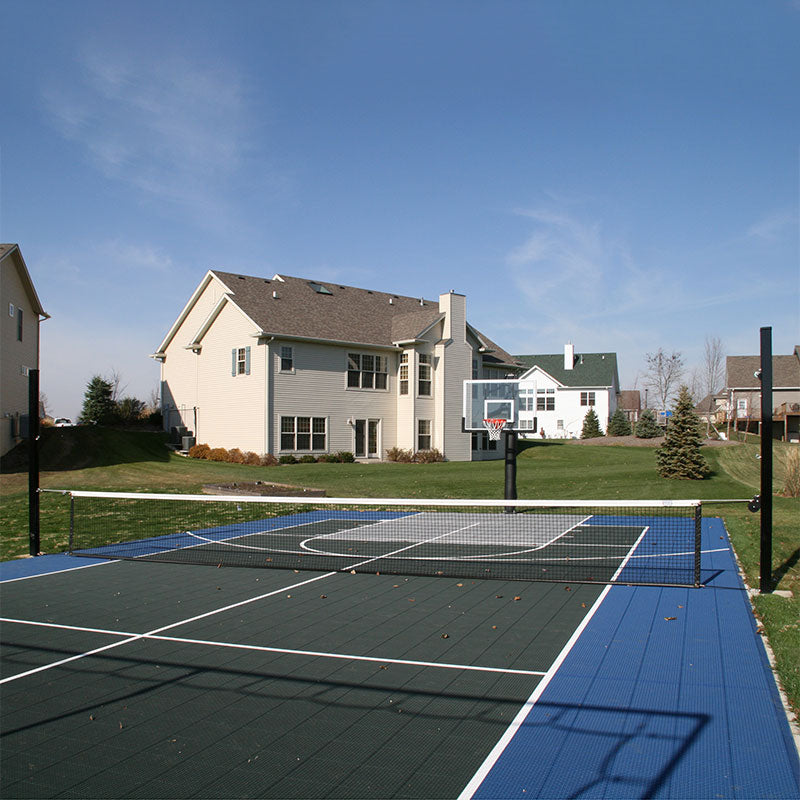

Douglas Aluminum Adjustable Net System on a backyard multi-sport court

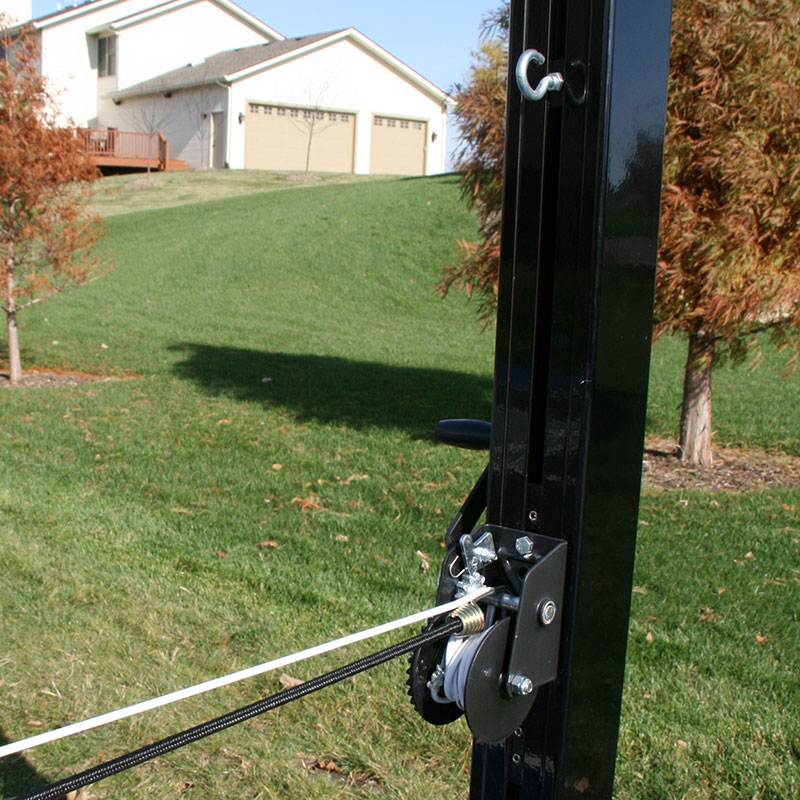

Net tensioning reel mounted in the channel of the Douglas 4 in. square aluminum post

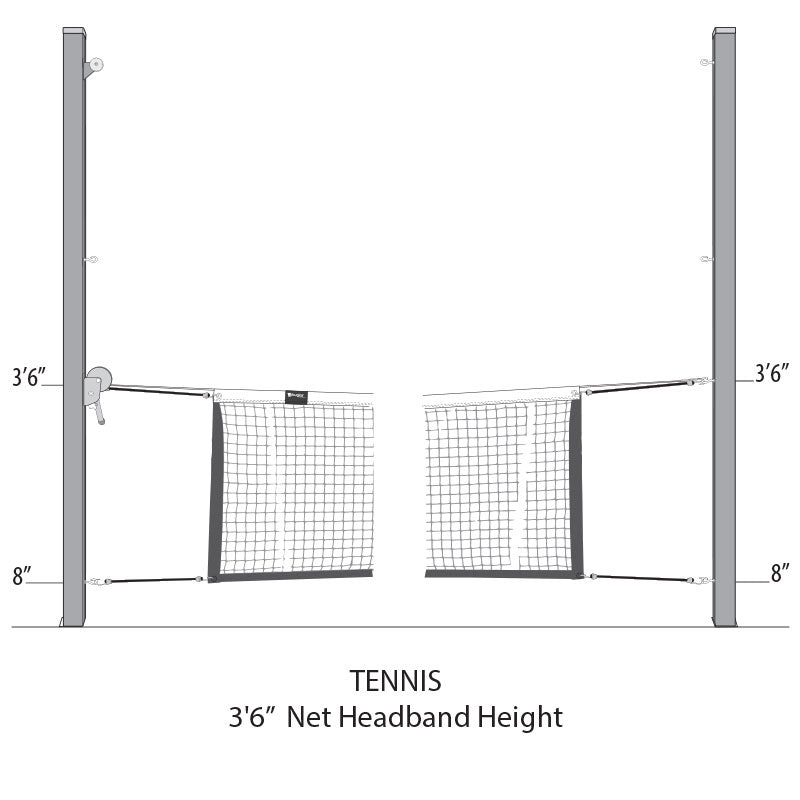

Diagram: tennis setup, 3 ft 6 in net headband height

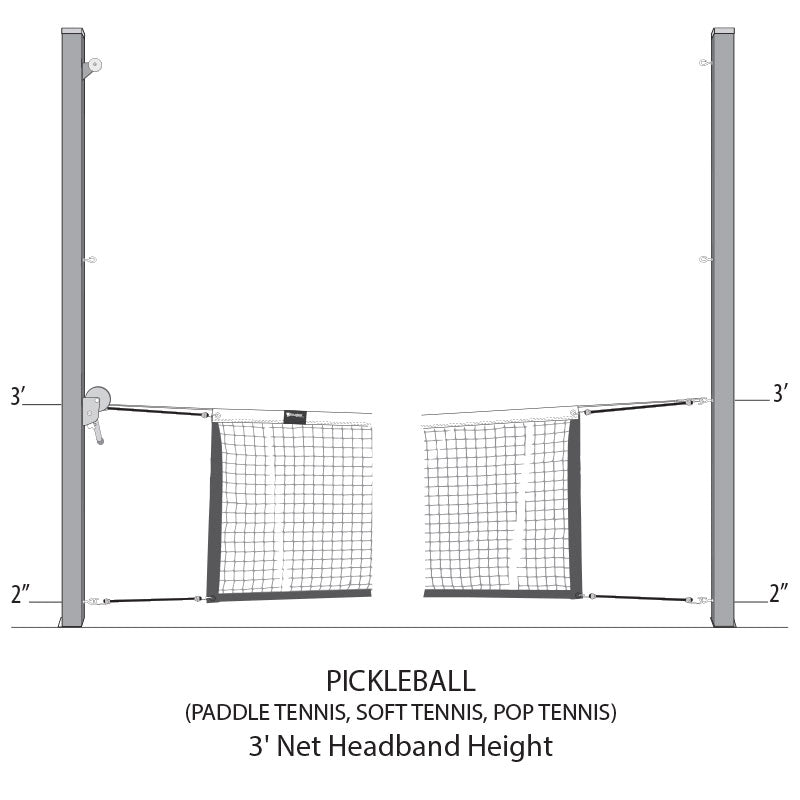

Diagram: pickleball setup, 3 ft net headband height

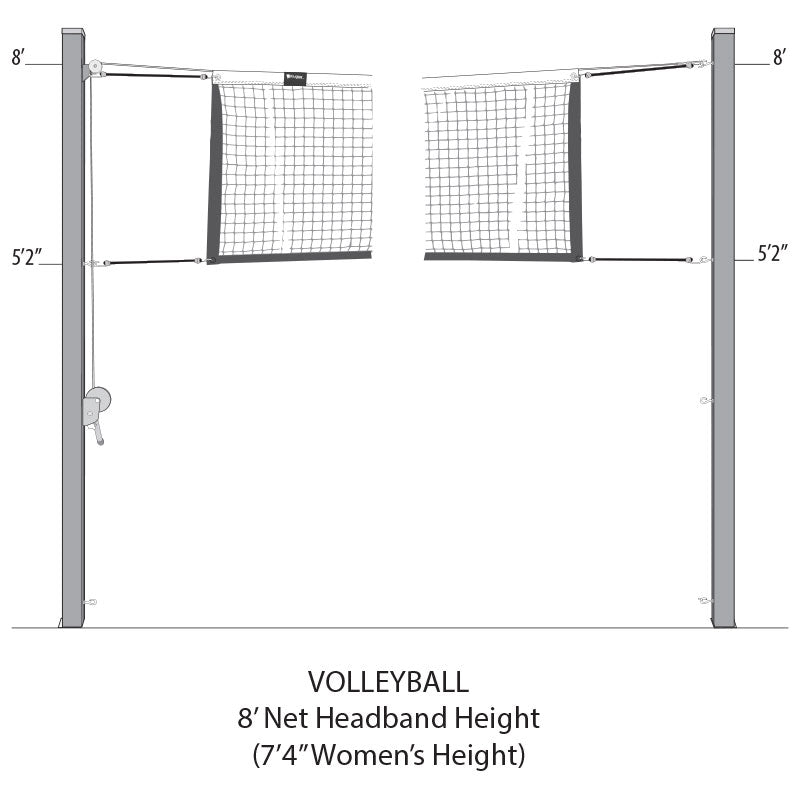

Diagram: volleyball setup, 8 ft net headband height (7 ft 4 in women's)

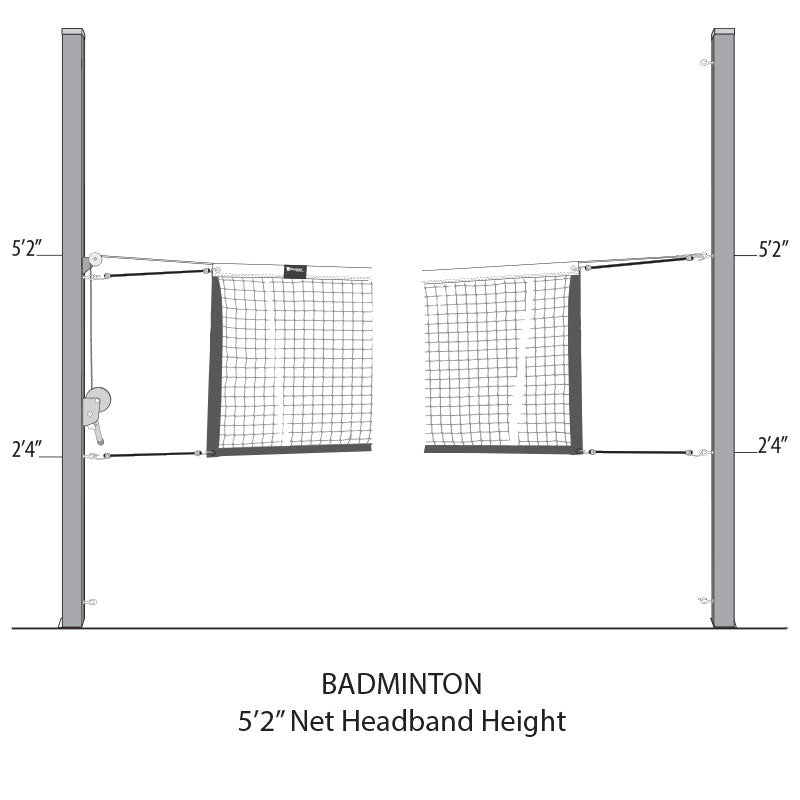

Diagram: badminton setup, 5 ft 2 in net headband height

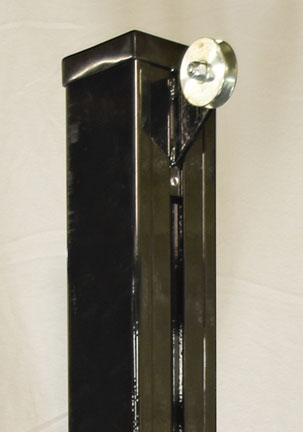

Top of the Douglas aluminum post with pulley bracket

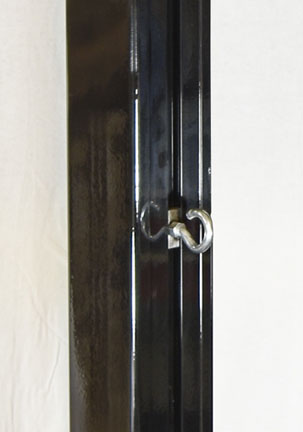

Eye bolt bracket in the structured channel of the aluminum post

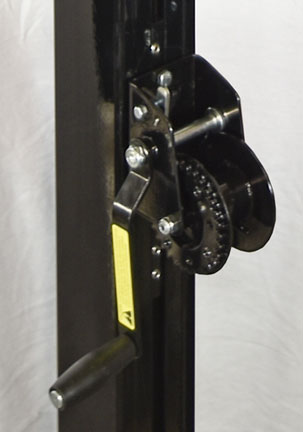

Net tensioning reel with removable handle on the aluminum post

Douglas® 4″ SQ Aluminum Adjustable Net System

See more by Douglas

$2,669.00 - $2,699.00

$2,699.00

$2,669.00 - $2,699.00

$2,699.00

In stock

SKU: 68046

Quantity

Product Overview

In short

The Douglas® 4″ SQ Aluminum Adjustable Net System is a pair of 10′6″ extruded aluminum posts with a built-in channel, so the net can be set anywhere from ground level to 8′ for pickleball, tennis, badminton, or volleyball. It includes a 34″ high Unicourt™ net (24′, 28′, 32′ or 38′ long, matched to 28′–42′ post spacing), all adjustable hardware, and ground sleeves. The complete system weighs 150 lbs and carries a 5-year limited warranty.

✓ Authorized Douglas Dealer — ships brand-new with the full factory warranty

The Douglas® 4″ SQ Aluminum Adjustable Net System turns one court into a multi-sport court. It is a recreational-quality post set for backyard courts or any facility with limited space that wants a multi-use court, such as apartment complexes, churches, homeowners’ associations, or hotels.

The posts are made in the USA from 4″ square extruded structural aluminum — 100% rustproof, with excellent bend resistance — and, together with the steel hardware, carry a black baked-on polyester powder coat. Each square pole has a continuous structured channel with no external pressure points to damage the finish. You move the pulley and eye bolt brackets within that channel to set the net anywhere from ground level to 8′: 3′ for pickleball, 3′6″ for tennis, 5′2″ for badminton, and 8′ for volleyball (7′4″ women’s height). Poles are 10′6″ long and go 2′ into the ground, leaving 8′6″ above ground. The complete system weighs 150 lbs, half the weight of a comparable steel system.

The net tensioning reel case and gears are heavy-duty steel, and the contoured handle is removable to prevent unwanted tampering. The 34″ high Unicourt™ net is made in the USA from 1-3/4″ square mesh in 3 mm heavy-gauge solid-core polyethylene, with a lock-sewn 2-ply vinyl-coated polyester headband, supporting side dowels, and (4) bungee cords for hook-on installation. The system ships with 24″ long ground sleeves for semi-permanent installation that can be removed and reinstalled for seasonal or temporary setups.

Sold per pair; for indoor and outdoor use
Net length is 4′ shorter than post spacing (2′ bungee gap on each side)
Maximum recommended post spacing: 42′
Custom net sizes are available from the manufacturer on request
5-Year Limited Warranty

Specifications

Specification	Value
SKU (by size)	68040 (24′ net) / 68042 (28′ net) / 68044 (32′ net) / 68046 (38′ net)
Post Material	4 in. SQ extruded structural aluminum, 100% rustproof
Post Length	10′6″ (2′ in ground, 8′6″ above ground)
Finish	Black baked-on polyester powder coat
Height Adjustment	Ground level to 8′ in a continuous structured post channel
Net Headband Heights	Pickleball 3′ / Tennis 3′6″ / Badminton 5′2″ / Volleyball 8′ (7′4″ women’s)
Net Included	Unicourt™ net, 34 in. high; 24′, 28′, 32′ or 38′ long
Post Spacing	28′, 32′, 36′ or 42′ (net is 4′ shorter than post spacing); max. recommended 42′
Net Material	3 mm solid-core polyethylene, 1-3/4 in. square mesh; 2-ply vinyl-coated polyester headband
Net Attachment	Side dowels and (4) bungee cords, hook-on
Hardware Included	Net tensioning reel with removable handle, reel bracket, pulley bracket, (6) eye bolt brackets, (2) pole caps
Ground Sleeves	24 in. long, included
Tensioning Reel	Heavy-duty steel case and gears
System Weight	150 lbs
Use	Indoor and outdoor
Sold As	Pair
Made In	USA
Warranty	5-Year Limited Warranty

Compare Douglas models

Aluminum Brackets	Steel Collars	Steel System	Aluminum System THIS
Product Type Replacement part (brackets)	Product Type Replacement part (collars)	Product Type Complete steel adjustable net system	Product Type Complete aluminum adjustable net system
Post Size —	Post Size —	Post Size 3-1/2 in. SQ steel tubing, 3/16 in. wall	Post Size 4 in. SQ extruded structural aluminum
Post Length —	Post Length —	Post Length 12'; 8'6" above ground	Post Length 10'6"; 8'6" above ground
Height Adjustment —	Height Adjustment —	Height Adjustment Sliding collars, ground level to 8'	Height Adjustment Ground level to 8' in post channel
Net Included —	Net Included —	Net Included Unicourt net, 34 in.H, 24'-38' L	Net Included Unicourt net, 34 in.H, 24'-38' L
Net Construction & Cables —	Net Construction & Cables —	Net Construction & Cables 3 mm PE, 1-3/4 in. SQ mesh	Net Construction & Cables 3 mm PE, 1-3/4 in. SQ mesh
Available Options Reel with bracket, pulley bracket, eyebolt bracket	Available Options Collar with reel, with pulley, or with eyebolt	Available Options 24', 28', 32' or 38' net	Available Options 24', 28', 32' or 38' net
Original Configuration Six eyebolt brackets and one pulley bracket	Original Configuration Six eyebolt collars and one pulley collar	Original Configuration Reel, pulley collar, six eye bolt collars	Original Configuration Reel, pulley bracket, six eye bolt brackets
Use / Compatibility Aluminum Adjustable Net System, incl. in-line setups	Use / Compatibility Steel Adjustable Net System	Use / Compatibility Indoor/outdoor; pickleball, tennis, badminton, volleyball	Use / Compatibility Indoor/outdoor; pickleball, tennis, badminton, volleyball
Finish Black baked-on powder coat	Finish Black baked-on powder coat	Finish Black baked-on polyester powder coat	Finish Black baked-on polyester powder coat
Ship Weight	Ship Weight	Ship Weight 260 lbs	Ship Weight 150 lbs
Best for Facilities restoring hardware on an existing aluminum adjustable net system.	Best for Owners replacing worn reel, pulley, or eyebolt collars on steel net posts.	Best for Backyard and multi-use courts that want a heavy steel multi-sport net system.	Best for Backyard and multi-use courts that want a lighter, rustproof multi-sport net system.
$179.00	$189.00	$2,499.00	$2,699.00
Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

5-Year limited warranty

Douglas Industries, Inc. (Eldridge, Iowa) backs its equipment with the Douglas® Standard Limited Warranty against defects in material and factory workmanship. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Douglas warranty periods run as follows:

Limited Lifetime – gooseneck basketball posts with 6' extension.
25 years – gooseneck basketball posts with 4' extension.
10 years – gooseneck posts with 3' extension; pro-rated structural warranty on Bakko and steel/aluminum backboards (1 year on the Imron® finish); selected post and net systems.
7 years – Douglas® MAX batting tunnel frames (with proper installation and normal use).
5 years – standard Douglas® batting tunnel frames, most tennis / volleyball / pickleball post systems and Premier™ posts; 5-year fade warranty on Sunbrella® canvas.
4 years – VCP MAX windscreen mesh, #420 knotless pylon netting and other netting lines; fabrics are warranted pro-rata for 3–4 years against material defects and poor workmanship.
3 years – selected fabric and netting products.
2 years – selected hardware and padding.
1 year – accessories, replacement parts and paint / finish coverage.

Digital printing on windscreen and vinyl products carries the same warranty as the underlying windscreen or vinyl material.

Not covered: improper installation, use other than intended, unauthorized alterations, abuse or misuse, normal wear, and damage from fire, flood, wind, lightning or leaving products outdoors beyond their intended seasonal use. As an authorized Douglas dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is the height of the Douglas Aluminum Adjustable Net System?

The poles are 10′6″ long and go 2′ into the ground, leaving 8′6″ above ground. The net can be set anywhere from ground level up to 8′ on the pole.

Which sports can I play with this net system?

Pickleball, tennis, badminton, and volleyball. The installation guide lists net headband heights of 3′ for pickleball, 3′6″ for tennis, 5′2″ for badminton, and 8′ for volleyball (7′4″ women’s height).

How do I know what size net to purchase?

Nets are made 4′ shorter than the post spacing, leaving a 2′ gap on each side for the bungee cords. Choose 24′ for 28′ spacing, 28′ for 32′, 32′ for 36′, or 38′ for 42′ spacing. Maximum post spacing is usually 42′ (standard tennis post spacing). Douglas can also fabricate a custom-size net on request.

Do I have to remove the net to adjust the height?

Yes. Unwind the top net cable to loosen it, unhook the (4) bungee cords, and reinstall the net at the new height. Additional eye bolt brackets can be purchased to pre-set multiple net heights.

What is included with the system?

The system is sold per pair and includes the 34″ high Unicourt™ net in the size you choose, all adjustable hardware (net tensioning reel with removable handle, pulley and eye bolt brackets), and 24″ ground sleeves.

How does the aluminum system compare to the steel version?

The complete aluminum system weighs 150 lbs, half the weight of a comparable steel system. The 4″ square extruded aluminum posts are 100% rustproof and have excellent bend resistance.

Is JoySportStore an authorized Douglas dealer?

Yes. JoySportStore is an authorized Douglas dealer, so every product ships brand-new from the Douglas factory in Eldridge, Iowa with the full Douglas warranty and factory-backed support.
