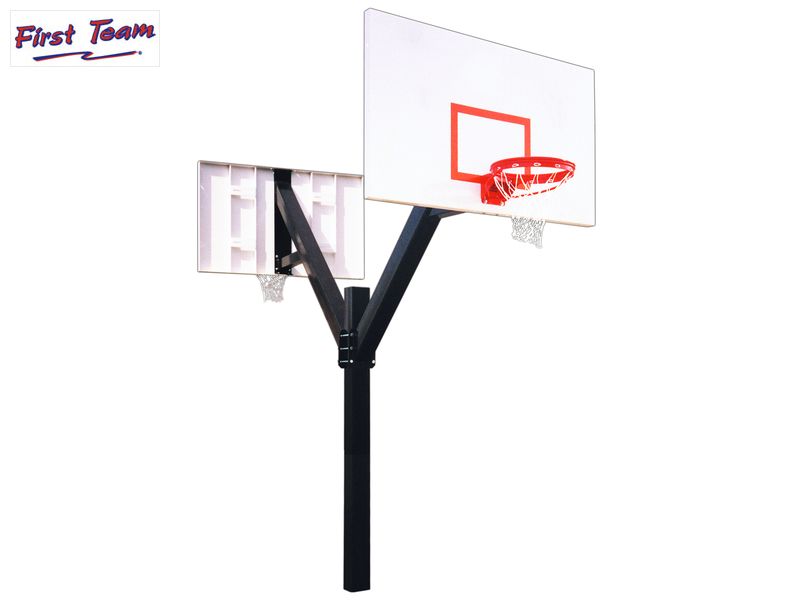

First Team Legend Excel Dual Fixed Height Basketball

Product Overview

In short

The First Team Legend Excel Dual Basketball System features two 42”x 72” rectangular steel backboards and two double 5/8” diameter high strength steel rims, adjustable from 6’ to 10’. It has 6” square 3/16” wall steel tubing for the vertical pole and extension arms, providing a 66” extension from the pole to the backboard face. The system includes nylon nets, weighs approximately 1033#, and carries a Lifetime Unconditional Warranty on the pole, backboard, and standard rim.

✓ Authorized First Team Dealer — ships brand-new with full manufacturer warranty & support

The First Team Legend Excel Dual Basketball System is built with durable steel components, featuring a 6” square 3/16” wall steel tubing for both the vertical pole and the two 45-degree extension arms. The vertical pole requires 48” burial in concrete and is sealed with a watertight steel cap. These extension arms provide a 66” extension from the front of the pole to the face of the backboard, supported by a ¼” thick backboard mounting plate and a 4” square 1/8” wall secondary arm tube.

The system includes two 42”x 72” rectangular steel backboards, each with a 10 gauge steel skin, ¼” thick vertical struts, a white powdercoat finish, a 2” orange border, and an official orange shooters square. Two standard rims, fabricated from 3/16” backplates and sideplates and double 5/8” diameter high strength steel, are powdercoated orange and include nylon nets with a netlocking system. The rim height is adjustable from 6’ to 10’, with rims and backboards directly mounted to the pole using high strength steel bolts.

All steel components undergo maximum penetration, continuous weld, MIG procedures and feature a polyester powder-coated black finish on the pole components. The entire system weighs approximately 1033# and comes with a Lifetime Unconditional Warranty covering the pole, backboard, and standard rim.

Specifications

Specification	Value
Vertical Pole	6” square 3/16” wall steel tubing, polyester powder-coated black finish, with welded watertight steel cap.
Vertical Pole Installation	Burying 48” in concrete.
Extension Arms	Two main 45 degree, 6” square 3/16” wall steel tubing arms provided.
Base-to-Backboard Extension	66” from front of pole to face of backboard.
Backboard Mounting Plate	¼” thick, extends full height of backboard, supported by a 4” square 1/8” wall secondary arm tube.
Arm-to-Pole Attachment	Two ½” thick steel plates sandwiched around 6” pole, secured by six 5/8” high strength bolts.
Height Adjustment	Rim height adjustable from 6’ to 10’.
Steel Construction Method	All steel components welded using maximum penetration, continuous weld, MIG procedure.
Backboard	Two 42”x 72” rectangular steel backboards provided. Skin is 10 gauge steel with ¼” thick vertical struts. White powdercoat finish, 2” orange border, official orange shooters square.
Rim / Goal	Two standard rims provided. Fabricated from 3/16” backplates and sideplates, double 5/8” diameter high strength steel, powdercoated orange.
Net	Nylon net included. Netlocking system accommodates nylon or chain nets.
Direct Rim Mount	Rim and backboard attached to pole with four high strength steel bolts; backboard also mounted to pole at four places top and bottom.
System Weight	Approximately 1033#.
Warranty	Lifetime Unconditional Warranty (Pole, backboard, standard rim).

Compare First Team models

Dynasty BP	Intensity BP	Playground Dual	Excel Dual THIS	Supreme Dual	Dynasty Dual
Backboard 42" x 72" fiberglass, 1 5/8", honeycomb core	Backboard 42" x 72" aluminum, 10 ga. perforated skin	Backboard Two 42" x 60" steel, 10 ga. skin	Backboard Two 42" x 72" steel, 10 ga. skin, 1/4" struts	Backboard Two 42" x 72" clear acrylic, 1/2" thick	Backboard Two 42" x 72" fiberglass, 1 5/8" thick
Backboard frame & markings Gel-coated 2" orange border, orange shooters square	Backboard frame & markings White powder coat, welded and ground edges	Backboard frame & markings Graffiti-resistant white coat, orange shooters square	Backboard frame & markings White powdercoat, 2" orange border, shooters square	Backboard frame & markings Anodized aluminum frames, screen-printed 2" borders	Backboard frame & markings Gel-coated 2" orange borders, orange shooters squares
Rim Standard double 5/8" ring, fully welded plates	Rim Standard double 5/8" ring, min. 6 welds	Rim Two standard double 5/8" rings, 6+ welds each	Rim Two standard double 5/8" rings, 3/16" plates	Rim Two flexible breakaway rims, compression spring	Rim Two standard rings; outdoor breakaway available
Net system Netlocking for nylon or chain; nylon net included	Net system Netlocking for nylon or chain; nylon net included	Net system Netlocking for nylon or chain; nylon net included	Net system Netlocking for nylon or chain; nylon net included	Net system —	Net system Netlocking for nylon or chain; nylon net included
Vertical pole 6" square, 3/16" wall steel, 3/8" plate, 4 gussets	Vertical pole 6" square, 3/16" wall steel, 3/8" plate, 4 gussets	Vertical pole 6" square, 3/16" wall steel, welded watertight cap	Vertical pole 6" square, 3/16" wall steel, welded watertight cap	Vertical pole 6" square, 3/16" wall steel, welded watertight cap	Vertical pole 6" square, 3/16" wall steel, welded watertight cap
Installation Bolt-down, 5-bolt anchor system	Installation Bolt-down, 5-bolt anchor system	Installation Direct bury 48" in concrete	Installation Direct bury 48" in concrete	Installation Direct bury 48" in concrete	Installation Direct bury 48" in concrete
Extension arm & reach One 6" arm + 4" secondary; 66" extension	Extension arm & reach One 6" arm + 4" secondary; 66" extension	Extension arm & reach Two 6" arms + 4" secondary; min. 66" extension	Extension arm & reach Two 45° 6" arms + 4" secondary; 66" extension	Extension arm & reach Two 45° 6" arms + 4" secondary; 66" extension	Extension arm & reach Two 6" arms (same or split heights); 66" extension
Rim height setting —	Rim height setting Arm bolted to pole at chosen height	Rim height setting Set anywhere from 6' to 10' at installation	Rim height setting Set anywhere from 6' to 10' at installation	Rim height setting —	Rim height setting Set anywhere from 6' to 10' at installation
Warranty Lifetime Superior: pole, backboard, standard rim	Warranty Lifetime Superior: pole, backboard, standard rim	Warranty Lifetime Unconditional: pole, backboard, standard rim	Warranty Lifetime Unconditional: pole, backboard, standard rim	Warranty Covers pole, backboards, and standard rims	Warranty Lifetime Unconditional: pole, backboard, standard rim
Origin Made in USA	Origin Backboard manufactured in the USA	Origin Made in USA	Origin Made in USA	Origin Made in USA	Origin Made in USA
Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship	Availability In stock - ready to ship
Ship Weight 604 lbs	Ship Weight 602 lbs	Ship Weight 997 lbs	Ship Weight 1033 lbs	Ship Weight 951 lbs	Ship Weight 873 lbs
Best for Bolt-down courts wanting a honeycomb-core fiberglass backboard.	Best for Exposed bolt-down sites wanting a perforated aluminum full-size board.	Best for Back-to-back playground courts sharing a single heavy-duty pole.	Best for Facilities serving two full-size steel boards from one pole.	Best for Two-court layouts needing acrylic boards and breakaway rims on one pole.	Best for Dual courts wanting fiberglass boards at matched or split heights.
$4,808.00	$4,871.00	$6,534.00	$6,889.00	$7,461.00	$7,963.00
Check ›	Check ›	Check ›	Viewing	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Lifetime Unconditional Warranty

Every First Team product is backed by First Team's warranty program. This model carries the warranty noted above. Here is what First Team's warranty tiers cover:

Limited Warranty - covers damage during normal, intended use. Excludes vandalism and deliberate damage. Normal wear from weathering or UV exposure is not covered; all painted items carry a 1-year limited warranty on coating.
Superior Warranty - additionally covers any damage or failure caused by basketball activity or contact with the unit, including deliberate hanging on the rim. Vandalism excluded.
Unconditional Warranty - the broadest tier: covers any damage or failure that occurs for any reason.
Manufacturer's Defect - all products are warranted against manufacturer's defects at delivery.

Warranties apply to the original purchaser only and are non-transferable; coverage ends on resale or transfer. Residential-only products are not covered for non-residential use.

Frequently asked questions

What are the dimensions and material of the backboards included with this system?

The system includes two 42”x 72” rectangular steel backboards. Each backboard has a 10 gauge steel skin with ¼” thick vertical struts, a white powdercoat finish, a 2” orange border, and an official orange shooters square.

How is the rim height adjusted on the Legend Excel Dual Basketball System?

The rim height is adjustable from 6’ to 10’. The arm is attached to the pole by two ½” thick steel plates secured with six 5/8” high strength bolts, allowing the arm to be bolted at the desired height.

What is the warranty for the First Team Legend Excel Dual Basketball System?

The pole, backboard, and standard rim carry a Lifetime Unconditional Warranty.

Is JoySportStore an authorized First Team dealer?

Yes. JoySportStore is an authorized First Team dealer, so every unit ships brand-new with the full First Team manufacturer warranty and factory-backed support.
