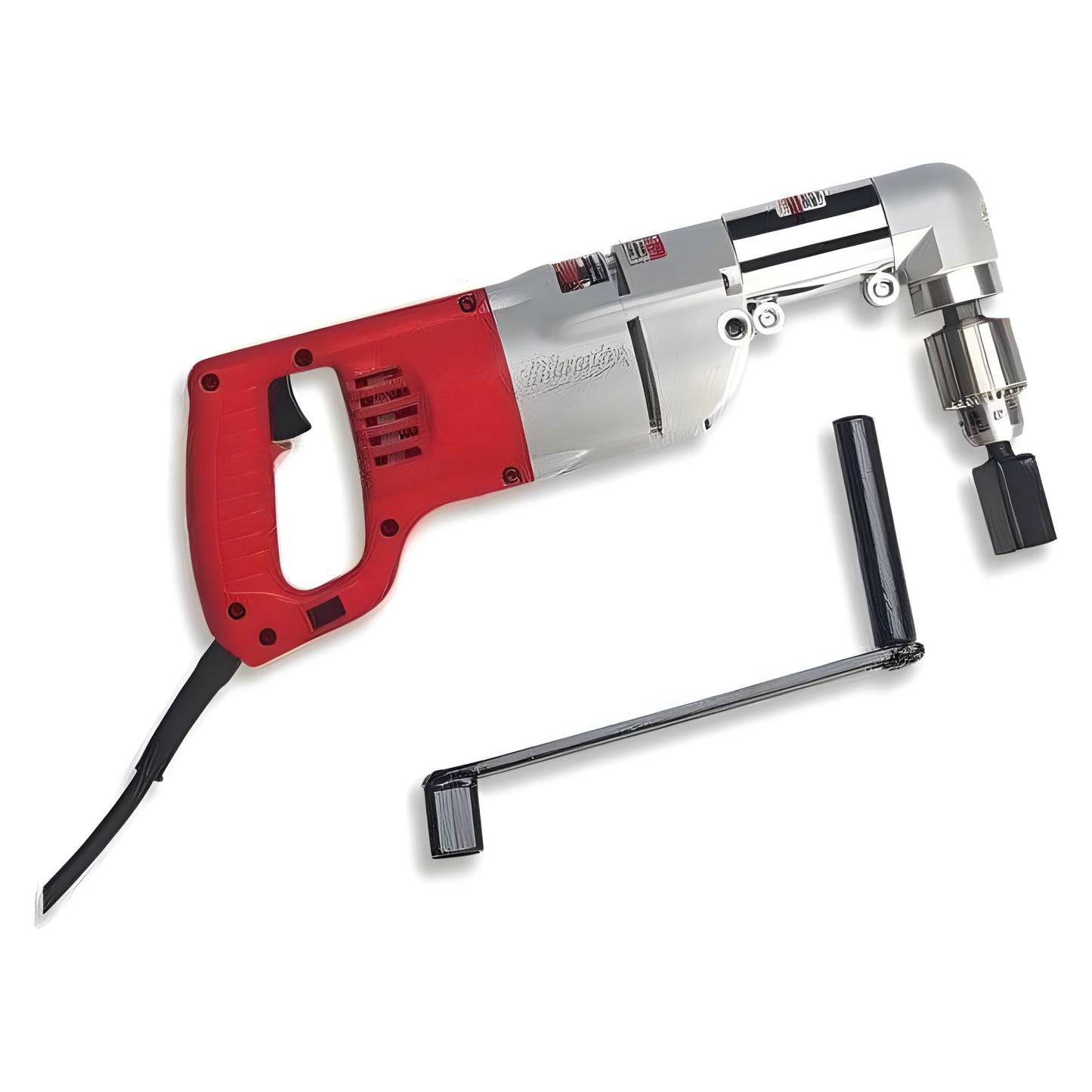

Gared Portable Winch Winder – 1119

See more by Gared

Save $131.96

$1,794.00

$1,794.00 - $1,794.00

$1,794.00

$1,662.04

$1,662.04 - $1,662.04

$1,662.04

In stock

SKU: 1119

Product Overview

In short

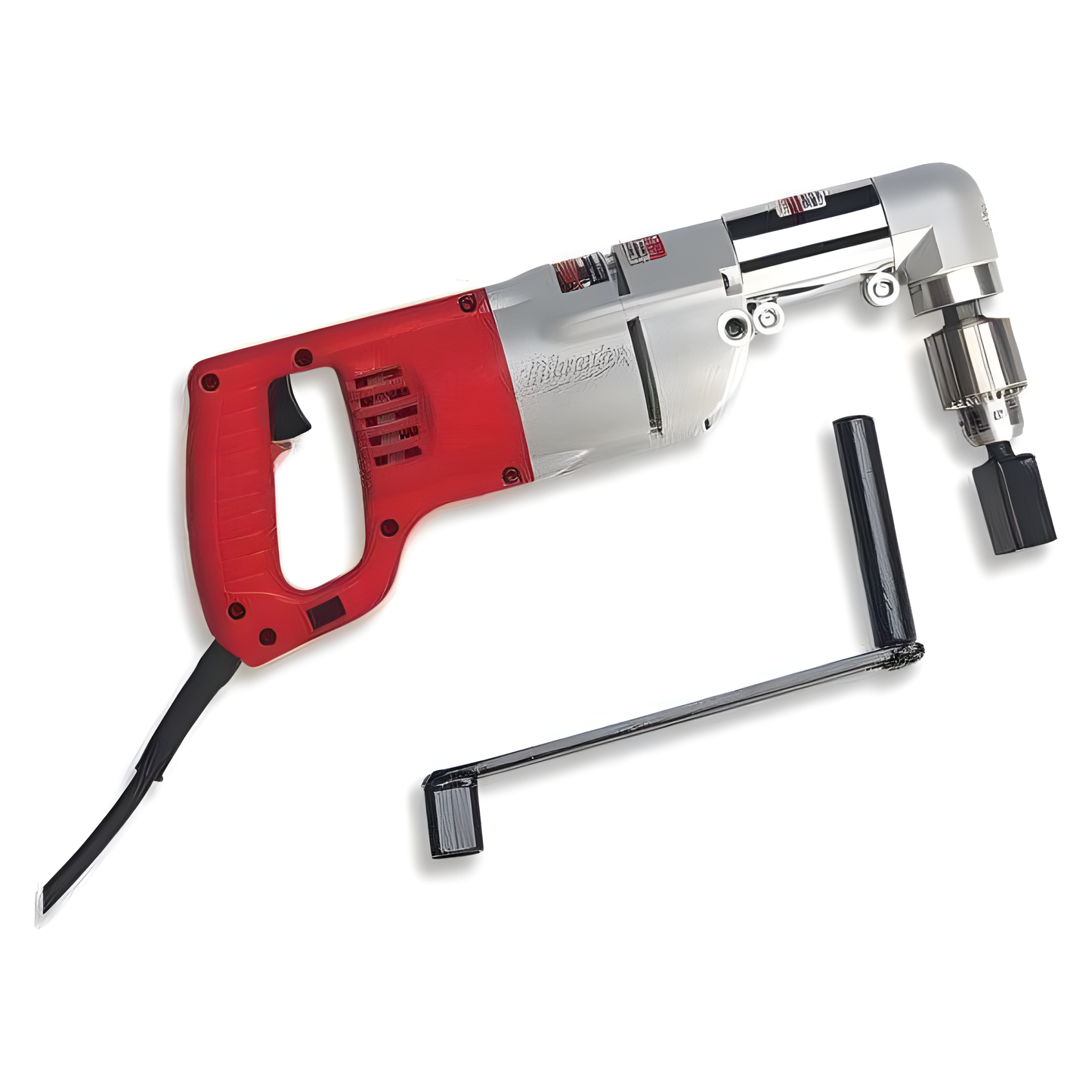

The Gared 1119 Portable Electric Winch Winder powers folding basketball backstops that have manual winches installed, so one portable unit can serve any number of backstops. It runs a heavy duty single-phase 115-120 volt double insulated motor at a maximum 350 rpm and has a reversing switch that raises or lowers the backstop without disengaging the winder. The winder ships with an 8-foot cord and a high density impact resistant hinged folding case.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The 1119 is the least expensive way of electrifying swing-up backstops that already use manual winches. Because it is portable, a facility only needs to buy one winder and can use it on any number of backstops instead of motorizing each one.

The motor is a heavy duty single-phase 115-120 volt unit (60 Hz, 4.5 amps), double insulated, with a maximum 350 rpm. A reversing switch lets the operator lower or raise the backstop without disengaging the winder, and the geometric right-angle drive plus two handles keep the unit manageable during operation. The lightweight 11 lb design makes handling easy.

The winder comes standard with an 8-foot cord and is supplied in a high density impact resistant hinged folding case for storage and transport between courts.

Specifications

Specification	Value
Model	1119 Portable Electric Winch Winder
UPC	00842299101095
Motor	Heavy duty single-phase 115-120 volt, 60 Hz, 4.5 amps, double insulated
Maximum Speed	350 rpm
Drive	Geometric right-angle drive
Switch	Reversing switch, raises or lowers backstop without disengaging winder
Handles	Two handles for easy handling
Unit Weight	11 lbs
Power Cord	8-foot cord, standard
Case	High density impact resistant hinged folding case
Material	Steel
Application	Electrifies swing-up folding backstops fitted with manual winches
Ship Weight	18 lbs / 8.16 kg
Shipping Method	UPS
Origin	US

Compare Gared models

Safstop	Manual 1123	Winder 1119 THIS	Curtain 4002	Hoist 1194	Hoist 1197
Type Backstop safety lock (fall arrest)	Type Manual worm-gear backstop winch	Type Portable electric winder for manual winches	Type Electric divider curtain hoist	Type Electric backstop hoist with key switch	Type Electric backstop hoist with wireless receiver
Electrical None; no electricity required to operate	Electrical None; hand operated	Electrical 115-120 VAC, 60 Hz, 4.5 A, single phase	Electrical 115 VAC, 60 Hz, single phase	Electrical 110/115/120 VAC, 60 Hz, 1 PH, UL Listed	Electrical 110/115/120 VAC, 60 Hz, 1 PH dedicated circuit
Motor —	Motor —	Motor Heavy duty double insulated, 350 rpm max speed	Motor 3/4 HP instant reverse, thermally protected	Motor 3/4 HP min, 9.5 A, instant reversing, protected	Motor 3/4 HP, instant reversing, thermal overload
Load rating 1,000 lb free fall; tested to 1,750 lb	Load rating 1,000 lbs / 453.6 kg	Load rating —	Load rating 2,700 in-lbs maximum torque	Load rating 1,250 lbs continuous lift for 15 minutes	Load rating Up to 1,000 lbs
Gearing / drive Inertial or centrifugal lock, cast aluminum housing	Gearing / drive Semi-enclosed self-lubricating worm gear, 3/4" drive	Gearing / drive Geometric right-angle drive	Gearing / drive 200:1 hardened worm gear, sealed case	Gearing / drive 200:1 sealed worm gearbox, hardened metal gears	Gearing / drive 200:1 double worm gear box
Braking & limits Locks within 3" of belt travel; auto spring reset	Braking & limits Double self-locking worm gear, uni-directional brake	Braking & limits Reversing switch; no need to disengage winder	Braking & limits Gear driven upper/lower limit switches, 50 turns	Braking & limits Gear driven upper/lower limit switches, 55' max	Braking & limits Positive locking gearbox; thermal overload
Cable / belt & travel 2" nylon belt, 6,000 lb tensile, 35 ft max	Cable / belt & travel 1/4" aircraft cable (sold separately); grooved drum	Cable / belt & travel —	Cable / belt & travel Double 1" dia. output shaft drum	Cable / belt & travel 1/4" 7x19 cable (not supplied); 55' at 9.5 FPM	Cable / belt & travel —
Controls Automatic; yellow engagement warning indicator	Controls Removable handle with free turning sleeve	Controls Reversing switch, two handles, 8-ft cord	Controls 3-position momentary key switch included	Controls Key switch 1195-01-00 included; 6' L14-20 cord	Controls Wireless receiver + key switch; 1198 transmitter extra
Mounting / application Universal bracket for 3-1/2" or 4" O.D. tube	Mounting / application Wall mounted; wood mounting pad included	Mounting / application Portable; impact resistant hinged folding case	Mounting / application For 4020/4030 curtains, 4080 multi-sport cage	Mounting / application Steel frame hardware for 3.5" dia. tubing	Mounting / application Right side up or upside down; 3-1/2" pipe clamp
Duty cycle —	Duty cycle —	Duty cycle —	Duty cycle 10 minutes ON / 20 minutes OFF	Duty cycle 15 minutes ON / 20 minutes OFF	Duty cycle —
Ship Weight 19 lbs	Ship Weight 36 lbs	Ship Weight 18 lbs	Ship Weight 47 lbs	Ship Weight 77 lbs	Ship Weight 79 lbs
Best for Gyms adding required fall-arrest protection to overhead backstops.	Best for Facilities that raise folding backstops by hand without electrical service.	Best for Schools wanting to power existing manual winches with one portable tool.	Best for Gyms motorizing divider curtains or multi-sport cage systems.	Best for Facilities needing keyed electric operation of ceiling-suspended backstops.	Best for Multi-court gyms operating several backstops from one wireless transmitter.
$1,080.32	$1,166.00 $1,080.32	$1,794.00 $1,662.04	$708.00	$2,077.55	$2,742.36
Check ›	Check ›	Viewing	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

2-Year Limited Warranty against defects in material or factory workmanship

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Can one 1119 winder operate several backstops?

Yes. It is a portable unit, so you buy only one winch winder and use it for any number of folding backstops that have manual winches installed.

What power supply does the 1119 need?

It uses a heavy duty single-phase 115-120 volt motor at 60 Hz and 4.5 amps, double insulated, with a maximum 350 rpm, and comes standard with an 8-foot cord.

Do I have to disengage the winder to change direction?

No. The winder has a reversing switch, so the backstop can be either lowered or raised without disengaging the winder.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
