Product Overview

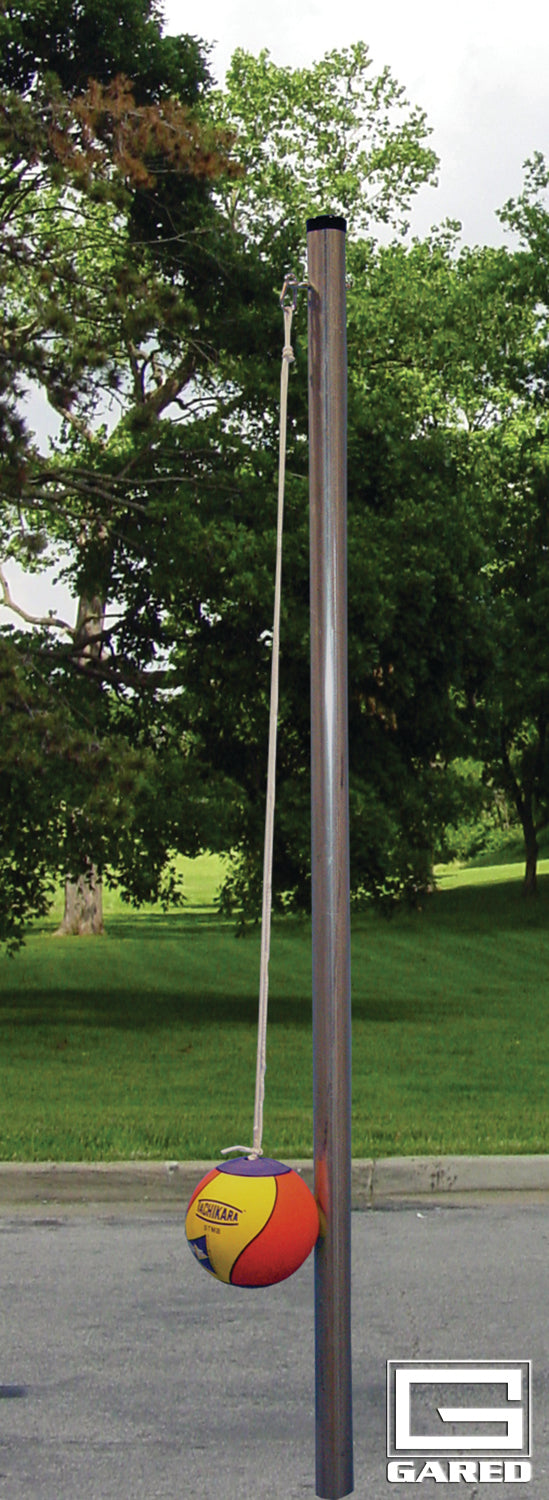

Gared's 6812 Sleeved Tetherball System is designed for a semi-permanent installation that lets the tetherball post be removed when play is over. The post is 2-3/8" O.D. x 13 gauge galvanized steel tubing, 12 feet in total length with 2 feet engaged in the ground sleeve, leaving a 10' playing height above grade.
The included model 6824 ground sleeve is built from 13 gauge DOM steel tubing with a 2-5/8" outside diameter and 2-7/16" inside diameter, and is 30 inches long. A horizontal steel bar is welded inside the sleeve at 1'-10 3/4" down its length; it engages a slotted plate welded to the base of the post so the post cannot rotate during play. A model 6825 heavy welded steel cap covers the sleeve whenever the post is removed.
Everything needed to play comes in the box: post, plated hardware, a standard tetherball with 9'-10" nylon rope, ground sleeve and sleeve cap. The concrete foundation is supplied by others; Gared's drawing calls for a 2'-6" deep by 1'-3" diameter footing over gravel. A model 6827 locking sleeve cover is available separately for 2-3/8" diameter sleeves.
Specifications
| Specification | Value |
|---|---|
| Model | 6812 |
| SKU | 6812 |
| UPC | 00842299107493 |
| Post | 2-3/8" O.D. x 13 gauge galvanized steel tubing |
| Post Length | 12' total, with 2' engaged in the ground sleeve |
| Post Base | Slotted plate welded to base, fits bar in sleeve to prevent spinning |
| Ground Sleeve | Model 6824, 13 gauge DOM steel tubing |
| Sleeve Dimensions | 2-5/8" O.D. x 2-7/16" I.D., 30" long |
| Anti-Rotation Bar | Horizontal steel bar welded inside sleeve at 1'-10 3/4" |
| Sleeve Cap | Model 6825 heavy welded steel cap (included) |
| Tetherball & Rope | Standard tetherball with 9'-10" nylon rope included |
| Foundation | 2'-6" deep x 1'-3" dia. concrete, supplied by others |
| Material / Finish | Steel / Galvanized |
| Country of Origin | US |
| Shipping Weight | 45 lbs / 20.41 kg |
| Shipping Method | Truck |
Compare Gared models
|
Ball & Rope |
Inground |
Sleeved THIS |
Portable |
|---|---|---|---|
System Type Replacement tetherball with nylon rope | System Type Permanent inground tetherball system | System Type Removable sleeved tetherball system | System Type Portable weighted-base tetherball system |
Post — | Post 2-3/8 in. O.D. x 13 ga. galvanized steel | Post 2-3/8 in. O.D. x 13 ga. galvanized steel | Post 1.9 in. O.D. x 0.120 in. wall galvanized steel |
Post Length — | Post Length 12 ft total, 2 ft embedded in concrete | Post Length 12 ft total, 2 ft engaged in ground sleeve | Post Length 10 ft |
Installation Method — | Installation Method Direct-bury in concrete footing | Installation Method Lift-out post set in permanent ground sleeve | Installation Method Freestanding; post drops into base sleeve |
Ground Sleeve — | Ground Sleeve Optional 6824 sleeve, 2-3/8 in. dia. | Ground Sleeve 6824 included: 2-5/8 in. O.D. x 30 in., 13 ga. DOM | Ground Sleeve Welded base sleeve 2-1/8 in. O.D. x 4 in. long |
Anti-Rotation Feature — | Anti-Rotation Feature Threaded rod prevents post rotation | Anti-Rotation Feature Slotted base plate engages bar welded in sleeve | Anti-Rotation Feature — |
Base / Foundation — | Base / Foundation 2 ft 6 in. concrete over 6 in. gravel, by others | Base / Foundation 2 ft 6 in. deep x 1 ft 3 in. dia. concrete, by others | Base / Foundation 40.5 in. dia. x 1/4 in. steel plate, PVC edge trim |
Ball & Rope Included Yes — rubber ball, multi-color, nylon rope | Ball & Rope Included Yes — tetherball with 9 ft 10 in. nylon rope | Ball & Rope Included Yes — tetherball with 9 ft 10 in. nylon rope | Ball & Rope Included Yes — tetherball with 9 ft 10 in. nylon rope |
Hardware & Accessories — | Hardware & Accessories Zinc-plated eye-bolt; optional 6825 cap, 6827 cover | Hardware & Accessories 6825 heavy welded steel sleeve cap included | Hardware & Accessories Plated hardware and base weldment included |
Material / Finish Rubber ball with nylon rope | Material / Finish Steel / galvanized | Material / Finish Steel / galvanized | Material / Finish Steel / galvanized, powder-coated base plate |
Ship Weight 1 lbs | Ship Weight 45 lbs | Ship Weight 45 lbs | Ship Weight 125 lbs |
Best for Schools and parks replacing a worn tetherball or rope. | Best for Playgrounds wanting a permanent, low-cost direct-bury post. | Best for Facilities needing a removable post for shared or seasonal play areas. | Best for Camps and gyms that need to move play areas with no concrete work. |
| $90.23 | $394.65 | $857.93 | $1,169.90 |
| Check › | Check › | Viewing | Check › |
