Gared Sports SideOut 3-1/2" OD Steel Outdoor Volleyball Net System ODVB35

See more by Gared

Save $694.13

$2,254.00

$2,254.00 - $2,254.00

$2,254.00

$1,559.87

$1,559.87 - $1,559.87

$1,559.87

In stock

SKU: ODVB35

Product Overview

In short

The Gared SideOut ODVB35 is an outdoor volleyball standard set built from 3-1/2" O.D. galvanized steel uprights, supplied as two posts with a net tensioning winch, plated eyebolts and two 20" PVC ground sleeves with caps. Eyebolt positions cover men's (95-5/8"), women's (88-1/8") and badminton (60") net heights. The net is ordered separately as ODVBNET (28 ft) or ODVBNET32 (32 ft).

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The ODVB35 SideOut system is designed for school, park and playground courts where posts stay outdoors year round. Uprights are 3-1/2" O.D. galvanized steel with a 10'-0" tube, and all hardware is galvanized or plated to protect against corrosion.

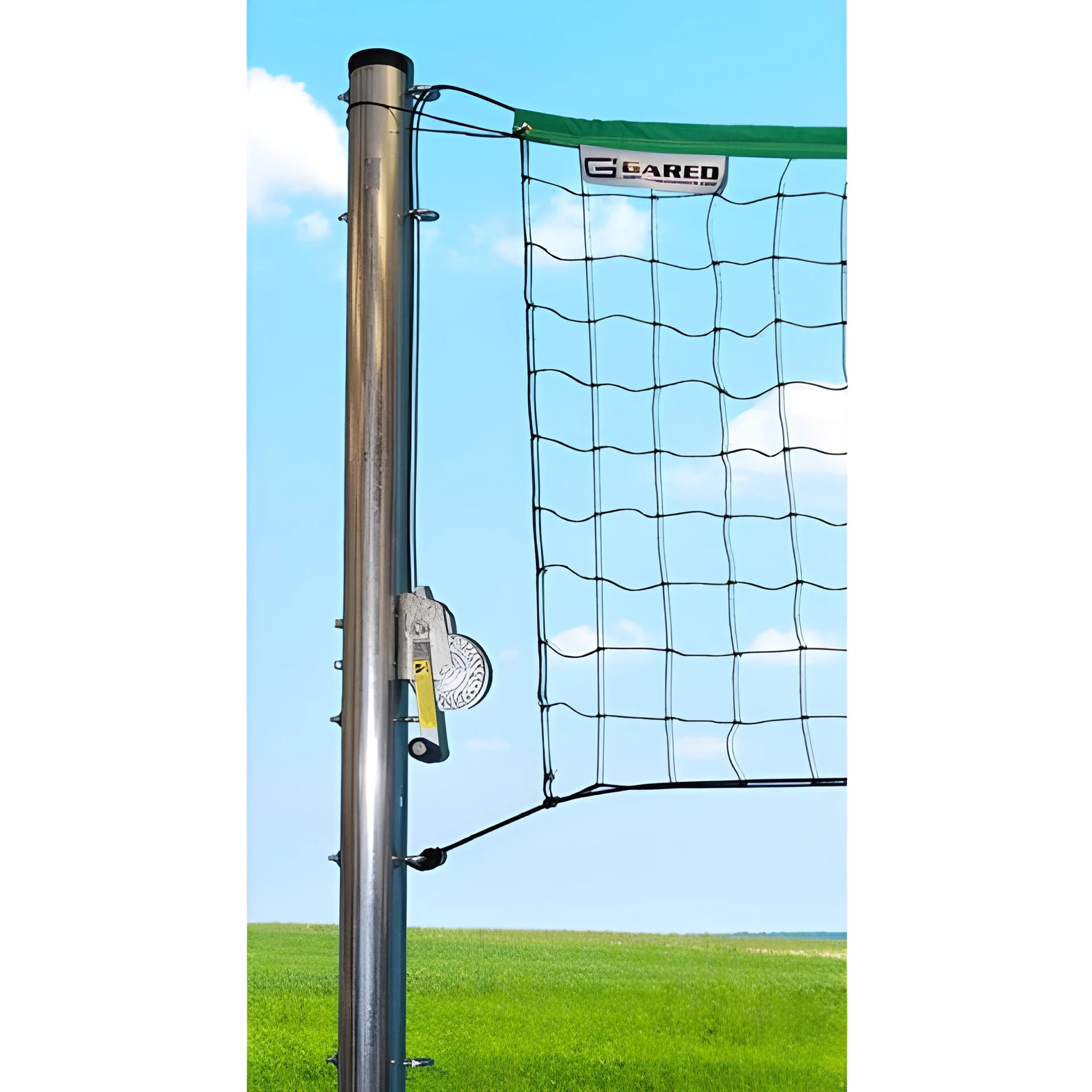

Each upright carries plated 3/8" x 4-1/4" welded turned eyebolts drilled for two playing net heights plus a lower badminton setting, so one set of posts covers men's play at 95-5/8" (2.429 m), women's play at 88-1/8" (2.238 m) and badminton at 60" (1.524 m). One upright has a net tensioning winch for the top net cable, and two 1/8" rope ratchets tension the net itself at the winch post.

Two 20" (508 mm) PVC ground sleeves and powder coated steel caps are included for semi-permanent installation - the posts lift out when the court is not in use. Each sleeve is set in a hole at least 15" in diameter and 30" deep, requiring a minimum of 7 cubic feet of concrete; concrete is not supplied.

The net is specified and sold separately. ODVBNET is 28 ft (8.5 m) long for post centers set at 32'-0" (9.75 m); ODVBNET32 is 32 ft (9.75 m) long for post centers at 36'-0" (10.97 m). The complete standards package ships by truck at 195 lbs / 88.45 kg.

Specifications

Specification	Value
Model / SKU	ODVB35
UPC	00842299103136
Uprights	3-1/2" O.D. galvanized steel tubing, 10'-0" (3.05 m) upright tube (PN 601654432)
Net Heights	Men's 95-5/8" (2.429 m); Women's 88-1/8" (2.238 m); Badminton 60" (1.524 m)
Eyebolts	(10) 3/8" x 4-1/4" welded turned eyebolts, plated, set for two playing net heights plus badminton
Net Tensioning	Winch on one upright (PN 601653814) for the top net cable, plus two 1/8" rope ratchets
Ground Sleeves	Two 20" (508 mm) long PVC ground sleeves, 3.5" O.D. (PN 601654433), included
Sleeve Caps	Two powder coated steel caps (PN 6826) and 3-1/2" end caps (PN 1035-09-00)
Post Centers	32'-0" (9.75 m) with ODVBNET; 36'-0" (10.97 m) with ODVBNET32
Net (sold separately)	ODVBNET 28 ft (8.5 m) or ODVBNET32 32 ft (9.75 m)
Foundation	15" diameter x 30" deep hole, minimum 7 cubic feet of concrete; concrete not included
Hardware	All hardware galvanized or plated to protect against corrosion
Finish	Galvanized
Color	Silver
Country of Origin	US
Shipping Weight	195 lbs / 88.45 kg
Shipping Dimensions (H x W)	11" x 24" / 11 cm x 60.96 cm
Shipping Method	Truck

Compare Gared models

Sideline Markers	Antennas	Antenna Combo	Beach Net	Regulation Net Pro	3-1/2 in. System THIS
Product Type Sideline markers, sold as a pair	Product Type Net antennas, sold in pairs	Product Type Antenna and sideline marker combo kit	Product Type Outdoor beach and sand play net	Product Type Regulation competition net	Product Type Outdoor in-ground net system (standards)
Size / Dimensions 2-1/2 in. wide	Size / Dimensions 72 in. long x 3/8 in. O.D.	Size / Dimensions 72 in. antennas; 2-1/2 in. wide markers	Size / Dimensions 28 ft x 3 ft	Size / Dimensions 32 ft long x 39 in. high	Size / Dimensions 3-1/2 in. O.D. x 10 ft posts; 32 or 36 ft centers
Mesh —	Mesh —	Mesh —	Mesh 2 mm twisted polyethylene	Mesh 4 in. square black nylon mesh, #42	Mesh —
Color / Finish —	Color / Finish Alternating 4 in. red and white bands on top half	Color / Finish Alternating 4 in. red and white bands on top half	Color / Finish Black	Color / Finish Black mesh with white PVC borders	Color / Finish Galvanized, silver
Fiberglass Rods / Dowels —	Fiberglass Rods / Dowels 3/8 in. O.D. fiberglass rod, rounded bottom ends	Fiberglass Rods / Dowels 3/8 in. O.D. fiberglass rods, rounded bottom ends	Fiberglass Rods / Dowels —	Fiberglass Rods / Dowels 5/8 in. dia. fiberglass dowel at each end	Fiberglass Rods / Dowels —
Top Cable —	Top Cable —	Top Cable —	Top Cable —	Top Cable 5/32 in. PVC-covered steel 7x19, 2000 lb strength	Top Cable —
Tensioning / Attachment Velcro attachments; full-length antenna pocket	Tensioning / Attachment Inserted in sideline marker pocket above sidelines	Tensioning / Attachment Velcro attachments; full-length antenna pocket	Tensioning / Attachment —	Tensioning / Attachment (6) 2 in. adjustable straps, buckles and Velcro	Tensioning / Attachment Winch on one upright plus (2) 1/8 in. rope ratchets
Kit Contents (2) sideline markers for one net	Kit Contents (2) antennas, equips one net	Kit Contents (2) antennas and (2) sideline markers for one net	Kit Contents Net only	Kit Contents Net plus model 7608 net height checker	Kit Contents (2) posts, (2) 20 in. PVC sleeves, caps, (10) eyebolts
Compatibility Use with model 6412 antennas (sold separately)	Compatibility Use with 6413 sideline markers (sold separately)	Compatibility Equips one volleyball net	Compatibility Posts spaced 32 ft apart	Compatibility Gared 5100, 5300, 6000 and 6100 series systems	Compatibility ODVBNET (28 ft) or ODVBNET32 (32 ft), sold separately
Country of Origin China	Country of Origin China	Country of Origin China	Country of Origin Vietnam	Country of Origin India	Country of Origin United States
Ship Weight 2 lbs	Ship Weight 2 lbs	Ship Weight 4 lbs	Ship Weight 5 lbs	Ship Weight 10 lbs	Ship Weight 195 lbs
Best for Teams replacing worn sideline markers on an existing net.	Best for Officials and coaches replacing broken match antennas.	Best for Programs that need antennas and sideline markers in one purchase.	Best for Beach and sand courts with posts set 32 ft apart.	Best for Competitive gyms wanting a full-spec net with height checker.	Best for High-traffic outdoor courts needing heavy-duty steel posts.
$200.00 $180.97	$192.00 $180.97	$279.00 $236.04	$239.20 $228.17	$470.09	$2,254.00 $1,559.87
Check ›	Check ›	Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

2-Year Limited Warranty

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Is the net included with the ODVB35?

No. The net must be specified and ordered separately - ODVBNET at 28 ft (8.5 m) for 32 ft post centers, or ODVBNET32 at 32 ft (9.75 m) for 36 ft post centers.

What net heights does the ODVB35 support?

Plated eyebolts on each upright set the net at men's height 95-5/8" (2.429 m), women's height 88-1/8" (2.238 m), and badminton height 60" (1.524 m). Net height is measured at the middle of the court.

What foundation is required?

Dig each hole a minimum of 15" in diameter and 30" deep and pour it level with concrete, setting the included ground sleeve flush with the finished playing surface. Allow at least 24 hours of cure time. Concrete is not included.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
