Jaypro Foul Poles - Collegiate (12 ft.) - Baseball/Softball (Surface Mount) (Yellow)

See more by Jaypro

$2,967.00 - $2,967.00

$2,967.00

$2,967.00 - $2,967.00

$2,967.00

In stock

SKU: BBSBFP-12SM

No sales tax

Premium Insured

Flat-rate freight

Price Match Guarantee

Liftgate delivery available

What is liftgate?

Standard (curbside) freight delivery: the driver brings the pallet to your address but does not unload it, so you need a loading dock, a forklift or enough people to unload it.

Liftgate delivery: the truck's hydraulic liftgate lowers the pallet to the ground, the right choice for a home, school, park or any address without a dock. To add it, choose the shipping method "Premium Insured Freight + Liftgate (+$209)" at checkout. It is $209 per order and covers all freight items in the order. It does not include inside delivery or assembly. Shipping policy

Product Overview

In short

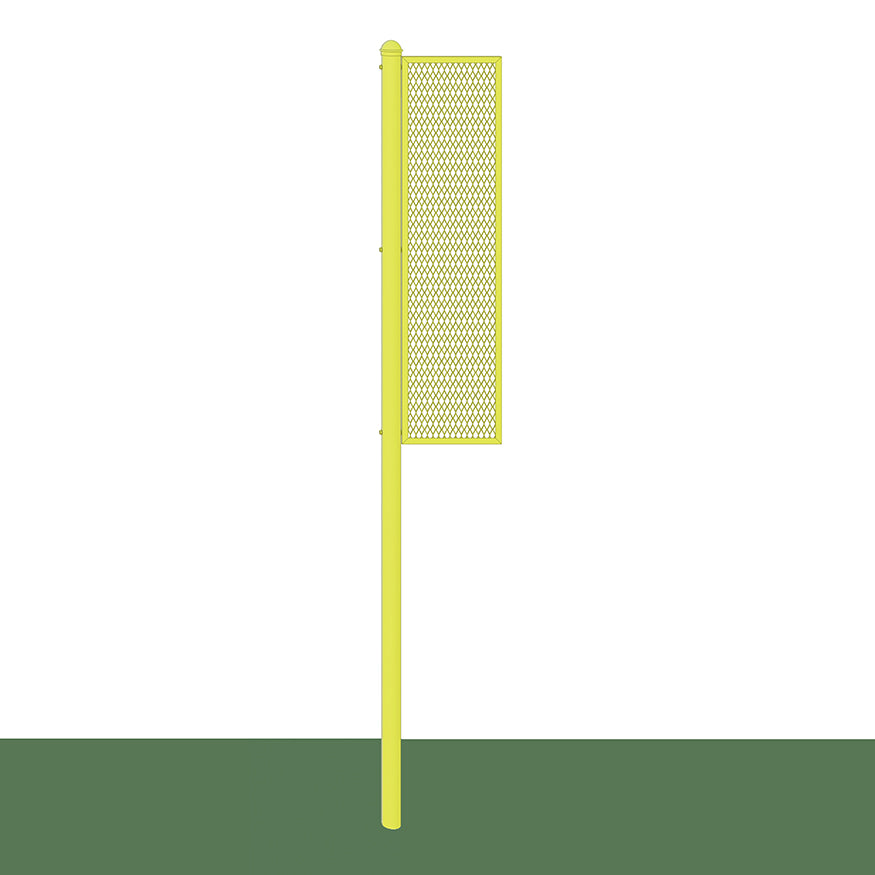

The Jaypro BBSBFP-12SM is a 12 ft. surface mount foul pole for baseball and softball fields. It is one piece construction on a 3-1/2" O.D. heavy duty steel main post with an 18" wide x 6' high expanded steel wing panel, finished in powder coated yellow over a galvanized under coat. An adjustable leveling plate lets the pole be set plumb on the prepared footing.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The BBSBFP-12SM is the surface mount version of Jaypro's 12 ft. collegiate foul pole. The pole is one piece construction, so there is no field splice to align, and it stands on a base plate rather than being embedded, which means the footing can be poured and cured before the pole ever arrives on site.

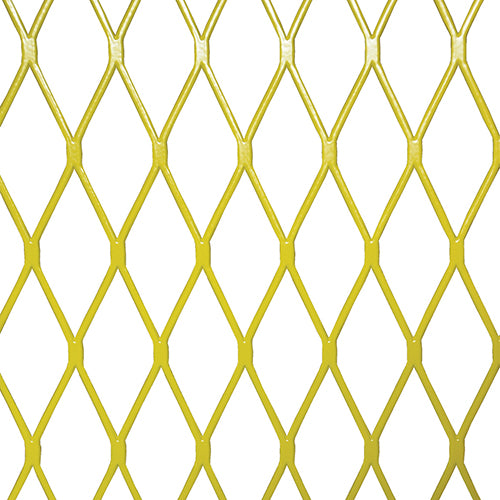

The main post is 3-1/2" O.D. heavy duty steel and carries an 18" wide by 6' high wing panel made of all steel expanded metal. The open expanded metal panel gives umpires a clear visual reference against the sky while shedding wind load. Everything is powder coated yellow over a galvanized under coat for outdoor service.

Positioning follows standard field layout: the foul pole panel is aligned with the outfield fence and the outside of the pole sits flush with the outside of the foul line. An adjustable leveling plate at ground level allows the pole to be trued up after the concrete has set. The footing dimensions shown on the spec sheet are suggestions for average soil conditions, so local building codes should be consulted.

Specifications

Specification	Value
Model	BBSBFP-12SM
Product	12' Baseball Foul Pole - Surface Mount
Overall Height	12'-0"
Construction	One piece construction
Main Post	3-1/2" O.D. heavy duty steel
Wing Panel	18" wide x 6' high
Wing Panel Material	All steel expanded metal
Finish	Tough powder coated yellow finish with galvanized under coat
Mounting	Surface mount installation
Leveling	Adjustable leveling plate at ground level
Alignment	Foul pole panel aligned with the outfield fence; outside of foul pole flush with outside of foul line
Footing Note	Suggested dimensions are for average soil conditions; consult local building codes
Sport	Baseball / Softball
Manufacturer	Jaypro Sports, LLC, 976 Hartford Turnpike, Waterford, CT 06385 USA
Ship Weight	200 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

12 ft. Surface Mount THIS	12 ft. In-Ground	15 ft. In-Ground	15 ft. Surface Mount
Overall Height 12 ft.	Overall Height 12 ft. (11 ft. 11 in. above ground)	Overall Height 15 ft.	Overall Height 15 ft.
Mounting Type Surface mount	Mounting Type Permanent or semi-permanent (in-ground)	Mounting Type Permanent or semi-permanent (in-ground)	Mounting Type Surface mount
Leveling / Ground Sleeve Adjustable leveling plate at ground level	Leveling / Ground Sleeve Optional FPS-12 ground sleeve (semi-permanent)	Leveling / Ground Sleeve Optional FPS-12 ground sleeve (semi-permanent)	Leveling / Ground Sleeve Adjustable leveling plate
Main Post 3-1/2 in. O.D. heavy duty steel	Main Post 3-1/2 in. O.D. heavy duty steel	Main Post 3-1/2 in. O.D. heavy duty steel	Main Post 3-1/2 in. O.D. heavy duty steel
Construction One piece	Construction One piece	Construction One piece	Construction One piece
Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H	Wing Panel Size 18 in. W x 6 ft. H
Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal	Wing Panel Material All steel expanded metal
Finish Powder coated yellow over galvanized under coat	Finish Powder coated yellow over galvanized under coat	Finish Powder coated yellow over galvanized under coat	Finish Powder coated yellow over galvanized under coat
Recommended Footing Per spec drawing (average soil conditions)	Recommended Footing 36-42 in. deep x 24 in. wide, 6 pcs rebar	Recommended Footing Concrete over crushed stone, per spec drawing	Recommended Footing 42 in. deep x 24 in. wide concrete over stone
Origin Jaypro Sports, Waterford, CT USA	Origin Made in USA	Origin —	Origin —
Ship Weight 200 lbs	Ship Weight 288 lbs	Ship Weight 220 lbs	Ship Weight 314 lbs
Best for Fields needing a 12 ft. foul pole bolted to an existing concrete pad.	Best for Programs wanting a 12 ft. pole set permanently or in an optional ground sleeve.	Best for Collegiate fields needing taller 15 ft. visibility with removable sleeve option.	Best for Stadiums mounting a 15 ft. foul pole on concrete with adjustable leveling.
$2,967.00	$1,999.00	$2,615.00	$3,384.00
Viewing	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

How tall is the BBSBFP-12SM foul pole?

It is 12'-0" overall, with an 18" wide x 6' high wing panel on a 3-1/2" O.D. steel main post.

How is a surface mount foul pole installed?

It bolts to a prepared concrete footing rather than being set into the ground, and an adjustable leveling plate at ground level is used to bring the pole plumb. The footing dimensions on the spec sheet are suggestions for average soil conditions, so local building codes should be consulted.

Where should the foul pole be positioned?

The foul pole panel is aligned with the outfield fence, and the outside of the foul pole is set flush with the outside of the foul line.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
