Jaypro Foul Poles - Professional (20 ft.) - Baseball (Semi-Permanent) (Yellow) Jaypro

Jaypro Foul Poles - Professional (20 ft.) - Baseball (Semi-Permanent) (Yellow)

See more by Jaypro

$5,086.00 - $5,086.00

$5,086.00

$5,086.00 - $5,086.00

$5,086.00

In stock

SKU: BBFP-20

Product Overview

In short

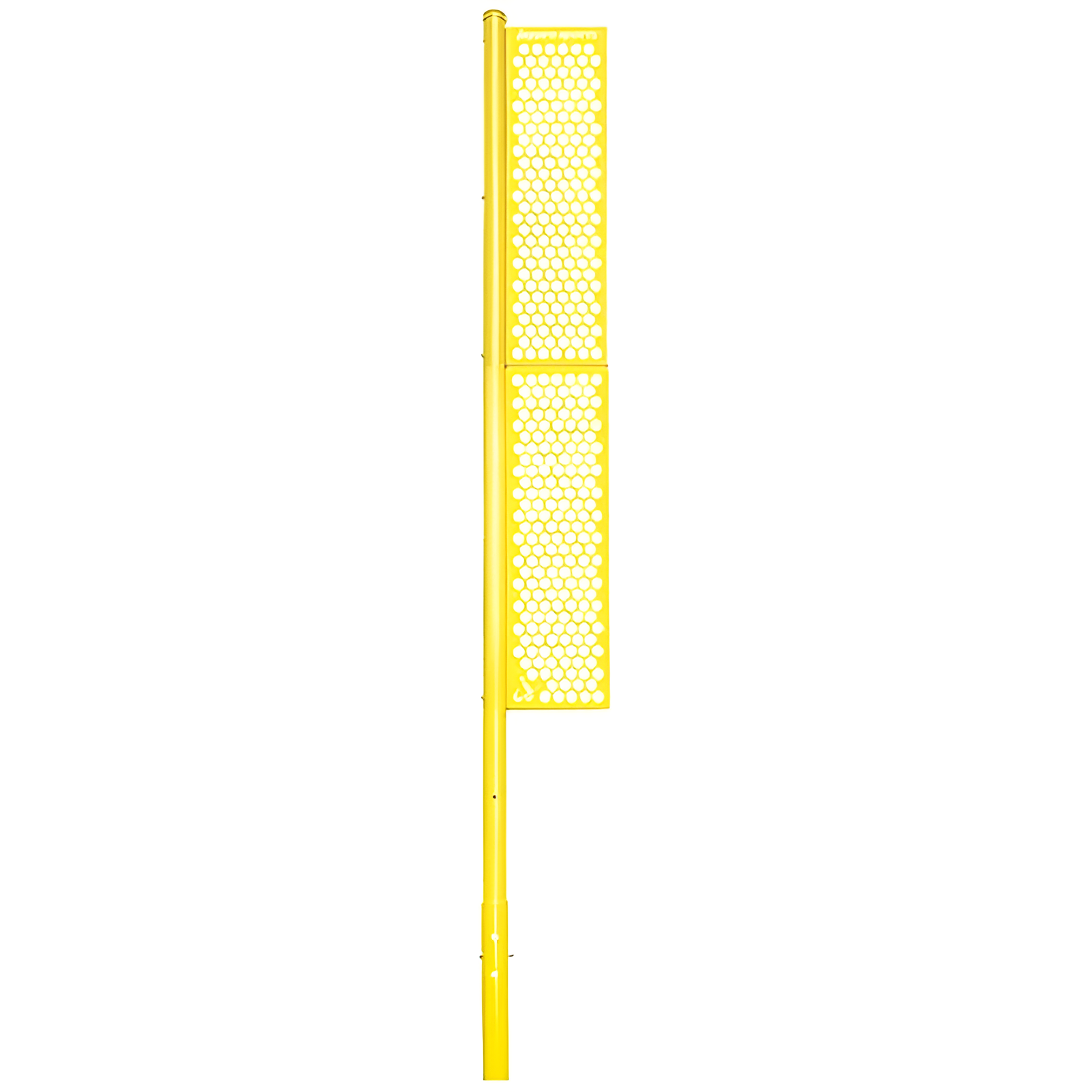

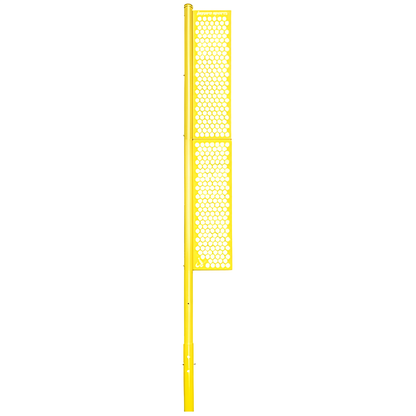

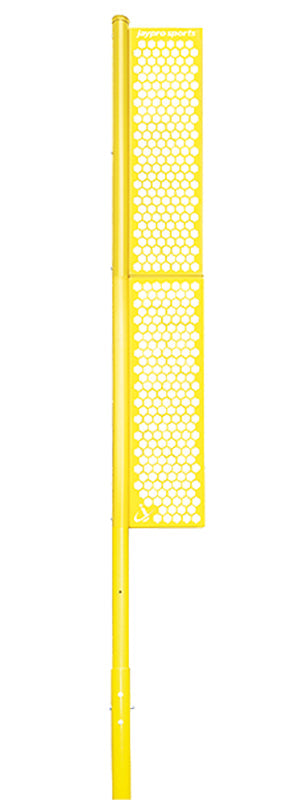

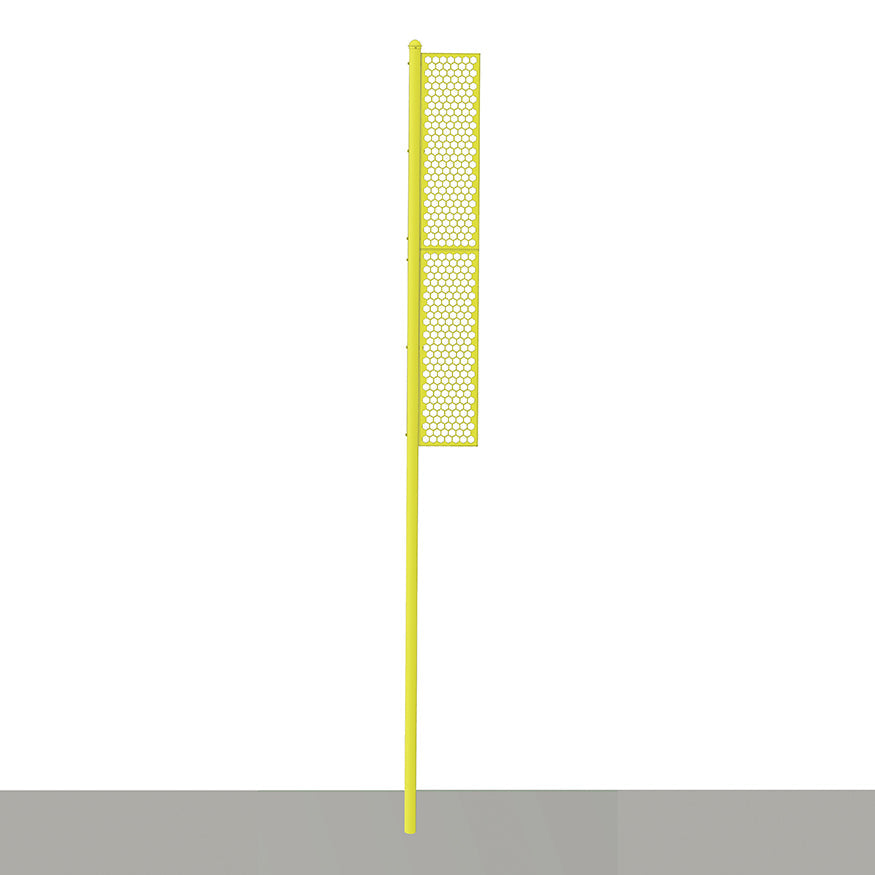

The Jaypro BBFP-20 Professional Foul Pole is a 20 FT, one-piece welded steel construction designed for baseball, finished with tough powder-coated yellow over a zinc undercoating. It features a heavy-duty 3-1/2" steel O.D. Schedule 40 upright and an 18" x 60" x 2" x 11 gauge thick steel sheet metal panel. The pole is designed to withstand winds up to 150 MPH and can be installed semi-permanently or on top of a wall.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The Jaypro BBFP-20 Professional Foul Pole is a heavy-duty, 20 FT, one-piece welded steel construction foul pole designed for baseball. It features a tough powder-coated yellow finish over a zinc undercoating for durability. The foul pole incorporates a heavy-duty 3-1/2" steel O.D. Schedule 40 upright and an 18" W x 60" H x 2" Thick 11 Gauge Steel Sheet Metal panel.

This foul pole is designed to withstand winds up to 150 MPH. It is suitable for semi-permanent installation with a 9'-10" ground sleeve (P/N: FPS-20), or optionally designed to install on top of a wall, while maintaining an overall height of 20 FT above field level. Suggested footing dimensions for average soil conditions, based on 100 MPH wind, include a 48" concrete depth, 57" total depth with a rebar basket, and a 9" diameter opening.

Specifications

Specification	Value
Model	BBFP-20
Overall Height	20 FT above field level
Construction Type	One Piece Welded Steel
Upright Material & Diameter	Heavy Duty 3-1/2" Steel O.D. Schedule 40
Foul Pole Panel Material & Dimensions	Heavy Duty 18" W x 60" H x 2" Thick 11 Gauge Steel Sheet Metal
Finish	Tough Powder Coated Yellow over Zinc Undercoating
Wind Resistance (Pole)	Designed to withstand up to 150 MPH wind
Installation Type	Semi-Permanent (with ground sleeve) or Optional: On top of a wall
Semi-Permanent Ground Sleeve P/N	FPS-20
Semi-Permanent Ground Sleeve Height	9'-10"
Suggested Footing Type	Concrete and Rebar Basket (by others)
Suggested Footing Dimensions (Concrete Depth)	48"
Suggested Footing Dimensions (Total Depth including Rebar Basket)	57"
Suggested Footing Dimensions (Width)	24"
Suggested Footing Opening Diameter	9"
Origin	Made in USA
Ship Weight	430 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

20 ft. Surface Mount	20 ft. In-Ground THIS	30 ft. Surface Mount	30 ft. In-Ground	40 ft. Surface Mount	40 ft. In-Ground
Overall Height 20 ft. (20 ft. 2 in. overall)	Overall Height 20 ft. above field level	Overall Height 30 ft. (29 ft. 10 in. to top of panel)	Overall Height 30 ft.	Overall Height 40 ft.	Overall Height 40 ft. 0 in.
Mounting Type Surface mount, permanent	Mounting Type Semi-permanent (ground sleeve) or wall-top option	Mounting Type Surface mount	Mounting Type Permanent or semi-permanent	Mounting Type Surface mount	Mounting Type Permanent and semi-permanent
Main Pole Construction One-piece welded steel	Main Pole Construction One-piece welded steel	Main Pole Construction 2-piece steel pipe	Main Pole Construction 2-piece steel pipe	Main Pole Construction 2-piece Sch 40 steel pipe	Main Pole Construction 2-piece Sch 40 steel pipe
Main Pole Size 3-1/2 in. O.D. heavy duty steel	Main Pole Size 3-1/2 in. O.D. Sch 40 steel	Main Pole Size 5 in. Sch 40, 5-9/16 in. O.D. steel	Main Pole Size 5 in. Sch 40, 5-9/16 in. O.D. steel	Main Pole Size 6-5/8 in. O.D. Sch 40 steel	Main Pole Size 6-5/8 in. O.D. Sch 40 steel
Wing Panel 18 in. x 60 in. x 2 in., 11 ga. steel sheet metal	Wing Panel 18 in. x 60 in. x 2 in., 11 ga. steel sheet metal	Wing Panel 18 in. x 60 in. x 2 in., 11 ga. perforated steel	Wing Panel 18 in. x 60 in. x 2 in., 11 ga. perforated steel	Wing Panel 18 in. x 60 in. x 2 in., 11 ga. perforated steel	Wing Panel 18 in. x 60 in. x 2 in., 11 ga. perforated steel
Finish Powder coated yellow over zinc undercoating	Finish Powder coated yellow over zinc undercoating	Finish Powder coated yellow over zinc-rich primer	Finish Powder coated yellow over zinc-rich primer	Finish Powder coated yellow over zinc-rich primer	Finish Powder coated yellow over zinc-rich primer
Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 150 MPH	Wind Rating Up to 130 MPH	Wind Rating Up to 130 MPH
Installation Hardware Adjustable leveling plate	Installation Hardware Ground sleeve FPS-20, 9 ft. 10 in. tall	Installation Hardware Adjustable leveling plate	Installation Hardware Ground sleeve FPS-30P; anti-rotation hardware	Installation Hardware Adjustable leveling plate	Installation Hardware Ground sleeve FPS-40; anti-rotation hardware
Suggested Footing —	Suggested Footing 24 in. wide x 48 in. concrete (57 in. with rebar)	Suggested Footing —	Suggested Footing —	Suggested Footing 54 in. wide x 72 in. deep (at 90 MPH)	Suggested Footing 54 in. dia. x 72 in. deep concrete (at 90 MPH)
Origin —	Origin Made in USA	Origin —	Origin Made in USA	Origin Made in USA	Origin —
Ship Weight 570 lbs	Ship Weight 430 lbs	Ship Weight 1320 lbs	Ship Weight 1342 lbs	Ship Weight 2070 lbs	Ship Weight 1490 lbs
Best for Youth and high school fields bolting poles to an existing concrete pad or wall.	Best for Schools and parks wanting a removable in-ground sleeve installation at 20 ft.	Best for Varsity and college fields needing added height on a surface-mounted footing.	Best for Programs wanting a 30 ft. pole set in a ground sleeve with anti-rotation hardware.	Best for Collegiate and pro ballparks needing maximum height on a surface-mount base.	Best for Pro-level fields installing a 40 ft. pole in a semi-permanent ground sleeve.
$6,932.00	$5,086.00	$12,607.00	$11,340.00	$21,012.00	$17,270.00
Check ›	Viewing	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What is the construction material and finish of the foul pole?

The foul pole features one-piece welded steel construction with a tough powder-coated yellow finish over a zinc undercoating.

What is the wind resistance capacity of the foul pole?

The foul pole is designed to withstand winds up to 150 MPH.

What are the dimensions of the foul pole's panel?

The foul pole panel is a heavy duty 18" W x 60" H x 2" Thick 11 Gauge Steel Sheet Metal.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
