Product Overview

In short

The Newstripe 4600 SP is a self-propelled, walk-behind airless striping machine built for athletic field and pavement/floor striping. It runs a high-pressure airless spray pump (0-3000 psi, 0.44 gpm) powered by a Briggs & Stratton XR 550 engine, with a Honda GX 120 upgrade option. It suits crews needing a self-propelled machine with a 5-gallon paint capacity for continuous line striping work.

✓ Authorized Newstripe Dealer — ships brand-new with the full factory warranty

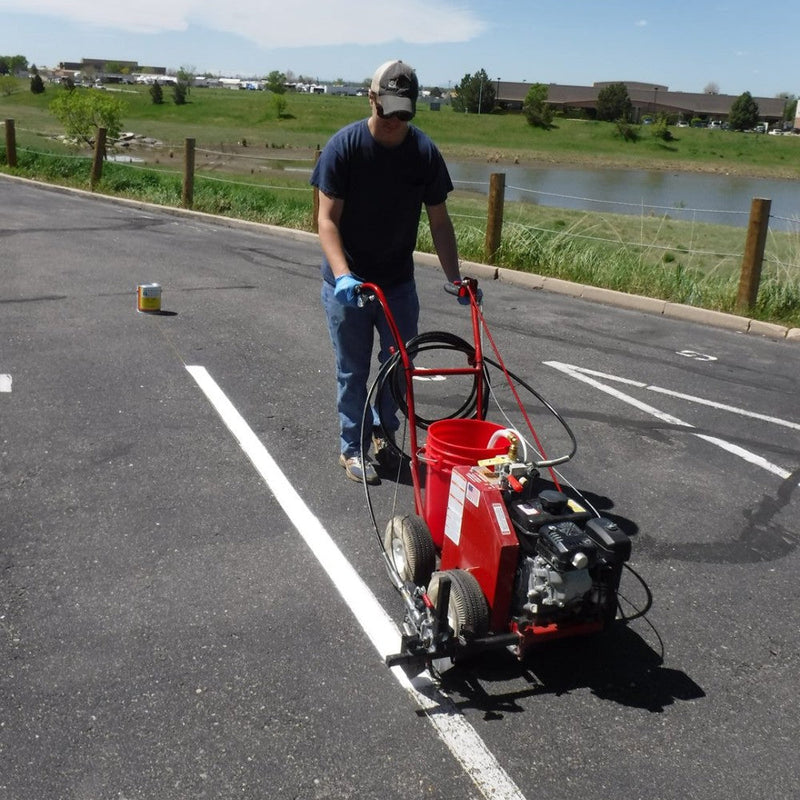

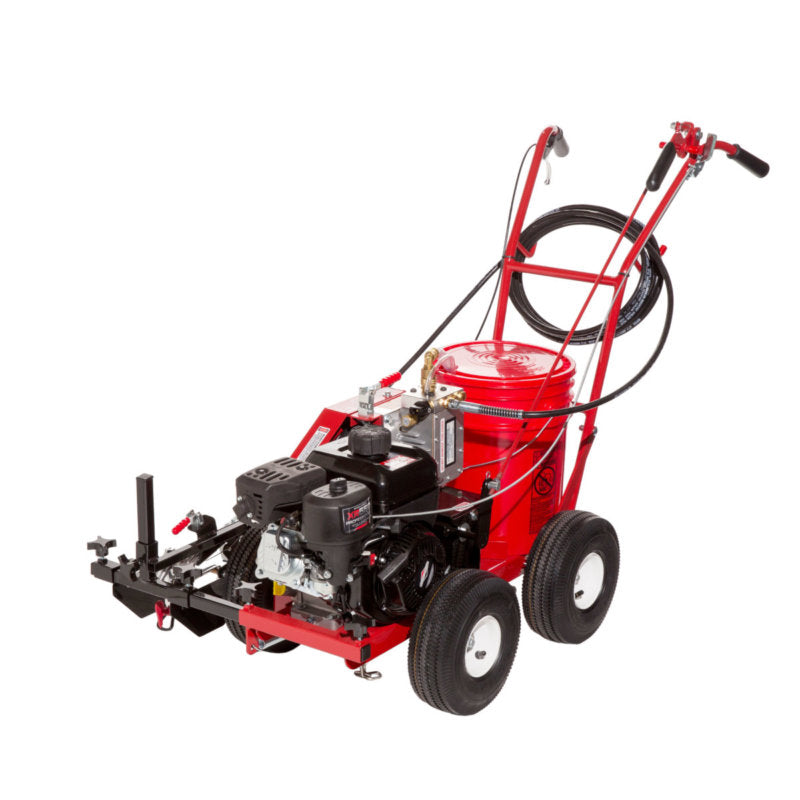

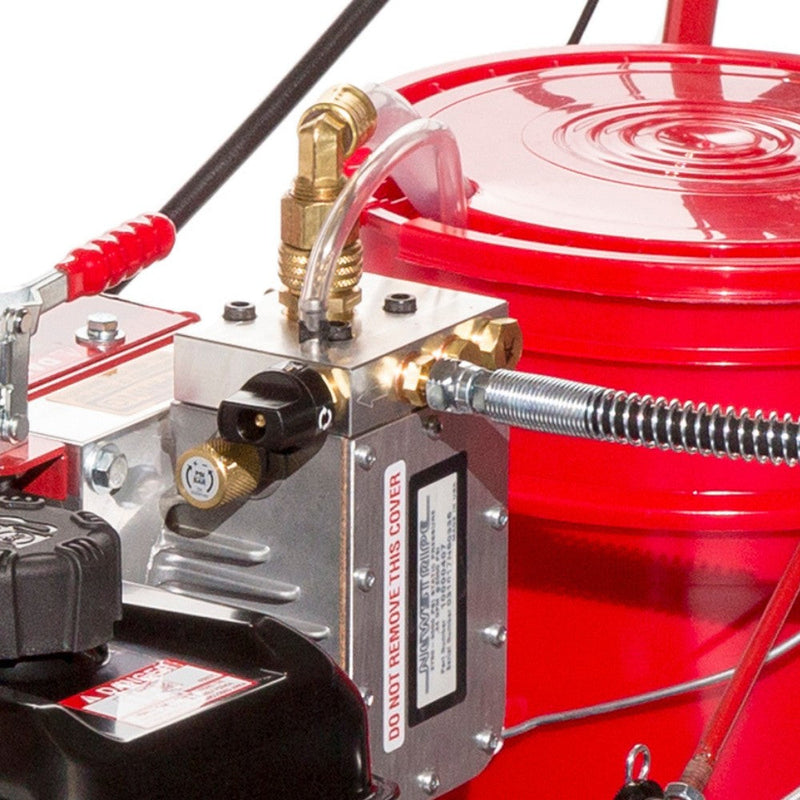

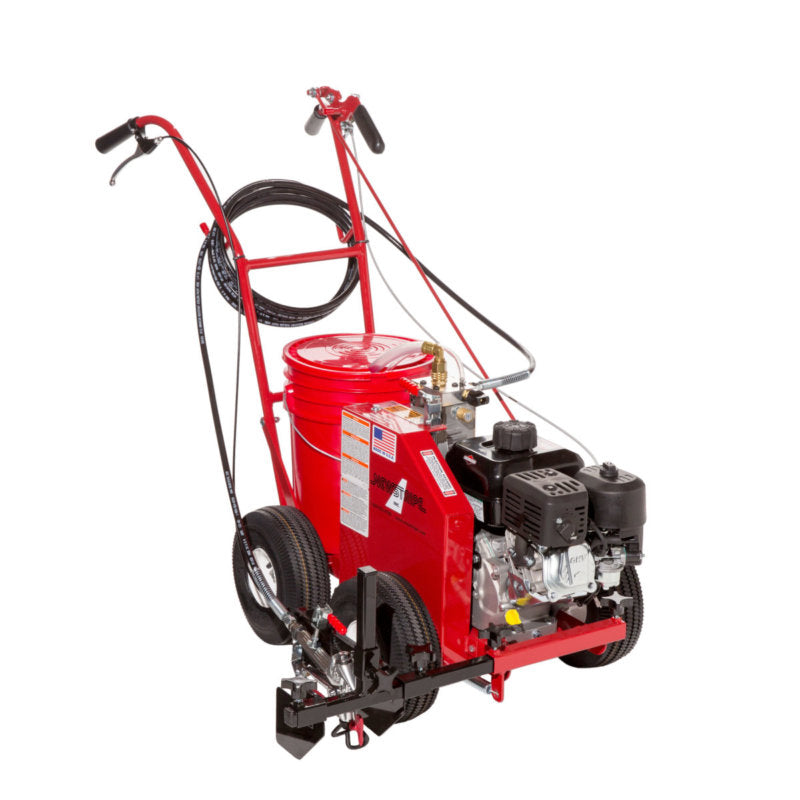

The 4600 SP is a self-propelled walk-behind airless striper designed for athletic field striping as well as pavement and floor striping applications. Its high-pressure airless spray pump operates at 0-3000 psi with a 0.44 gpm flow rate, delivering consistent paint output without the need for compressed air.

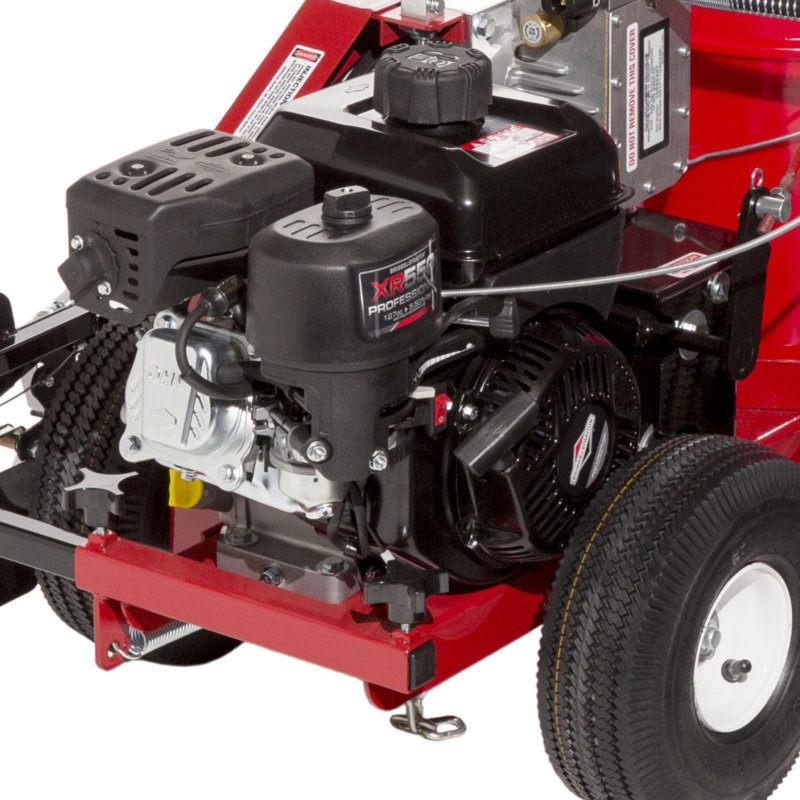

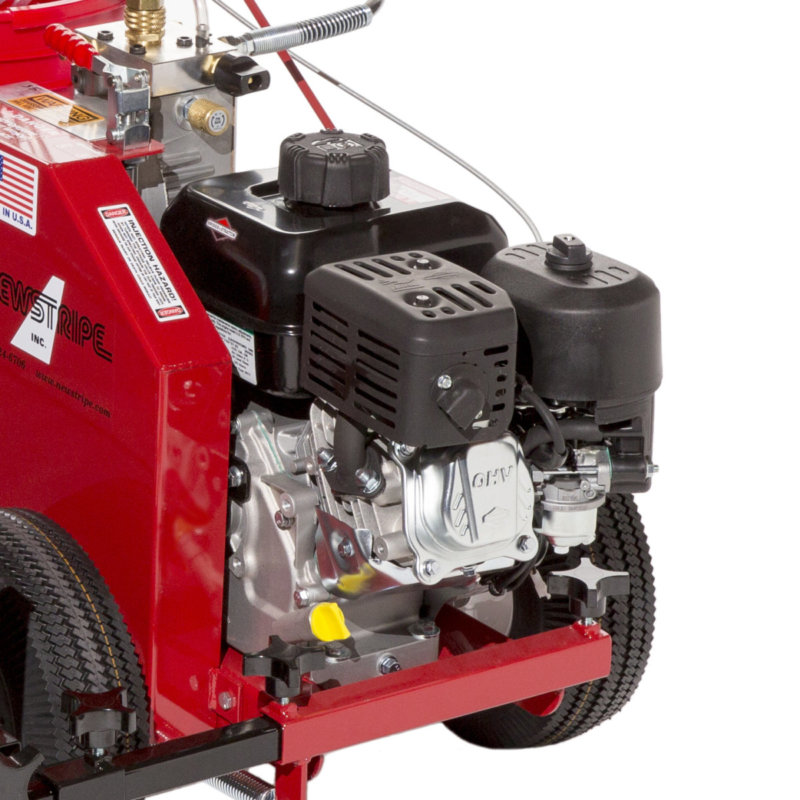

The machine comes standard with a Briggs & Stratton XR 550 engine, with a Honda GX 120 engine available as an upgrade option. It holds a 5-gallon paint capacity and rolls on 10-inch pneumatic wheels for maneuverability across fields and lots. The unit measures 54" L x 32" W x 38.5" H and weighs 145 lbs.

Proudly made in the USA, the 4600 SP is backed by a 36-month warranty. Newstripe lists a 4-business-day lead time for this model, and product manuals along with a cleaning guide for airless walk-behind stripers are available for download.

Specifications

Specification	Value
Engine	Briggs & Stratton XR 550 (Honda GX 120 upgrade available)
Application	Athletic Field Striping, Pavement & Floor Striping
Spray Pump	High Pressure Airless (0-3000 psi, 0.44 gpm)
Propulsion	Self Propelled Walk Behind
Paint Capacity	5 Gallon
Wheels	10" Pneumatic
Dimensions	54" L x 32" W x 38.5" H
Weight	145 lbs
Origin	Proudly Made in the USA
Warranty	36 Months

Compare Newstripe models

4250	4400	4400 CARB	4600 SP THIS
Engine Briggs & Stratton EX 550	Engine Honda GX 120 (upgrade)	Engine Honda GX 120	Engine Briggs & Stratton XR 550 (Honda GX 120 optional)
Spray Pump High pressure airless, 0-3000 psi, 0.34 gpm	Spray Pump High pressure airless, 0-3000 psi, 0.44 gpm	Spray Pump High pressure airless, 0-3000 psi, 0.44 gpm	Spray Pump High pressure airless, 0-3000 psi, 0.44 gpm
Propulsion Walk behind	Propulsion Walk behind	Propulsion Walk behind	Propulsion Self-propelled walk behind
Paint Capacity 5 gallon	Paint Capacity —	Paint Capacity —	Paint Capacity 5 gallon
Wheels 10 in. pneumatic	Wheels —	Wheels —	Wheels 10 in. pneumatic
Dimensions 53 in. L x 29 in. W x 36.5 in. H	Dimensions 53 in. L x 32 in. W x 37 in. H	Dimensions 53 in. L x 32 in. W x 37 in. H	Dimensions 54 in. L x 32 in. W x 38.5 in. H
Machine Weight 105 lbs	Machine Weight 125 lbs	Machine Weight 125 lbs	Machine Weight 145 lbs
Part Number 10003947	Part Number 10005123	Part Number 10005123C (California compliant)	Part Number —
Application Athletic field, pavement & floor striping	Application Athletic field, pavement & floor striping	Application Athletic field, pavement & floor striping	Application Athletic field, pavement & floor striping
Warranty 24 months	Warranty 36 months	Warranty 36 months	Warranty 36 months
Ship Weight 120 lbs	Ship Weight 170 lbs	Ship Weight 170 lbs	Ship Weight 145 lbs
Best for Schools and parks crews needing an entry-level airless striper for occasional field layout.	Best for Grounds crews wanting higher output and a longer warranty for regular field and pavement work.	Best for Buyers in California or other states requiring an emissions-compliant Honda-powered striper.	Best for High-volume operators striping large fields and lots who want self-propelled walking ease.
$3,195.00	$4,153.00	$4,353.00	$5,228.00
Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

36 Month Warranty

Every Newstripe product is covered by the manufacturer's warranty. Newstripe publishes warranty periods per product line — this model carries the period noted above. The manufacturer's schedule (updated 2023-12-07) is:

Lifetime - PolyTough™ 1/8" stencils (all) and ProLine Field Layout Kits.
36 months - 4400 and 4600 Airless Field Stripers, LineRider UTV-mounted airless stripers, NewLiner Heavy Duty dry line markers, NewRider airless riding stripers, SafeMark field layout systems.
24 months - 4250 Airless Field Striping Machine and EcoLiner field striping machines.
18 months - AeroVent aerosol can disposal systems, BigSqueeze can & pail crusher, DirtDoctor, DirtMedic, DirtKing and DragLite infield equipment, FieldLiner 3, GoalEze side-mount spray gun, HashMark Master painters, NewLiner Dry Line Marker 25 lb, PackMaster compactors, RollMaster line painting machines.
12 months - HashMark Master Paint & Go.

Returns: equipment and unused standard stencils may be returned within 30 days in like-new condition (15% restocking fee, waived on exchange for equal or greater value). Parts and custom stencils are not returnable; a wrong part may be exchanged within 30 days if new and uninstalled. Paint is not returnable, but a wrong paint order may be exchanged within 10 days if unopened.

For coverage details of a specific product, see the Product Manual supplied with it. Source: Newstripe, Inc. — Returns & Warranties (updated 2023-12-07).

Frequently asked questions

What engine options are available for the 4600 SP?

It comes standard with a Briggs & Stratton XR 550 engine, with a Honda GX 120 engine available as an upgrade.

What is the paint capacity and spray pressure of the 4600 SP?

It has a 5-gallon paint capacity and a high-pressure airless spray pump rated at 0-3000 psi with a 0.44 gpm flow rate.

What is the lead time for this machine?

The listed lead time is 4 business days.

Is JoySportStore an authorized Newstripe dealer?

Yes. JoySportStore is an authorized Newstripe dealer, so every machine ships brand-new from the factory in Aurora, Colorado with the full Newstripe warranty and factory-backed support.
