Newstripe EcoLiner SP Self-Propelled Field Striping Machine Newstripe

Newstripe EcoLiner SP Self-Propelled Field Striping Machine

See more by Newstripe

$3,869.00 - $3,969.00

$3,869.00

$3,869.00 - $3,969.00

$3,869.00

In stock

SKU: 10004621

Quantity

Product Overview

In short

The Newstripe EcoLiner SP is a self-propelled walk-behind field striping machine designed for athletic field striping. It runs a low pressure (1.8 gpm) spray pump with a 5-gallon paint capacity, powered by a Briggs & Stratton XR 550 engine (Honda GX 120 upgrade available), and rolls on 10" pneumatic wheels for use on athletic fields.

✓ Authorized Newstripe Dealer — ships brand-new with the full factory warranty

The EcoLiner SP is a self-propelled walk-behind striping machine built for athletic field striping applications. It uses a low pressure spray pump rated at 1.8 gpm paired with a 5-gallon paint capacity tank, allowing operators to cover field lines without manual pushing effort thanks to the self-propelled drive.

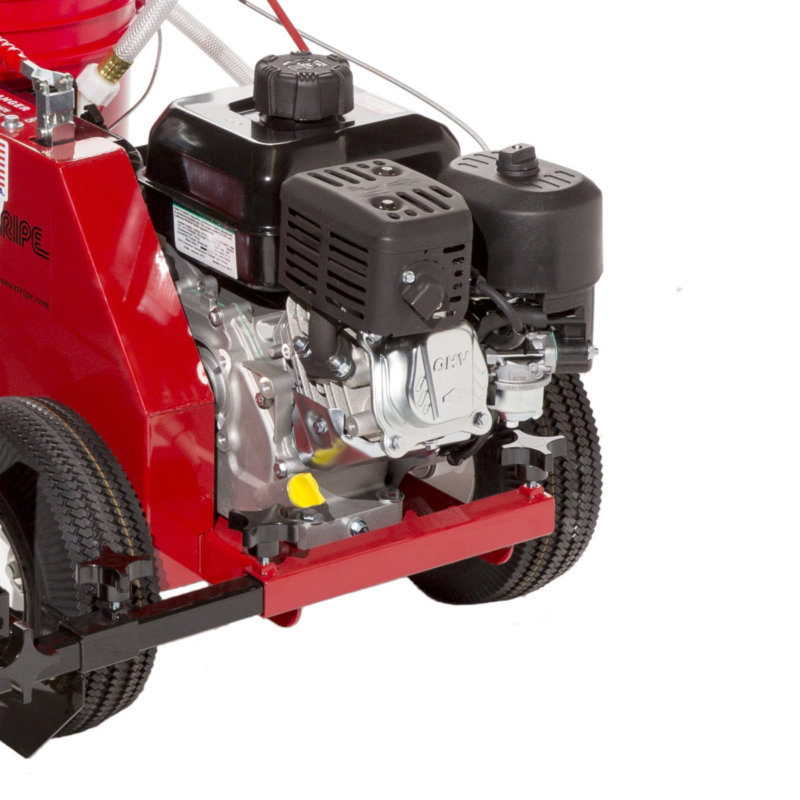

Power comes from a Briggs & Stratton XR 550 engine as standard, with a Honda GX 120 engine available as an upgrade option. The unit rolls on 10" pneumatic wheels and measures 53" L x 32" W x 39" H, weighing 125 lbs (170 lbs shipping weight in its 57" L x 25" W x 44" H shipping dimensions).

The EcoLiner SP is proudly made in the USA and backed by a 24 Month Warranty. Newstripe lists a lead time of 4 Business Days for this model.

Specifications

Specification	Value
Application	Athletic Field Striping
Propulsion	Self Propelled Walk Behind
Engine	Briggs & Stratton XR 550, Honda GX 120 (upgrade)
Spray Pump	Low Pressure (1.8 gpm)
Paint Capacity	5 Gallon
Wheels	10" Pneumatic
Dimensions	53" L x 32" W x 39" H
Dimensions (Ship)	57" L x 25" W x 44" H
Weight	125 lbs
Weight (Ship)	170 lbs
Origin	Proudly Made in the USA
Warranty	24 Months

Compare Newstripe models

Standard Battery	Plus Battery	LT Gas	SP Self-Propelled THIS
Power Source Electric / 12V 18ah AGM battery	Power Source Electric / 12V 18ah AGM battery	Power Source Briggs & Stratton EX 550 gas engine	Power Source Briggs & Stratton XR 550; Honda GX 120 upgrade
Propulsion Walk behind	Propulsion Walk behind	Propulsion Walk behind	Propulsion Self-propelled walk behind
Spray Pump Low pressure, 1.8 gpm	Spray Pump Low pressure, 1.8 gpm	Spray Pump Low pressure, 1.8 gpm	Spray Pump Low pressure, 1.8 gpm
Paint Capacity 5 gallon	Paint Capacity 5 gallon	Paint Capacity 5 gallon	Paint Capacity 5 gallon
Wheels 10 in. flat free	Wheels 10 in. flat free	Wheels 10 in. flat free	Wheels 10 in. pneumatic
Assembled Dimensions 46" L x 21.25" W x 37" H	Assembled Dimensions 46" L x 21.25" W x 37" H	Assembled Dimensions —	Assembled Dimensions 53" L x 32" W x 39" H
Machine Weight —	Machine Weight —	Machine Weight 82 lbs	Machine Weight 125 lbs
Application Athletic field striping	Application Athletic field striping	Application Athletic field striping	Application Athletic field striping
Part Number 10004483	Part Number 10004484	Part Number 10005159	Part Number —
Warranty & Origin 24 months; proudly made in the USA	Warranty & Origin 24 months; proudly made in the USA	Warranty & Origin 24 months; proudly made in the USA	Warranty & Origin 24 months; proudly made in the USA
Ship Weight 64 lbs	Ship Weight 63 lbs	Ship Weight 125 lbs	Ship Weight 170 lbs
Best for Schools wanting quiet, emission-free striping for a few fields.	Best for Crews needing upgraded battery-powered striping with added features.	Best for Grounds crews wanting a lightweight gas striper for all-day use.	Best for High-volume districts striping many fields with less operator fatigue.
$1,601.00	$1,952.00	$2,668.00	$3,869.00
Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

24 Month Warranty

Every Newstripe product is covered by the manufacturer's warranty. Newstripe publishes warranty periods per product line — this model carries the period noted above. The manufacturer's schedule (updated 2023-12-07) is:

Lifetime - PolyTough™ 1/8" stencils (all) and ProLine Field Layout Kits.
36 months - 4400 and 4600 Airless Field Stripers, LineRider UTV-mounted airless stripers, NewLiner Heavy Duty dry line markers, NewRider airless riding stripers, SafeMark field layout systems.
24 months - 4250 Airless Field Striping Machine and EcoLiner field striping machines.
18 months - AeroVent aerosol can disposal systems, BigSqueeze can & pail crusher, DirtDoctor, DirtMedic, DirtKing and DragLite infield equipment, FieldLiner 3, GoalEze side-mount spray gun, HashMark Master painters, NewLiner Dry Line Marker 25 lb, PackMaster compactors, RollMaster line painting machines.
12 months - HashMark Master Paint & Go.

Returns: equipment and unused standard stencils may be returned within 30 days in like-new condition (15% restocking fee, waived on exchange for equal or greater value). Parts and custom stencils are not returnable; a wrong part may be exchanged within 30 days if new and uninstalled. Paint is not returnable, but a wrong paint order may be exchanged within 10 days if unopened.

For coverage details of a specific product, see the Product Manual supplied with it. Source: Newstripe, Inc. — Returns & Warranties (updated 2023-12-07).

Frequently asked questions

What is the paint capacity of the EcoLiner SP?

The EcoLiner SP has a 5 Gallon paint capacity.

What engine options are available?

It comes standard with a Briggs & Stratton XR 550 engine, with a Honda GX 120 engine available as an upgrade.

Is the EcoLiner SP self-propelled?

Yes, it is a self-propelled walk-behind striping machine, rolling on 10" pneumatic wheels.

Is JoySportStore an authorized Newstripe dealer?

Yes. JoySportStore is an authorized Newstripe dealer, so every machine ships brand-new from the factory in Aurora, Colorado with the full Newstripe warranty and factory-backed support.
