Newstripe PackMaster Air Powered Compactor Newstripe

Newstripe PackMaster Air Powered Compactor

See more by Newstripe

$6,743.00 - $6,743.00

$6,743.00

$6,743.00 - $6,743.00

$6,743.00

In stock

SKU: 10001259

Product Overview

In short

The PackMaster Air Powered Compactor is an air-driven waste compaction unit designed for 55-gallon drums, with a 30-gallon option available using an optional ram plate. It delivers 3500 lbs of compaction force at 125 psi, completing a compaction cycle in 30 seconds, and is built for facilities needing efficient drum waste reduction. It runs on a minimum of 100 psi air supply and is made in the USA.

✓ Authorized Newstripe Dealer — ships brand-new with the full factory warranty

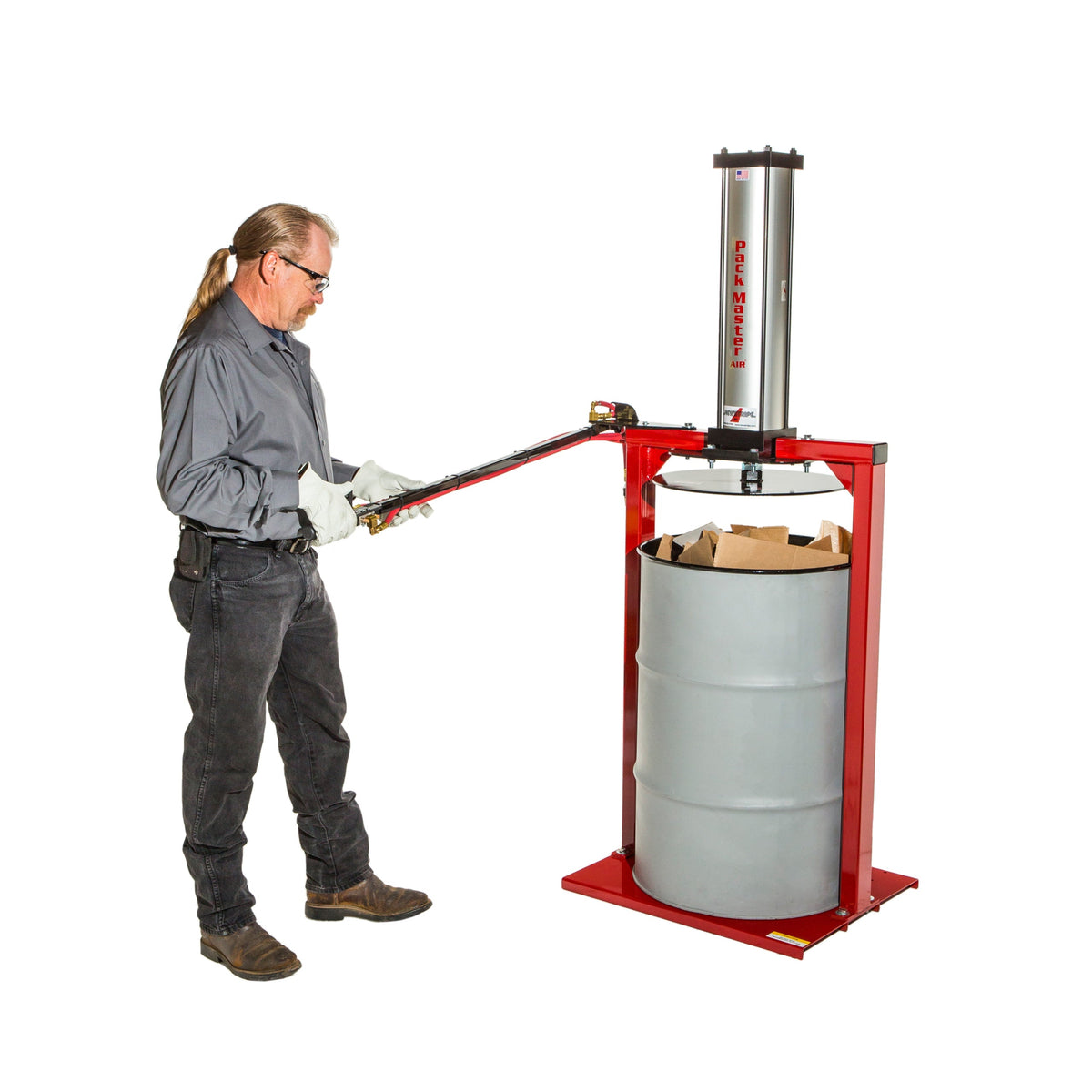

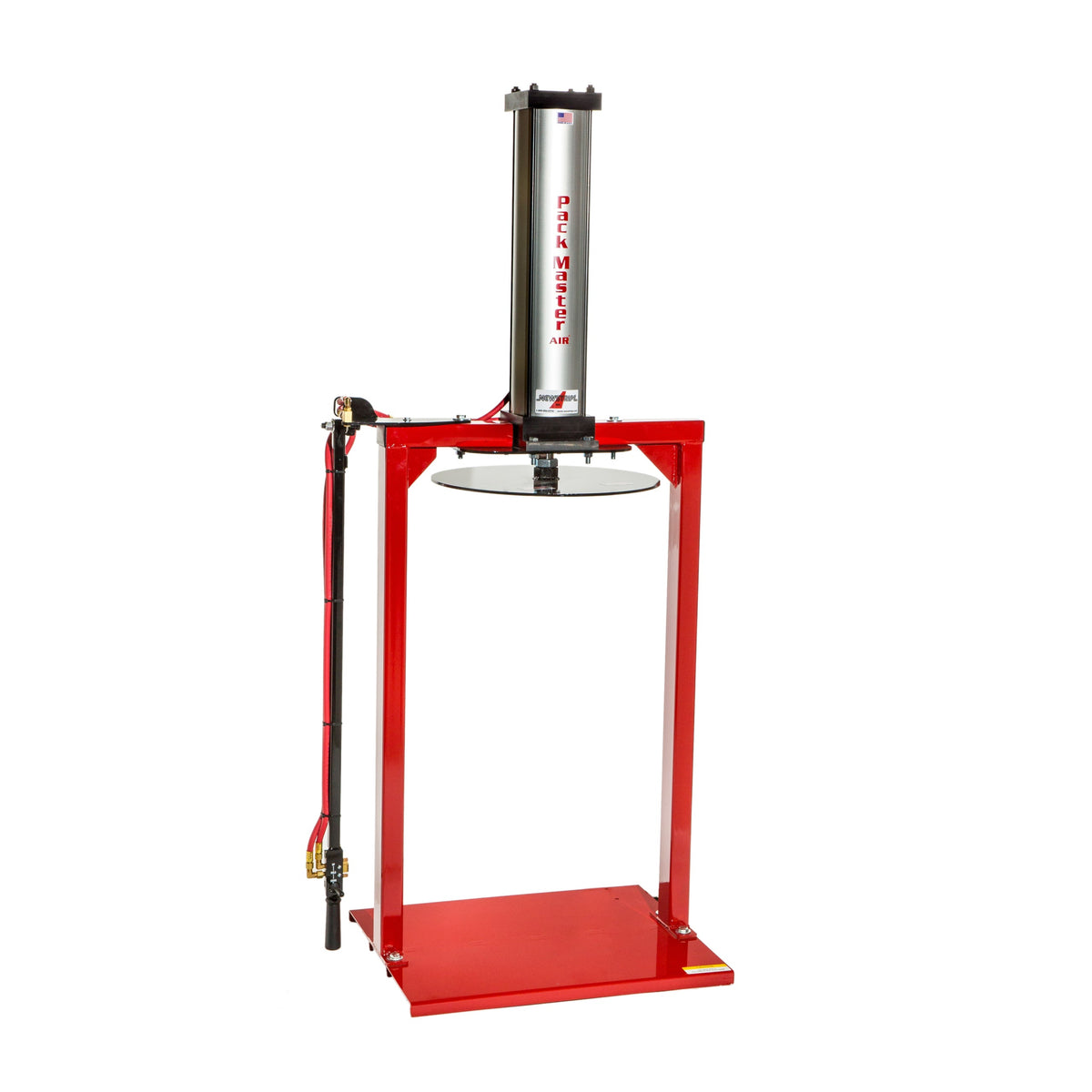

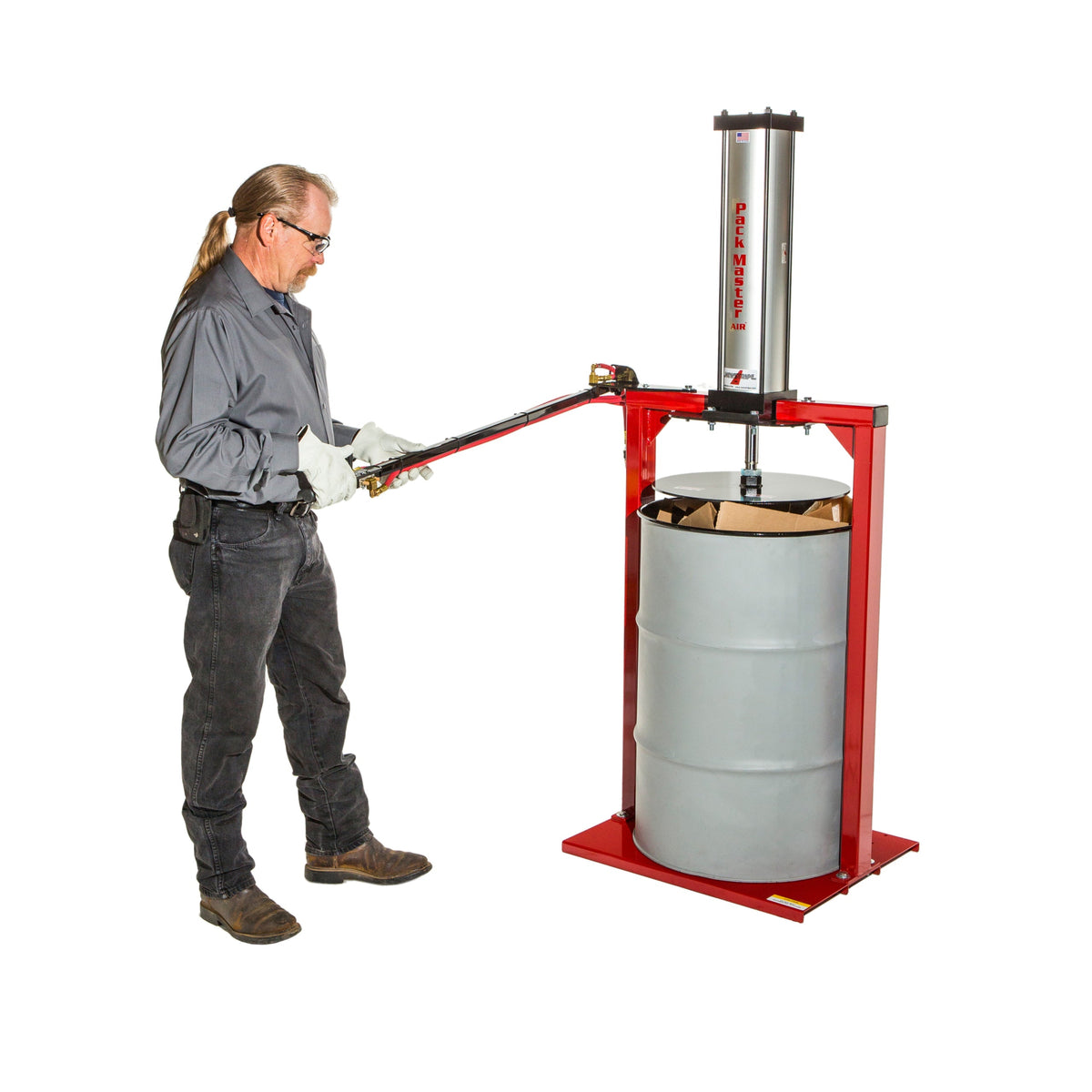

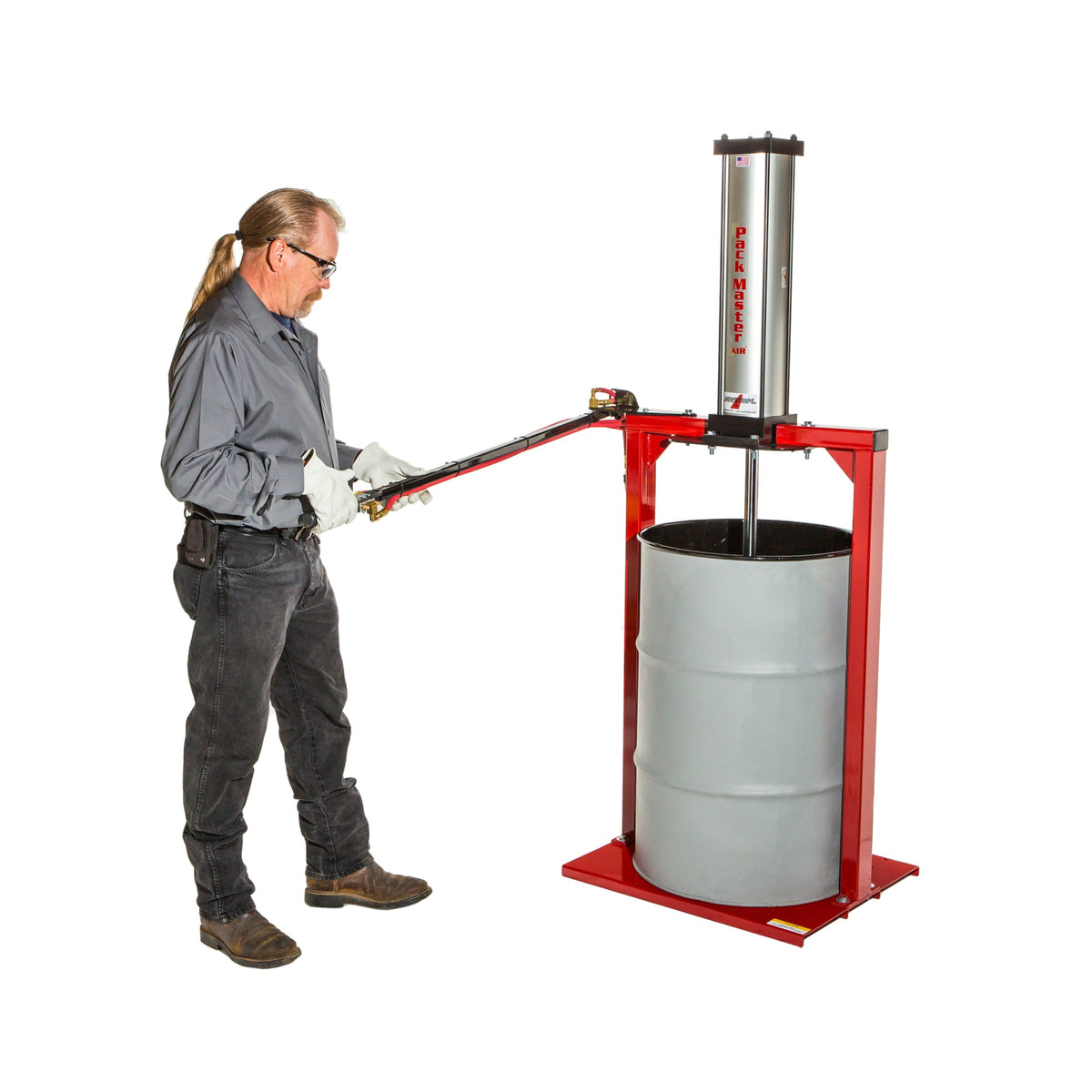

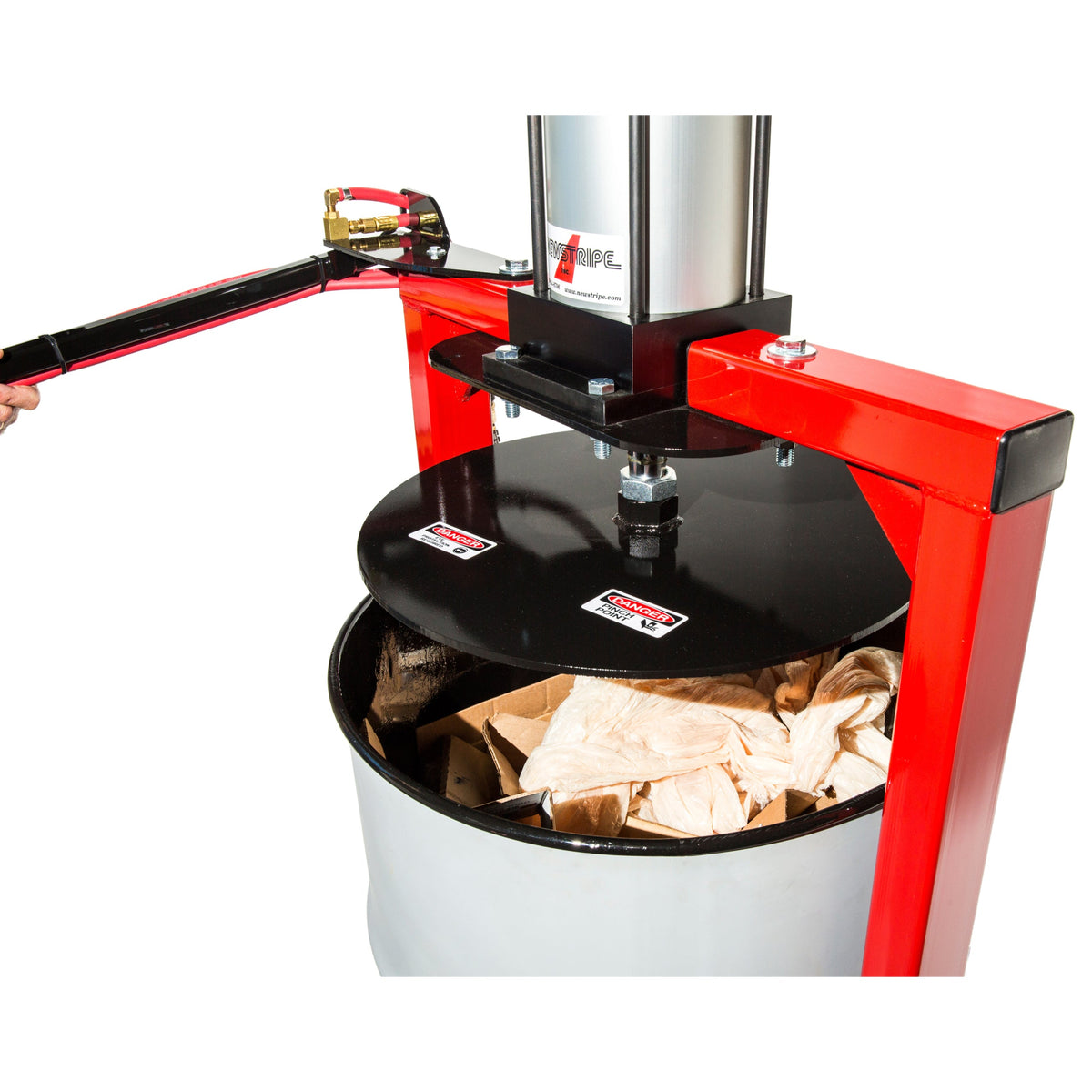

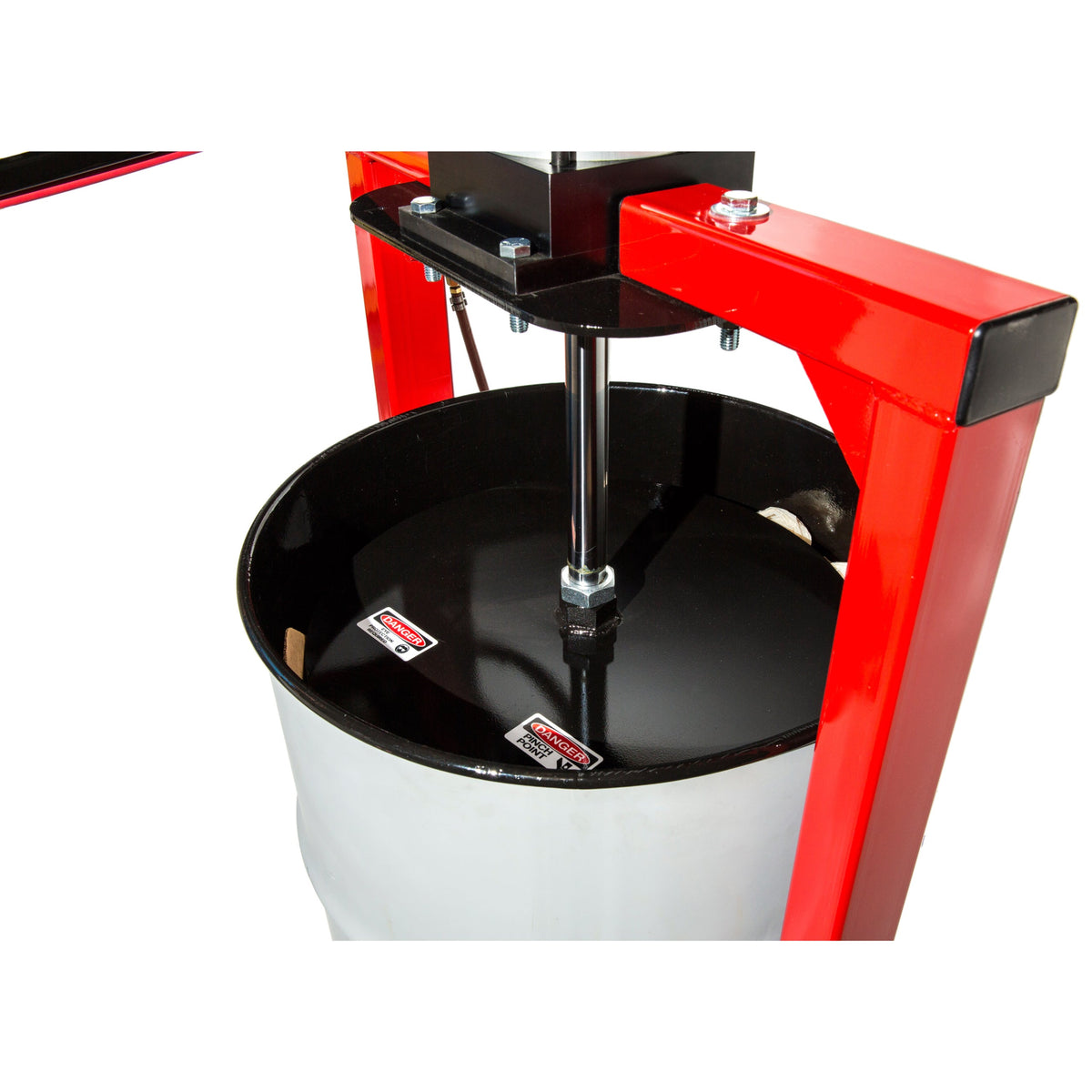

The PackMaster Air Powered Compactor is designed for waste compaction applications, using air power (minimum 100 psi) to drive its ram mechanism. It comes standard with a 20-inch ram plate compatible with 55-gallon drums, and can be configured for 30-gallon drums using an optional 17-inch ram plate.

The unit generates up to 3500 lbs of compaction force at 125 psi and completes each compaction cycle in approximately 30 seconds, making it suitable for facilities that need to regularly reduce waste volume. It measures 36" L x 24" W x 76" H and weighs 190 lbs, with shipping dimensions of 48" L x 25" W x 18" H and a shipping weight of 210 lbs.

Proudly made in the USA, the PackMaster is backed by an 18 Month Warranty and ships within 7 business days, with free shipping available within the contiguous U.S.

Specifications

Specification	Value
Part #	10001259
Application	Waste Compaction
Power Source	Air Powered (100 psi min.)
55-Gallon Drum Compatible	Yes with Included 20" Ram Plate
30-Gallon Drum Compatible	Yes with Optional 17" Ram Plate
Compaction Force	3500 lbs at 125 psi
Compaction Time	30 Seconds
Origin	Proudly Made in the USA
Dimensions	36" L x 24" W x 76" H
Dimensions (Ship)	48" L x 25" W x 18" H
Weight	190 lbs
Weight (Ship)	210 lbs

Compare Newstripe models

Manual	Air Powered THIS	Spark Resistant
Power Source Manual powered	Power Source Air powered (100 psi min.)	Power Source Air powered (100 psi min.)
Compaction Force 4000 lbs	Compaction Force 3500 lbs at 125 psi	Compaction Force 3500 lbs at 125 psi
Compaction Cycle Time Operator determined	Compaction Cycle Time 30 seconds	Compaction Cycle Time 30 seconds
Spark Resistant —	Spark Resistant —	Spark Resistant Yes
Safety Features —	Safety Features —	Safety Features Two-handed safety lever
Use Restrictions No sealed containers, glass, or volatile-vapor cans	Use Restrictions —	Use Restrictions —
55-Gallon Drum Compatibility Yes, with included 20" ram plate	55-Gallon Drum Compatibility Yes, with included 20" ram plate	55-Gallon Drum Compatibility Yes, with included 20" ram plate
30-Gallon Drum Compatibility Yes, with optional 17" ram plate	30-Gallon Drum Compatibility Yes, with optional 17" ram plate	30-Gallon Drum Compatibility Yes, with optional 17" ram plate
Assembled Dimensions 29" L x 27" W x 90" H	Assembled Dimensions 36" L x 24" W x 76" H	Assembled Dimensions 36" L x 24" W x 76" H
Warranty —	Warranty —	Warranty 18 months
Ship Weight 165 lbs	Ship Weight 210 lbs	Ship Weight 230 lbs
Best for Facilities without shop air that need low-cost drum compaction.	Best for Crews compacting waste drums fast on a 100 psi air line.	Best for Operations compacting waste where spark-resistant equipment is required.
$1,674.00	$6,743.00	$8,514.00
Check ›	Viewing	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

18 Month Warranty

Every Newstripe product is covered by the manufacturer's warranty. Newstripe publishes warranty periods per product line — this model carries the period noted above. The manufacturer's schedule (updated 2023-12-07) is:

Lifetime - PolyTough™ 1/8" stencils (all) and ProLine Field Layout Kits.
36 months - 4400 and 4600 Airless Field Stripers, LineRider UTV-mounted airless stripers, NewLiner Heavy Duty dry line markers, NewRider airless riding stripers, SafeMark field layout systems.
24 months - 4250 Airless Field Striping Machine and EcoLiner field striping machines.
18 months - AeroVent aerosol can disposal systems, BigSqueeze can & pail crusher, DirtDoctor, DirtMedic, DirtKing and DragLite infield equipment, FieldLiner 3, GoalEze side-mount spray gun, HashMark Master painters, NewLiner Dry Line Marker 25 lb, PackMaster compactors, RollMaster line painting machines.
12 months - HashMark Master Paint & Go.

Returns: equipment and unused standard stencils may be returned within 30 days in like-new condition (15% restocking fee, waived on exchange for equal or greater value). Parts and custom stencils are not returnable; a wrong part may be exchanged within 30 days if new and uninstalled. Paint is not returnable, but a wrong paint order may be exchanged within 10 days if unopened.

For coverage details of a specific product, see the Product Manual supplied with it. Source: Newstripe, Inc. — Returns & Warranties (updated 2023-12-07).

Frequently asked questions

What size drums does the PackMaster compact?

The PackMaster comes with a 20" ram plate for 55-gallon drums, and can also compact 30-gallon drums using an optional 17" ram plate.

What air pressure is required to operate the PackMaster?

The PackMaster requires a minimum of 100 psi air supply and reaches its maximum compaction force of 3500 lbs at 125 psi.

How long does each compaction cycle take?

Each compaction cycle takes approximately 30 seconds.

Is JoySportStore an authorized Newstripe dealer?

Yes. JoySportStore is an authorized Newstripe dealer, so every machine ships brand-new from the factory in Aurora, Colorado with the full Newstripe warranty and factory-backed support.
