Product Overview

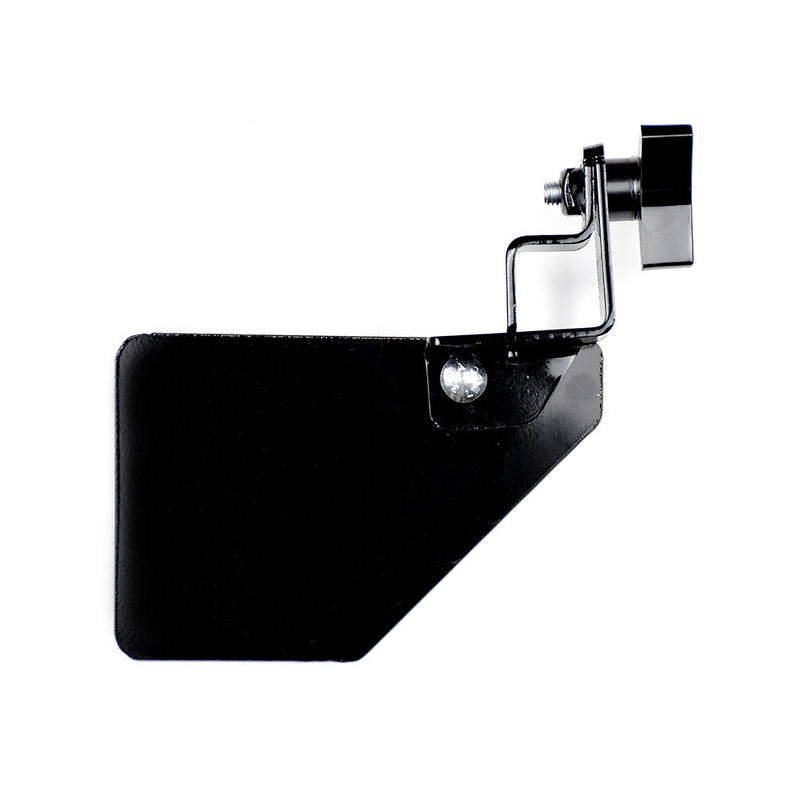

Newstripe Pivot Assembly with Left Shield for Precise Line Control
Maintaining a professional-grade field or pavement striper requires high-quality replacement parts that integrate seamlessly with your existing equipment. The Newstripe Pivot Assembly with Left Shield is engineered specifically for the 4400 and 4600 SP Airless Stripers, as well as the EcoLiner LT and SP series. This assembly serves as a critical component in your machine's spray system, providing the structural integrity needed for consistent, straight lines during high-volume marking tasks. The integrated left shield acts as a physical barrier against wind and drift, ensuring that paint lands exactly where intended without messy overspray or blurred edges. By replacing a worn or damaged pivot, you restore the fluid motion of the spray head, which reduces operator fatigue and prevents mechanical binding during long shifts. Whether you are refreshing athletic fields or marking parking lots, this genuine replacement part ensures your equipment operates at its original factory specifications. Investing in this durable assembly minimizes downtime and helps you achieve the sharp, professional results your clients expect from Newstripe machinery.
Specs at a Glance:
- SKU: 10004824
- Compatible Models: 4400 & 4600 SP Airless Stripers
- Compatible Models: EcoLiner LT & SP Stripers
- Component Type: Pivot Assembly
- Shield Orientation: Left Side
- Manufacturer: Newstripe
Specifications
| Specification | Value |
|---|---|
| Part # | 10004824 |
| Category | Replacement Parts |
| Sold as | Replacement part / accessory |
