Gared Electric Curtain Hoist

See more by Gared

$708.00 - $708.00

$708.00

$708.00 - $708.00

$708.00

In stock

SKU: 4002

Product Overview

In short

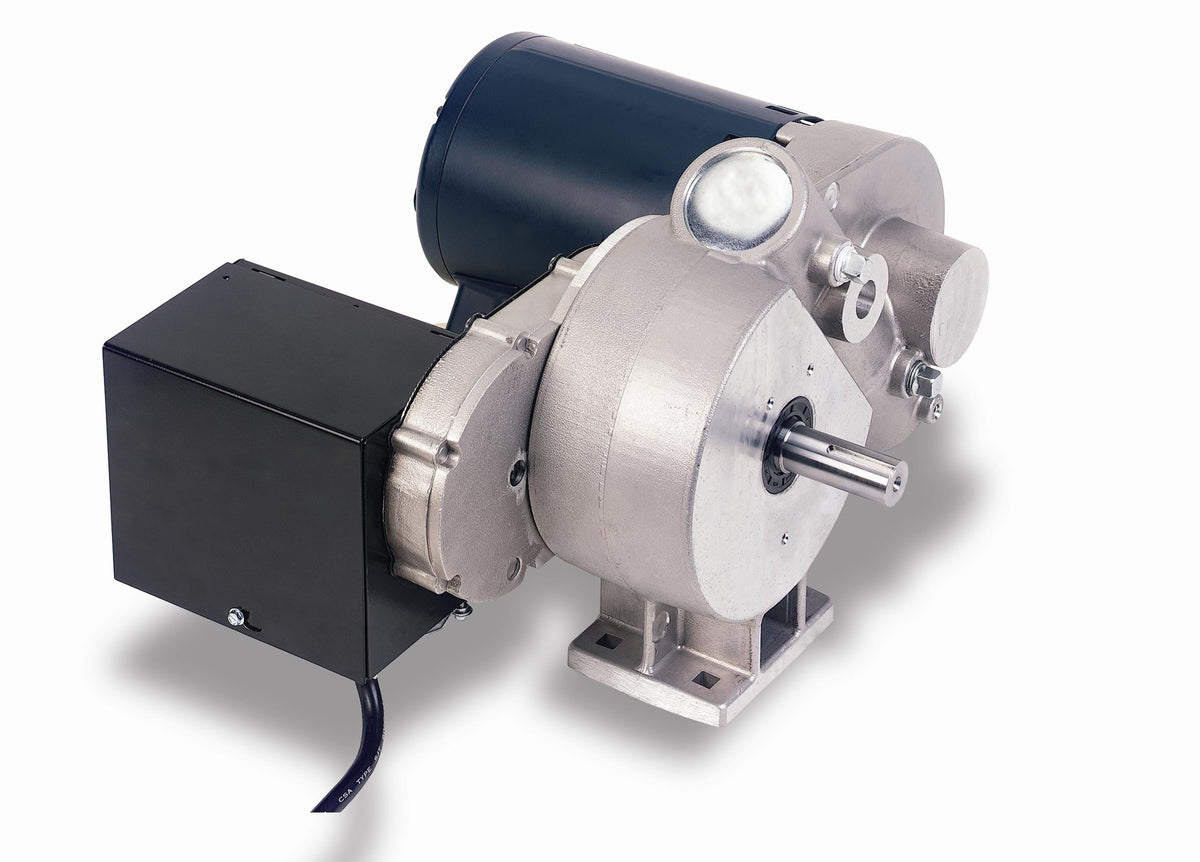

The Gared 4002 Electric Curtain Hoist is a motorized winch that raises and lowers gym divider curtains and multi-sport cages. It uses a 3/4 HP, 115 V AC, 60 Hz single-phase instant-reverse motor with thermal overload protection, a 200:1 double worm gear reduction rated to 2,700 in-lbs of torque, and a three-position momentary contact key switch. It is designed for use with Gared 4020 and 4030 divider curtains and the 4080 / 4080BL multi-sport cage.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The 4002 hoist is built around a 3/4 horsepower instant-reverse motor with thermal overload protection. The double worm gear design holds the curtain in any position in the event of a power failure, and the gear box is filled with oil and completely sealed at the factory, with precision ball bearings inside a machined aluminum gear case.

Operation is by a three-position momentary contact switch, which is included; rotary counting limit switches control raising and lowering, with heavy duty gear-driven upper and lower limits good for a maximum of 50 turns. The hoist is pre-wired and comes complete with a 6' cord, twist-lock L14-20 plug and L14-20 receptacle. The 4" receptacle box, conduits, wiring and other junction components are supplied by the electrical contractor.

The hoist may be mounted in any direction and weighs 47 lbs. The key switch must be located where the curtain is visible to the operator but not directly under the curtain. A wireless remote receiver or the TSC Total System Control can be added, sold separately. The unit is not to be used for lifting people, and is not recommended for lifting objects over people without a safety locking device or automatic fall arrester.

Specifications

Specification	Value
Model / SKU	4002
UPC	00842299106809
Motor	3/4 HP, 115 V AC, 60 Hz, single-phase, instant-reverse, thermally protected
Load Type	Vertical lifting
Maximum Load	2,700 in-lbs torque
Gear Reduction	200:1 with hardened metal worm gear, sealed gear case with precision ball bearings
Drive Drum	Double 1" diameter output shaft
Duty Cycle	10 minutes ON / 20 minutes OFF (standard)
Limit Switches	Heavy duty gear-driven upper and lower limit switches, maximum 50 turns
Gear Case	Precision machined aluminum
Control	Three-position momentary contact key switch included
Power Connection	6' power cord with twist-lock L14-20 plug; L14-20 receptacle included
Not Included	4" receptacle box, conduits, wiring and junction boxes (by electrical contractor)
Compatibility	4020 and 4030 divider curtains; 4080 and 4080BL multi-sport cage
Optional Controls	Wireless remote receiver or TSC Total System Control (sold separately)
Weight	47 lbs
Country of Origin	United States
Shipping Method	UPS

Compare Gared models

Safstop	Manual 1123	Winder 1119	Curtain 4002 THIS	Hoist 1194	Hoist 1197
Type Backstop safety lock (fall arrest)	Type Manual worm-gear backstop winch	Type Portable electric winder for manual winches	Type Electric divider curtain hoist	Type Electric backstop hoist with key switch	Type Electric backstop hoist with wireless receiver
Electrical None; no electricity required to operate	Electrical None; hand operated	Electrical 115-120 VAC, 60 Hz, 4.5 A, single phase	Electrical 115 VAC, 60 Hz, single phase	Electrical 110/115/120 VAC, 60 Hz, 1 PH, UL Listed	Electrical 110/115/120 VAC, 60 Hz, 1 PH dedicated circuit
Motor —	Motor —	Motor Heavy duty double insulated, 350 rpm max speed	Motor 3/4 HP instant reverse, thermally protected	Motor 3/4 HP min, 9.5 A, instant reversing, protected	Motor 3/4 HP, instant reversing, thermal overload
Load rating 1,000 lb free fall; tested to 1,750 lb	Load rating 1,000 lbs / 453.6 kg	Load rating —	Load rating 2,700 in-lbs maximum torque	Load rating 1,250 lbs continuous lift for 15 minutes	Load rating Up to 1,000 lbs
Gearing / drive Inertial or centrifugal lock, cast aluminum housing	Gearing / drive Semi-enclosed self-lubricating worm gear, 3/4" drive	Gearing / drive Geometric right-angle drive	Gearing / drive 200:1 hardened worm gear, sealed case	Gearing / drive 200:1 sealed worm gearbox, hardened metal gears	Gearing / drive 200:1 double worm gear box
Braking & limits Locks within 3" of belt travel; auto spring reset	Braking & limits Double self-locking worm gear, uni-directional brake	Braking & limits Reversing switch; no need to disengage winder	Braking & limits Gear driven upper/lower limit switches, 50 turns	Braking & limits Gear driven upper/lower limit switches, 55' max	Braking & limits Positive locking gearbox; thermal overload
Cable / belt & travel 2" nylon belt, 6,000 lb tensile, 35 ft max	Cable / belt & travel 1/4" aircraft cable (sold separately); grooved drum	Cable / belt & travel —	Cable / belt & travel Double 1" dia. output shaft drum	Cable / belt & travel 1/4" 7x19 cable (not supplied); 55' at 9.5 FPM	Cable / belt & travel —
Controls Automatic; yellow engagement warning indicator	Controls Removable handle with free turning sleeve	Controls Reversing switch, two handles, 8-ft cord	Controls 3-position momentary key switch included	Controls Key switch 1195-01-00 included; 6' L14-20 cord	Controls Wireless receiver + key switch; 1198 transmitter extra
Mounting / application Universal bracket for 3-1/2" or 4" O.D. tube	Mounting / application Wall mounted; wood mounting pad included	Mounting / application Portable; impact resistant hinged folding case	Mounting / application For 4020/4030 curtains, 4080 multi-sport cage	Mounting / application Steel frame hardware for 3.5" dia. tubing	Mounting / application Right side up or upside down; 3-1/2" pipe clamp
Duty cycle —	Duty cycle —	Duty cycle —	Duty cycle 10 minutes ON / 20 minutes OFF	Duty cycle 15 minutes ON / 20 minutes OFF	Duty cycle —
Ship Weight 19 lbs	Ship Weight 36 lbs	Ship Weight 18 lbs	Ship Weight 47 lbs	Ship Weight 77 lbs	Ship Weight 79 lbs
Best for Gyms adding required fall-arrest protection to overhead backstops.	Best for Facilities that raise folding backstops by hand without electrical service.	Best for Schools wanting to power existing manual winches with one portable tool.	Best for Gyms motorizing divider curtains or multi-sport cage systems.	Best for Facilities needing keyed electric operation of ceiling-suspended backstops.	Best for Multi-court gyms operating several backstops from one wireless transmitter.
$1,080.32	$1,166.00 $1,080.32	$1,794.00 $1,662.04	$708.00	$2,077.55	$2,742.36
Check ›	Check ›	Check ›	Viewing	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

5-Year Limited Warranty on the Model 4002 curtain electric hoist

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Which curtains does the 4002 hoist work with?

It is designed for use with Gared 4020 and 4030 divider curtains and the 4080 and 4080BL multi-sport cage.

What happens if the power fails while the curtain is moving?

The double worm gear design holds the curtain in any position in the event of a power failure.

What is included and what does the electrician supply?

The hoist ships pre-wired with a 6' cord, twist-lock L14-20 plug, L14-20 receptacle and a three-position momentary contact key switch. Conduits, wiring, junction boxes and the 4" receptacle box are supplied by the electrical contractor.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
