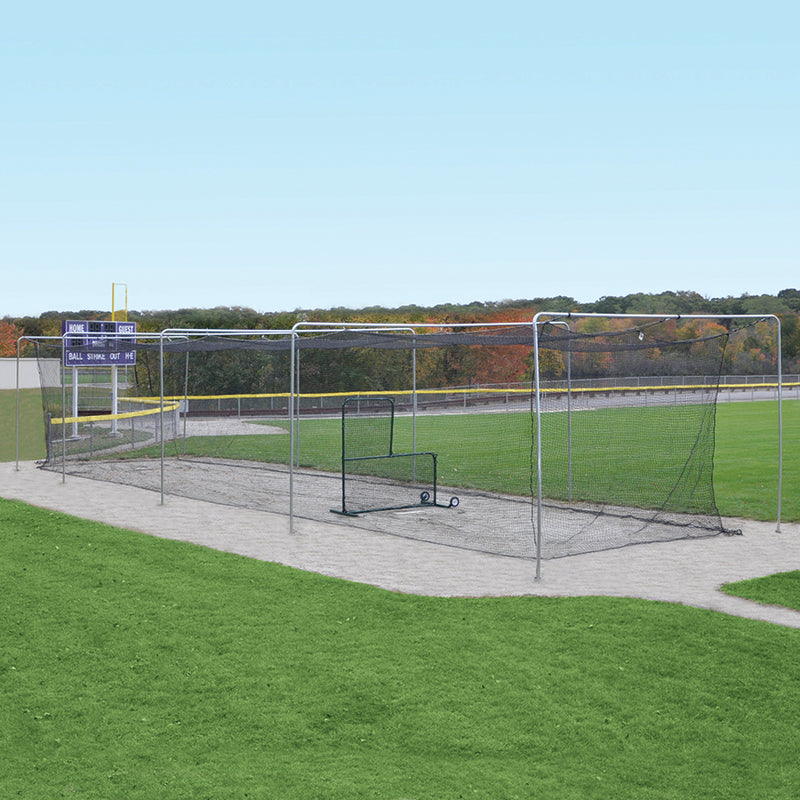

Jaypro Batting Tunnel Frame - Single (70 ft.) - Semi-Permanent (Outdoor)

See more by Jaypro

$4,868.00 - $4,868.00

$4,868.00

$4,868.00 - $4,868.00

$4,868.00

In stock

SKU: BBTF-70

Product Overview

In short

The Jaypro BBTF-70 is a semi-permanent outdoor batting tunnel frame for a 70'-0" long net, built from 2" O.D. galvanized steel tube with an overall frame length of 74'-0". Ground sleeves are included so the uprights can be lifted out in the off-season, and the net hangs on three rows of 3/16" galvanized aircraft cable adjusted with turnbuckles. It fits schools and clubs that want an outdoor cage that can be removed seasonally.

✓ Authorized Jaypro Dealer — ships brand-new with full manufacturer warranty & support

The BBTF-70 is the semi-permanent version of Jaypro's outdoor batting tunnel frame. Its 2" O.D. galvanized steel tube structure spans 74'-0" overall on 18'-6" bay spacing and carries a 70'-0" long net, giving a full-length hitting lane outdoors.

Ground sleeves are included and set in concrete over crushed stone with a 2'-0" embedment, so the uprights drop into place for the season and lift out afterward. The footing shown by the factory is a suggestion only and local building codes should be checked before the footings are poured.

The net hangs on three rows of 3/16" galvanized aircraft cable and is adjustable with turnbuckles. Sleeves accommodate both 12' and 14' wide nets, and 12" of excess net at the bottom keeps balls from rolling under the cage.

Specifications

Specification	Value
Model	BBTF-70
Type	Semi-permanent outdoor batting tunnel frame
Net Length	70'-0"
Overall Frame Length	74'-0"
Bay Spacing	18'-6" between uprights
Frame Material	2" O.D. galvanized steel tube
Net Suspension	3 rows of 3/16" galvanized aircraft cable
Net Tensioning	Adjustable with turnbuckle
Net Widths Accommodated	12'-0" or 14'-0" wide nets (sleeves included)
Net Height	11'-0"
Excess Net at Bottom	12" to prevent balls from rolling under
Mounting	Ground sleeves included, set in concrete
Ground Embedment	2'-0" imbed in ground
Footing Materials	Concrete over crushed stone (suggested footing, check local building codes)
Ship Weight	418 lbs
Ships Via	Freight truck (LTL)

Compare Jaypro models

SM 55 ft	SM 70 ft	Semi-Perm 55 ft	Semi-Perm 70 ft THIS
Model BBTFSM-55	Model BBTFSM-70	Model BBTF-55	Model BBTF-70
Net Length 55'-0" net	Net Length 70'-0" net	Net Length 55'-0" net	Net Length 70'-0" net
Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights	Overall Frame Length / Bays 59'-0"; 19'-8" spacing (three bays)	Overall Frame Length / Bays 74'-0"; 18'-6" between uprights
Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube	Frame Material 2" O.D. galvanized steel tube
Mounting Surface mount base plates; 1/2" anchors by others	Mounting Surface mount; 1/2" anchors by others	Mounting Semi-permanent; ground sleeves included	Mounting Semi-permanent; ground sleeves set in concrete
Ground Embedment / Footing —	Ground Embedment / Footing —	Ground Embedment / Footing 2'-0" imbed; Ø18" x 30" deep footing suggested	Ground Embedment / Footing 2'-0" imbed; concrete over crushed stone
Bracing Four adjustable brace pipes; angled pipe clamps	Bracing Four adjustable brace pipes (brace kit included)	Bracing —	Bracing —
Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable	Net Suspension 3 rows of 3/16" galvanized aircraft cable
Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included	Nets Accommodated 12'-0" or 14'-0" wide; 11'-0" high (11'-8" frame)	Nets Accommodated 12'-0" or 14'-0" wide, 11'-0" high; sleeves included
Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom	Net Tensioning & Bottom Overlap Turnbuckle adjustable; 12" excess net at bottom
Ship Weight 250 lbs	Ship Weight 250 lbs	Ship Weight 342 lbs	Ship Weight 418 lbs
Best for Programs adding a 55 ft. tunnel on an existing concrete pad without digging footings.	Best for Facilities wanting a full-length 70 ft. tunnel anchored to an existing slab.	Best for Schools and parks installing a compact in-ground 55 ft. batting tunnel.	Best for High school and college fields needing a permanent full-length 70 ft. tunnel.
$4,528.00	$5,640.00	$3,888.00	$4,868.00
Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

Jaypro Sports (Waterford, Connecticut) warrants its equipment against defects in material and workmanship from the date of shipment. Coverage length depends on the product line — where a specific period is listed above, that period applies to this model. Jaypro warranty periods run as follows:

Limited Lifetime – glass basketball backboards (GBAFR-48, GBRUB-42, GBRUB-54) against breaks and cracks in the glass when used with a direct goal mount.
25 years – structure of wall-mounted basketball backstops and Shooting Station systems.
10 years – uprights on FeatherLite, PowerLite and Hybrid Steel volleyball net systems.
7 years – Collegiate competition basketball goals (GBA-542 "Shot", GBA-642 "Revolution").
5 years – Revolution Series 180° flex basketball goals.
3 years – the majority of the catalog: fixed and breakaway basketball goals, aluminum backboards, lacrosse and field hockey goals, floor sleeves, sleeve reducers and floor anchors, referee stands and equipment carriers.
1 year – bases, home plates and pitching rubbers, volleyball nets and net accessories (antennas, boundary tape, court lines), batting cage systems and general accessories.

The warranty covers factory defects under normal, intended use. Jaypro will repair, replace or refund the defective item at its discretion; claims require a Return Authorization (RMA) before any item is sent back.

Not covered: normal wear, weather exposure, cosmetic damage that does not affect function, improper installation, use other than intended, and any unauthorized alteration or modification of the original factory configuration. As an authorized Jaypro Sports dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What does semi-permanent mean for this frame?

Ground sleeves are included and set in concrete, so the galvanized uprights can be removed from the sleeves when the tunnel is not in use instead of staying up year round.

What net does the BBTF-70 use?

The frame is designed for a 70'-0" long net and accommodates either 12' or 14' wide netting, with 12" of excess net at the bottom.

How deep are the ground sleeves set?

The factory detail shows a 2'-0" embedment into the ground with concrete over crushed stone. Local building codes should be verified before starting the footing.

Is JoySportStore an authorized Jaypro dealer?

Yes. JoySportStore is an authorized Jaypro Sports dealer, so every unit ships brand-new with the full Jaypro manufacturer warranty and factory-backed support.
