Product Overview

In short

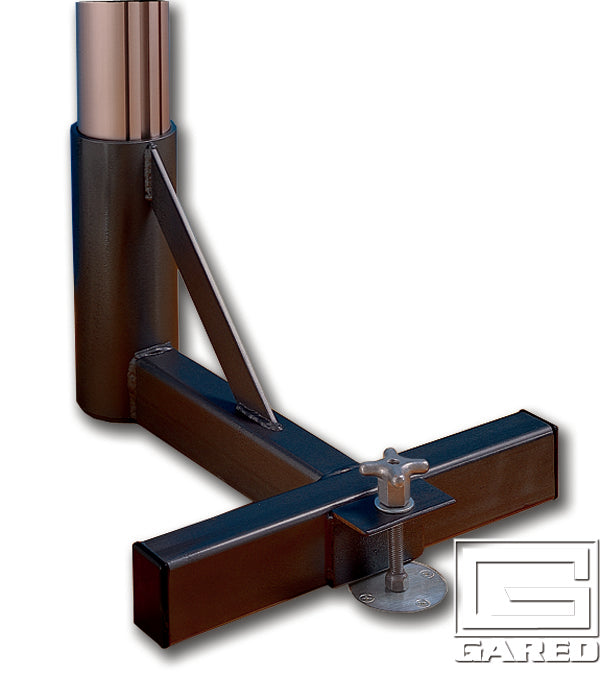

The Gared 6414 is a 3" above floor end T-base sleeve for volleyball posts, used where the sub-floor structure cannot accommodate a traditional in-ground floor sleeve. The welded tubular steel T-base is black powder coated, accepts a 3" [76.2 mm] diameter post, and includes 2" non-marking transport wheels and a floor anchor. It is compatible with Gared Volleyball Systems models 5000, 5100 and 5300.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

Above floor sleeves solve a specific problem: floors whose sub-structure will not take a traditional in-ground sleeve. The 6414 end T-base sits on the floor surface and locks to a floor anchor, so the system needs no dangerous guy cables or rigid supports. Its gross dimensions are 12" high x 20-1/8" long x 18" wide, and the sleeve I.D. is 3-1/16" [78 mm] to accept a 3" [76.2 mm] diameter volleyball post.

The base is welded steel tubing (2" [52 mm] x 3" [76 mm]) with a black powder coat finish, and 2" [52 mm] non-marking transport wheels are included for moving it between courts. It locks down with a 1/2" threaded rod on a hand knob that screws into the floor anchor. The anchor is included, but the style must be specified with the order: 151651460 Style BX, 151651461 Style B, 151651462 Style C or 151651463 Style E, depending on whether the floor is wood over concrete, concrete or synthetic over concrete, or floating wood on sleepers.

The 6414 is compatible with Gared Performance Sports Systems volleyball systems models 5000, 5100 and 5300; modification to in-ground post lengths will be required. It is sold as each. Related items include the 6415 center T-base with 3" sleeve for multi-court systems, the 6050 T-base pad set and the 6060 center T-base pad.

Specifications

Specification	Value
Model / SKU	6414
UPC	00842299107202
Post Compatibility	3" [76.2 mm] diameter volleyball post
System Compatibility	Gared Volleyball Systems models 5000, 5100 and 5300 (post length modification required)
Frame	2" [52 mm] x 3" [76 mm] welded tubular steel
Finish	Black powder coat
Gross Dimensions	12" high x 20-1/8" long x 18" wide
Sleeve I.D.	3-1/16" [78 mm]
Transport Wheels	2" [52 mm] non-marking
Floor Anchor	1/2" threaded rod on hand knob; floor anchor included, specify type with order
Anchor Styles Available	151651460 Style BX, 151651461 Style B, 151651462 Style C, 151651463 Style E
Accessories	6415 Center T-Base 3" Sleeve, 6050 T-Base Pad Set, 6060 Center T-Base Pad
Sold As	Each
Country of Origin	US
Shipping Weight	28 lbs / 12.7 kg
Shipping Method	UPS

Compare Gared models

3 in. Sleeve	3.5 in. Sleeve	4 in. Sleeve	3 in. T-Base THIS	3.5 in. T-Base	4 in. T-Base
Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve
Post Diameter Accepted 3 in. [76 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. posts, 3.96 in. [100.6 mm] I.D.	Post Diameter Accepted 3 in. [76.2 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. [101.6 mm] posts
Compatible Systems Gared 5000, 5100, 5300 series	Compatible Systems Gared 6000 and 6100 series	Compatible Systems Gared 7200 and 7300 series	Compatible Systems Gared 5000/5100/5300, post length mod required	Compatible Systems Gared 6000/6100, post length mod required	Compatible Systems Gared 7200/7300, post length mod required
Frame / Sleeve Depth 9 in. [229 mm] sleeve depth	Frame / Sleeve Depth 10 in. [254 mm] sleeve depth	Frame / Sleeve Depth 12 in. [355 mm] sleeve depth, 4 in. O.D.	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame
Overall Dimensions —	Overall Dimensions —	Overall Dimensions —	Overall Dimensions 12 in. H x 20-1/8 in. L x 18 in. W	Overall Dimensions 12 in. H x 20-3/4 in. L x 18 in. W	Overall Dimensions 12 in. H x 21-1/8 in. L x 18 in. W
Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees off vertical	Sleeve Angle —	Sleeve Angle —	Sleeve Angle —
Transport Wheels —	Transport Wheels —	Transport Wheels —	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included
Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in slab; 4-3/4 to 5 in. floor cutout	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor
Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat
Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA
Ship Weight 6 lbs	Ship Weight 8 lbs	Ship Weight 7 lbs	Ship Weight 28 lbs	Ship Weight 27 lbs	Ship Weight 27 lbs
Best for Gyms installing permanent in-floor sleeves for 3 in. volleyball posts.	Best for Facilities anchoring 3-1/2 in. competition posts in 6000/6100 systems.	Best for Arenas installing heavy-duty 4 in. posts from 7200/7300 systems.	Best for Venues that cannot cut the floor and need portable 3 in. post support.	Best for Schools needing above-floor end bases for 3-1/2 in. posts on protected floors.	Best for Multi-purpose facilities setting up 4 in. competition posts without floor sleeves.
$267.51	$267.51	$267.51	$600.00 $598.66	$600.00 $598.66	$600.00 $598.66
Check ›	Check ›	Check ›	Viewing	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

1-Year Limited Warranty against defects in material or factory workmanship

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

When should I use the Gared 6414 above floor T-base instead of an in-ground sleeve?

It is designed for facilities where the sub-floor structure is not adequate to accommodate the installation of a floor sleeve.

Is a floor anchor included with the 6414?

Yes, the floor anchor is included, but the style must be specified with the order: Style BX, B, C or E depending on the floor construction.

Which volleyball systems does it fit?

It accepts a 3" [76.2 mm] diameter post and is compatible with Gared volleyball systems models 5000, 5100 and 5300. Modification to post lengths will be required.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
