Gared Volleyball Floor Sleeve

See more by Gared

$267.51 - $267.51

$267.51

$267.51 - $267.51

$267.51

In stock

SKU: 6405

Product Overview

In short

The Gared 6405 is a heavy wall steel, powder-coated in-floor sleeve designed to receive 4" diameter (3.96" actual) volleyball uprights, specifically Gared 7200 and 7300 series posts. It allows uprights to be removed and stored flush with the court when not in use. The sleeve itself does not include a floor cover, which must be ordered separately.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

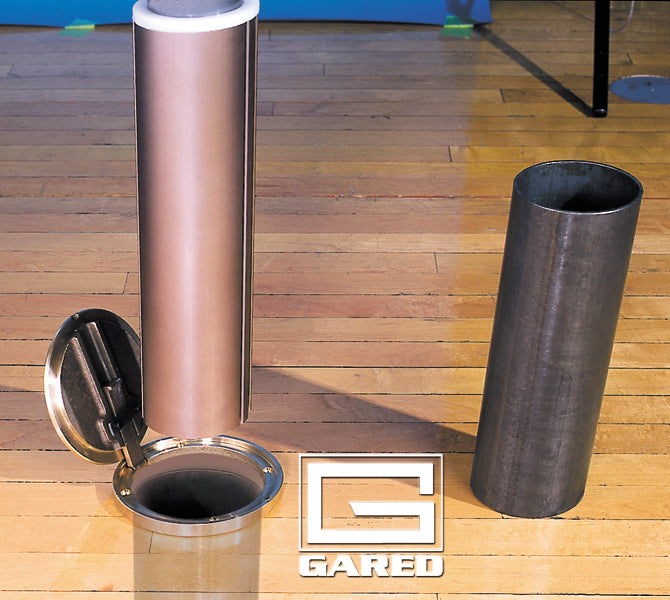

The Gared Volleyball Floor Sleeve (SKU 6405) is a permanent in-ground fixture constructed of heavy wall steel tubing with a powder coat finish. It is engineered for indoor facilities using floating or non-floating synthetic floors, providing a recessed anchor point so volleyball uprights can be removed and the court cleared for other activities.

The sleeve has a 4" outer diameter and accepts 3.96" (100.6 mm) diameter posts, matching Gared's 7200 and 7300 series volleyball systems. It is designed to be grouted in at a depth of 14" below the finished floor and is set at a 3° angle to compensate for post clearance and deflection when the net is tensioned during use.

Installation requires cutting a 4-3/4" to 5" diameter hole through the floor and concrete slab, anchoring the sleeve with non-shrink grout, and routing a 6-1/4" diameter, 9/16" deep counterbore for the floor plate/ring, which is secured with wood screws. A matching floor cover is required to finish the installation but must be purchased separately (see accessories 6422-6433).

Specifications

Specification	Value
Material	Heavy wall steel tubing
Finish	Powder coat
Country of Origin	US
Outer Diameter	4" OD
Inner Diameter	3.96" [100.6 mm] / 3 1/2" ID
Sleeve Depth	12" / 1'-2" [355 mm] typical
Post Depth Below Floor	14" [356 mm]
Sleeve Angle	3° off vertical
Compatible Uprights	4" diameter posts, Gared 7200 and 7300 series
Compatible Cutout (Floor & Slab)	4-3/4" to 5" diameter
Counter Bore for Floor Plate	6-1/4" diameter x 9/16" depth
SKU	6405
UPC	00842299107127
Ship Weight	7 lbs / 3.18 kg
Ship Dimensions (HxWxL)	8" x 11" x 0" / 8cm x 27.94cm x 0cm
Shipping Method	UPS
Accessories (sold separately)	6401 Second Story Floor Sleeve Adapter; 6422-6433 Floor Covers; Vinyl Cap

Compare Gared models

3 in. Sleeve	3.5 in. Sleeve	4 in. Sleeve THIS	3 in. T-Base	3.5 in. T-Base	4 in. T-Base
Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve
Post Diameter Accepted 3 in. [76 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. posts, 3.96 in. [100.6 mm] I.D.	Post Diameter Accepted 3 in. [76.2 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. [101.6 mm] posts
Compatible Systems Gared 5000, 5100, 5300 series	Compatible Systems Gared 6000 and 6100 series	Compatible Systems Gared 7200 and 7300 series	Compatible Systems Gared 5000/5100/5300, post length mod required	Compatible Systems Gared 6000/6100, post length mod required	Compatible Systems Gared 7200/7300, post length mod required
Frame / Sleeve Depth 9 in. [229 mm] sleeve depth	Frame / Sleeve Depth 10 in. [254 mm] sleeve depth	Frame / Sleeve Depth 12 in. [355 mm] sleeve depth, 4 in. O.D.	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame
Overall Dimensions —	Overall Dimensions —	Overall Dimensions —	Overall Dimensions 12 in. H x 20-1/8 in. L x 18 in. W	Overall Dimensions 12 in. H x 20-3/4 in. L x 18 in. W	Overall Dimensions 12 in. H x 21-1/8 in. L x 18 in. W
Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees off vertical	Sleeve Angle —	Sleeve Angle —	Sleeve Angle —
Transport Wheels —	Transport Wheels —	Transport Wheels —	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included
Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in slab; 4-3/4 to 5 in. floor cutout	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor
Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat
Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA
Ship Weight 6 lbs	Ship Weight 8 lbs	Ship Weight 7 lbs	Ship Weight 28 lbs	Ship Weight 27 lbs	Ship Weight 27 lbs
Best for Gyms installing permanent in-floor sleeves for 3 in. volleyball posts.	Best for Facilities anchoring 3-1/2 in. competition posts in 6000/6100 systems.	Best for Arenas installing heavy-duty 4 in. posts from 7200/7300 systems.	Best for Venues that cannot cut the floor and need portable 3 in. post support.	Best for Schools needing above-floor end bases for 3-1/2 in. posts on protected floors.	Best for Multi-purpose facilities setting up 4 in. competition posts without floor sleeves.
$267.51	$267.51	$267.51	$600.00 $598.66	$600.00 $598.66	$600.00 $598.66
Check ›	Check ›	Viewing	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

3-year warranty on materials/factory workmanship from date of installation; excludes improper install, misuse, and disasters.

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

What posts is the Gared 6405 floor sleeve compatible with?

It fits 3.96" (100.6 mm) diameter volleyball posts, specifically Gared 7200 and 7300 series uprights.

Does the 6405 sleeve include a floor cover?

No, a Floor Sleeve Cover (models 6422-6433) is required but sold separately.

How deep must the sleeve be installed below the floor?

The sleeve is designed for a post depth of 14" (356 mm) below the finished floor, set at a 3° angle.
