Gared Volleyball Floor Sleeve

See more by Gared

$267.51 - $267.51

$267.51

$267.51 - $267.51

$267.51

In stock

SKU: 6404

Product Overview

In short

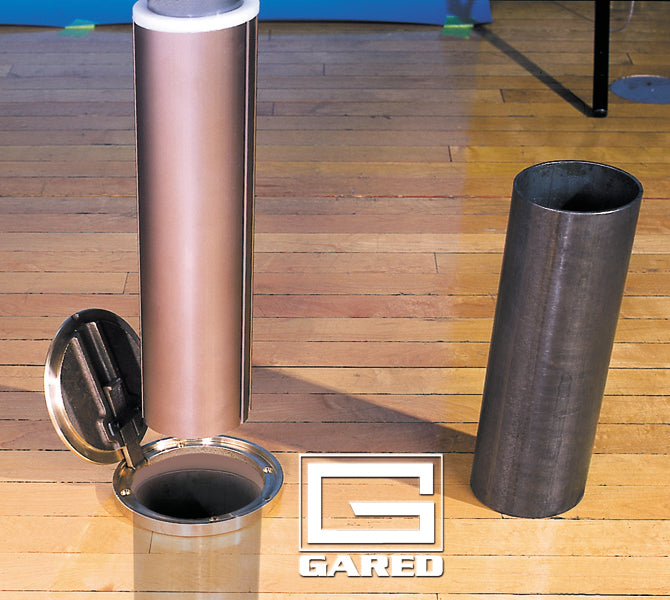

The Gared 6404 Volleyball Floor Sleeve is a heavy wall steel floor sleeve for 3" [76 mm] diameter volleyball posts, specified for Gared 5000, 5100 and 5300 series systems. It has a 9" [229 mm] depth and allows uprights to be removed and stored so the court can be used for other activities. A floor sleeve cover is required and sold separately.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

The 6404 is the 3" version of Gared's volleyball floor sleeve line. Built from heavy-gage steel, it supports the upright in an indoor facility while still letting crews pull the posts and clear the floor between events. Gared specifies it for 3" [76 mm] diameter posts used on its 5000, 5100 and 5300 series systems.

Construction is heavy wall steel tubing with a powder coat finish, with a 9" [229 mm] sleeve depth for floating and non-floating synthetic floors. The sleeve is set at a 3 degree angle to compensate for post clearance inside the sleeve and for post deflection when the net is tensioned. It is designed for a post depth of 11" [279 mm] below the finished floor with most floor types and is set in non-shrink grout supplied by others, with a typical grout depth of 1'-8" [508 mm] shown on the drawing.

A vinyl cap protects the sleeve opening, and a floor sleeve cover is required but ordered separately from the 6422-6433 range. The 6401 Second Story Floor Sleeve Adapter is available as an accessory, and custom length sleeves can be ordered under PN 604655323. The 6404 is made in the US and ships by UPS at 6 lbs.

Specifications

Specification	Value
Model / SKU	6404
UPC	00842299107110
Fits Posts	3" [76 mm] diameter volleyball posts
Compatible Series	Gared 5000, 5100 and 5300 series volleyball systems
Sleeve Depth	9" [229 mm]
Construction	Heavy wall steel tubing with powder coat finish
Sleeve Angle	Set at 3 degrees to compensate for post clearance and deflection under net tension
Designed Post Depth	11" [279 mm] below finished floor with most floor types
Floor Types	Floating and non-floating synthetic floors
Cap	Vinyl cap
Grout	Non-shrink grout by others, 1'-8" [508 mm] typical grout depth
Floor Cover	Required, sold separately (models 6422-6433)
Accessory	6401 Second Story Floor Sleeve Adapter; custom length sleeves PN 604655323
Material	Steel
Country of Origin	US
Shipping Weight	6 lbs / 2.72 kg
Shipping Method	UPS

Compare Gared models

3 in. Sleeve THIS	3.5 in. Sleeve	4 in. Sleeve	3 in. T-Base	3.5 in. T-Base	4 in. T-Base
Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve
Post Diameter Accepted 3 in. [76 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. posts, 3.96 in. [100.6 mm] I.D.	Post Diameter Accepted 3 in. [76.2 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. [101.6 mm] posts
Compatible Systems Gared 5000, 5100, 5300 series	Compatible Systems Gared 6000 and 6100 series	Compatible Systems Gared 7200 and 7300 series	Compatible Systems Gared 5000/5100/5300, post length mod required	Compatible Systems Gared 6000/6100, post length mod required	Compatible Systems Gared 7200/7300, post length mod required
Frame / Sleeve Depth 9 in. [229 mm] sleeve depth	Frame / Sleeve Depth 10 in. [254 mm] sleeve depth	Frame / Sleeve Depth 12 in. [355 mm] sleeve depth, 4 in. O.D.	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame
Overall Dimensions —	Overall Dimensions —	Overall Dimensions —	Overall Dimensions 12 in. H x 20-1/8 in. L x 18 in. W	Overall Dimensions 12 in. H x 20-3/4 in. L x 18 in. W	Overall Dimensions 12 in. H x 21-1/8 in. L x 18 in. W
Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees off vertical	Sleeve Angle —	Sleeve Angle —	Sleeve Angle —
Transport Wheels —	Transport Wheels —	Transport Wheels —	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included
Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in slab; 4-3/4 to 5 in. floor cutout	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor
Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat
Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA
Ship Weight 6 lbs	Ship Weight 8 lbs	Ship Weight 7 lbs	Ship Weight 28 lbs	Ship Weight 27 lbs	Ship Weight 27 lbs
Best for Gyms installing permanent in-floor sleeves for 3 in. volleyball posts.	Best for Facilities anchoring 3-1/2 in. competition posts in 6000/6100 systems.	Best for Arenas installing heavy-duty 4 in. posts from 7200/7300 systems.	Best for Venues that cannot cut the floor and need portable 3 in. post support.	Best for Schools needing above-floor end bases for 3-1/2 in. posts on protected floors.	Best for Multi-purpose facilities setting up 4 in. competition posts without floor sleeves.
$267.51	$267.51	$267.51	$600.00 $598.66	$600.00 $598.66	$600.00 $598.66
Viewing	Check ›	Check ›	Check ›	Check ›	Check ›

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

3-Year Limited Warranty against defects in material or factory workmanship

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Which posts does the Gared 6404 floor sleeve fit?

It is used with 3" [76 mm] diameter volleyball posts, specifically Gared 5000, 5100 and 5300 series models. For 3-1/2" posts use the 6400 sleeve instead.

How deep is the 6404 sleeve?

The sleeve is 9" [229 mm] deep and is designed for a post depth of 11" [279 mm] below the finished floor with most floor types.

Does the sleeve include a floor cover?

No. A floor sleeve cover is required and sold separately - Gared lists models 6422-6433. A vinyl cap is shown on the sleeve itself.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.
